Transporter-18 Rideshare: VSFB SLC-4E : 2026-10-01 18:32 UTC

LW2DTZ · October 3, 2026, 4:38pm

We have generated a provisional deployment-reference orbit from the OSSIE-D state vector provided at the start of the deployment sequence. The satellite should initially remain very close to the OSSIE-D orbital track, with increasing along-track separation after deployment

UTN-SAT DEPLOYMENT REF
1 99000U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9999
2 99000 97.4522 344.9997 0009668 294.8935 165.8770 15.22489276 14
UTN-SAT DEPLOYMENT REF
1 99001U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9990
2 99001 97.4522 344.9997 0008400 297.0769 163.6935 15.22189599 12
UTN-SAT DEPLOYMENT REF
1 99002U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9991
2 99002 97.4522 344.9997 0007149 300.0305 160.7399 15.21889923 12
UTN-SAT DEPLOYMENT REF
1 99003U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9992
2 99003 97.4522 344.9997 0005925 304.2205 156.5499 15.21590247 10
UTN-SAT DEPLOYMENT REF
1 99004U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9993
2 99004 97.4522 344.9997 0005211 307.6689 153.1015 15.21410441 16
UTN-SAT DEPLOYMENT REF
1 99005U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9994
2 99005 97.4522 344.9997 0004748 310.5370 150.2334 15.21290571 13
UTN-SAT DEPLOYMENT REF
1 99006U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9995
2 99006 97.4522 344.9997 0004300 314.0137 146.7567 15.21170700 17
UTN-SAT DEPLOYMENT REF
1 99007U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9996
2 99007 97.4522 344.9997 0003666 320.7803 139.9901 15.20990894 15
UTN-SAT DEPLOYMENT REF
1 99008U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9997
2 99008 97.4522 344.9997 0002790 338.3976 122.3728 15.20691218 10
UTN-SAT DEPLOYMENT REF
1 99009U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9998
2 99009 97.4522 344.9997 0002363 6.4062 94.3642 15.20391542 16
UTN-SAT DEPLOYMENT REF
1 99010U 26000A 26275.49178183 .00000000 00000-0 00000-0 0 9990
2 99010 97.4522 344.9997 0002614 36.4848 64.2856 15.20091865 10

dl7ndr · October 3, 2026, 4:50pm

Sure? IARU coordination says SF 8.

This means that once OSSIE deployed the DIY SATELLITE deployer, it deployed itself UTNH?

Would it be now a good time to publish the CW beacon format and how to decode the values into something meaningful (if they are not directly human readable) as requested by IARU?:

(..) operators of satellites in the amateur-satellite service must publish full details of their modulation, encoding and telemetry formats and equations before launch.

And how about QSL cards to confirm the requested receptions?

LW2DTZ · October 3, 2026, 4:57pm

yes is SF10.

dl7ndr · October 3, 2026, 5:04pm

Just use the TLE from OSSIE.

pe2bz · October 3, 2026, 5:13pm

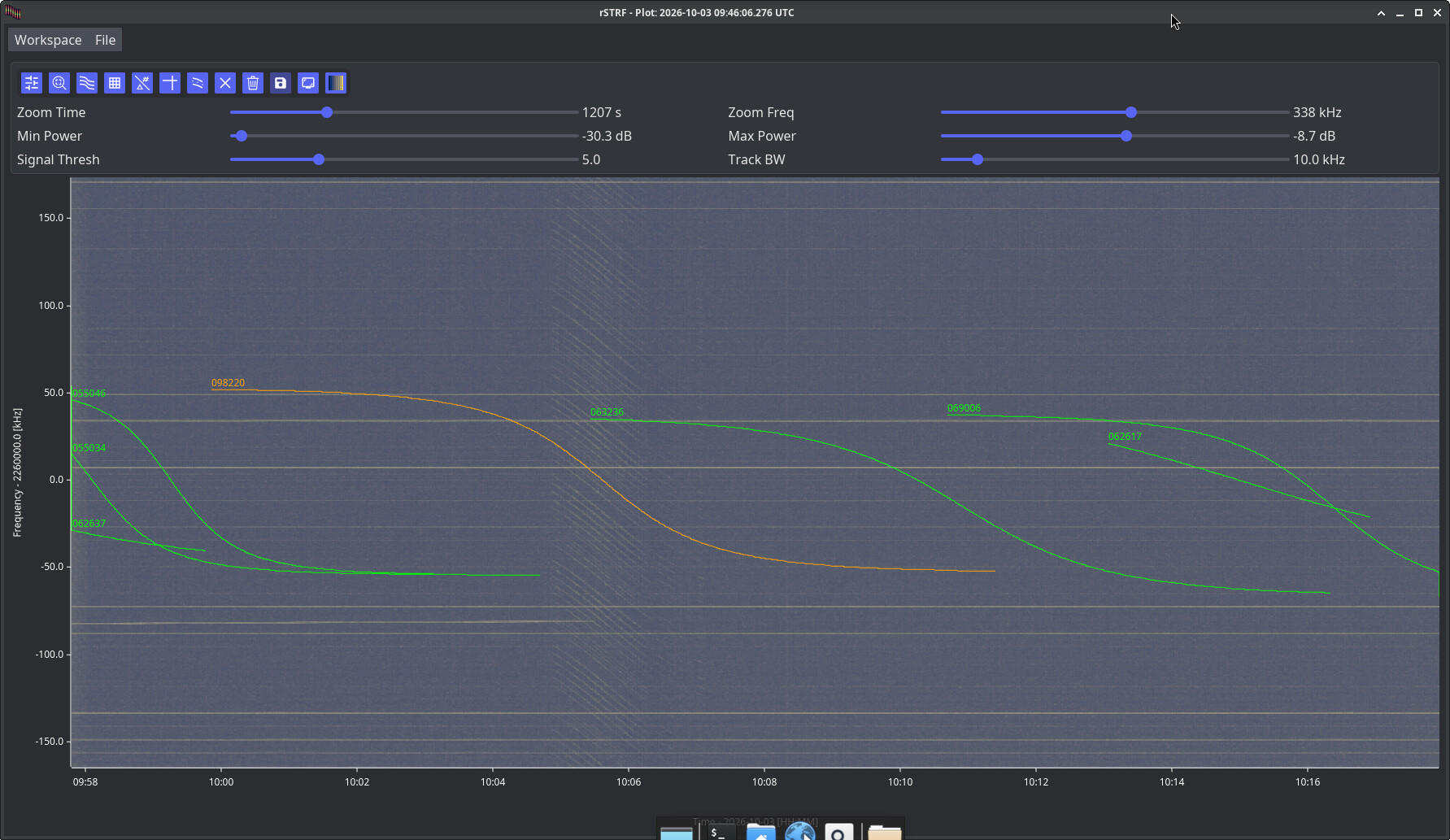

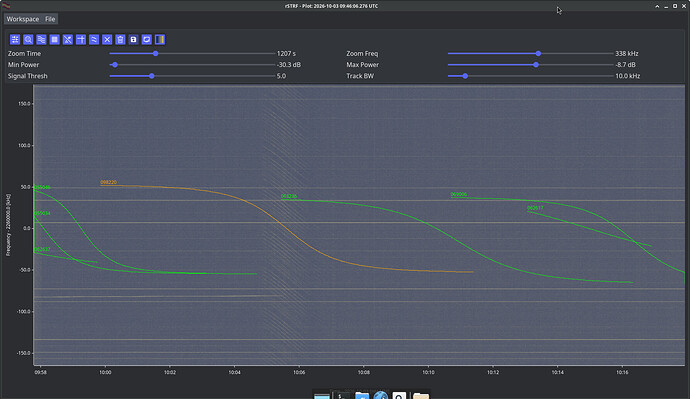

We have to keep in mind the object are close to each other still and can be mixed up either as object or as detected fit.

pe2bz · October 3, 2026, 5:19pm

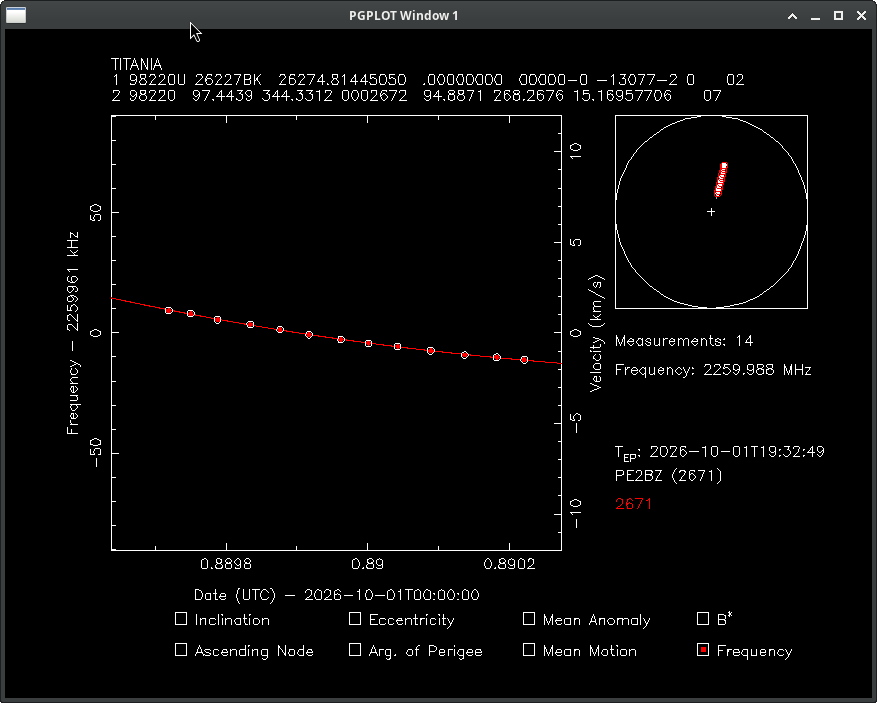

98220 Titania 2260 MHz ?

One day later still matching

pu4elt · October 3, 2026, 5:52pm

From AMSAT-EA (Source):

"AMSAT-EA satellites UNNE-1B and HADES-L were expected to have been deployed yesterday, October 2, at approximately 11:48UTC.

Downlinks:

UNNE-1B: 436.888 MHz
HADES-L: 436.665 MHz

Both carry voice repeaters. HADES-L features a 29 MHz uplink. Thanks for your support!"

sdoukos · October 3, 2026, 7:37pm

Hello everyone.

As you know (from what i see from other posts) the payload deployment sequence from Ossie has begun. It would be helpful if you could save IQ for SIDLOC. We need observations with at least 2Msps for offline processing. We will give more information of how you can upload the IQs if you don’t have something to host them.

UARX satellites will be added to the network around 06:00 UTC tomorrow.

K4KDR · October 3, 2026, 8:02pm

Greetings!

Unless I am missing it, I don’t see SIDLOC in the satellite list at the top of this thread nor on SatNogs.

Could we please get your downlink frequency, modulation & framing details, baud rate, and any other info needed for reception?

Also, if a sample I/Q or Audio file is available, it’s extremely helpful for us to test our hardware & software configurations to confirm that we are properly setup for a given satellite.

Thanks very much!

PE0SAT · October 3, 2026, 8:31pm

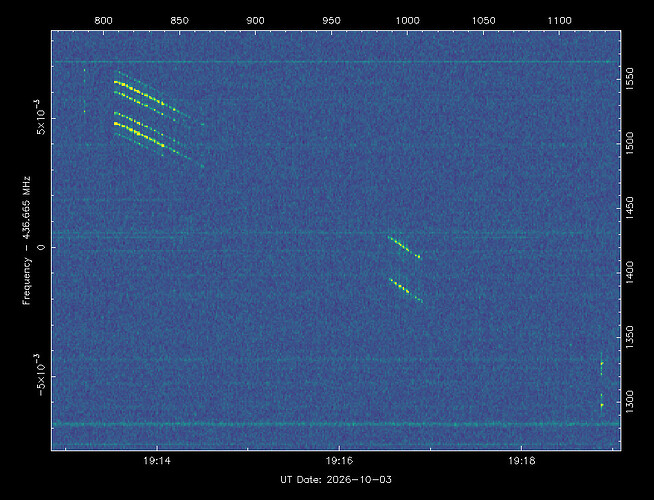

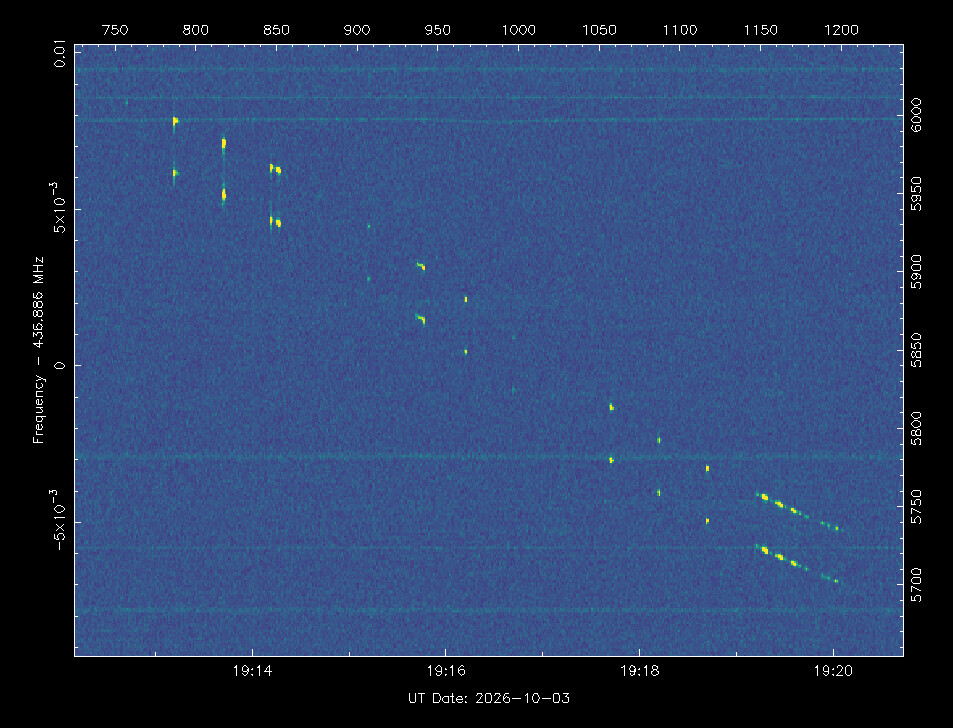

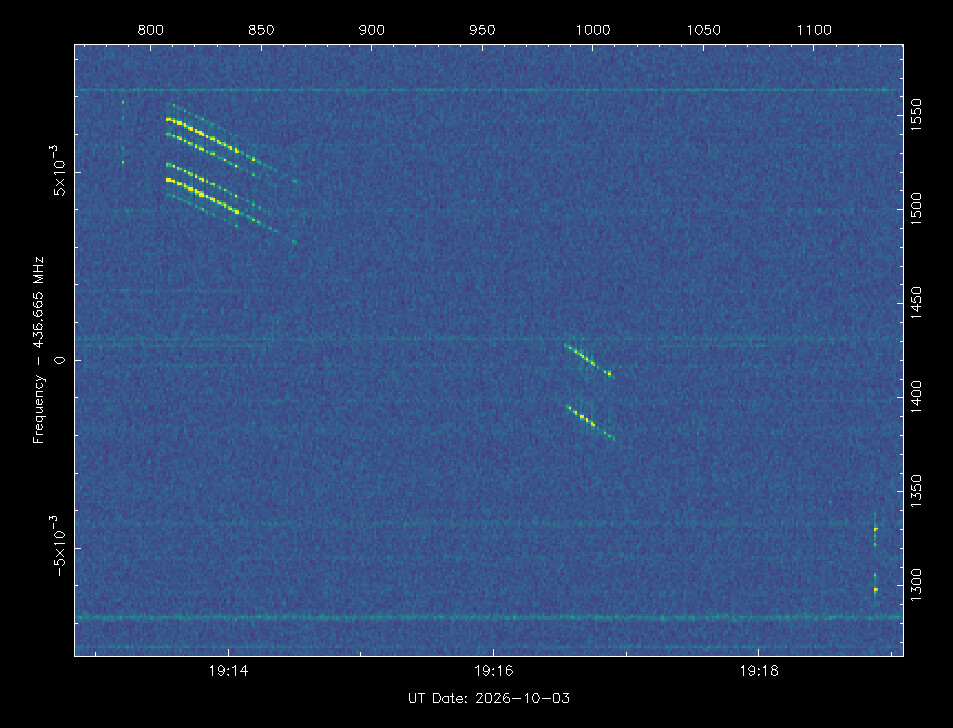

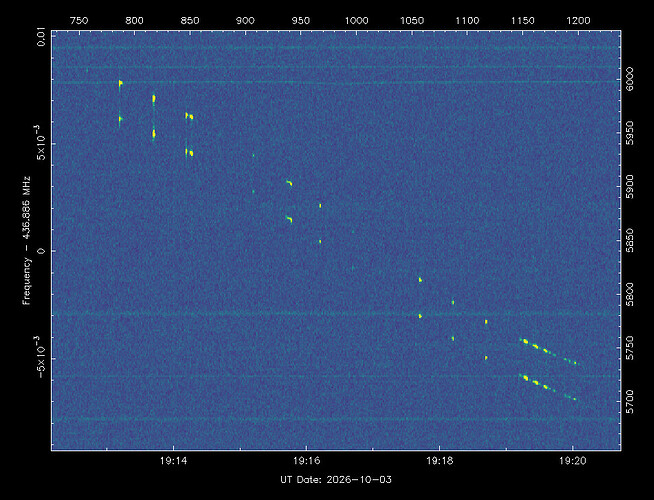

Both received over Europe.

Jan | PE0SAT

PE0SAT · October 3, 2026, 8:35pm

Hi Scott,

Some information on SIDLOC (Spacecraft Identification and Localization via broad-spectrum beacons) these are extra transmitters bolted on some of the T18 satellites.

Mayve @sdoukos can give some details on what satellites have a SIDLOC payload.

Jan | PE0SAT

K4KDR · October 3, 2026, 8:56pm

Thanks so much! This is new to me.

I’m reviewing this location now:

https://gitlab.com/librespacefoundation/ops-sat-sidloc

EU1SAT · October 3, 2026, 8:58pm

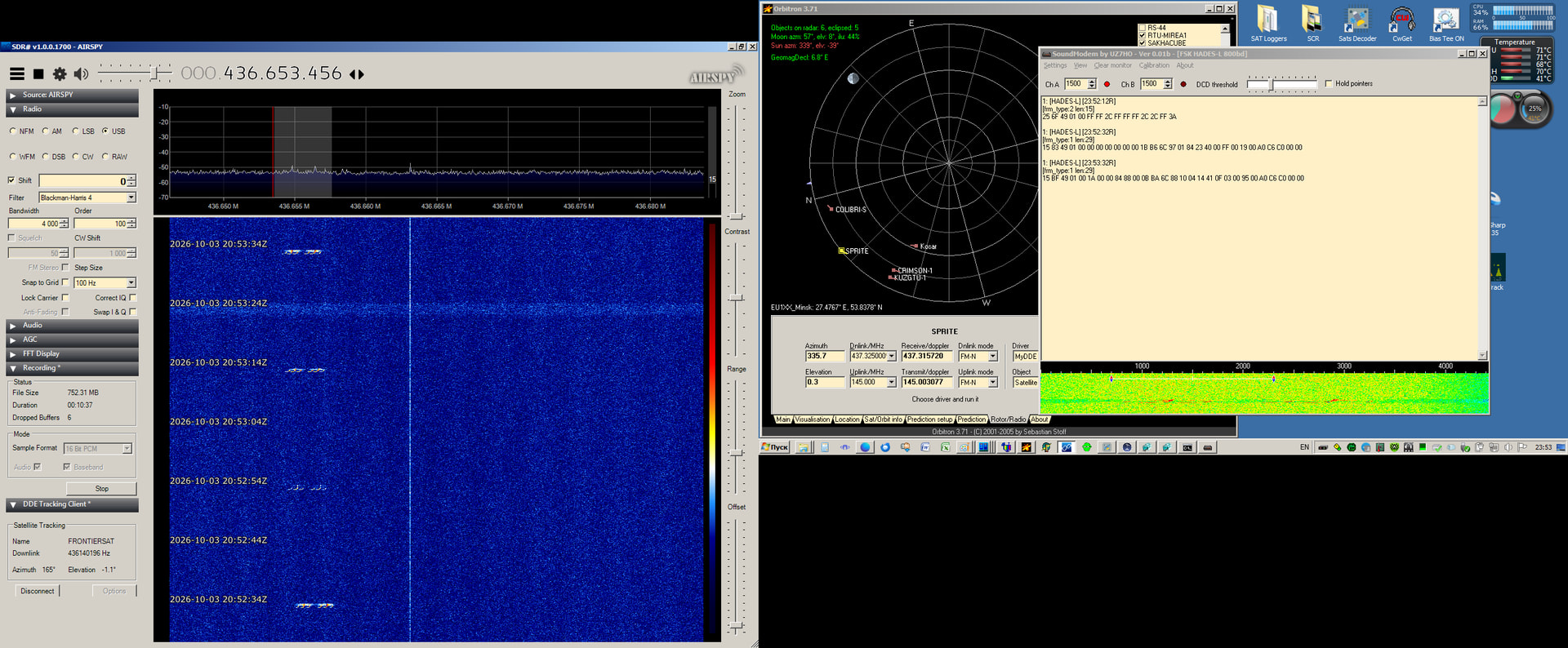

HADES-L Active and Demodulated!

EU1SAT · October 3, 2026, 9:13pm

Dear Contributors PLEASE create temporary ID for HADES-L and UNNE-1B !

DL4PD · October 3, 2026, 9:28pm

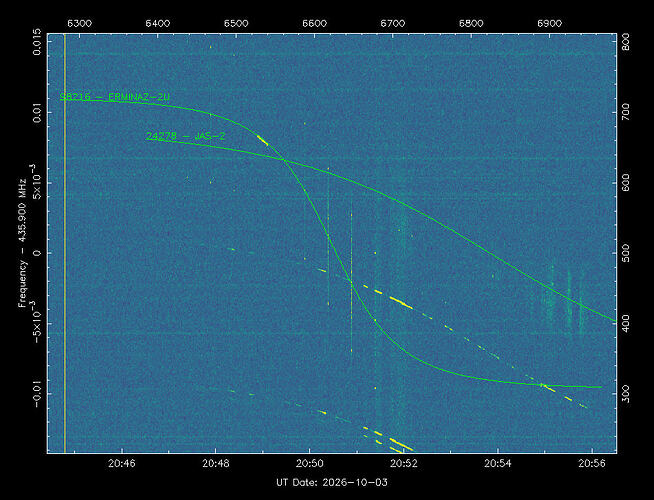

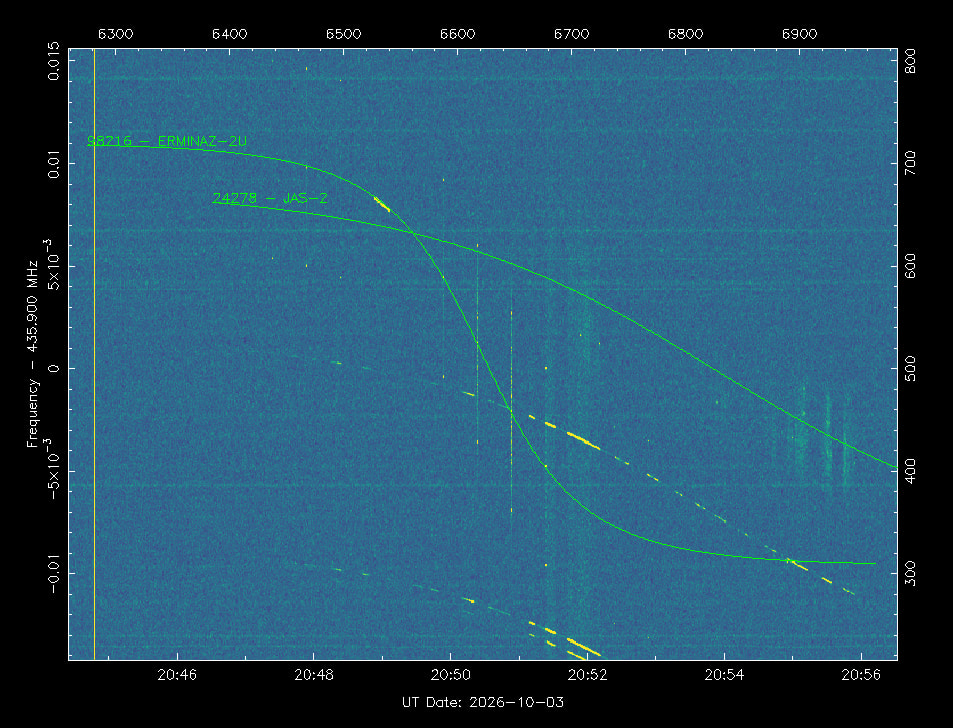

ERMINAZ-2V and ERMINAZ-2U also confirmed! @db2os @dl7ndr @PE0SAT

ERMINAZ-2X on 145.960 is still missing - if anyone wants to listen for it!

[Edit]: Sorry for mixing up -1V and -2V! Corrected…

PE0SAT · October 3, 2026, 9:36pm

I used my big thumb for a temporary Norad ID and created the following TLE.

ERMINAZ-2U
1 98216U 26227BL  26276.86910417  .00000000  00000-0 -12652-2 0    06
2 98216  97.4462 346.0229 0003041 135.4993 281.9203 15.16737441    02

Jan | PE0SAT

K4KDR · October 3, 2026, 9:58pm

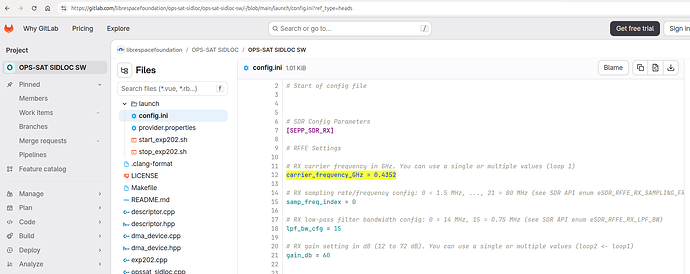

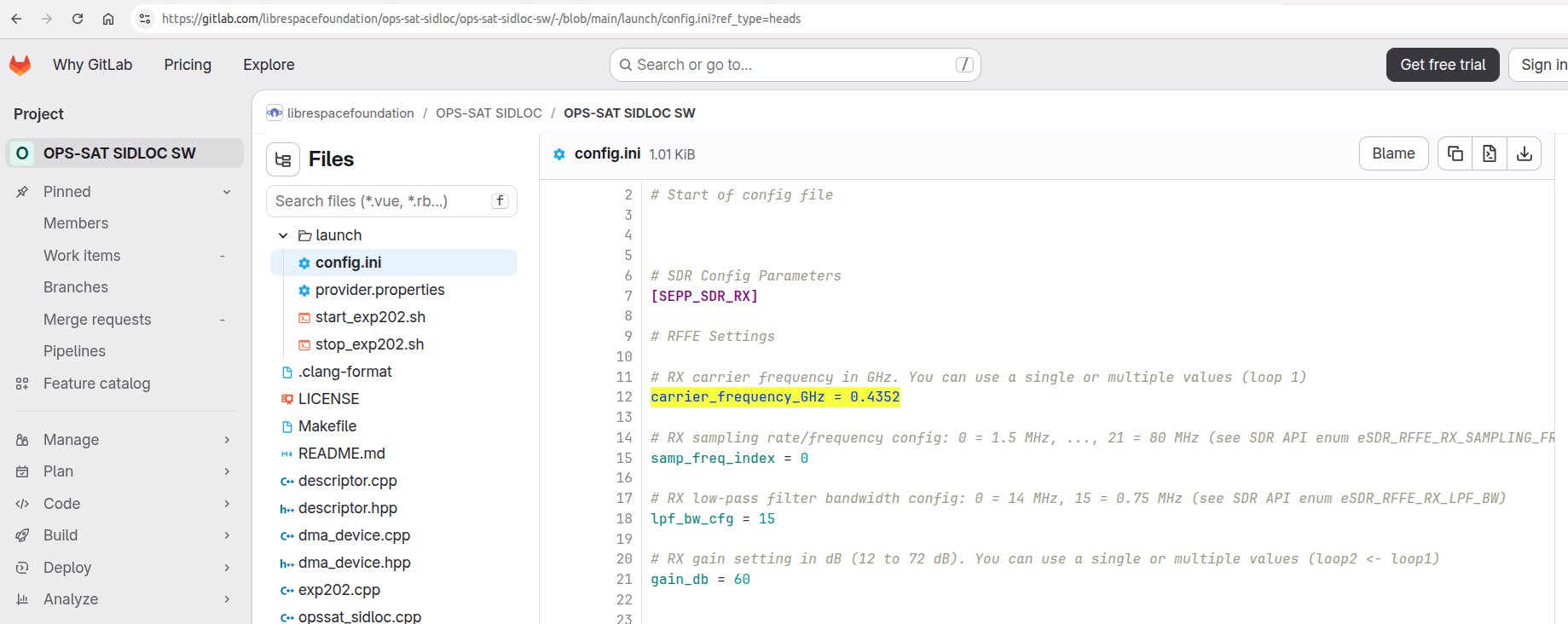

Regarding SIDLOC, I have no idea if these are the parameters being used on the Transporter-18 sats, but I did see a reference to 435.200 MHz in the repository.

Looking forward to hearing from someone associated w/ the project to find out which sats are equipped with this and what the RX parameters are. Thanks in advance!

dl7ndr · October 3, 2026, 10:00pm

2026-10-03 20:4x UTC

HADES-L

[frm_type:12 len:62]

C5 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

[frm_type:13 len:249]

D5 B9 48 26 74 7D E0 FF 87 B8 59 B7 A1 CC 24 57 5E 21 86 94 B8 A5 5F D8 AF F6 D8 C9 07 EF 5C 92 91 D5 B1 C4 A8 D9 F3 C5 B9 48 26 74 7D E0 FF 87 DC 06 4C 38 47 9D 9D 26 28 A3 32 CE 99 5D E9 97 B0 D5 39 0C 42 01 11 91 D5 B1 C4 A8 D9 F3 C5 30 BA 48 41 1E 1C 92 D9 F5 4D 32 D4 77 5F BB 64 FD A4 9B F2 D4 28 9D 97 B0 D5 39 0C 42 01 11 7F B4 48 74 4B BD 8E 23 F3 03 6C 1E AB CF 4D 71 A2 FE 96 29 8C 06 65 64 FD A4 9B F2 D4 28 9D 3A 7A BB 83 43 FB 61 38 4B DD 56 76 3B DE A2 5A 0D DB 58 2E F8 F3 4D 71 A2 FE 96 29 8C 06 65 6D 54 65 63 BD 12 28 61 CF C8 68 00 37 D2 13 65 CE 07 74 F5 28 15 5F 5A 0D DB 58 2E F8 F3 4D D3 F7 9B 3A 26 B7 27 32 5C CB 55 C1 50 EE C5 DC 2C DB D0 E6 12 2B AF 25 CE 07 74 F5 28 95 5F CF 55 49 16 7C 2F DE 47 9F 49 F0 00 F4 50 71

[frm_type:13 len:249]

D5 A9 48 26 74 7D E0 FF 87 B8 59 B7 A1 CC 24 57 5E 21 86 94 B8 A5 5F D8 AF F6 D8 C9 07 EF 5C 92 91 D5 B1 C4 A8 D9 F3 C5 B9 48 26 74 7D E0 FF 87 DC 06 4C 38 47 9D 9D 26 28 A3 32 CE 99 5D E9 97 B0 D5 39 0C 42 01 11 91 D5 B1 C4 A8 D9 F3 C5 30 BA 48 41 1E 1C 92 D9 B5 4D 32 D4 77 5F BB 64 FD A4 9B F2 D4 28 9D 97 B0 D5 39 0C 42 01 11 7F B4 48 74 4B BD 8E 23 F3 43 6C 1E AB CF 6D 71 22 FE 96 29 8C 86 65 64 FD AC 9B F2 94 39 9D 2B 7A B9 83 51 6E 61 30 4B B2 B4 EE 39 4E AA 58 45 3D 58 5F FB F8 C0 F9 D1 DD 0A 1E CC 53 93 A6 6B 7B D3 77 91 A0 50 B7 E4 30 8C 2D F5 85 50 63 21 DD 3D CA 05 45 D6 82 F2 D6 0B BE 35 D3 74 ED C6 CE 89 AD C1 CC 97 32 D5 70 54 3B B1 77 4B 36 F4 39 84 8A EB C9 73 81 DD 3D 4A 05 57 F7 D5 52 45 9F 0B F7 90 E7 D2 7C 00 3D 14 1C

[frm_type:13 len:249]

D5 B9 48 26 74 7D E0 FF 87 B8 59 B7 A1 CC 24 57 5E 21 86 94 B8 A5 5F D8 AF F6 D8 C9 07 EF 5C 92 91 D5 B1 C4 A8 D9 F3 C5 B9 48 26 74 7D E0 FF 87 DC 06 4C 38 47 9D 9D 26 28 A3 32 CE 99 5D E9 97 B0 D5 39 0C 42 01 11 91 D5 B1 C4 A8 D9 F3 C5 30 BA 48 41 1E 1C 92 D9 F5 4D 32 D4 77 5F BB 64 FD A4 9B F2 D4 28 9D 97 B0 D5 39 4C 42 01 11 7F B4 48 74 4B BD 8E 23 F3 03 6C 1E AB CF 4D 71 A2 F6 96 29 8C 06 65 64 FD A4 9B F2 D4 28 9D 3A 7A BB 83 43 F9 61 38 47 DD 56 76 3B DE A2 5A 0C DB 69 2E 78 F3 49 71 A2 EE 96 29 9C 46 65 25 54 65 61 BD 32 28 60 CF C8 68 80 37 D2 97 25 CE 17 54 F5 28 15 5B 5A 0D DB 58 2E F8 F3 4D D3 D2 9F 3A 26 B7 07 32 58 CB 55 C1 51 EE C5 DC 38 DB D2 E6 12 2B 2E 25 CE 07 74 E5 28 15 5F DF 55 49 56 7C 2F 5E 43 9F 49 F0 00 F4 50 61

UNNE-1B
transmitted also in 800 bps @ 1600 Hz spacing.
The provided modem is for 200 bps @1152 Hz according to the documentation.

ERMINAZ-2U

And also 9k6 but unable to decode because of already too weak signal near LOS.

No signals from SanoSat-2 and UTNH (also no LoRa 90 minutes earlier on a 5° pass).

jp_polito · October 3, 2026, 10:11pm

Hi everyone!

Orbital Temple was launched on Transporter-18 and deployed today, and it is currently flying very close to HADES and the other satellites released in the same deployment. Since identification in the first days is always tricky, any help from the SatNOGS community to track and receive its signals would be greatly appreciated!

Downlink parameters (LoRa):

Frequency: 468.5 MHz
SF9, BW 125 kHz, CR 4/7
CRC on
LDRO off
IQ not inverted
Explicit header, sync word 0x12, preamble 8

If you manage to receive anything, please share your observation link or raw data here. That will help us confirm which object is ours and refine the TLE.

Happy to answer any questions.

Thanks 73!

João

dl7ndr · October 3, 2026, 10:32pm

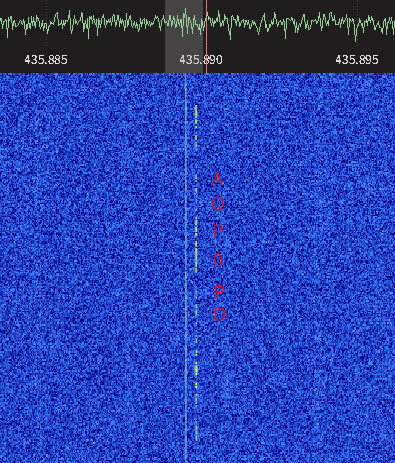

2026-10-03 22:24:51 UTC

ERMINAZ-2U (DP0PQA)
