Hi from the Apolink team!
When y’all get the chance, would it be possible to get new contacts for this TLE?
1 88205U 26195.72547176 +.00000649 +00000+0 +71784-4 0 00186
2 88205 97.7526 96.0462 0005177 86.5628 273.6183 14.90703627001104
Still nothing yet, hoping to see us soon.
Thanks,
-The Apolink team
The Transporter-17 mission just keeps on giving!

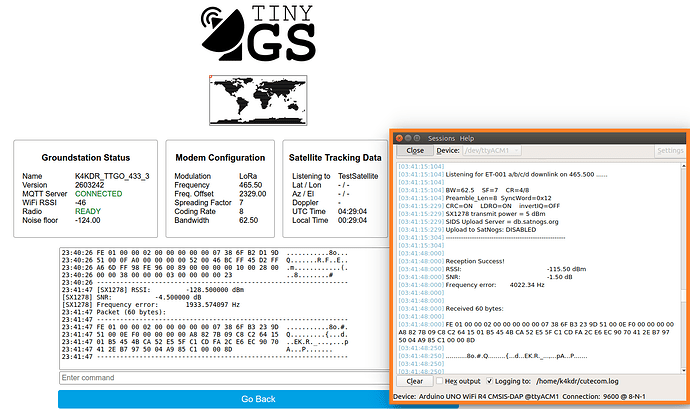

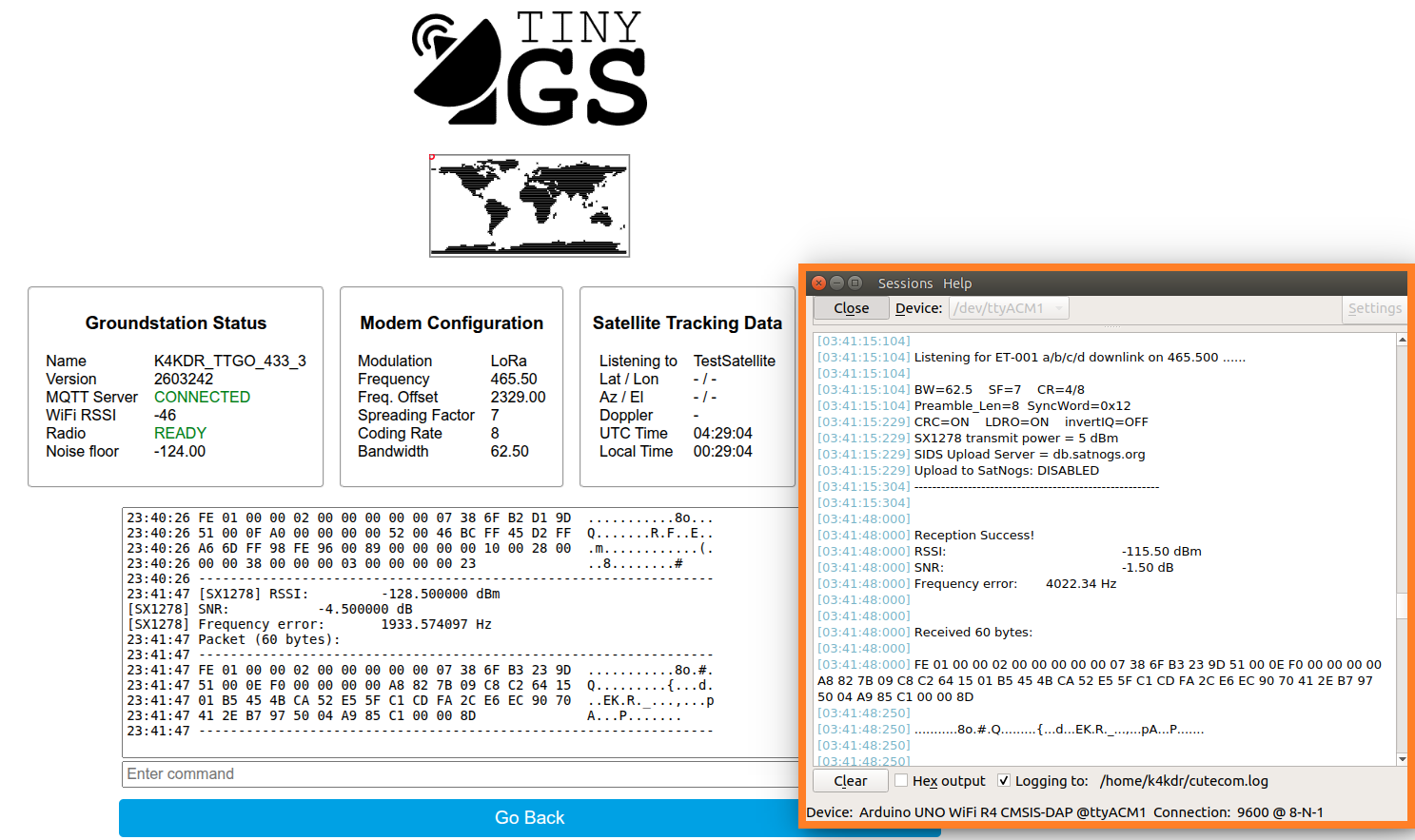

The Team behind the ET-001 constellation (ET-001 A, B, C, & D) shared RX details in time for the capture of 62k5 LoRa downlinks from -2- of them tonight on 465.500 MHz.
… the preliminary TLE in-use is:
ET-001x
1 88259U 26195.98672982 +.00008067 +00000+0 +79719-3 0 00173
2 88259 97.7523 96.3192 0009776 120.4374 239.7812 14.92147550001143
… and the KSY file for them is:
et01_v00a.ksy.txt (2.2 KB)
I posted additional pictures on twitter/x @ https://x.com/scott23192/status/2077620198937407691
UPDATE: on my westerly pass tonight, I also heard from ET-001C
Hi Brano,
Congratulations, you are the first one for the UHF digipeater!
And thanks for pointing me to this wrong message.
I’ve corrected it on the digipeater dashboard. It now shows your callsign.
As for the UHF digipeater, I’ve tried it many times along with the one from KOSTKA without success.
It seems to be the same for me like with GRBBeta. VHF is very sensitive, but UHF is hard to come by with my capabilities.
Anyway, I’m looking forward to get a contact with you via both digis some day.
73
Daniel
Same here… my uplinks decode perfectly w/ an in-house receiver SDR, but no luck w/ 9k6 LEO sats. I’ve made all kinds of audio & RF adjustments but nothing has helped so far.
From analysis from teams and @PE0SAT we have these updates:
KOSTKA 88269
Marina 88229
IPoS-TDsM 88205
And here are the TLE based on analyst list of space-track.org changed to use temporary NORAD IDs:
IPoS-TDsM
1 98287U 26195.72547176 +.00000649 +00000+0 +71784-4 0 00187
2 98287 97.7526 96.0462 0005177 86.5628 273.6183 14.90703627001105
KOSTKA
1 98395U 26195.64976504 +.00001260 +00000+0 +12828-3 0 00193
2 98395 97.7491 95.9889 0011240 124.0724 236.1564 14.92462277001090
Marina
1 98293U 26195.71911670 +.00000754 +00000+0 +79899-4 0 00167
2 98293 97.7540 96.0559 0008855 125.0400 235.1651 14.91990664001190
For MARINA we use still 88254, resulting TLE:
MARINA
1 98293U 26196.92657266 +.00001195 +00000+0 +12350-3 0 00189
2 98293 97.7533 97.2428 0008847 119.4506 240.7596 14.91949272001284
Thanks Daniel, I tried today KOSTKA digipeater with the same setup, pass, strategy and “technically” success arrived (1 message repeated), but it was not so easy like with MARINA. Also I didn’t receive the repeated message, but (some) other station. However, the digipeater itself could be considered as “verified”. Perhaps it’s time to create KOSTKA’s section in Digipeater dashboard.
73 Brano OM1ATB
Thanks for testing, and again congratulations, Brano!
Looking at your antenna array, I guess I’ll never make it with my simple setup ):
I’m still waiting for an update of KOSTKA’s decoder from @ok2fis .
Currently it decodes only the telemetry beacons (with last digipeater user and last digipeater count).
Once the new version is online, I’ll add KOSTKA to the digipeater dashboard.
73
Daniel
Sorry for the delay. I will hopefully push the update during the weekend.
Hi from the Apolink team
Current TLE update:
1 88205U 26196.93370045 +.00000694 +00000+0 +76284-4 0 00202
2 88205 97.7524 97.2325 0005160 83.7850 276.3956 14.90705233001283
Still nothing yet! If we can get more contacts that would be great!
Thanks,
The apolink team!
Unknown 1 T17 (98259)
I was able to match it’s TLE set:
1 98259U 26194.91865210 +.00001488 +00000+0 +15610-3 0 00163
2 98259 97.7581 95.2617 0005175 106.4647 253.7140 14.91010768000984
to object 88214 in the space-track TLE file 26197_88202-88234_TLE.txt
| NORAD | Radial (km) | Along-track (km) | Cross-track (km) | R+N combined |
|---|---|---|---|---|
| 88214 | 0.102 | −0.308 | −0.017 | 0.103 |
| 88237 | −0.161 | −87.538 | −0.030 | 0.164 |
| 88215 | 0.267 | 37.489 | 0.107 | 0.288 |
| 88239 | −0.164 | 6.505 | 0.664 | 0.684 |
| 88236 | −0.229 | −50.284 | 0.680 | 0.718 |
Propagated the target (98259) and all candidates from the space-track TLE file to the target’s own epoch (2026-day-194.919) via SGP4, then decomposed the position residual into the target’s RTN (or RIC) frame.
Unknown 2 T17 (98257)
I was able to match it’s TLE set:
1 98257U 26194.91878597 +.00000266 +00000+0 +32461-4 0 00160
2 98257 97.7587 95.2617 0004834 107.3192 252.8556 14.90972435000982
to object 88237 in the space-track TLE file 26197_88236-88277_TLE.txt
| NORAD | Radial (km) | Along-track (km) | Cross-track (km) | R+N combined |
|---|---|---|---|---|
| 88237 | 0.155 | −0.115 | −0.030 | 0.158 |
| 88214 | −0.680 | 87.116 | −0.018 | 0.680 |
| 88236 | −0.390 | 37.145 | 0.668 | 0.773 |
| 88244 | −0.772 | −128.835 | 0.300 | 0.829 |
| 88215 | −0.984 | 124.904 | 0.105 | 0.989 |
Propagated the target (98257) and all candidates from the space-track TLE file to the target’s own epoch (2026-day-194.919) via SGP4, then decomposed the position residual into the target’s RTN (or RIC) frame.
Unknown 3 T17 (98255)
I was able to match it’s TLE set:
1 98255U 26195.71723136 +.00001334 +00000+0 +13575-3 0 00177
2 98255 97.7561 96.0597 0010651 125.6582 234.5631 14.92377320001108
to object 88267 in the space-track TLE file 26197_88236-88277_TLE.txt
| NORAD | Radial (km) | Along-track (km) | Cross-track (km) | R+N combined |
|---|---|---|---|---|
| 88267 | 0.085 | −0.332 | −0.010 | 0.085 |
| 88268 | −0.299 | 74.634 | 0.002 | 0.299 |
| 88265 | −0.971 | −126.769 | 0.261 | 1.005 |
| 88264 | −0.994 | −154.049 | −0.172 | 1.009 |
| 88266 | −0.869 | −109.351 | 0.727 | 1.133 |
Propagated the target (98255) and all candidates from the space-track TLE file to the target’s own epoch (2026-day-195.717) via SGP4, then decomposed the position residual into the target’s RTN (or RIC) frame.
Latest TLE for MARINA:
MARINA
1 98293U 26197.86552251 +.00001265 +00000+0 +13045-3 0 00204
2 98293 97.7531 98.1666 0008891 116.9138 243.2990 14.91951695001422
TLE updates from the latest analyst list, unfortunately due to some time off and traveling I haven’t managed to perform any analysis the last days, if there is any update that I miss, please let me know to update TLE in DB. I’ve added in the latest updates as noted in the previous posts:
IPoS-TDsM
1 88205U 26197.87343267 +.00000694 +00000+0 +76273-4 0 00222
2 88205 97.7522 98.1552 0005141 81.6907 278.4894 14.90706522001424
KOYO
1 88207U 26197.87254776 +.00001302 +00000+0 +13782-3 0 00255
2 88207 97.7526 98.1571 0004641 94.1957 265.9791 14.90848936001422
Unknown 1 T17
1 88214U 26196.86484005 +.00001515 +00000+0 +15872-3 0 00215
2 88214 97.7576 97.1746 0005202 101.5910 258.5892 14.91016501001273
Kita-36
1 88226U 26197.86915903 +.00001367 +00000+0 +14247-3 0 00248
2 88226 97.7548 98.1639 0006900 105.8305 254.3675 14.91382019001428
ANDURIL-216
1 88227U 26197.86816372 +.00000607 +00000+0 +66096-4 0 00212
2 88227 97.7558 98.1670 0007148 110.5245 249.6741 14.91530907001428
Kita-53
1 88227U 26197.86816372 +.00000607 +00000+0 +66096-4 0 00212
2 88227 97.7558 98.1670 0007148 110.5245 249.6741 14.91530907001428
CloudCT-Precursor
1 88234U 26197.87107044 +.00000595 +00000+0 +65640-4 0 00221
2 88234 97.7532 98.1594 0006170 95.9759 264.2163 14.91075382001425
SCION-X
1 88236U 26197.87161459 +.00000963 +00000+0 +10302-3 0 00215
2 88236 97.7498 98.1552 0005736 92.7502 267.4373 14.90991668001421
Unknown 2 T17
1 88237U 26197.87169871 +.00000829 +00000+0 +89535-4 0 00229
2 88237 97.7581 98.1644 0004878 101.1674 259.0093 14.90977339001423
SUCHAI-4
1 88245U 26197.87354441 +.00000726 +00000+0 +79601-4 0 00237
2 88245 97.7545 98.1575 0003666 96.6762 263.4873 14.90689407001426
TOM-1
1 88245U 26197.87354441 +.00000726 +00000+0 +79601-4 0 00237
2 88245 97.7545 98.1575 0003666 96.6762 263.4873 14.90689407001426
MARMOTSat
1 88247U 26197.87228856 +.00000804 +00000+0 +87184-4 0 00231
2 88247 97.7588 98.1630 0004172 109.3642 250.8028 14.90886653001423
TOM-2
1 88247U 26197.87228856 +.00000804 +00000+0 +87184-4 0 00231
2 88247 97.7588 98.1630 0004172 109.3642 250.8028 14.90886653001423
TOM-3
1 88248U 26197.87324961 +.00000695 +00000+0 +76340-4 0 00203
2 88248 97.7566 98.1606 0004459 87.8805 272.2923 14.90735168001428
MARINA
1 88254U 26197.86552251 +.00001265 +00000+0 +13045-3 0 00200
2 88254 97.7531 98.1666 0008891 116.9138 243.2990 14.91951695001428
RAFS
1 88257U 26197.86535929 +.00000830 +00000+0 +87379-4 0 00238
2 88257 97.7521 98.1655 0009074 116.6241 243.5908 14.91972902001420
Replicator-2
1 88261U 26197.93099306 +.00000676 +00000+0 +71848-4 0 00158
2 88261 97.7544 98.2363 0009650 122.3968 237.8186 14.92194588001260
Unknown 3 T17
1 88267U 26197.92983312 +.00001595 +00000+0 +16120-3 0 00211
2 88267 97.7558 98.2387 0010784 119.2285 241.0014 14.92384547001436
KOSTKA
1 88269U 26197.86224193 +.00001488 +00000+0 +15037-3 0 00230
2 88269 97.7487 98.1660 0011355 117.5865 242.6509 14.92468874001423
Hi from the Apolink Team,
We are currently tracking 88230:
1 88230U 26201.56511395 +.00000728 +00000+0 +79780-4 0 00382
2 88230 97.7570 101.7873 0003630 100.5232 259.6396 14.90727181001977
If we could get new contacts for this, that would be great!
Still on the search, nothing yet.
Best,
-The Apolink Team
Awesome! I’ll run tomorrow an analysis to start identifying the objects. If anyone has any suggestion until then, let me know.
Based on 2026-156:
KOYO: 69916
Alternative:
69874: 0.336 kHz 435.400440 MHz | TBA - TO BE ASSIGNED
69916: 0.266 kHz 435.400640 MHz | TBA - TO BE ASSIGNED
Jan | PE0SAT
