No downlink of any kind seen on this afternoon’s 60° DISCO-2 pass over the Eastern U.S.
Hello,
We have new TLE for T-MicroSat-2, could you please help update it to SatNOGS DB? Thank you so much!
T-Microsat-2
1 98379U 26001A 26092.54712963 .00000000 00000-0 64584-3 0 04
2 98379 97.4518 52.1537 0004615 341.1766 79.6197 15.16668465 06
3 Likes
TLE update for PEAKSAT
PEAKSAT
1 98378U 26066K 26093.14810368 .00000000 00000-0 29747-3 0 01
2 98378 97.4432 53.3623 0005648 155.9961 329.6329 15.26528199 09
2 Likes
After analysis on the frequency and the modulation of the signal, “Unknown 6 - T16” is identified as the ION SCV deployer. Entries have been merged in DB and Network.
3 Likes
The previous TLE of PEAKSAT was a little off, here is an update:
PEAKSAT
1 98378U 26066K 26093.46839029 .00000000 00000-0 24777-3 0 09
2 98378 97.4432 53.7448 0006545 155.9961 277.6185 15.18526500 02
2 Likes
-
“Unknown 4 - T16” has been identified as Optisat, entries have been merged in both DB and Network.
-
“Unknown 8 - T16” at 402.360 MHz with GMSK9k6 received and decoded with callsign SPCLKR, which indicates that this is satellite “Out of the Box” by SpaceLocker.
Currently we have 3 unknown satellites:
-
“Unknown 5 - T16” at 400.400 MHz - Haven’t managed to get any signal, maybe it was a false alarm from a satellite that was passing during the strf observation. Let us know if anyone else has noted any signal at this frequency
-
“Unknown 1 - T16” at 401.350 MHz with GMSK9k6 received and decoded but no sign which satellite could
-
“Unknown 2 - T16” at 437.000 MHz with a 100KHz signal, non IARU Coordinated
2 Likes
And here is a status update until now:
| Temporary NORAD ID | Satellite | NORAD ID to follow | Other NORAD IDs | Identified | Deployed | Received | Last Update |
|---|---|---|---|---|---|---|---|
| RECEIVED AND DEMODULATED | |||||||
| 98378 | PeakSat | - | - | NO | YES | Received | - |
| 98386 | COSMO | - | - | NO | YES | Received | - |
| 98379 | T.MicroSat-2 | - | - | NO | YES | Received | - |
| 98369 | ERMIS-1 | - | - | NO | YES | Received | - |
| 98368 | ERMIS-2 | - | - | NO | YES | Received | - |
| 98367 | ERMIS-3 | - | - | NO | YES | Received | - |
| 98374 | TORO-3 | - | - | NO | YES | Received | - |
| 98370 | OPTISAT | - | - | NO | YES | Received | - |
| 98366 | LUNA-2 | - | - | NO | YES | Received | - |
| 98392 | PARUS-6U1 | - | - | NO | YES | Received | - |
| 98382 | SAL-E | - | - | NO | YES | Received | - |
| 98365 | JACK-002 | - | - | NO | YES | Received | - |
| 98380 | HADES-SA | - | - | NO | YES | Received | - |
| 98356 | ION SCV Astounding Alexandra | - | - | NO | YES | Received | - |
| 98346 | Unknown 1 - T16 | - | - | NO | YES | Received | - |
| 98339 | Out of the Box | - | - | NO | YES | Received | - |
| RECEIVED | |||||||
| 98362 | EMISAR | - | - | NO | YES | Received | - |
| 98364 | BRO-19 | - | - | NO | YES | Received | - |
| 98353 | UNICORN-2R | - | - | NO | YES | Received | - |
| 98352 | UNICORN-2S | - | - | NO | YES | Received | - |
| 98351 | FOSSASAT-2E25 | - | - | NO | YES | Received | - |
| 98371 | Black Kite-2 | - | - | NO | YES | Received | - |
| 98345 | Unknown 2 - T16 | - | - | NO | YES | Received | - |
| NOT RECEIVED/UNKNOWN STATUS | |||||||
| 98342 | Unknown 5 - T16 | - | - | NO | YES | - | Not sure if belongs to this launch |
| 98381 | DISCO-2 | - | - | NO | YES | Received? | Some receptions but they don’t fit the expected 9k6 signal |
| 98519 | VEGAFLY-1 | - | - | NO | YES | Received? | Some receptions but not sure if it is the satellite |
| 98363 | SHARJAH-SAT-2 | - | - | NO | YES | - | Not expected in watched frequencies |
| 98391 | Lilium-4 | - | - | NO | YES | - | - |
| 98376 | DecimalSat-1 | - | - | NO | YES | - | - |
| 98347 | PHOBOS | - | - | NO | YES | - | - |
| 98359 | VIGORIDE 7 | - | - | NO | YES | - | - |
| 98355 | GRAVITAS | - | - | NO | YES | - | - |
| 98350 | VIREON-1 | - | - | NO | YES | - | - |
| 98349 | VIREON-2 | - | - | NO | YES | - | - |
| 98361 | GARAI-B | - | - | NO | YES | - | - |
| 98354 | GEMS2-Amethyst | - | - | NO | YES | - | - |
| 98348 | Io-1 | - | - | NO | YES | - | - |
| 98360 | FGN 100 D3 | - | - | NO | YES | - | - |
| 98358 | Spacevan-002 | - | - | NO | YES | - | - |
| 98357 | W-Series 6 | - | - | NO | YES | - | - |
| NOT DEPLOYED | |||||||
| 98864 | AEPEX | - | - | NO | YES | - | - |
| NOT IN DB | |||||||
| - | FEMTO-1 | - | - | NO | YES | - | - |
| - | HELLOWORLD-1 | - | - | NO | YES | - | - |
| - | TES-23 | - | - | NO | YES | - | - |
| - | SPOQC | - | - | NO | YES | - | - |
| - | SM-1.2 | - | - | NO | YES | - | - |
| - | Harbinger | - | - | NO | YES | - | - |
| - | - | - | NO | YES | - | - | |
| - | Newsat-54 | - | - | NO | YES | - | - |
| - | AiglonSat-1 | - | - | NO | YES | - | - |
| - | TROOP-F3 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-14 | - | - | NO | YES | - | - |
| - | AISSat-4 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-9 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-13 | - | - | NO | YES | - | - |
| - | Ghost Rider | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-10 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-16 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-11 | - | - | NO | YES | - | - |
| - | Dream Big Constellation | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-12 | - | - | NO | YES | - | - |
| - | IRIDE-MS1-EAGLET-2-15 | - | - | NO | YES | - | - |
| - | HotSat-2 | - | - | NO | YES | - | - |
| - | Newsat-53 | - | - | NO | YES | - | - |
| - | Hawk-14A | - | - | NO | YES | - | - |
| - | Hawk-14B | - | - | NO | YES | - | - |
| - | Hawk-14C | - | - | NO | YES | - | - |
| - | Flylab-2 | - | - | NO | YES | - | - |
| - | LEMUR-2-IRINA | - | - | NO | YES | - | - |
| - | Flylab-1 | - | - | NO | YES | - | - |
| - | LEMUR-2-CLARA | - | - | NO | YES | - | - |
| - | AE1a | - | - | NO | YES | - | - |
| - | LEMUR-2-JULIA-JOEL | - | - | NO | YES | - | - |
| - | N1-ATLAS | - | - | NO | YES | - | - |
| - | LEMUR-2-DELOITTE-2 | - | - | NO | YES | - | - |
| - | LEMUR-2-POLO-11 | - | - | NO | YES | - | - |
| - | Mimir 1 | - | - | NO | YES | - | - |
| - | LEMUR-2-PEGGY-2004 | - | - | NO | YES | - | - |
| - | LEMUR-2-DELOITTE-3 | - | - | NO | YES | - | - |
| - | LEMUR-2-EMARCHIA | - | - | NO | YES | - | - |
| - | ICEYE 1 | - | - | NO | YES | - | - |
| - | LEMUR-2-CARROLLEMO | - | - | NO | YES | - | - |
| - | ICEYE 3 | - | - | NO | YES | - | - |
| - | ICEYE 5 | - | - | NO | YES | - | - |
| - | Vindlér 2.0.2 | - | - | NO | YES | - | - |
| - | SERT3 | - | - | NO | YES | - | - |
| - | ICEYE 4 | - | - | NO | YES | - | - |
| - | Acadia-10 | - | - | NO | YES | - | - |
| - | ICEYE 6 | - | - | NO | YES | - | - |
| - | Vindlér 2.0.3 | - | - | NO | YES | - | - |
| - | ICEYE 2 | - | - | NO | YES | - | - |
| - | Vindlér 2.0.1 | - | - | NO | YES | - | - |
4 Likes
TLE of Celestrak changed to use the temporary NORAD ID in DB for the “Out of the Box” satellite:
OUT OF THE BOX
1 98339C 26067Z 26089.50070438 -.00004111 00000+0 -20342-3 0 00
2 98339 97.4509 49.1609 0000265 100.4948 257.7494 15.17885499 12
2 Likes
And Celestrak TLE that fits better (but doesn’t mean any identification) for “Unknown 1 - T16”:
Unknown 1 - T16
1 98346C 26067B 26089.49733053 .00007708 00000+0 37723-3 0 09
2 98346 97.4478 49.1573 0002393 131.9216 207.9073 15.18266825 13
2 Likes
Updated TLE for PeakSat:
PEAKSAT
1 98378U 26066K 26093.46839029 .00000000 00000-0 29993-3 0 04
2 98378 97.4432 53.0776 0006545 155.9961 277.3357 15.18505433 09
peaksat_094_v1.dat (665 Bytes)
sites.txt (13.0 KB)
2 Likes
Hello again,
We have a TLE update for T-MicroSat-2:
T-Microsat-2
1 98379U 26001A 26093.65759478 +.00009373 +00000+0 48170-3 0 00126
2 98379 97.4514 53.2455 0004904 339.8174 20.2865 15.16679577000630
Thanks!
4 Likes
Hello,
We have a new TLE for T.MicroSat-2 (98379)
T.Microsat-2
1 98379U 26001A 26094.64721952 +.00008922 +00000+0 45850-3 0 00134
2 98379 97.4516 54.2181 0004816 335.4860 24.6144 15.16698209000782
Could you please help update it? Thanks!
2 Likes
We’ve been using the data from Space track, and we’re pretty sure 88092 is Black Kite-2.
1 88092U 26094.66374645 +.00004427 +00000+0 +43958-3 0 00213
2 88092 97.7492 54.0899 0003570 110.8291 249.3311 14.92229783000762

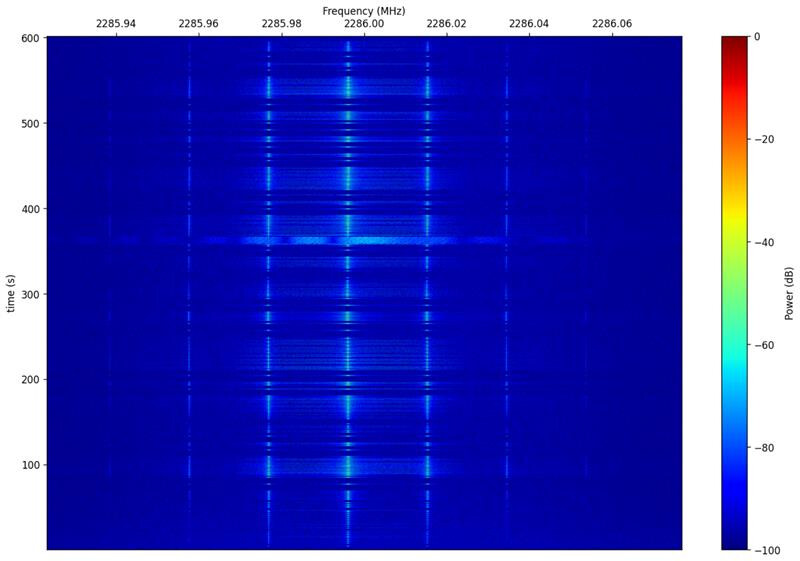

Waterfall of ground station observation on 5th Apr.
1 Like
TLE Update for PeakSat:
PEAKSAT
1 98378U 26066K 26093.46839029 .00000000 00000-0 30361-3 0 05
2 98378 97.4432 53.3053 0005453 155.9961 277.1867 15.18537738 04
sites.txt (13.1 KB)
peaksat_095_v1.dat (1.2 KB)
1 Like
@ben_lin Is this TLE coming from the analyst list for Transporter 16?
Yes, this TLE is based on the space-track Transporter-16 data “26094_88032_880123_TLE”
1 Like
There are 92 TLE sets in the analyst list of space-track.org.
Given that 88 objects were deployed directly there are 4 more which are probably the four satellites expected to be deployed from ION SCV payload. That’s leave us waiting only(?) for AEPEX to be deployed.
From that list there is an update TLE set for PEAKSAT which seems to fit only this object:
0 88032
1 88032U 26 95.62957122 +.00010757 +00000+0 +52379-3 0 00222
2 88032 97.4492 55.1982 0003313 130.5721 229.5802 15.18538407000939
More matches will come during the day for the rest of the satellites.
NOTE: This matches are not an identifications as the analyst list may go through changes until hit the public list and the TLE become assigned. So, use with caution.
1 Like
Here is the first batch of checks on space-track analyst list:
| Satellite | NORAD ID from Analyst List | Other Possible |
|---|---|---|
| PEAKSAT | 88032 | 88033(unlikely) |
| JACK-002 | 88033 | 88032(unlikely) |
| OPTISAT | 88034 | 88033(unlikely),88035 |
| Unknown 01 - T16 | 88035 | 88032(unlikely),88033,88035,88036 |
| ERMIS 2 | 88036 | 88034,88035 |
| BRO 19 | 88038 | 88037(unlikely) |
| ERMIS 3 | 88043 | 88040,88041,88042,88046,88074 |
| Out of the Box | 88047 | 88044 |
| T.MicroSat-2 | 88049 | 88072(unlikely),88073(unlikely),88075 |
| ION SCV Astounding Alexandra | 88051 | 88050(unlikely),88053(unlikely),88054 |
| HADES-SA | 88062 | 88085(unlikely) |
| SAL-E | 88075 | 88049,88073 |
| COSMO | 88076 | 88049,88077,88084 |
| ERMIS 1 | 88085 | 88062(unlikely) |
| LUNA 2 | 88087 | 88085 |
| TORO 3 | 88099 | 88096(unlikely),88097(unlikely) |
And here are the TLE with changed to use the temporary NORAD IDs we use in DB:
1 98378U 26095.62957122 +.00010757 +00000+0 +52379-3 0 00226
2 98378 97.4492 55.1982 0003313 130.5721 229.5802 15.18538407000933
JACK-002
1 98365U 26095.62978632 +.00010336 +00000+0 +50429-3 0 00172
2 98365 97.4513 55.1987 0003109 132.1353 228.0146 15.18481514000931
OPTISAT
1 98370U 26095.62996482 +.00008743 +00000+0 +42787-3 0 00178
2 98370 97.4531 55.2001 0002787 146.5706 213.5704 15.18421903000932
Unknown 01 - T16
1 98346U 26095.69589309 +.00008873 +00000+0 +43392-3 0 00227
2 98346 97.4489 55.2620 0002900 121.0393 239.1126 15.18444725000941
ERMIS 2
1 98368U 26095.63010151 +.00014455 +00000+0 +70449-3 0 00146
2 98368 97.4437 55.1947 0003199 108.2555 251.9028 15.18434229000937
BRO 19
1 98364U 26095.63073419 +.00006059 +00000+0 +29926-3 0 00154
2 98364 97.4429 55.1931 0002637 103.8937 256.2591 15.18233373000938
ERMIS 3
1 98367U 26095.63124826 +.00013935 +00000+0 +68506-3 0 00176
2 98367 97.4497 55.1967 0001196 145.6354 214.4957 15.18143559000939
Out of the Box
1 98339U 26095.63173942 +.00010128 +00000+0 +50096-3 0 00152
2 98339 97.4550 55.1995 0000914 184.1792 175.9434 15.18008821000933
T.MicroSat-2
1 98379U 26095.63683389 +.00007578 +00000+0 +38981-3 0 00139
2 98379 97.4519 55.1906 0004709 330.8948 29.2022 15.16713220000931
ION SCV Astounding Alexandra
1 98356U 26095.76523456 +.00005191 +00000+0 +26189-3 0 00176
2 98356 97.4494 55.3244 0001277 342.6408 17.4781 15.17556546000954
HADES-SA
1 98380U 26095.76952339 +.00027313 +00000+0 +13937-2 0 00120
2 98380 97.4363 55.3107 0006229 346.6144 13.4923 15.16676341000945
SAL-E
1 98382U 26095.76889688 +.00012847 +00000+0 +65786-3 0 00157
2 98382 97.4425 55.3143 0005140 344.9642 15.1438 15.16722966000957
COSMO
1 98386U 26095.63710370 +.00009609 +00000+0 +49400-3 0 00133
2 98386 97.4478 55.1876 0005011 334.1009 25.9973 15.16661222000933
ERMIS 1
1 98369U 26095.76967637 +.00013701 +00000+0 +70488-3 0 00136
2 98369 97.4509 55.3179 0005557 323.8285 36.2571 15.16540122000959
LUNA 2
1 98366U 26095.76982745 +.00013655 +00000+0 +70324-3 0 00159
2 98366 97.4426 55.3138 0006049 336.8504 23.2456 15.16503011000958
TORO 3
1 98374U 26095.73786277 +.00002749 +00000+0 +27718-3 0 00170
2 98374 97.7608 55.1445 0002776 163.3694 196.7616 14.91931712000923
6 Likes
Hello, the Cal Poly CubeSat Lab has an updated TLE for SAL-E. We currently believe NORAD-ID 88077 from the Space-Track analyst list to belong to our CubeSat. Our second most likely is 88067. I will update this forum again when we have updated analysis.
1 88077U 26 95.63710272 +.00011343 +00000+0 +58215-3 0 00154
2 88077 97.4446 55.1862 0005140 338.8950 21.2070 15.16674997000938
3 Likes
Thanks for the update! Could you please check the paste of that TLE… perhaps place it in a ‘pre-formatted text’ box. I’m struggling to pad what has been provided to get a valid TLE regarding character count & spacing.
Thanks!
1 Like
