Transporter-16 Rideshare: VSFB SLC-4E : 2026-03-30 11:02 UTC

Satellites & Observations Launches
84

celestrak.org post launch TLE change to use temporary NORAD IDs set in DB:

LUNA-2
1 98366C 26067A   26089.49717544 -.00020143  00000+0 -10413-2 0    04
2 98366  97.4415  49.1596 0006852   1.3378 337.6612 15.16338967    19
JACK-002
1 98365C 26067C   26089.49750414 -.00013014  00000+0 -63498-3 0    07
2 98365  97.4500  49.1567 0002681 143.8886 196.8842 15.18377566    13
DECIMALSAT-1
1 98376C 26067D   26089.49758863 -.00009989  00000+0 -51655-3 0    03
2 98376  97.4320  49.1630 0007687  13.6276 327.6456 15.16316797    16
VEGAFLY-1
1 98519C 26067D   26089.49758863 -.00009989  00000+0 -51655-3 0    02
2 98519  97.4320  49.1630 0007687  13.6276 327.6456 15.16316797    15
HADES-SA
1 98380C 26067D   26089.49758863 -.00009989  00000+0 -51655-3 0    08
2 98380  97.4320  49.1630 0007687  13.6276 327.6456 15.16316797    11
ERMIS1
1 98369C 26067E   26089.49766502 -.00018436  00000+0 -95154-3 0    03
2 98369  97.4499  49.1570 0006234 350.4783 351.1750 15.16395581    17
VIREON-2
1 98349C 26067F   26089.49773563 -.00014857  00000+0 -72769-3 0    06
2 98349  97.4450  49.1587 0002503 123.2850 218.7612 15.18244923    16
COSMO
1 98386C 26067G   26089.49785831 -.00002824  00000+0 -14512-3 0    01
2 98386  97.4441  49.1590 0005887   2.6609 340.0604 15.16542163    16
ERMIS2
1 98368C 26067H   26089.49798910 -.00017388  00000+0 -85072-3 0    03
2 98368  97.4425  49.1596 0002896 119.4852 223.9504 15.18283476    17
PEAKSAT
1 98378C 26067K   26089.49832127 -.00008334  00000+0 -40615-3 0    08
2 98378  97.4483  49.1583 0002774 147.1256 198.1107 15.18418055    14
SAL-E
1 98382C 26067L   26089.49846595 -.00007742  00000+0 -39877-3 0    07
2 98382  97.4412  49.1602 0006442   8.2554 337.7892 15.16462720    15
ERMIS3
1 98367C 26067M   26089.49852845 -.00016540  00000+0 -81576-3 0    04
2 98367  97.4524  49.1575 0000806 158.7644 187.5945 15.18005787    18
BRO-19
1 98364C 26067N   26089.49880044 -.00007103  00000+0 -34837-3 0    06
2 98364  97.4410  49.1604 0002636 115.0356 232.8319 15.18192650    16
OPTISAT
1 98370C 26067P   26089.49885947 -.00008093  00000+0 -39809-3 0    03
2 98370  97.4504  49.1584 0001213 150.1331 198.0367 15.18094424    13
PARUS-TX
1 98392C 26067Q   26089.49893470 -.00013781  00000+0 -70600-3 0    01
2 98392  97.4488  49.1589 0005235 359.3198 349.2677 15.16662579    19
TMICROSAT-2
1 98379C 26067R   26089.49920090 -.00016479  00000+0 -84504-3 0    00
2 98379  97.4515  49.1587 0005344 355.2313 354.8043 15.16629075    11
CYCLOPS-1
1 98350C 26067T   26089.49942544 -.00020853  00000+0 -10285-2 0    02
2 98350  97.4520  49.1589 0000707 161.0262 190.2316 15.18005631    15
DISCO-2
1 98381C 26067U   26089.49955160 -.00011726  00000+0 -58129-3 0    03
2 98381  97.4541  49.1588 0000289 282.0588  69.8834 15.17826845    14
SHARJAH-SAT 2
1 98363C 26067V   26089.49984326 -.00012757  00000+0 -63026-3 0    06
2 98363  97.4513  49.1596 0000455 143.3402 210.2007 15.17945209    11
PHOBOS
1 98347C 26067W   26089.50004581 -.00010065  00000+0 -51560-3 0    06
2 98347  97.4514  49.1599 0005260 358.6296 356.0189 15.16664465    19
EMISAR
1 98362C 26067AB  26089.50121132 -.00002881  00000+0 -14288-3 0    08
2 98362  97.4481  49.1615 0000600  62.6153 298.4005 15.17814587    14
LILIUM-4
1 98391C 26067AC  26089.50133053 -.00014632  00000+0 -74472-3 0    03
2 98391  97.4497  49.1617 0004341   5.9603 355.7042 15.16896692    15
GARAI B
1 98361C 26067AN  26089.50366734 -.00003564  00000+0 -18032-3 0    06
2 98361  97.4484  49.1644 0003509  15.7336 358.6906 15.17105218    14
FGN 100 D3
1 98360C 26067AR  26089.50501456 -.00022081  00000+0 -11164-2 0    00
2 98360  97.4449  49.1646 0003388  23.7550 358.0272 15.17137345    14
VIGORIDE
1 98359C 26067AS  26089.50508863 -.00005592  00000+0 -27873-3 0    00
2 98359  97.4471  49.1656 0001260   5.2842  16.8972 15.17631829    16
SPACEVAN 2
1 98358C 26067AW  26089.50572637 -.00012700  00000+0 -63414-3 0    09
2 98358  97.4451  49.1653 0001464  20.5120   5.1549 15.17572442    11
WINNEBAGO 06
1 98357C 26067AX  26089.50594743 -.00021253  00000+0 -10726-2 0    00
2 98357  97.4471  49.1665 0003135  17.1515   9.7183 15.17199969    15
SCV-019
1 98356C 26067AY  26089.50659095 -.00020495  00000+0 -10248-2 0    07
2 98356  97.4476  49.1676 0001820   3.6290  26.7521 15.17528045    16
GRAVITAS
1 98355C 26067BB  26089.55357313 -.00066244  00000+0 -66921-2 0    00
2 98355  97.7542  49.0571 0001186 283.4333   2.1468 14.91172198    19
GEMS2 AMETHYST
1 98354C 26067BE  26089.56042613 -.00079064  00000+0 -80718-2 0    08
2 98354  97.7540  49.0647 0003117 324.8675 357.4861 14.90750914    15
BLACK KITE-2
1 98371C 26067BF  26089.56048401 -.00081975  00000+0 -80671-2 0    00
2 98371  97.7470  49.0701 0003696 121.6165 201.0620 14.92220090    12
UNICORN-2S
1 98352C 26067BH  26089.56063215 -.00072091  00000+0 -73836-2 0    03
2 98352  97.7465  49.0705 0004127 349.1024 334.3763 14.90616544    19
UNICORN-2R
1 98353C 26067BH  26089.56063215 -.00072091  00000+0 -73836-2 0    04
2 98353  97.7465  49.0705 0004127 349.1024 334.3763 14.90616544    10
IO-1
1 98348C 26067BQ  26089.56125831 -.00083000  00000+0 -84054-2 0    07
2 98348  97.7477  49.0697 0002170   6.1545 320.6790 14.91078349    15
TORO3
1 98374C 26067BR  26089.56131618 -.00083206  00000+0 -82358-2 0    09
2 98374  97.7598  49.0618 0002736 175.4377 151.6747 14.91992209    16
FOSSASAT-2E
1 98351C 26067BT  26089.56152220 -.00073743  00000+0 -73055-2 0    05
2 98351  97.7527  49.0666 0002264 140.9448 187.2918 14.91955055    11
2 Likes
85

HADES-SA SSDV Image #224

IMG_20260331_152105_899
IMG_20260331_152105_899320×240 5.38 KB

11 Likes
86

HADES-SA CODEC2 Voice

hades_sa_codec2.zip (190.1 KB)

87

I’ve updated the first post with the unknown satellites and other changes fixed until now.

We’ve just confirmed with the team and I’m going to merge the unknown entries in DB, so we have:

ERMIS 1: 401.550 MHz (Unknown 7 - T16)
ERMIS 2: 401.250 MHz (Unknown 3 - T16)
ERMIS 3: 401.313 MHz

3 Likes
88

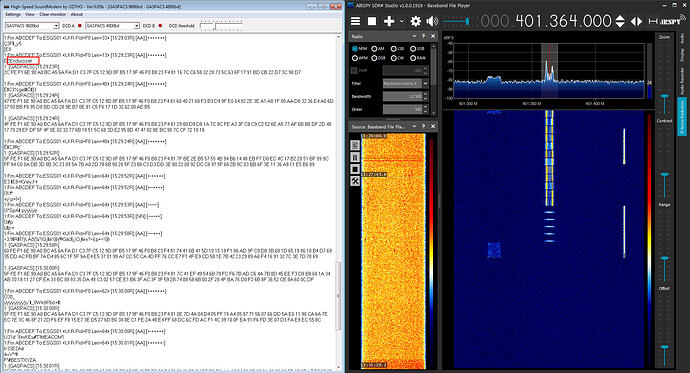

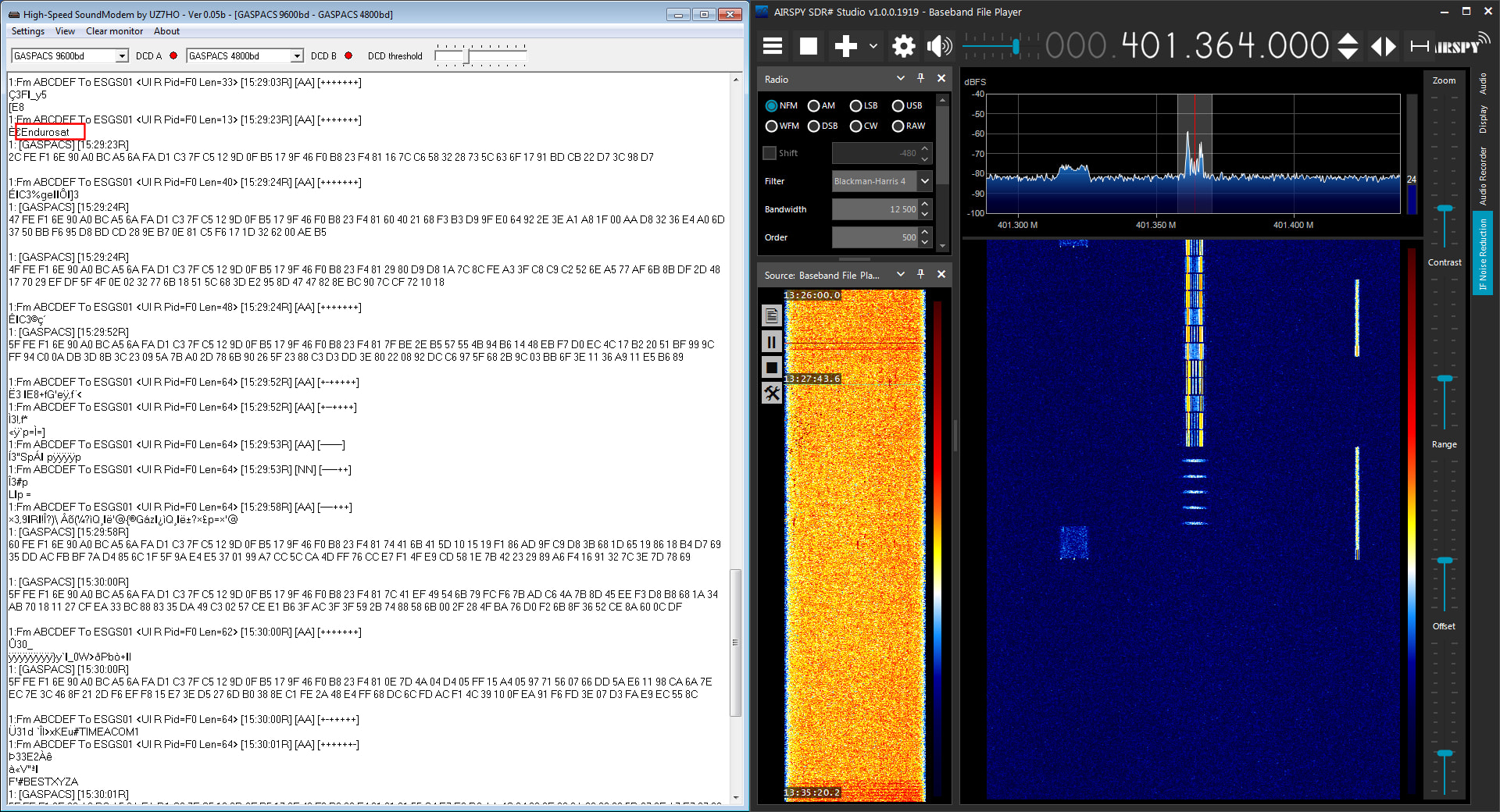

Reception of Beethoven’s “Ode to Joy” melody on 401.360 MHz. The satellite seems to be from this batch and the signal cannot be from Balkan-1 or Padre which transmit @ 9600 bd on the same frequency. Any idea?

Screen capture
Screen capture1920×1040 700 KB

1 Like
89

maybe it is EMISAR - Info for HAM radio enthusiasts - Romanian InSpace Engineering

3 Likes
90

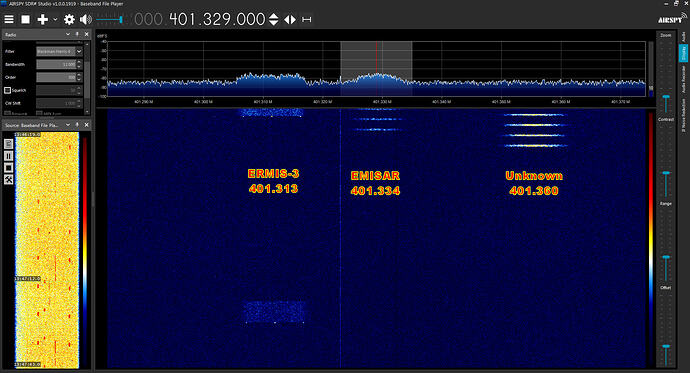

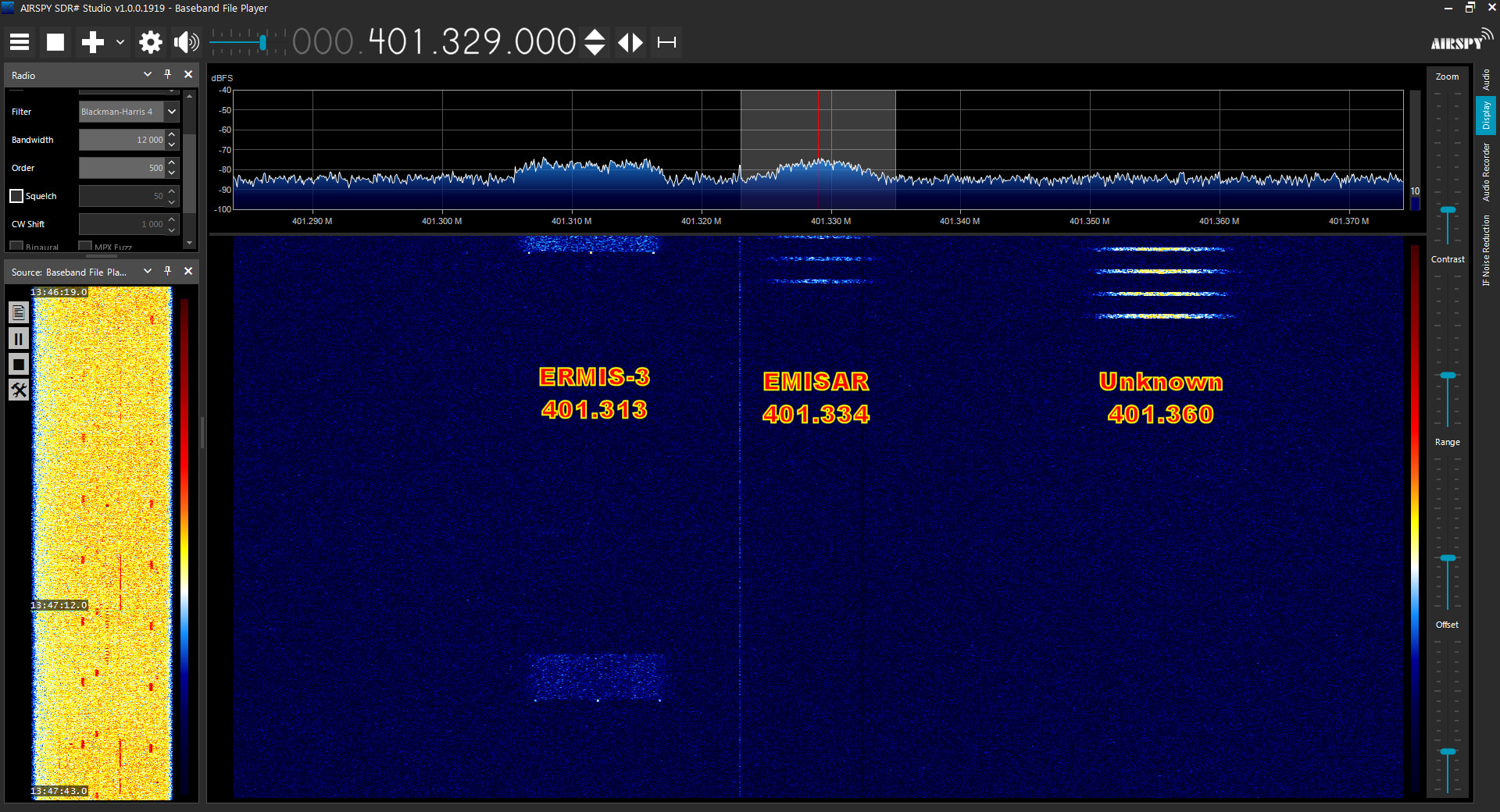

I think I’ve received EMISAR on its nominal frequency but the signal was too weak to be demodulated.

Image 1
Image 11920×1040 804 KB

4 Likes
91

From D-orbit’s ION deployer we expect 4 more cubesats (4x8U) to be deployed in the next weeks:

2 Likes
92

Peaksat TLE update:

PEAKSAT
1 98378U 26066K   26091.10751137  .00000000  00000-0  39853-3 0    02
2 98378  97.4432  50.9427 0006545 155.9961 340.2899 15.18512173    08

peaksat_091_v1.dat (1015 Bytes)
sites.txt (13.0 KB)

2 Likes
93

Black Kite-2 TLE update (Currently observed):

BLACK KITE-2
1 10256U 26066BF  26091.15909988  .00000000  00000-0 -80338-2 0    09
2 10256  97.7440  50.7329 0003075 123.0369 142.1213 14.92320627    02
2 Likes
94

The following object is suspected as Black-kite 2 from space-track

1 88094U 26001J   26090.97570961  .00007074  00000-0  70033-3 0  0008
2 88094  97.7498  50.4601 0003403 126.8332 233.3200 14.92149934 00021
2 Likes
95

from this obs

***** VERBOSE PDU DEBUG PRINT ******
((transmitter . 4k8 FSK AX100 downlink))
pdu length =        119 bytes
pdu vector contents =
0000: 83 67 80 01 01 18 05 04 05 d4 d4 69 cb 58 eb 00
0010: 04 c1 52 db 6c 80 2a 87 85 41 49 1d fd 3d 31 77
0020: f4 c1 4a bf c7 ef 2a 1c ee c1 52 db 6c 41 49 1d
0030: fd c1 4a bf c7 c0 a1 fb 01 83 0d 9e 7c 40 aa c4
0040: 16 90 90 40 e1 40 b9 48 24 3b a8 70 fc c0 a1 fb
0050: 01 40 aa c4 16 40 b9 48 24 41 42 c6 e5 5c 36 f8
0060: e9 01 01 01 17 15 00 00 00 00 da 81 69 cb 58 eb
0070: 00 04 00 74 c4 cc fc

decode with satyml gr_satellites:

name: BRO-19
norad: 98364
data:
  &tlm Telemetry:
    unknown
transmitters:
  4k8 FSK AX100 downlink:
    frequency: 401.7350e+6
    modulation: FSK
    baudrate: 4800
    deviation: 800
    framing: AX100 ASM+Golay
    data:
    - *tlm

BRO-19.yml.txt (237 Bytes)

3 Likes
96

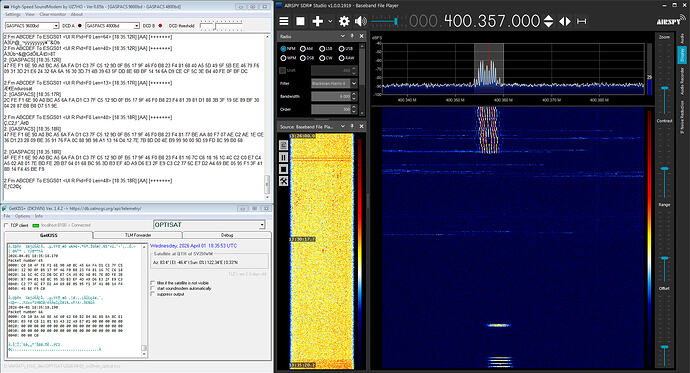

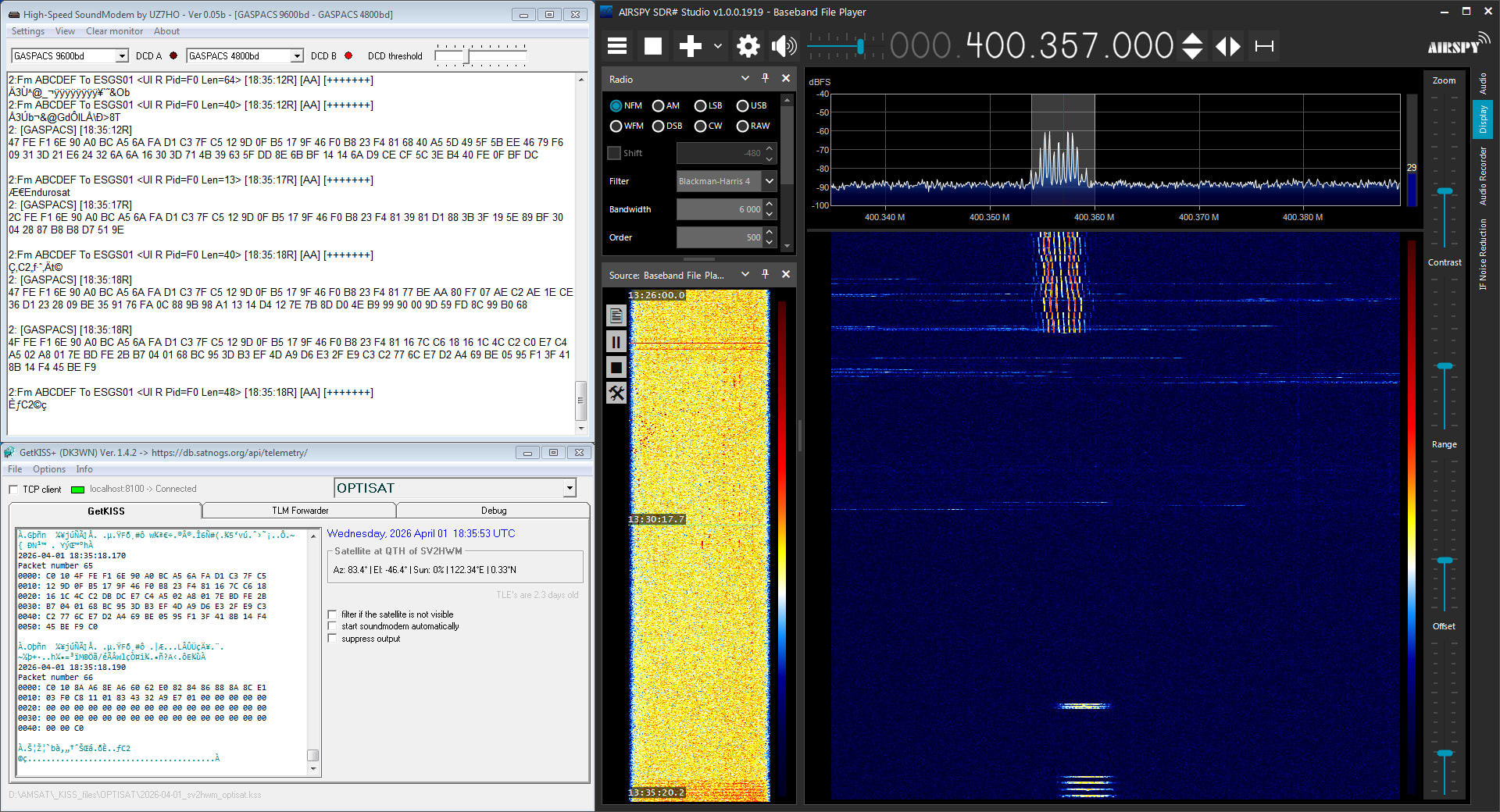

OPTISAT on 400.360 MHz. Rx of raw telemetry and “Ode to Joy” melody.

Screen capture
Screen capture1920×1040 834 KB

4 Likes
97

Hello Everyone,

These new sats are certainly keeping many of us busy! For HADES-SA, had to collect CODEC2 data from several passes to gather enough frames for sufficiently understandable audio. Hopefuly this will get a bit easier once satellite spinning slows and we have better TLEs.

With apologies to all the Spanish speaking friends here but I had to use Whisper, open-source speech-to-text system. :slight_smile:

bob@bob-B360M-DS3H:~/Desktop$ whisper hades_sa.wav --task translate
/home/bob/.local/lib/python3.12/site-packages/whisper/transcribe.py:132: UserWarning: FP16 is not supported on CPU; using FP32 instead
warnings.warn(“FP16 is not supported on CPU; using FP32 instead”)
Detecting language using up to the first 30 seconds. Use --language to specify the language
Detected language: Spanish
[00:00.000 → 00:30.000] PRIMERA PARTE DE SU INGENIOSO HIDALGO DON QUIJOTE DE LA MANCHA CAPÍTULO PRIMERO QUE TRATA DE LA CONDICIÓN Y ES ESCRÍFULO DEL FAMOS HIDALGO DON QUIJOTE DE LA MANCHA
bob@bob-B360M-DS3H:~/Desktop$

Congratulations to the HADES-SA Team!

Good hunting all!

Bob

N6RFM

hades_sa_N6RFM.zip (330.7 KB)

8 Likes
98

TLE update for PEAKSAT:

PEAKSAT
1 98378U 26066K   26092.20999879  .00000000  00000-0  30049-3 0    09
2 98378  97.4432  52.3156 0006545 155.9961 242.7478 15.18486466    07

sites.txt (13 KB)
peaksat_092_v1.dat (980 Bytes)

2 Likes
99

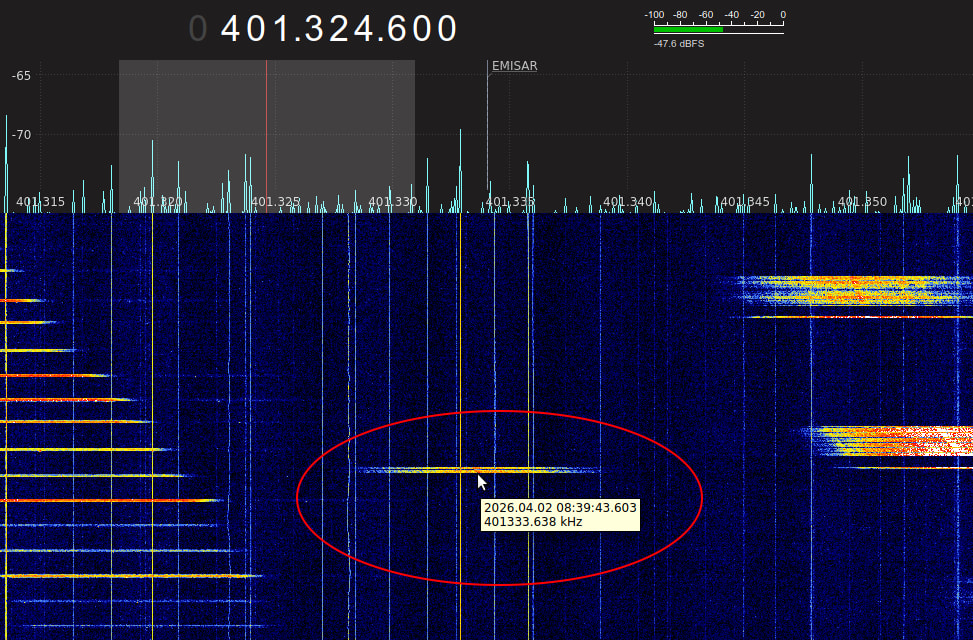

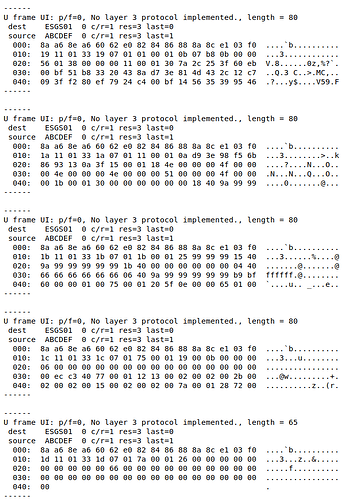

Huge signal from EMISAR downlink of 5x 9k6 packets over the Eastern U.S. Had to replay to decode since the TLE is only an estimate & the single burst of packets doesn’t give you any opportunity to manually doppler adjust.

https://x.com/scott23192/status/2039636426459947363

gqrx-live
gqrx-live973×640 336 KB

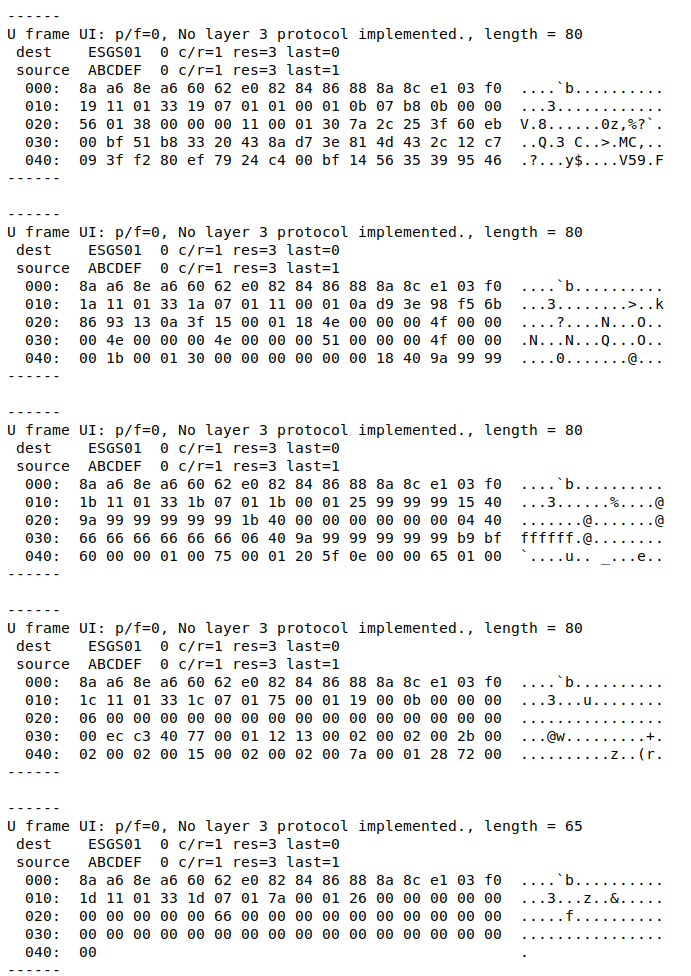

5-decodes
5-decodes691×976 95.7 KB

5 Likes
100

My approach for Black Kite-2:

BLACK KITE-2
1 98371U 26066BF  26092.07319361  .00000000  00000-0  22154-2 0    06
2 98371  97.7440  51.5107 0005478 123.0369   9.3180 14.92223811    02

bk2_092_v1.dat (1.3 KB)
sites.txt (13 KB)

cc @alicechen @ben_lin

4 Likes
101

SAL-E TLE update:

SAL-E
1 98382U 26067L   26092.60975718  .00000000  00000-0  33975-3 0    06
2 98382  97.4412  52.1624 0006957   8.2554  33.7877 15.16596479    08

sites.txt (13 KB)
sale_092_v1.dat (1.9 KB)

2 Likes
102

Has anyone notice DISCO-2? While we expect a 9k6 signal, there is in several of its observations some signals which look like 4k8 ones. I’ve tried to check if they fit to other known satellites on this frequency but nothing came up.

103

HADES-SA TLE update:

HADES-SA
1 98380U 26067D   26092.61166952  .00000000  00000-0  29879-3 0    05
2 98380  97.4320  52.2195 0007687  13.6276  36.5763 15.16543359    04

hadessa_092_v1.dat (1.9 KB)
sites.txt (13.0 KB)

3 Likes
