CODEC2
3 Likes

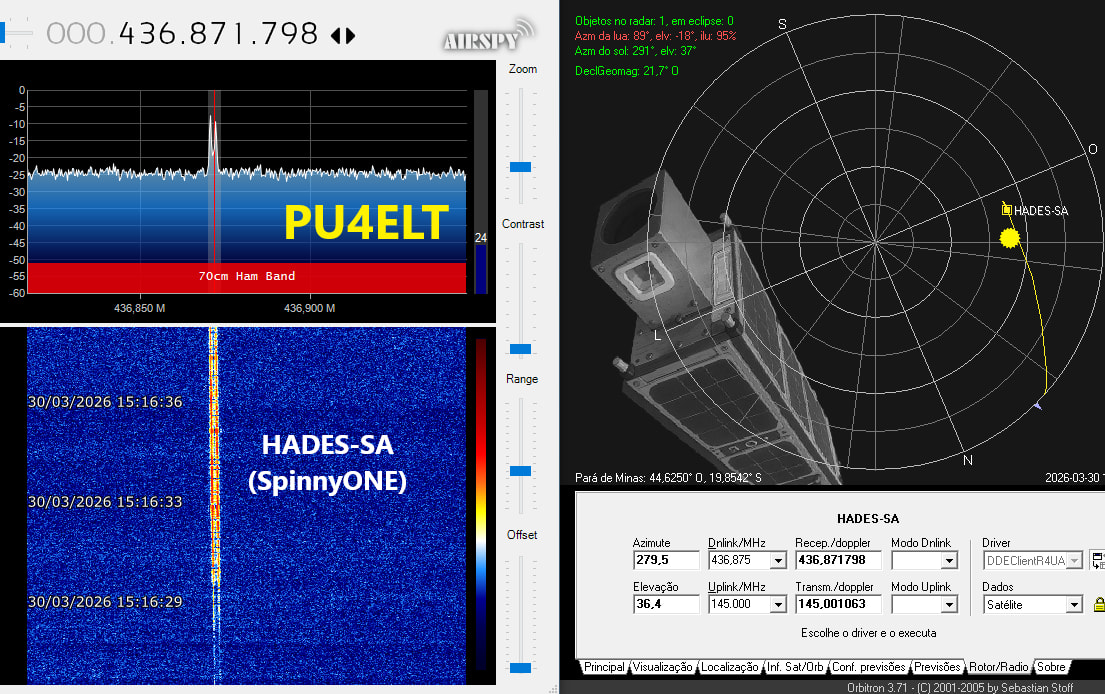

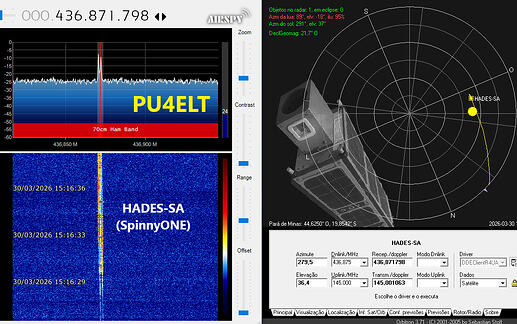

HADES-SA over Brazil
around 18:11UTC
SSDV image I managed to receive:
CODEC2 audio I managed to receive:
Unfortunately, my reception wasn’t the best. Very cool bird
6 Likes

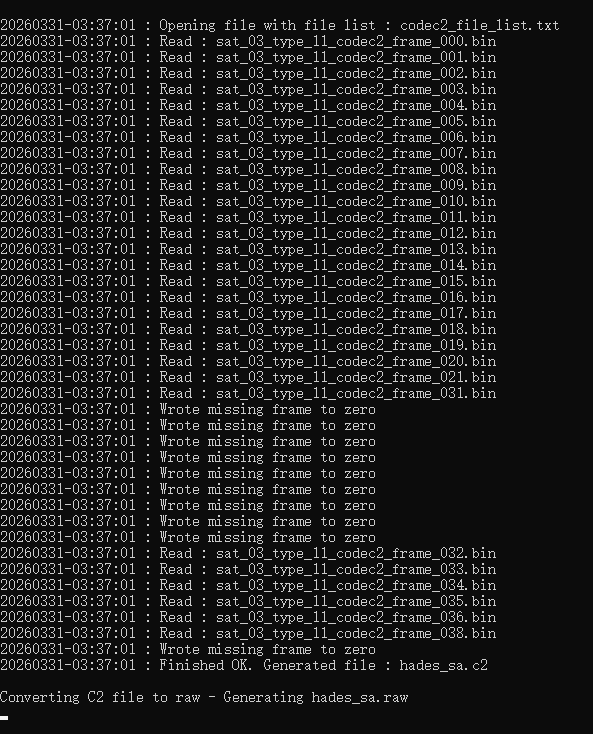

Awesome! I’ve now also exported a C2 file.
But I’m not sure how to use SSDV—when I open it with CMD, it doesn’t work

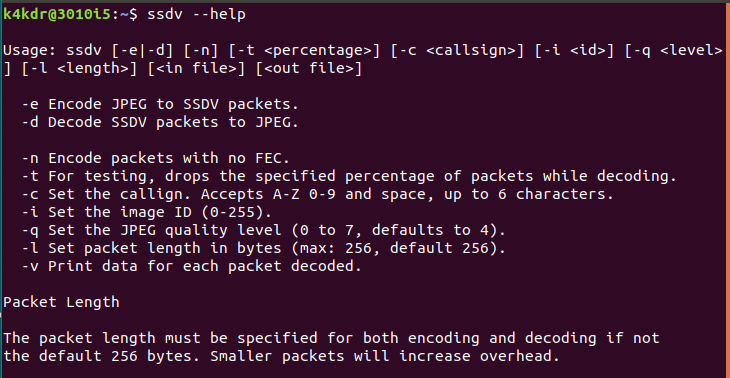

Depending on what version of SSDV you have, and what operating system, normally on linux it’s run with the ‘-d’ switch to decode a file:
1 Like
I am currently using Windows 10 22H2 Professional Workstation Edition
1 Like
Hi @K4KDR ,
I misunderstood and thought you borrowed the test binary file from the pull request.
It seems to be a framing issue, it has a ‘ character in front of the callsign.
Thanks so much! I had formatted the decodes pasted here earlier as a .KSS file since that is normally what the online parser uses. I’ll re-check that decode… there was a 2nd one posted as well, plus I could probably find some in the SatNogs observations by now. Thanks for the guidance!
1 Like
I also had trouble with those decodes from earlier. I extracted the text from your posted screenshot and it decoded well.
1 Like
I guess this is the stored image intended to be transmitted when no image has been taken with the on board camera. It was transmitted at 12:09 UTC shortly after the satellite was deployed. I managed to receive 34 from the 58 packets with my turnstile antenna from a 31 degrees pass.
hades_sa_image_000
5 Likes
Hi @fredy
The downlink frequency of the LUNA-2 is incorrect, must be 401.725. We has a suggestion on it.
At the moment, all the observations uses the incorrent frequency and all of them will definitely fail.
Could you please review.
The suggestion is approved and set to 401.725 MHz
Jan | PE0SAT
1 Like

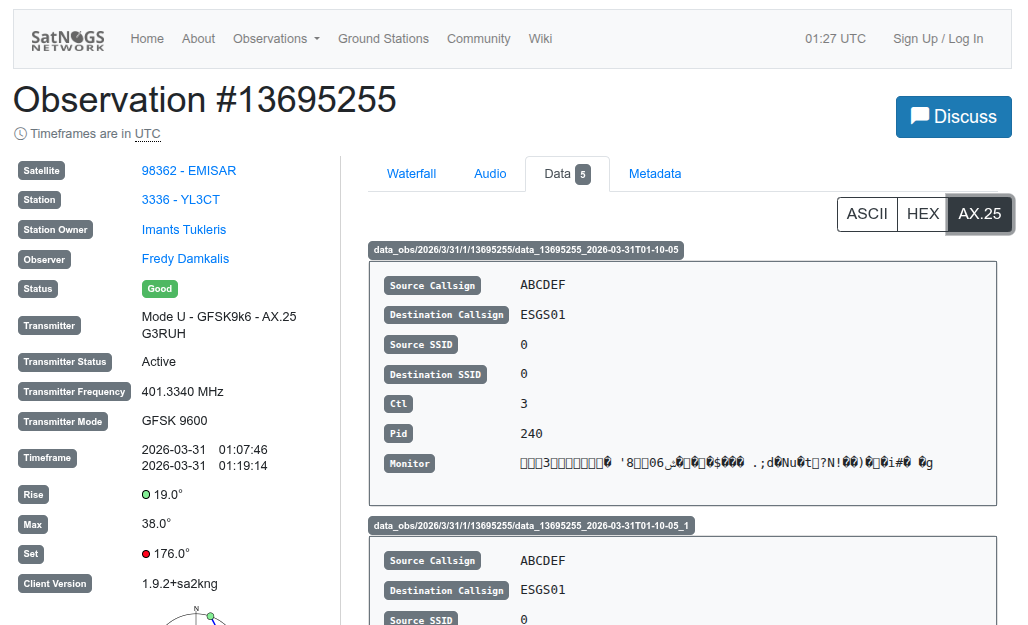

I’ve been spot-checking the SatNogs observations all day not seeing anything from EMISAR. Just saw this one - it’s alive!!
1 Like
HADES-SA 01:10-01:20 UTC Got an SSDV picture (№ 224) and voice (inaudible) transmissions. Also some tlm frames
hades_sa.zip (160.2 KB)
archieved .wav
3 Likes
Post launch TLE from celestrak:
LUNA-2
1 71932C 26067A 26089.49717544 -.00020143 00000+0 -10413-2 0 04
2 71932 97.4415 49.1596 0006852 1.3378 337.6612 15.16338967 19
FEMTO-1
1 71924C 26067B 26089.49733053 .00007708 00000+0 37723-3 0 02
2 71924 97.4478 49.1573 0002393 131.9216 207.9073 15.18266825 16
JACK-002
1 71927C 26067C 26089.49750414 -.00013014 00000+0 -63498-3 0 02
2 71927 97.4500 49.1567 0002681 143.8886 196.8842 15.18377566 18
DECIMALSAT-1 & VEGAFLY-*
1 71958C 26067D 26089.49758863 -.00009989 00000+0 -51655-3 0 00
2 71958 97.4320 49.1630 0007687 13.6276 327.6456 15.16316797 13
ERMIS1
1 71907C 26067E 26089.49766502 -.00018436 00000+0 -95154-3 0 02
2 71907 97.4499 49.1570 0006234 350.4783 351.1750 15.16395581 16
VIREON-2
1 71954C 26067F 26089.49773563 -.00014857 00000+0 -72769-3 0 09
2 71954 97.4450 49.1587 0002503 123.2850 218.7612 15.18244923 19
COSMO
1 71948C 26067G 26089.49785831 -.00002824 00000+0 -14512-3 0 06
2 71948 97.4441 49.1590 0005887 2.6609 340.0604 15.16542163 11
ERMIS2
1 71934C 26067H 26089.49798910 -.00017388 00000+0 -85072-3 0 03
2 71934 97.4425 49.1596 0002896 119.4852 223.9504 15.18283476 17
TES-23
1 71903C 26067J 26089.49818701 -.00011477 00000+0 -59299-3 0 05
2 71903 97.4474 49.1584 0006533 356.2178 348.2906 15.16356392 11
PEAKSAT
1 71931C 26067K 26089.49832127 -.00008334 00000+0 -40615-3 0 04
2 71931 97.4483 49.1583 0002774 147.1256 198.1107 15.18418055 10
SAL-E
1 71904C 26067L 26089.49846595 -.00007742 00000+0 -39877-3 0 08
2 71904 97.4412 49.1602 0006442 8.2554 337.7892 15.16462720 16
ERMIS3
1 71935C 26067M 26089.49852845 -.00016540 00000+0 -81576-3 0 06
2 71935 97.4524 49.1575 0000806 158.7644 187.5945 15.18005787 10
BRO-19
1 71910C 26067N 26089.49880044 -.00007103 00000+0 -34837-3 0 04
2 71910 97.4410 49.1604 0002636 115.0356 232.8319 15.18192650 14
OPTISAT
1 71916C 26067P 26089.49885947 -.00008093 00000+0 -39809-3 0 00
2 71916 97.4504 49.1584 0001213 150.1331 198.0367 15.18094424 10
PARUS-TX
1 71919C 26067Q 26089.49893470 -.00013781 00000+0 -70600-3 0 07
2 71919 97.4488 49.1589 0005235 359.3198 349.2677 15.16662579 15
TMICROSAT-2
1 71937C 26067R 26089.49920090 -.00016479 00000+0 -84504-3 0 01
2 71937 97.4515 49.1587 0005344 355.2313 354.8043 15.16629075 12
SPOCQ
1 71902C 26067S 26089.49928076 -.00014712 00000+0 -72297-3 0 09
2 71902 97.4441 49.1601 0001988 119.9326 230.5514 15.18131007 16
CYCLOPS-1
1 71951C 26067T 26089.49942544 -.00020853 00000+0 -10285-2 0 00
2 71951 97.4520 49.1589 0000707 161.0262 190.2316 15.18005631 13
DISCO-2
1 71908C 26067U 26089.49955160 -.00011726 00000+0 -58129-3 0 09
2 71908 97.4541 49.1588 0000289 282.0588 69.8834 15.17826845 10
SHARJAH-SAT 2
1 71906C 26067V 26089.49984326 -.00012757 00000+0 -63026-3 0 00
2 71906 97.4513 49.1596 0000455 143.3402 210.2007 15.17945209 15
PHOBOS
1 71949C 26067W 26089.50004581 -.00010065 00000+0 -51560-3 0 05
2 71949 97.4514 49.1599 0005260 358.6296 356.0189 15.16664465 18
SM 1-2
1 71918C 26067X 26089.50017428 -.00016953 00000+0 -83632-3 0 02
2 71918 97.4437 49.1608 0001555 107.7071 247.6555 15.17998052 11
HARBINGER
1 71909C 26067Y 26089.50064419 -.00011328 00000+0 -58177-3 0 01
2 71909 97.4426 49.1611 0005982 15.2118 342.7209 15.16570644 11
OUT OF THE BOX
1 71920C 26067Z 26089.50070438 -.00004111 00000+0 -20342-3 0 07
2 71920 97.4509 49.1609 0000265 100.4948 257.7494 15.17885499 19
NEWSAT 54
1 71971C 26067AA 26089.50101456 -.00016818 00000+0 -85625-3 0 00
2 71971 97.4483 49.1613 0004409 8.2732 351.6692 15.16884711 10
EMISAR & AIGLONSAT-1 & *
1 71963C 26067AB 26089.50121132 -.00002881 00000+0 -14288-3 0 06
2 71963 97.4481 49.1615 0000600 62.6153 298.4005 15.17814587 12
LILIUM-4
1 71922C 26067AC 26089.50133053 -.00014632 00000+0 -74472-3 0 04
2 71922 97.4497 49.1617 0004341 5.9603 355.7042 15.16896692 16
IRIDE-MS1-EAG2-14
1 71979C 26067AD 26089.50149373 -.00006711 00000+0 -33236-3 0 00
2 71979 97.4460 49.1618 0000807 84.9950 277.5663 15.17860080 17
AISSAT-4
1 71921C 26067AE 26089.50169512 -.00011934 00000+0 -60737-3 0 03
2 71921 97.4459 49.1620 0004438 14.8912 348.7706 15.16895764 14
IRIDE-MS1-EAG2-9
1 71969C 26067AF 26089.50192197 -.00008101 00000+0 -41128-3 0 05
2 71969 97.4456 49.1621 0004086 17.7970 347.1042 15.16982693 13
IRIDE-MS1-EAG2-13
1 71981C 26067AG 26089.50204234 -.00007698 00000+0 -38280-3 0 00
2 71981 97.4497 49.1626 0000780 9.2741 356.2747 15.17714655 11
GHOST RIDER
1 71961C 26067AH 26089.50222405 -.00017920 00000+0 -91030-3 0 09
2 71961 97.4485 49.1627 0004089 10.8260 355.7182 15.16965993 16
IRIDE-MS1-EAG2-10
1 71967C 26067AJ 26089.50263377 -.00007803 00000+0 -38720-3 0 04
2 71967 97.4443 49.1626 0000925 68.3678 300.4197 15.17791350 19
IRIDE-MS1-EAG2-16
1 71980C 26067AK 26089.50280044 -.00008790 00000+0 -44550-3 0 03
2 71980 97.4491 49.1635 0003753 8.0470 1.6404 15.17044017 12
IRIDE-MS1-EAG2-11
1 71968C 26067AL 26089.50317313 -.00008710 00000+0 -43315-3 0 09
2 71968 97.4496 49.1641 0000904 347.5846 24.1353 15.17712628 16
DREAM BIG-PFW & DREAM B*
1 71960C 26067AM 26089.50336178 .00000917 00000+0 45625-4 0 07
2 71960 97.4448 49.1632 0001106 51.2940 321.4682 15.17705818 15
GARAI B
1 71940C 26067AN 26089.50366734 -.00003564 00000+0 -18032-3 0 00
2 71940 97.4484 49.1644 0003509 15.7336 358.6906 15.17105218 18
IRIDE-MS1-EAG2-12
1 71970C 26067AP 26089.50406086 -.00009898 00000+0 -50094-3 0 08
2 71970 97.4488 49.1650 0003584 11.0006 5.5678 15.17094878 11
IRIDE-MS1-EAG2-15
1 71982C 26067AQ 26089.50454813 -.00009925 00000+0 -49456-3 0 03
2 71982 97.4493 49.1658 0001312 350.5810 28.6455 15.17645737 14
FGN 100 D3
1 71957C 26067AR 26089.50501456 -.00022081 00000+0 -11164-2 0 03
2 71957 97.4449 49.1646 0003388 23.7550 358.0272 15.17137345 17
VIGORIDE
1 71964C 26067AS 26089.50508863 -.00005592 00000+0 -27873-3 0 03
2 71964 97.4471 49.1656 0001260 5.2842 16.8972 15.17631829 19
HOTSAT-2
1 71941C 26067AT 26089.50524951 -.00018892 00000+0 -95479-3 0 08
2 71941 97.4454 49.1650 0003330 22.3144 0.7492 15.17148849 18
NEWSAT 53
1 71972C 26067AU 26089.50531086 -.00020275 00000+0 -10119-2 0 04
2 71972 97.4477 49.1661 0001486 2.8654 20.5279 15.17590425 12
HAWK-14A
1 71977C 26067AV 26089.50539072 -.00021858 00000+0 -11036-2 0 09
2 71977 97.4454 49.1652 0003182 22.6672 1.1673 15.17182513 15
SPACEVAN 2
1 71943C 26067AW 26089.50572637 -.00012700 00000+0 -63414-3 0 00
2 71943 97.4451 49.1653 0001464 20.5120 5.1549 15.17572442 12
WINNEBAGO 06
1 71945C 26067AX 26089.50594743 -.00021253 00000+0 -10726-2 0 04
2 71945 97.4471 49.1665 0003135 17.1515 9.7183 15.17199969 19
SCV-019
1 71944C 26067AY 26089.50659095 -.00020495 00000+0 -10248-2 0 01
2 71944 97.4476 49.1676 0001820 3.6290 26.7521 15.17528045 10
HAWK-14B
1 71978C 26067AZ 26089.50672984 -.00023071 00000+0 -11545-2 0 04
2 71978 97.4475 49.1677 0001922 5.9632 25.1764 15.17500844 14
HAWK-14C
1 71976C 26067BA 26089.50796711 -.00024565 00000+0 -12381-2 0 05
2 71976 97.4448 49.1670 0002822 27.8713 10.0290 15.17247155 18
GRAVITAS
1 71901C 26067BB 26089.55357313 -.00066244 00000+0 -66921-2 0 08
2 71901 97.7542 49.0571 0001186 283.4333 2.1468 14.91172198 17
FLYLAB-2
1 71933C 26067BC 26089.56028840 -.00077567 00000+0 -79291-2 0 08
2 71933 97.7501 49.0676 0003498 338.6228 343.0023 14.90698041 10
LEMUR-2-SEJONG-3
1 71926C 26067BD 26089.56035322 -.00072328 00000+0 -70739-2 0 01
2 71926 97.7500 49.0678 0004572 134.2284 187.7400 14.92460442 15
GEMS2 AMETHYST
1 71917C 26067BE 26089.56042613 -.00079064 00000+0 -80718-2 0 04
2 71917 97.7540 49.0647 0003117 324.8675 357.4861 14.90750914 11
BLACK KITE-2
1 71953C 26067BF 26089.56048401 -.00081975 00000+0 -80671-2 0 07
2 71953 97.7470 49.0701 0003696 121.6165 201.0620 14.92220090 19
LEMUR-2-IRINA
1 71923C 26067BG 26089.56056155 -.00073183 00000+0 -71539-2 0 04
2 71923 97.7554 49.0637 0004630 148.0822 174.9918 14.92480735 11
UNICORN-2R & UNICORN-2S
1 71959C 26067BH 26089.56063215 -.00072091 00000+0 -73836-2 0 07
2 71959 97.7465 49.0705 0004127 349.1024 334.3763 14.90616544 13
FLYLAB-1
1 71911C 26067BJ 26089.56070854 -.00077568 00000+0 -79230-2 0 00
2 71911 97.7568 49.0629 0003246 316.6107 7.2517 14.90729669 18
LEMUR-2-CLARA
1 71928C 26067BK 26089.56077799 -.00075371 00000+0 -74139-2 0 06
2 71928 97.7577 49.0623 0003595 156.6041 167.6268 14.92235887 16
AE1A
1 71936C 26067BL 26089.56085553 -.00077470 00000+0 -76466-2 0 09
2 71936 97.7474 49.0698 0003216 119.3308 205.3417 14.92100718 15
LEMUR-2-JULIA-JOEL
1 71913C 26067BM 26089.56098053 -.00077271 00000+0 -78665-2 0 05
2 71913 97.7518 49.0668 0002704 339.3269 346.0076 14.90864455 14
N1-ATLAS
1 71905C 26067BN 26089.56104998 -.00081484 00000+0 -82645-2 0 06
2 71905 97.7572 49.0631 0002008 311.5064 14.1870 14.91016520 15
LEMUR-2-DELOITTE-2
1 71915C 26067BP 26089.56111595 -.00077368 00000+0 -78551-2 0 05
2 71915 97.7499 49.0682 0002314 348.5298 337.5341 14.90973829 17
IO-1
1 71950C 26067BQ 26089.56125831 -.00083000 00000+0 -84054-2 0 07
2 71950 97.7477 49.0697 0002170 6.1545 320.6790 14.91078349 15
TORO3
1 71952C 26067BR 26089.56131618 -.00083206 00000+0 -82358-2 0 02
2 71952 97.7598 49.0618 0002736 175.4377 151.6747 14.91992209 19
LEMUR-2-POLO-11
1 71929C 26067BS 26089.56137637 -.00075970 00000+0 -76968-2 0 02
2 71929 97.7591 49.0623 0001992 299.8373 27.6024 14.91058437 18
FOSSASAT-2E
1 71962C 26067BT 26089.56152220 -.00073743 00000+0 -73055-2 0 04
2 71962 97.7527 49.0666 0002264 140.9448 187.2918 14.91955055 10
ADIS
1 71973C 26067BU 26089.56162868 -.00077722 00000+0 -78357-2 0 06
2 71973 97.7546 49.0656 0000882 329.4482 359.3563 14.91257672 16
LEMUR-2-PEGGY-2004
1 71912C 26067BV 26089.56170044 -.00077484 00000+0 -76749-2 0 02
2 71912 97.7479 49.0697 0002652 117.8991 211.3067 14.91961633 15
LEMUR-2-DELOITTE-3
1 71914C 26067BW 26089.56183586 -.00077535 00000+0 -76407-2 0 07
2 71914 97.7490 49.0691 0003325 132.3467 197.5815 14.92164909 10
LEMUR-2-EMARCHIA
1 71930C 26067BX 26089.56197243 -.00076473 00000+0 -77723-2 0 02
2 71930 97.7503 49.0684 0002578 354.7740 335.8873 14.90930979 15
ICEYE-X71
1 71956C 26067BY 26089.56208470 -.00072068 00000+0 -72496-2 0 03
2 71956 97.7546 49.0661 0000520 345.2454 346.0074 14.91344494 16
LEMUR-2-CARROLLEMO
1 71925C 26067BZ 26089.56227683 -.00079455 00000+0 -80168-2 0 08
2 71925 97.7466 49.0705 0001941 29.6294 302.6721 14.91225510 19
ICEYE-X73
1 71946C 26067CA 26089.56239604 -.00071910 00000+0 -71349-2 0 06
2 71946 97.7540 49.0667 0001943 150.9166 182.0062 14.91892861 17
ICEYE-X75
1 71939C 26067CB 26089.56251294 -.00071979 00000+0 -71472-2 0 09
2 71939 97.7521 49.0678 0001850 140.6144 192.9398 14.91862471 15
VINDLER 2 2
1 71966C 26067CC 26089.56280692 -.00074843 00000+0 -74487-2 0 05
2 71966 97.7548 49.0668 0001396 155.0197 180.1069 14.91772771 13
SERT3
1 71974C 26067CD 26089.56288215 -.00074719 00000+0 -75087-2 0 02
2 71974 97.7513 49.0685 0000749 38.8339 296.7042 14.91386090 10
ICEYE-X74
1 71947C 26067CE 26089.56310090 -.00072635 00000+0 -73079-2 0 03
2 71947 97.7546 49.0672 0000576 348.9408 347.7646 14.91338138 19
ACADIA 10
1 71942C 26067CF 26089.56317729 -.00076352 00000+0 -76011-2 0 03
2 71942 97.7515 49.0687 0001457 132.7517 204.3693 14.91761302 18
ICEYE-X76
1 71938C 26067CG 26089.56339141 -.00072769 00000+0 -73031-2 0 07
2 71938 97.7556 49.0671 0000133 355.3517 342.9115 14.91438015 14
VINDLER 2 3
1 71975C 26067CH 26089.56360785 -.00075275 00000+0 -74914-2 0 02
2 71975 97.7514 49.0690 0001533 132.4256 207.0068 14.91773948 14
ICEYE-X72
1 71955C 26067CJ 26089.56386942 -.00072698 00000+0 -72495-2 0 01
2 71955 97.7557 49.0677 0001012 169.7273 171.0987 14.91693485 15
VINDLER 2 1
1 71965C 26067CK 26089.56451178 -.00075975 00000+0 -76163-2 0 03
2 71965 97.7507 49.0699 0000917 76.4803 267.8049 14.91483780 19
2 Likes
can you do your magic with “our” temporary numbers
TLE update for PEAKSAT:
PEAKSAT
1 98378U 26066K 26090.36120638 .00000000 00000-0 46983-3 0 07
2 98378 97.4432 50.0953 0003312 155.9961 223.1662 15.18586317 00
TLE updates based on celestrak post launch TLE with the changed temporary NORAD IDs are coming in the next minutes
1 Like
