SSTV Decoder for Satnogs - Tutorial for Noobs and Pro

SatNOGS Software
,
1

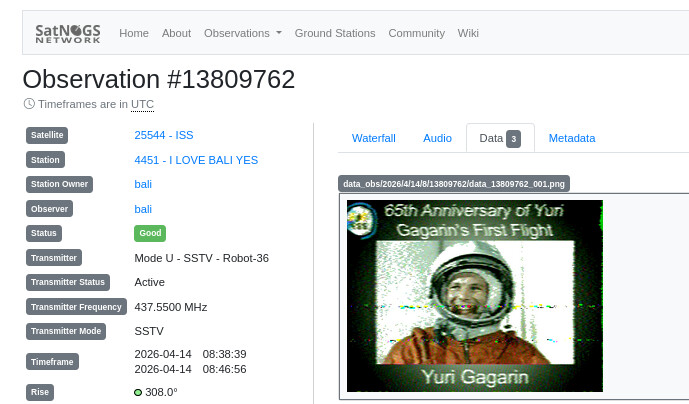

Regarding Observation 13809762 …

image689×404 76.5 KB

I’m trying to make an SSTV auto decoder for SatNOGS (python script, forked from colaclanth/sstv, and it looks like it works flawlessly. I will share a tutorial and source code on this page:

SSTV mode supported:

Martin 1, 2
Scottie 1, 2, DX
Robot 36, 72

this work flawless on latest satnogs-client docker (version 2.1.1) (running on raspberry with satnogs manual docker installation)

STEP BY STEP

change directory to your grandstation directory:

cd ~/station-4330

create directory app (If it already exists, skip this step)
mkdir app

edit docker-compose.yml
nano docker-compose.yml

Look at the line that contains:

    volumes:
      - type: 'tmpfs'
        target: '/tmp'

Then copy and paste the following text right below it:

      - type: 'bind'
        source: './app'
        target: '/app'

edit station.env:
nano station.env

find the following variable and change its value to: (if it doesn’t exist yet, add it)

SATNOGS_POST_OBSERVATION_SCRIPT=/app/satnogs-post {{ID}} {{FREQ}} {{TLE}} {{TIMESTAMP}} {{BAUD}} {{SCRIPT_NAME}}

go to app dir:
cd app

copy paste and run this command (download the sstv2satno add on script):
git clone https://github.com/hobisatelit/sstv2satno

create satnogs-post script (If it already exists, just edit and add the new line):
nano satnogs-post

copy paste this
#!/bin/bash

/app/sstv2satno/sstv.sh stop "$@" &

make it executable:
chmod 755 satnogs-post

restart the station:

cd ~/station-4330
sudo docker-compose down && sudo docker-compose up -d && sudo docker-compose logs -f

and.. finish! :partying_face:

just create a new observation for satellites that have SSTV event.

by default, these SSTV Satellites are included in my sstv script.
25544 - ISS
57172 - UmKA-1
67290 - SAKHACUBE
40931 - LAPAN-A2
57180 - Monitor-3
61762 - ArcticSat-1
67291 - QMR-KWT 2
57189 - VIZARD-meteo
48274 - CSS (Tianhe)
57203 - UTMN2
67279 - GALAPAGOS-UTE-SWSU
59112 - SONATE-2
57190 - Nanozond-1

but you can edit these file by yourself, just go to file ~/app/sstv.sh

when the sat is finish obs, and your logs seen like these, that mean the sstv decoder is work:

logs
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Detected SSTV mode Robot 36
[sstv] Decoding image...   [######] 100%e...   [......]   0%
satnogs_client_1  | [sstv] Drawing image data...
satnogs_client_1  | [sstv] ...Done!
satnogs_client_1  | [sstv]
satnogs_client_1  | Image 1 decoded successfully!
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
[sstv] Searching for calibration header... Found!    header... 224.
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: Error decoding VIS header (invalid parity bit)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: Error decoding VIS header (invalid parity bit)
satnogs_client_1  | [sstv] Searching for calibration header... Found!
satnogs_client_1  | [sstv] Error decoding image: SSTV mode is unsupported (VIS: 0)
satnogs_client_1  | [sstv]
satnogs_client_1  | [sstv]
satnogs_client_1  | Total images decoded: 1
satnogs_client_1  | output_dir: /tmp/.satnogs/data
satnogs_client_1  | [sstv] Image 001 saved as /tmp/.satnogs/data/data_13809762_qsstv_001.png
satnogs_client_1  | INFO     satnogsclient.observer.observer Artifacts upload for observation 13809762 successful.

73!
bali

9 Likes
2

Nice! I am interested!

Also interested in a more general way in how to take the transmission, process it, and feed it back to satnogs so that it appears as output on the website.

3

nah. just follow the step by step above. i guarantee you will learn much what you interest.

4

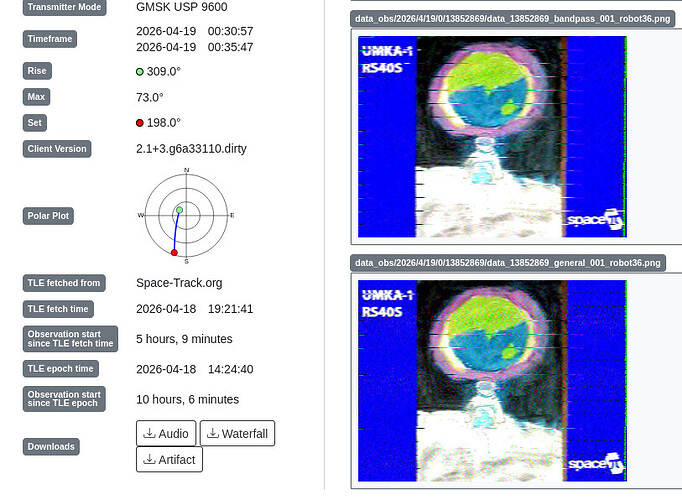

I tried sstv2satno and successfully uploaded the Robot36 image from UmKA-1 at #13852869. Thanks!! I’m going to gather slant correction factor data and update my sstv.sh script.

5

Thank you for trying.
glad to see it work also on your station.

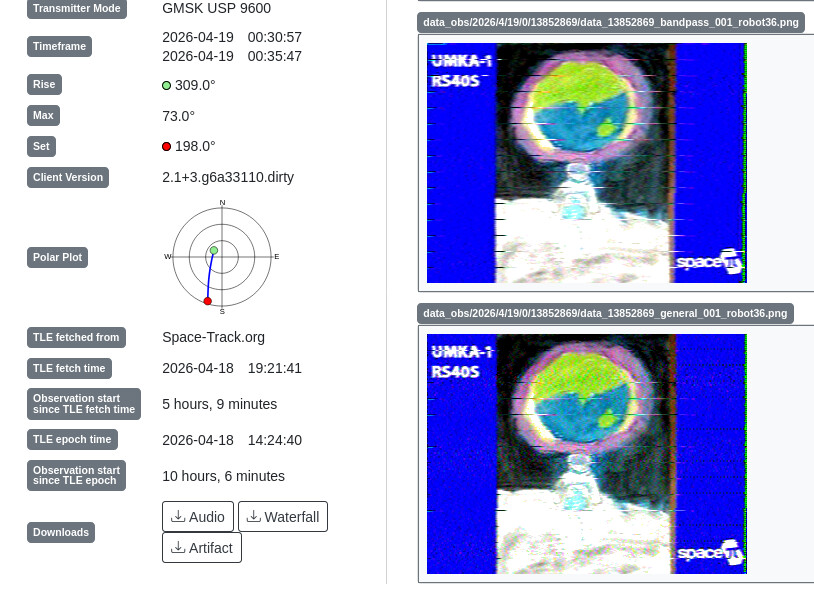

i put here for archive:

image814×596 161 KB

1 Like
6

That’s awesome! When I read that there is no decoder included, I put a note on my ToDo to make a post script for this. Great to know you already did this! I will copy setup asap :slight_smile:

2 Likes
7

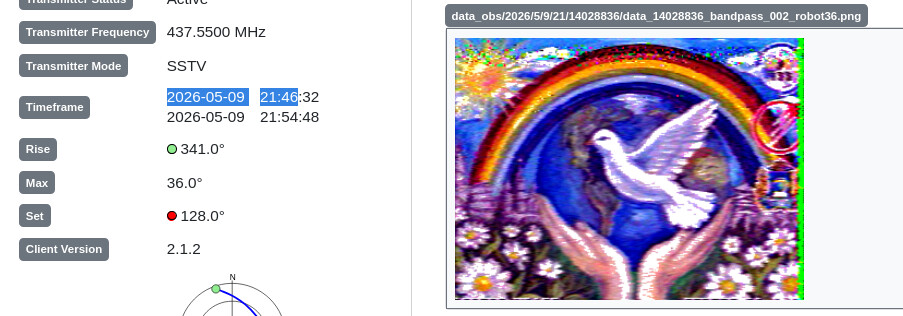

now best time to test sstv decoder (iss sstv event, articsat farewell sstv, etc)

image903×316 97 KB

2 Likes
8

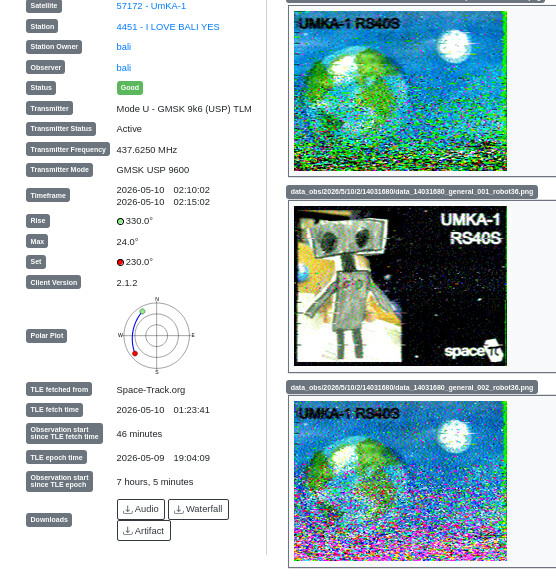

image556×578 175 KB

from this obs

3 Likes
9

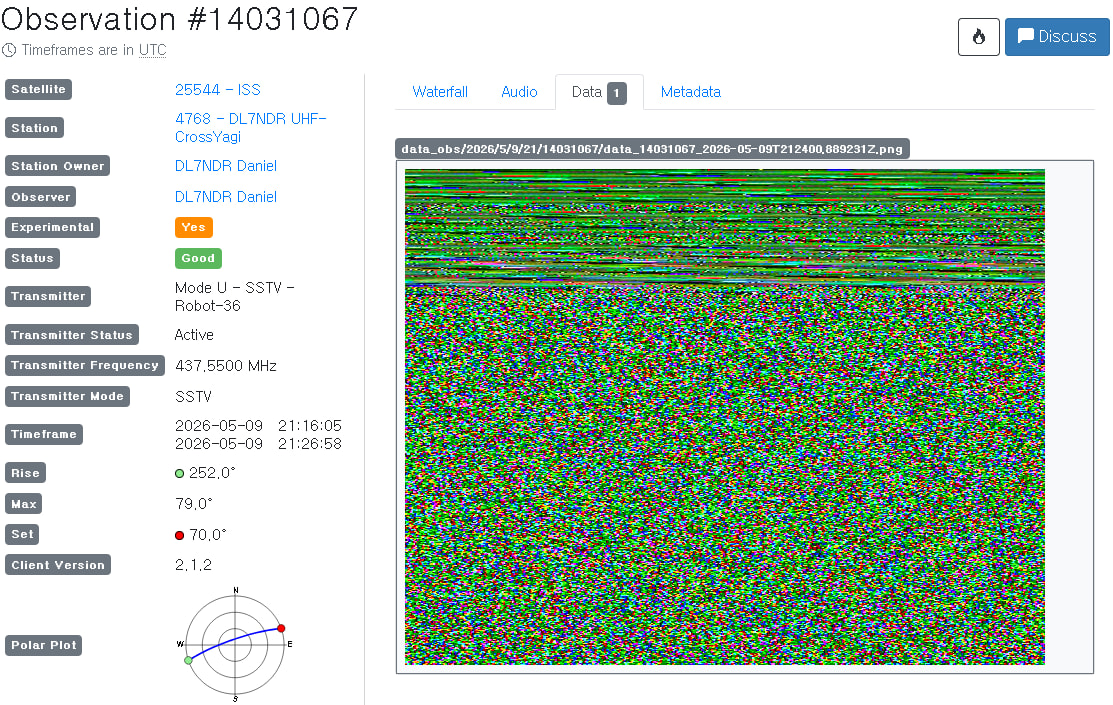

Observation 14031067

Observation #14031067
Observation #140310671113×705 560 KB

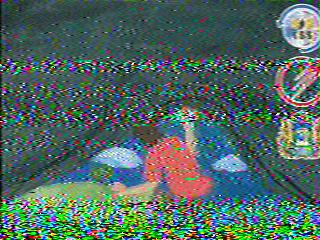

Manually decoded:

Observation #14031067 (manually)
Observation #14031067 (manually)320×240 29.6 KB

2 Likes
10

I have the same problem. I had to change the sox binary because it is aarch64 on github, but it runs 32bit in docker.

and now: obs 14033966

1 Like
11

Ehm, could you explain your change in detail, please?

12

I don’t know what version of docker you are running (32bit or 64bit), but on the mentioned github (GitHub - hobisatelit/sstv2satno: SSTV Decoder for satnogs · GitHub) there is a sox binary included, which is 64bit - in my case unusable - I run docker 32bit.
you can verify by connecting to the container:

docker-compose exec --user root satnogs_client bash

and in it:
try run:
/app/sstv2satno/sstv/sox

if the output is:
bash: /app/sstv2satno/sstv/sox.bad: cannot execute binary file: Exec format error

then sox is for a different version

or test:
uname -m
armv7l = 32bit

file /app/sstv2satno/sstv/sox

32bit output:

/app/sstv2satno/sstv/sox: ELF 32-bit LSB pie executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-armhf.so.3, BuildID[sha1]=b5bdf6a089531d78b0b4d3de5b41145b644ebd2d, for GNU/Linux 3.2.0, stripped

64bit output:

/app/sstv2satno/sstv/sox.bad: ELF 64-bit LSB pie executable, ARM aarch64, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-aarch64.so.1, BuildID[sha1]=5ec814b2902153f74daf672b8b19019265426061, for GNU/Linux 3.7.0, with debug_info, not stripped

I use a custom build satnogs, so I have the sox package installed directly in the container

2 Likes
13

I’m able to run sox, no error message.

2 Likes
14

hi daniel, if you done follow all step above, try make sstv obs. example for current is articsat. and monitor at the log

1 Like
