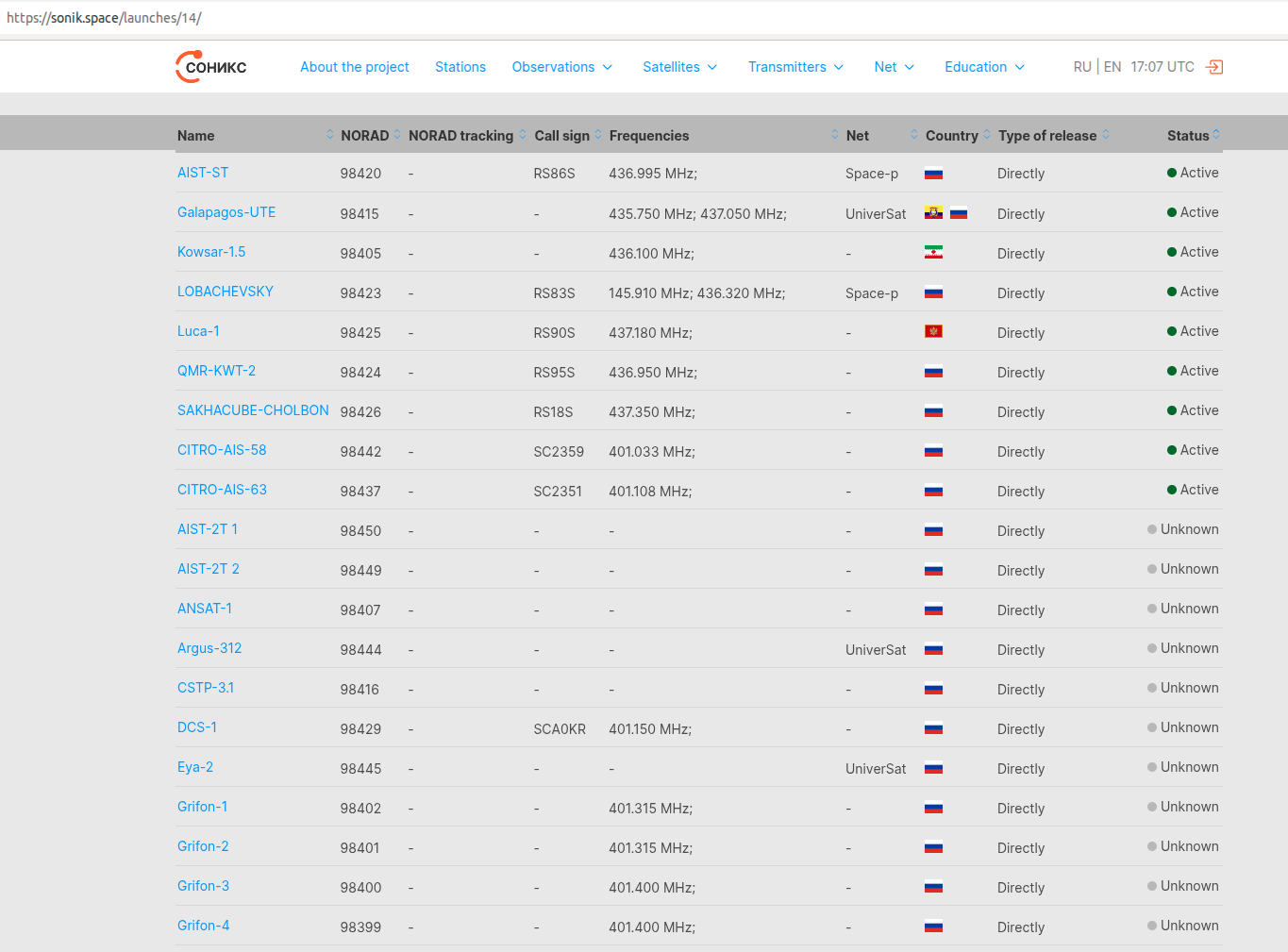

Wanted to mention some updates on the sonik.space page… several more objects on that list are now showing as “ACTIVE”.
Also, at the bottom of the image below, note the -4- Grifon sats… I have received LoRa decodes from #1 and #3 (listed on tinyGS as using SF=9). However, I got zero decodes listening for either of the others using SF=10. So, I don’t know if only two are communicating currently or if that SF=10 parameter is an error.

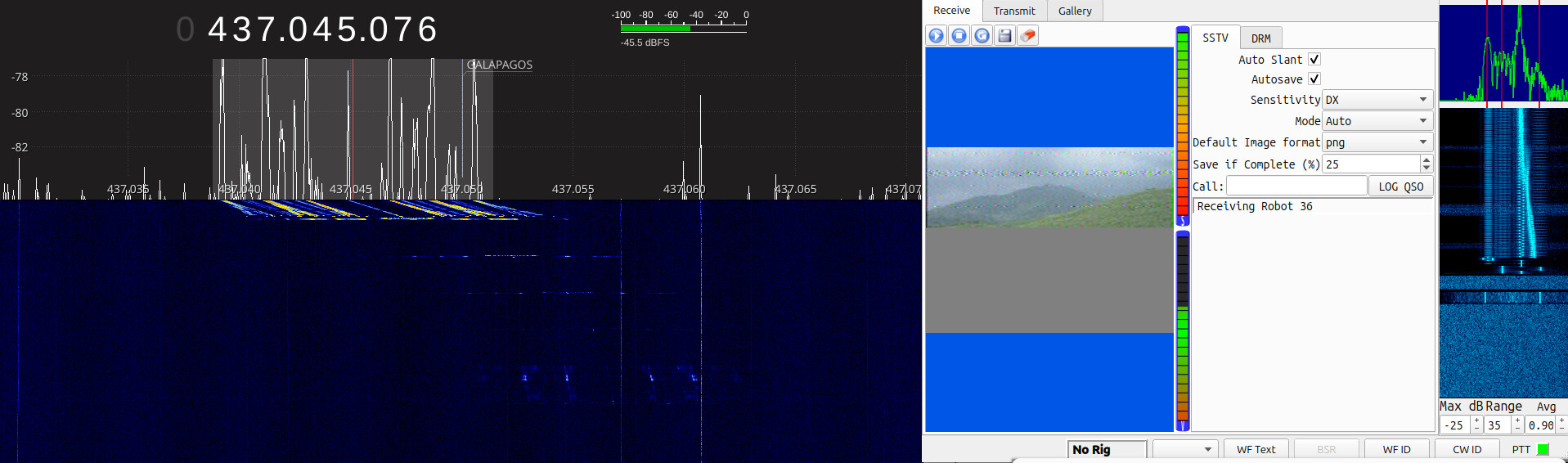

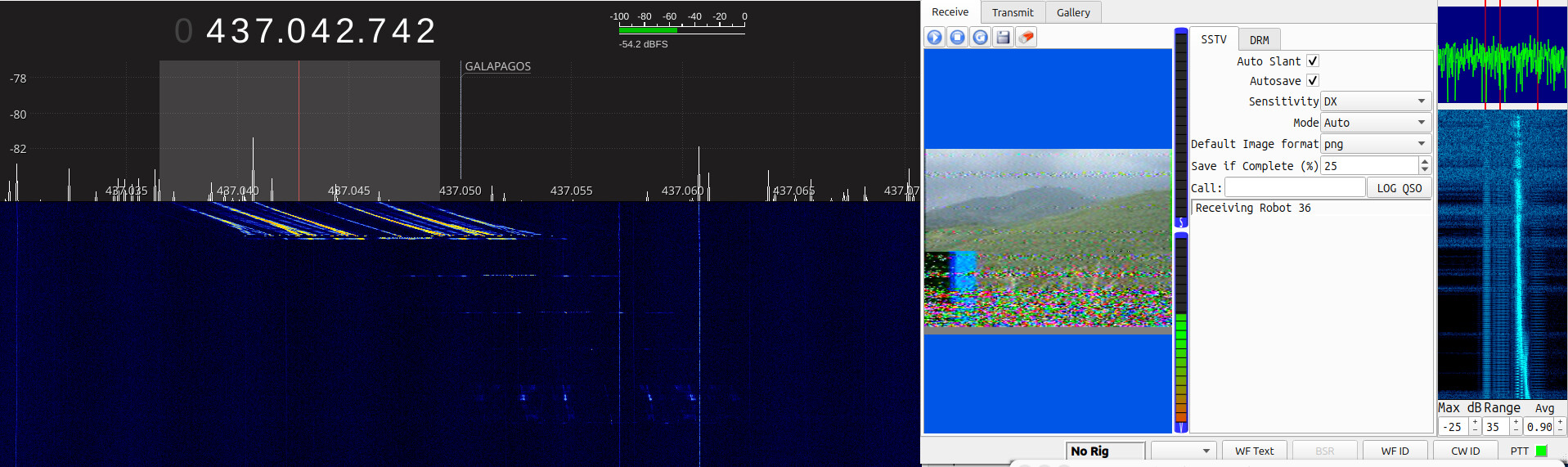

Anybody knows the status of the Galapagos and its SSTV transmissions ???
I got a couple on 29-Dec, but with my attention being spent on so many of the other sats, have not monitored any passes since then.
I listened out for it a few days back but did not here it.
20260104.41-20260107.82, 81 measurements, 0.052 kHz rms
LOBACHEVSKY
1 98423U 25313X 26007.81780737 .00000000 00000-0 13724-3 0 09
2 98423 97.4100 85.0434 0016070 187.5291 221.3397 15.20937522 03
Which fit this TLE better
OBJECT AN
1 67284U 25313AN 26006.95361696 .00004494 00000+0 20591-3 0 9990
2 67284 97.4106 84.2589 0010487 198.4327 161.6530 15.20934831 1432
The full list of objects by NORAD (https://celestrak.org/NORAD/elements/gp.php?INTDES=2025-313&FORMAT=tle)
OBJECT A
1 67248U 25313A 26006.95413144 .00002178 00000+0 22149-3 0 9994
2 67248 97.5641 83.7477 0280314 134.4591 227.9917 14.66765523 1386
OBJECT B
1 67249U 25313B 26006.91471311 .00005330 00000+0 40926-3 0 9997
2 67249 97.5328 83.7499 0297656 139.1132 223.2825 14.73121151 1381
OBJECT C
1 67250U 25313C 26006.91293020 .00019875 00000+0 18625-2 0 9997
2 67250 97.6370 84.0467 0163639 149.4877 211.5985 14.84390876 1395
OBJECT D
1 67251U 25313D 26006.95233771 .00004700 00000+0 41066-3 0 9996
2 67251 97.5882 84.0724 0152177 142.1153 219.0891 14.88686704 1404
OBJECT E
1 67252U 25313E 26006.95057061 .00009715 00000+0 43394-3 0 9990
2 67252 97.4122 84.2717 0010417 184.6271 175.4870 15.21504695 1438
OBJECT F
1 67253U 25313F 26006.95455570 .00047629 00000+0 49747-3 0 9992
2 67253 97.1039 84.2234 0010067 205.4372 154.6394 15.64293194 1450
OBJECT G
1 67254U 25313G 26006.95484365 .00044656 00000+0 46787-3 0 9995
2 67254 97.1037 84.2228 0010255 206.3873 153.6866 15.64225039 1442
OBJECT H
1 67255U 25313H 26006.73610101 .00002281 00000+0 16313-3 0 9991
2 67255 97.3117 83.6918 0090294 164.1192 196.2899 15.02134996 1384
OBJECT J
1 67256U 25313J 26006.96152778 .00011494 00000+0 53888-3 0 9992
2 67256 97.4109 84.2529 0016323 204.0376 156.0099 15.19722541 1430
OBJECT K
1 67257U 25313K 26006.76373291 .00010350 00000+0 48534-3 0 9998
2 67257 97.4119 84.0599 0016008 207.0067 153.0337 15.19749387 1403
OBJECT L
1 67258U 25313L 26006.96112769 .00011194 00000+0 52400-3 0 9996
2 67258 97.4113 84.2528 0016011 205.6730 154.3712 15.19788464 1430
OBJECT M
1 67259U 25313M 26006.95988140 .00014270 00000+0 66230-3 0 9994
2 67259 97.4156 84.2716 0015159 203.6003 156.4538 15.20034916 1437
OBJECT N
1 67260U 25313N 26006.76270795 .00009140 00000+0 42722-3 0 9995
2 67260 97.4125 84.0617 0015317 206.8377 153.2068 15.19906542 1409
OBJECT P
1 67261U 25313P 26006.95945761 .00018992 00000+0 87664-3 0 9998
2 67261 97.4157 84.2725 0015104 204.2068 155.8459 15.20161524 1430
OBJECT Q
1 67262U 25313Q 26006.95972019 .00012726 00000+0 59111-3 0 9990
2 67262 97.4124 84.2566 0015086 206.1997 153.8476 15.20036933 1431
OBJECT R
1 67263U 25313R 26006.95976897 .00011036 00000+0 51356-3 0 9995
2 67263 97.4136 84.2697 0015006 205.1371 154.9135 15.20010346 1431
OBJECT S
1 67264U 25313S 26006.82831412 .00008225 00000+0 38458-3 0 9999
2 67264 97.4206 84.1306 0014935 211.0002 149.0353 15.19932381 1418
OBJECT T
1 67265U 25313T 26006.95957023 .00010515 00000+0 48902-3 0 9991
2 67265 97.4116 84.2669 0014907 206.0750 153.9736 15.20044292 1433
OBJECT U
1 67266U 25313U 26006.95955220 .00011455 00000+0 53241-3 0 9995
2 67266 97.4144 84.2699 0014870 204.5636 155.4892 15.20044424 1430
OBJECT V
1 67267U 25313V 26006.95940160 .00012879 00000+0 59750-3 0 9995
2 67267 97.4126 84.2592 0014076 210.5830 149.4585 15.20088106 1431
OBJECT W
1 67268U 25313W 26006.95959301 .00010148 00000+0 47240-3 0 9991
2 67268 97.4125 84.2574 0014995 205.5027 154.5470 15.20020395 1439
OBJECT X
1 67269U 25313X 26006.95936354 .00015207 00000+0 70371-3 0 9997
2 67269 97.4152 84.2706 0014886 203.8910 156.1636 15.20127115 1438
OBJECT Y
1 67270U 25313Y 26006.95973517 .00011653 00000+0 54192-3 0 9995
2 67270 97.4127 84.2676 0014947 205.8221 154.2270 15.20017795 1438
OBJECT Z
1 67271U 25313Z 26006.95981433 .00006106 00000+0 28638-3 0 9995
2 67271 97.4122 84.2586 0014892 201.3795 158.6820 15.19936454 1439
OBJECT AA
1 67272U 25313AA 26006.95908818 .00014846 00000+0 68626-3 0 9993
2 67272 97.4124 84.2575 0014708 206.1286 153.9209 15.20170958 1434
OBJECT AB
1 67273U 25313AB 26006.69631881 .00004667 00000+0 21974-3 0 9993
2 67273 97.4141 84.0013 0013752 211.4127 148.6288 15.19940621 1393
OBJECT AC
1 67274U 25313AC 26006.95928763 .00008688 00000+0 40466-3 0 9995
2 67274 97.4115 84.2663 0014583 205.2480 154.8044 15.20052905 1439
OBJECT AD
1 67275U 25313AD 26006.82731512 .00009060 00000+0 42130-3 0 9991
2 67275 97.4089 84.1347 0013840 208.5857 151.4620 15.20105301 1417
OBJECT AE
1 67276U 25313AE 26006.95894458 .00008562 00000+0 39830-3 0 9994
2 67276 97.4093 84.2639 0013784 208.0475 152.0019 15.20110412 1436
OBJECT AF
1 67277U 25313AF 26006.95900504 .00008047 00000+0 37482-3 0 9994
2 67277 97.4096 84.2645 0013752 207.9362 152.1137 15.20086813 1434
OBJECT AG
1 67278U 25313AG 26006.95892595 .00007910 00000+0 36833-3 0 9992
2 67278 97.4098 84.2652 0013727 207.7161 152.3344 15.20101162 1440
OBJECT AH
1 67279U 25313AH 26006.89285982 .00009336 00000+0 43325-3 0 9990
2 67279 97.4109 84.2019 0014300 205.0970 154.9572 15.20160083 1424
OBJECT AJ
1 67280U 25313AJ 26006.95643210 .00005610 00000+0 25936-3 0 9990
2 67280 97.4180 84.2655 0013182 201.0598 159.0096 15.20487006 1435
OBJECT AK
1 67281U 25313AK 26006.95587744 .00005659 00000+0 26103-3 0 9990
2 67281 97.4064 84.2627 0011898 199.7513 160.3263 15.20578136 1434
OBJECT AL
1 67282U 25313AL 26006.95369905 .00007244 00000+0 32970-3 0 9999
2 67282 97.4112 84.2597 0010667 198.6554 161.4292 15.20952964 1430
OBJECT AM
1 67283U 25313AM 26006.95346492 .00010219 00000+0 46259-3 0 9997
2 67283 97.4120 84.2611 0010629 198.6401 161.4447 15.21032239 1433
OBJECT AN
1 67284U 25313AN 26006.95361696 .00004494 00000+0 20591-3 0 9990
2 67284 97.4106 84.2589 0010487 198.4327 161.6530 15.20934831 1432
OBJECT AP
1 67285U 25313AP 26006.95301009 .00009995 00000+0 45161-3 0 9994
2 67285 97.4098 84.2585 0010207 200.1097 159.9738 15.21103659 1431
OBJECT AQ
1 67286U 25313AQ 26006.82109325 .00009164 00000+0 41394-3 0 9990
2 67286 97.4118 84.1403 0009850 196.6126 163.4788 15.21144998 1411
OBJECT AR
1 67287U 25313AR 26006.75512462 .00011800 00000+0 53101-3 0 9992
2 67287 97.4120 84.0763 0009815 197.3119 162.7783 15.21203014 1405
OBJECT AS
1 67288U 25313AS 26006.88687582 .00007218 00000+0 32682-3 0 9992
2 67288 97.4107 84.2032 0011589 189.4159 170.6862 15.21122454 1425
OBJECT AT
1 67289U 25313AT 26006.95212781 .00014611 00000+0 65454-3 0 9994
2 67289 97.4120 84.2717 0009792 196.9750 163.1159 15.21307251 1431
OBJECT AU
1 67290U 25313AU 26006.95203761 .00011823 00000+0 53079-3 0 9996
2 67290 97.4119 84.2715 0009577 195.9225 164.1711 15.21286088 1435
OBJECT AV
1 67291U 25313AV 26006.95187254 .00013002 00000+0 58264-3 0 9997
2 67291 97.4117 84.2717 0009489 195.9969 164.0968 15.21328411 1433
OBJECT AW
1 67292U 25313AW 26006.95147393 .00011857 00000+0 53096-3 0 9992
2 67292 97.4123 84.2730 0009208 195.8667 164.2282 15.21377094 1431
OBJECT AX
1 67293U 25313AX 26006.95174662 .00005333 00000+0 24142-3 0 9994
2 67293 97.4119 84.2698 0011100 186.4208 173.6887 15.21255995 1431
OBJECT AY
1 67294U 25313AY 26006.75390468 .00013225 00000+0 59101-3 0 9999
2 67294 97.4125 84.0789 0009100 197.0953 162.9977 15.21420180 1408
OBJECT AZ
1 67295U 25313AZ 26006.75382721 .00010707 00000+0 47915-3 0 9995
2 67295 97.4117 84.0765 0010600 187.0967 173.0120 15.21411200 1401
OBJECT BA
1 67296U 25313BA 26006.95091199 .00012126 00000+0 54141-3 0 9990
2 67296 97.4130 84.2746 0008874 196.4880 163.6069 15.21473934 1438
OBJECT BB
1 67297U 25313BB 26006.95057713 .00012100 00000+0 53943-3 0 9996
2 67297 97.4133 84.2748 0008593 198.2591 161.8337 15.21528135 1433
For now, the following ID’s
Updated 09-01-2026 12:50 UTC
67291 2025-313AV 435.240 SCORPION
67282 2025-313AL 436.320 LOBACHEVSKY
67255 2025-313H 436.740 ?
67293 2025-313AX 436.951 QMR-KWT-2
67287 2025-313AR 437.180 LUCA
67279 2025-313AU 437.050 GALAPAGOS-UTE-SWSU
67271 2025-313Z 437.200 ?
67290 2025-313AU 437.350 SAKHACUBE-CHOLBON
Jan | PE0SAT
Let’s TLE lottery begin!
There is our attempt to identify some satellites:
Satellite | NORAD ID |RMS [Hz]| Next candidate |RMS [Hz]
------------------+-------+--------------------+------------+------+
Luca-1 | 67287 | 134 | 67286 | 296
QMR-KWT-2 | 67291 | 141 | 67293 | 189
SAKHACUBE-CHOLBON | 67289 | 76 | 67290 | 127
Again an update and other unknown satellites
67291 2025-313AV 435.240 SCORPION

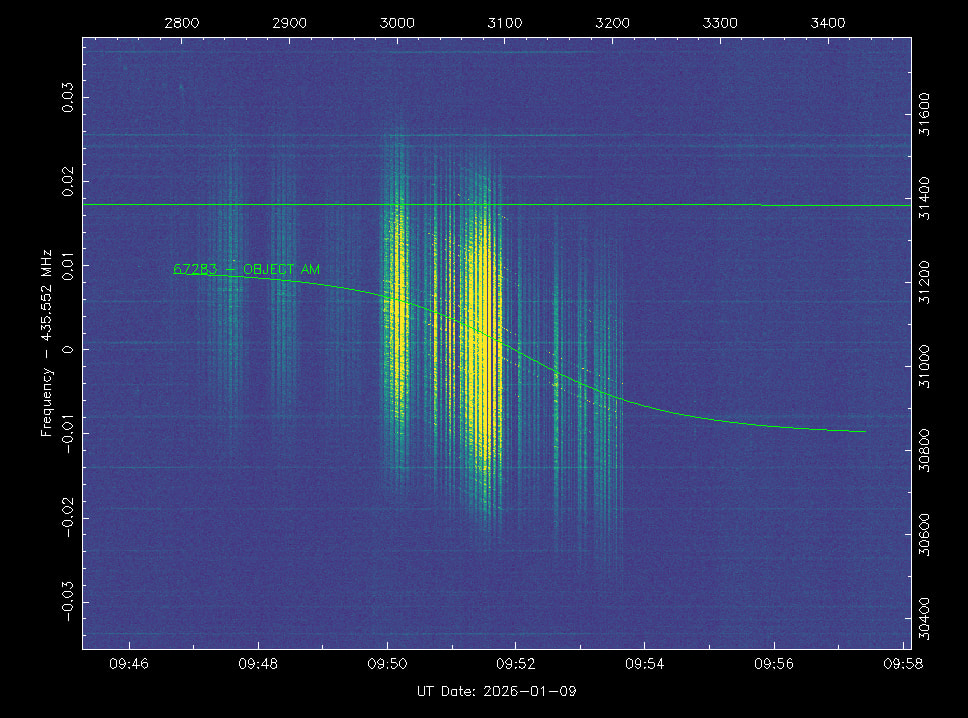

67283 2025-313AM 435.550 ?
67254 2025-313G 435.850 ?
67253 2025-313F 436.090 ?
67282 2025-313AL 436.320 LOBACHEVSKY
67255 2025-313H 436.740 ?
67293 2025-313AX 436.951 QMR-KWT-2
67287 2025-313AR 437.180 LUCA
67279 2025-313AU 437.050 GALAPAGOS-UTE-SWSU
67271 2025-313Z 437.200 ?
67290 2025-313AU 437.350 SAKHACUBE-CHOLBON
An example:
Jan | PE0SAT

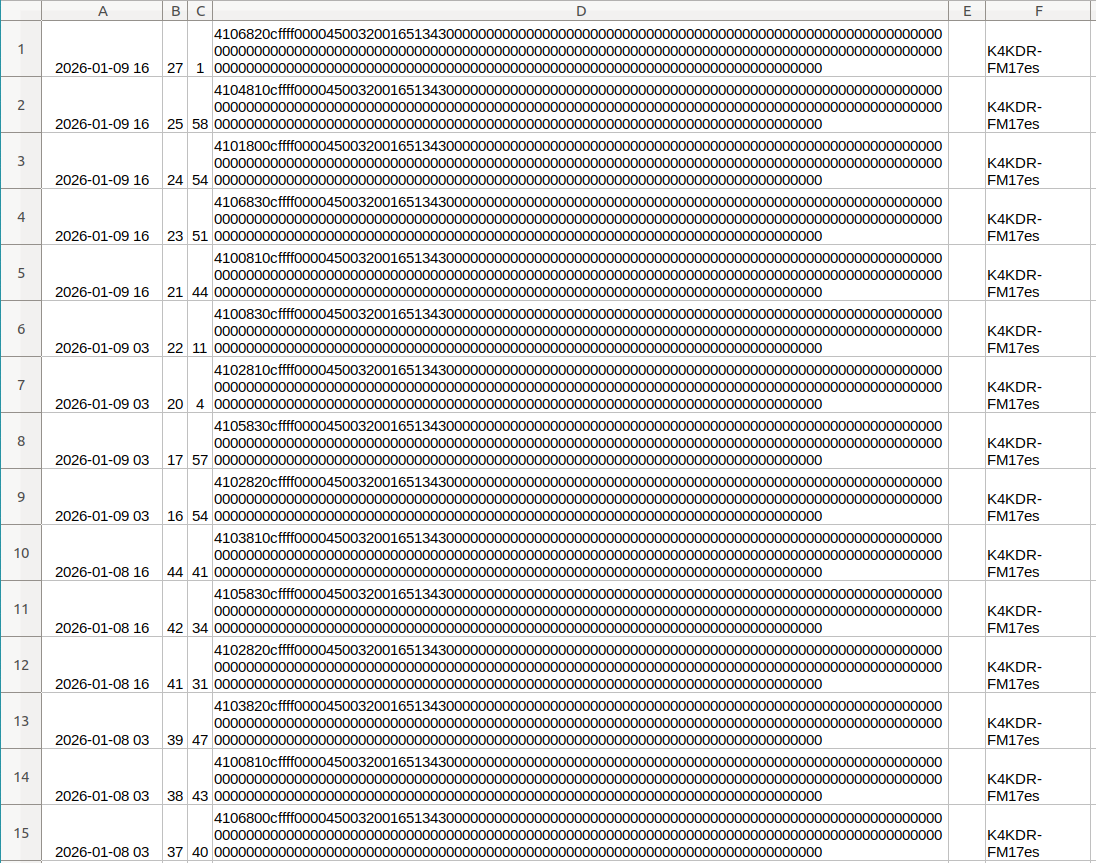

Whatever this unk. LoRa downlink is on 436.550 (Object #98423), it tracks very closely each day with passes of KOSAR-1.5. I guess eventually these objects will spread out enough that the source can be narrowed down.
IQ recording from object 67271. Details: Center 437.200, sample rate 1.25e6 PCM 16
67271 2025-313Z 437.200 ?
It seems to be some kind of RTTY but with a very wide shift.
Maybe if you have more experience with RTTY you can try to decode it.
Jan | PE0SAT

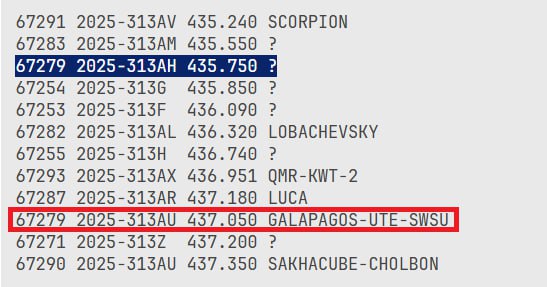

Another TLE Lottery update
67291 2025-313AV 435.240 SCORPION
67283 2025-313AM 435.550 ?

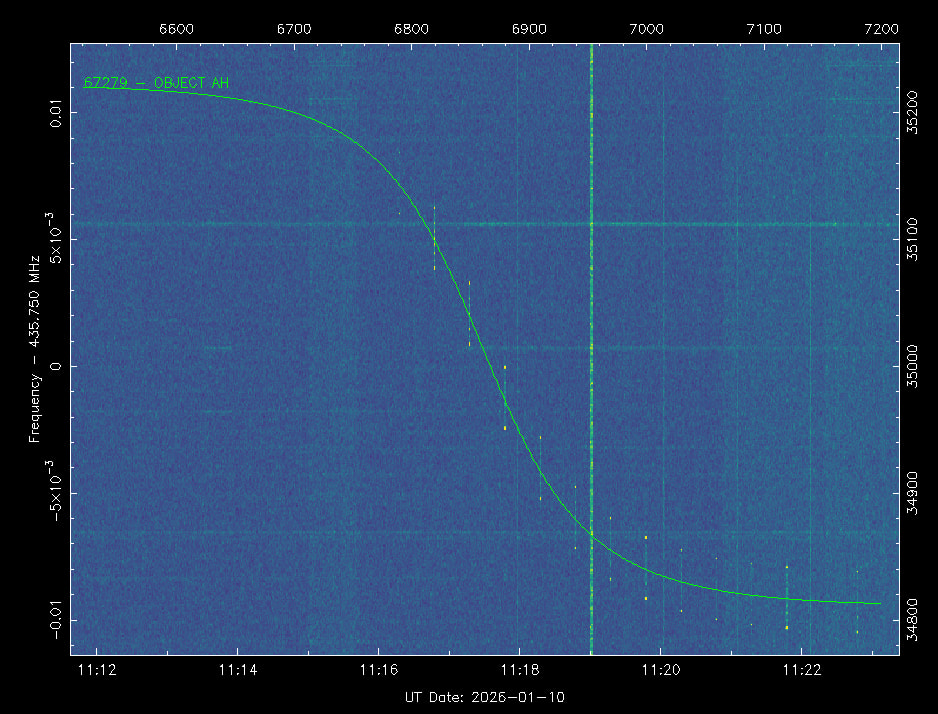

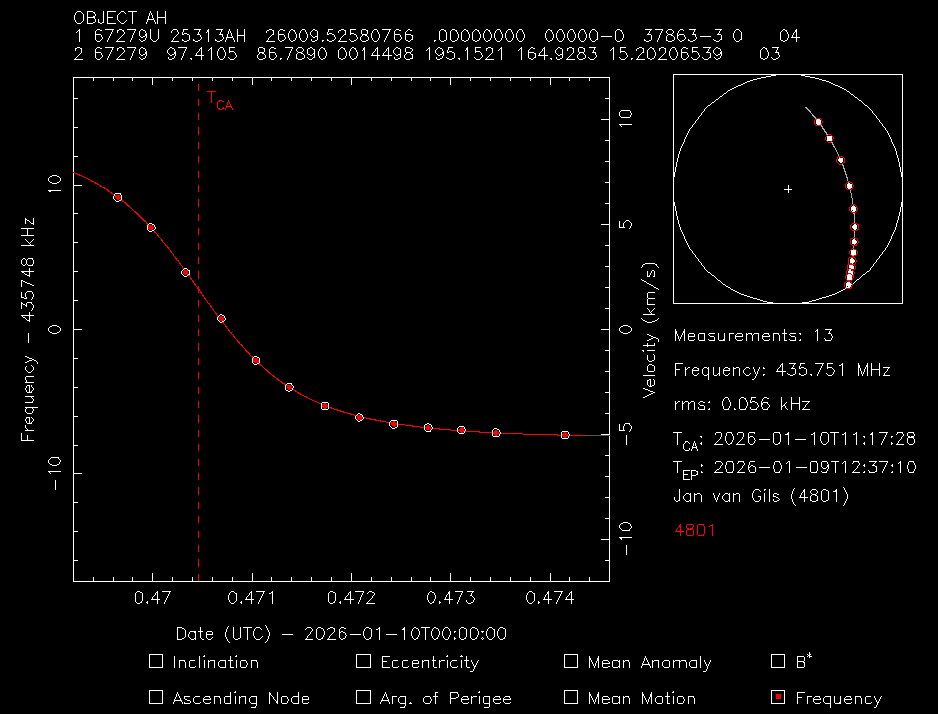

67279 2025-313AH 435.750 GALAPAGOS-UTE-SWSU
67254 2025-313G 435.850 ?
67253 2025-313F 436.090 ?
67282 2025-313AL 436.320 LOBACHEVSKY
67255 2025-313H 436.740 ?
67293 2025-313AX 436.951 QMR-KWT-2
67287 2025-313AR 437.180 LUCA
67279 2025-313AU 437.050 GALAPAGOS-UTE-SWSU
67271 2025-313Z 437.200 ?
67290 2025-313AU 437.350 SAKHACUBE-CHOLBON
Jan | PE0SAT
437200000Hz_10-01-2026T12:18:19_1250000_IQ.wav
time in UTC+0 ?
It’s the same signal PU4ELT observed.
IQ is UTC+1 CET
(post deleted by author)
What would you suggest Vlad ?
