Thank you very much Vlad. I tried again with the 0.04b Version. TNX
1 Like

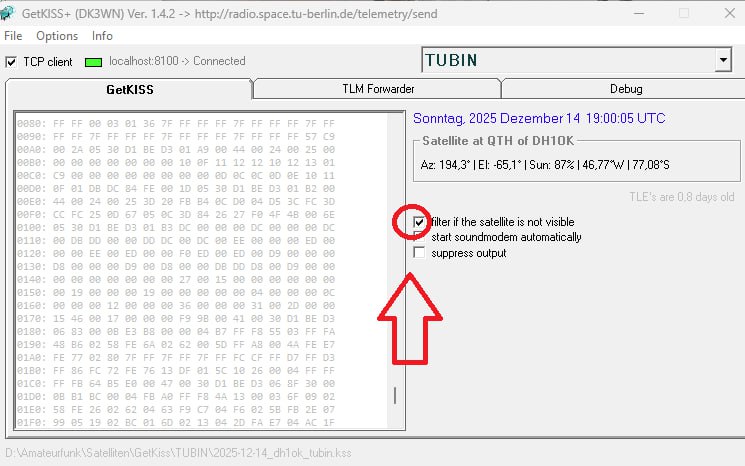

Uncheck this for decayed sat.
But if you replay the audio file, the wrong timestamp will be sent to server.
To me it seems that the frames are not even sent out? Because I think at least the Total HTTP counter should increase then? See answer #35 from @EU1SAT.
In the last hours we have received frames from PE0SAT, DL7NDR, EU1SAT, F1SXJ, and SV2HWM.
2 Likes
Dear Vlad,
again thank you very much - this was the clue. I have send the packages to TU Berlin and i have received the answer from the server. Great
1 Like
Thank you for the check, you should received some packets from me from also.
1 Like
Yes got 32, thank you for sending them
The newest space-track TLE seems to be quite good and we will use it for the upcoming pass:
0 TUBIN
1 48900U 21059X 25348.93152566 .03241210 26552-5 68615-3 0 9994
2 48900 97.6607 177.8529 0005305 263.7643 96.3046 16.30883241249684
@fredy Just tried out ikhnos for the first time, amazing software, and seems to fit quite good:
4 Likes
2025-12-15 05:5x UTC @ 190km, MEL: 9°
8 packets fully decoded and uploaded to SatNOGS and TU-Berlin.
3 Likes
Updated TLE based on last space-track.org TLE and on Network observations:
TUBIN
1 48900U 21059X 25349.33590169 .00000000 00000-0 69901-3 0 08
2 48900 97.6607 178.3162 0005305 263.7643 311.0419 16.34139243 05
sites.txt (12.0 KB)
tubin_349_v1.dat (2.3 KB)
3 Likes
One more TLE update:
TUBIN
1 48900U 21059X 25349.49036871 .00000000 00000-0 69884-3 0 00
2 48900 97.6607 178.5042 0005305 263.7643 139.6637 16.36010044 09
tubin_349_v2.dat (1.7 KB)
sites.txt (12.0 KB)
4 Likes
Updated TLE:
TUBIN
1 48900U 21059X 25349.64901792 .00000000 00000-0 70078-3 0 07
2 48900 97.6607 178.5287 0005305 263.7643 353.7836 16.38196840 01
sites.txt (12.0 KB)
tubin_349_v4.dat (2.7 KB)
2 Likes

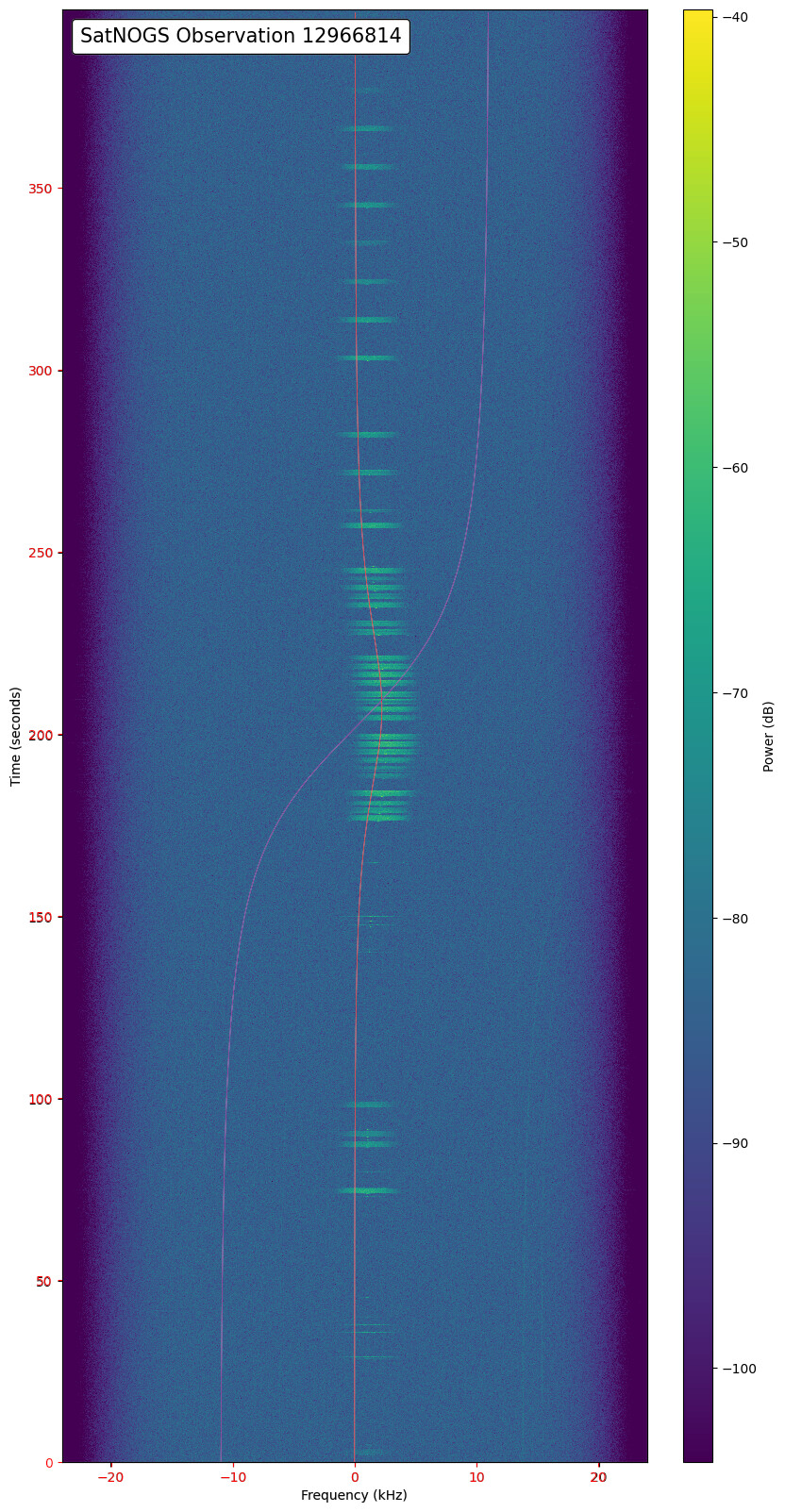

@fredy We shifted the TLE another 2 seconds based on SatNOGS Network - Observation 12978187
TUBIN
1 48900U 21059X 25349.64901792 .00000000 00000-0 70078-3 0 07
2 48900 97.6607 178.5287 0005305 263.7643 353.9201 16.38196840 09
1 Like
2025-12-15 18:5x UTC @ 180km, MEL: 25°
35 fully decoded packets down to 1.5° elevation, upped to SatNOGS and TU-Berlin.
4 Likes
One more update:
TUBIN
1 48900U 21059X 25349.75016195 .00000000 00000-0 68364-3 0 08
2 48900 97.6607 178.6295 0005305 263.7643 230.2804 16.39980917 02
tubin_349_v5.dat (1.5 KB)
sites.txt (12.1 KB)
4 Likes

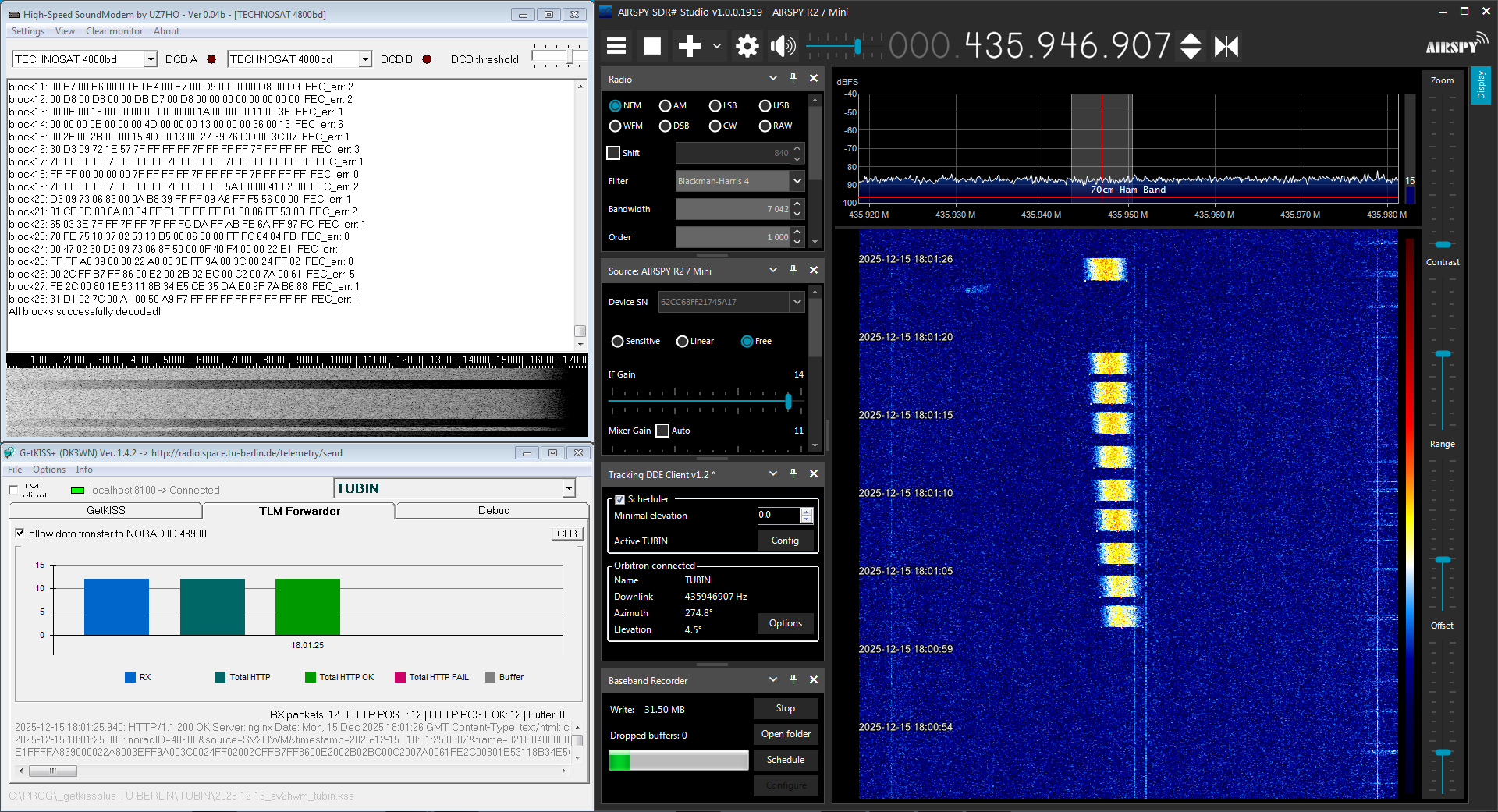

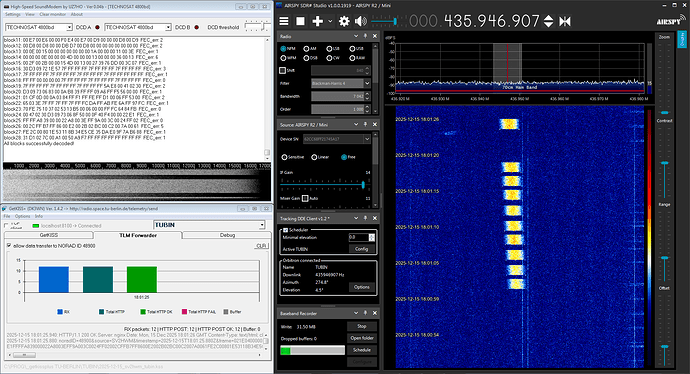

2025-12-15T18:00z rx in Greece at 5° max elevation. Decoded frames uploaded to SatNOGS and TU-Berlin.
3 Likes
Updated TLE from the pass over Antarctica and New Zealand:
TUBIN
1 48900U 21059X 25349.78212838 .00000000 00000-0 68674-3 0 07
2 48900 97.6607 178.8706 0005305 263.7643 58.8988 16.40128206 05
sites.txt (12.1 KB)
tubin_349_v7.dat (2.4 KB)
5 Likes
TLE update from the passes over Australia and Japan:
TUBIN
1 48900U 21059X 25349.85568780 .00000000 00000-0 68635-3 0 02
2 48900 97.6607 179.0111 0007573 263.7643 133.2232 16.42199564 04
tubin_349_v9.dat (3.8 KB)
sites.txt (12.1 KB)
4 Likes

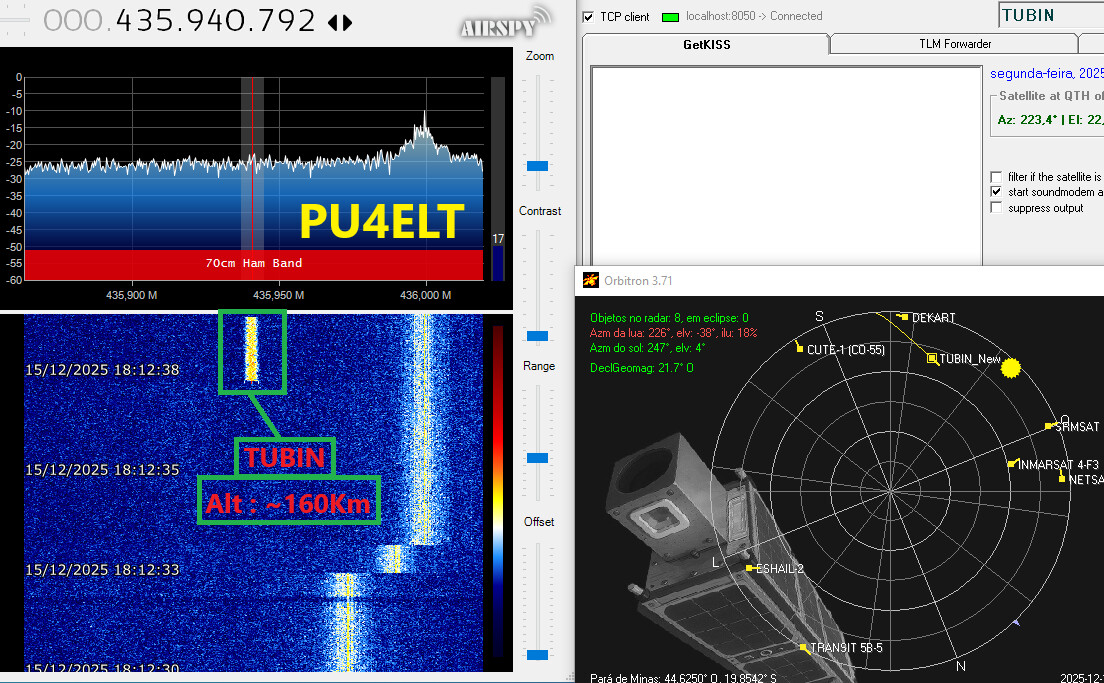

TUBIN over Brazil
at ~21:09UTC !!
Unfortunately, I had an audio filter activated during the reception and couldn’t decode the live signal
Below is a packet that was subsequently decoded:
Packet
CTRL: 3F0C
MSGTYPE: 1
NR_blocks: 32
Callsign: DP0TBN - CRC OK
block0: 05 11 18 FA 02 15 40 30 D3 1D 3E 26 E3 00 1B 58 03 00 FEC_err: 0
block1: 00 00 09 00 00 74 AB EB 62 D2 73 30 D3 0E B8 7E 8F 7C FEC_err: 0
block2: A7 6F E2 9C F6 E2 73 D6 77 9D EC B7 FB 96 F4 D3 33 FA FEC_err: 1
block3: DB 7D B5 BD F8 7B FA 2F FA 0F F9 4F D5 4D DE 49 37 E9 FEC_err: 0
block4: 9B 96 78 27 E7 64 60 2E 62 9F 44 BE 26 DC 27 B8 99 04 FEC_err: 0
block5: A4 CE 80 1F 8B 7F 13 84 12 89 E2 0D 08 3C 19 0D 8E 1D FEC_err: 1
block6: 21 A0 50 3C 4B C1 93 06 E6 B2 1E C2 CA C9 D4 C8 07 E9 FEC_err: 1
block7: DF F9 5F E2 71 68 39 0C 28 E4 BE 06 B2 24 32 3A BC EA FEC_err: 0
block8: 74 45 5C 9B 1F 33 98 2D F1 60 64 50 01 87 38 20 7D E9 FEC_err: 0
block9: 29 1F 4B 90 A3 24 C9 DB A3 2D 52 A2 42 18 35 E4 24 2A FEC_err: 1
block10: 0B 12 97 F5 D1 35 A3 83 68 BB 23 A3 D1 8E 53 B5 75 75 FEC_err: 1
block11: B3 96 55 3D 16 75 B6 B4 30 45 D4 8A 3F 65 31 EE 27 45 FEC_err: 0
block12: 32 D0 15 E1 D2 92 FE CC 6A 09 F4 3B 3D 85 A9 86 BA 62 FEC_err: 2
block13: DF 48 4D AD 74 95 F8 71 55 CF 32 4F 03 81 6A C6 2F C8 FEC_err: 0
block14: DA 7C 13 47 D9 96 4B D5 A2 13 7B E6 70 CD 14 95 49 B4 FEC_err: 0
block15: 31 6D BA A1 5F B2 AD A6 D9 87 BE 94 13 D6 31 33 7B C9 FEC_err: 0
block16: DE B2 73 B3 4D 2E A2 95 AA E8 59 74 C1 96 8A EA 91 F3 FEC_err: 0
block17: 2A FF 84 B1 1C 0C C3 81 0F A0 05 C6 63 30 8A C0 AD E2 FEC_err: 0
block18: 39 DC 3C 87 59 4F FF A7 C0 A2 04 F7 45 58 3A 06 C7 E6 FEC_err: 0
block19: 38 E7 64 AC 04 E1 43 C0 DD 33 94 FC 19 D8 30 81 60 9A FEC_err: 0
block20: 11 75 88 81 64 2C 85 97 21 BB 4B 48 06 16 4C F1 B7 C4 FEC_err: 0
block21: 22 38 38 B3 44 F2 13 E5 A2 43 E6 03 89 79 05 3D 26 3B FEC_err: 0
block22: F0 82 3E EA B2 3B D0 32 DB 69 2A B6 B2 CA 7D 5B 30 01 FEC_err: 0
block23: 2F 59 62 73 04 F1 5D 57 E5 40 35 93 19 2F BA B5 2D EB FEC_err: 0
block24: 05 2D B2 95 A8 99 39 6E 09 22 15 73 96 26 63 55 72 90 FEC_err: 0
block25: 58 C9 52 56 C8 C4 34 E9 D4 86 7A 6F EA F1 67 D4 4E DE FEC_err: 0
block26: 23 CA C7 59 8B 39 D9 CD 06 EA 92 8E B3 BA 9E C4 0D F2 FEC_err: 0
block27: 49 CE E9 3B EF C2 E9 CF C8 6F DB 35 7D DE 52 9F F6 D2 FEC_err: 0
block28: FE B0 ED 64 E2 3A A4 EF 2E 93 9E 3D 37 1F EA 0B 79 8F FEC_err: 0
block29: 9B E6 9D B4 F4 A7 F8 1E FF 4A CE 94 0F 4E 3B 65 74 1A FEC_err: 0
block30: E1 20 C1 ED 2A E0 01 1C 00 11 05 30 D3 36 1B 05 66 00 FEC_err: 0
block31: 3E 3A 3C 42 2B 2E 2C 2B 3C 30 2D 1C 1D 1B 1B 3B A9 6E FEC_err: 0
All blocks successfully decoded!
Very Good TLE !! TNX Fredy
Also, good reception at my station #3538 (See HERE)… Signal only at the peak of the pass because I currently use a 4el yagi pointed towards the zenith.
4 Likes
Latest update:
TUBIN
1 48900U 21059X 25349.91463485 .00000000 00000-0 68257-3 0 05
2 48900 97.6607 179.0234 0007570 263.7643 121.5338 16.43746461 09
sites.txt (12.1 KB)
tubin_349_v12.dat (1.8 KB)
5 Likes
Esta tarde lo escuche
1 Like
