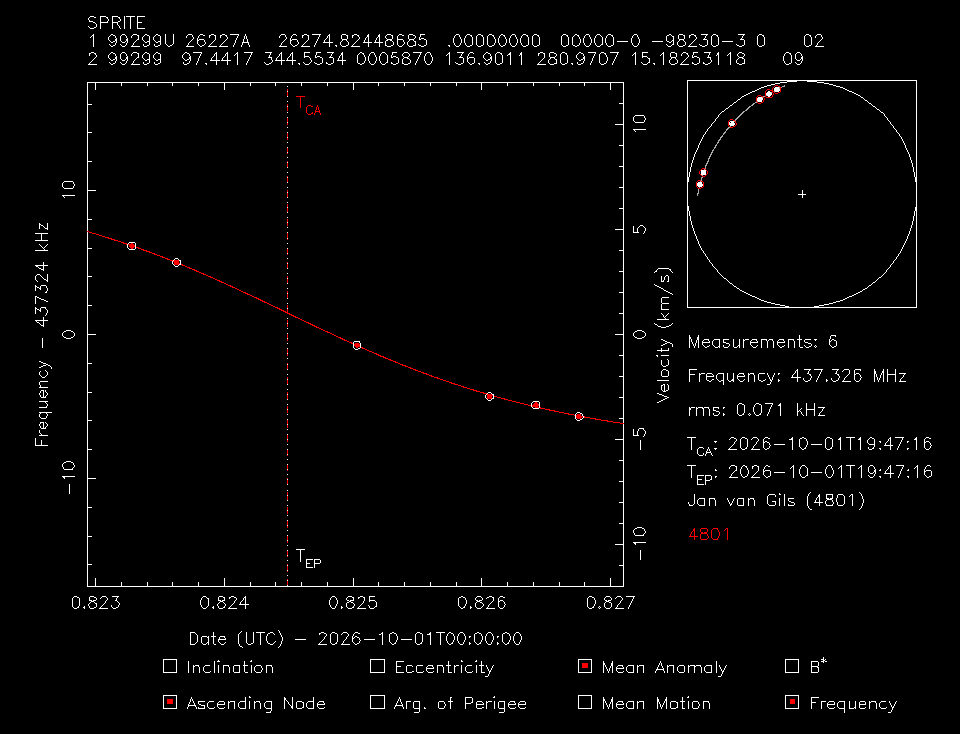

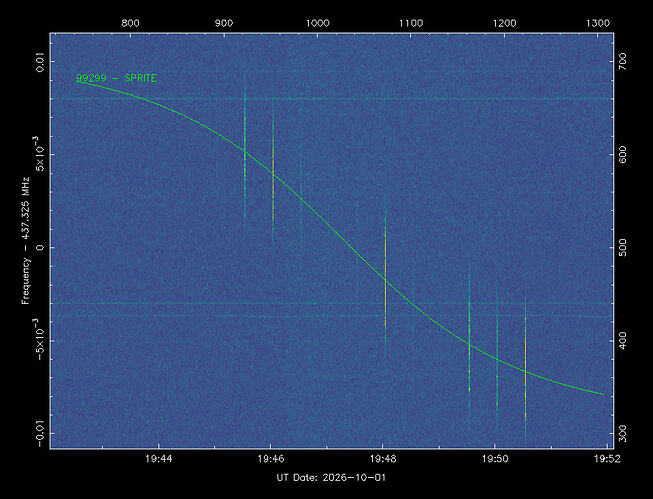

So it seems that the initial TLE where way of, loading my STRF again but this time further in time gave me the following:
SPRITE
1 99299U 26227A 26274.82448685 .00000000 00000-0 -98230-3 0 02
2 99299 97.4417 344.5534 0005870 136.9011 280.9707 15.18253118 09
# 20261001.82-20261001.83, 6 measurements, 0.071 kHz rms
Jan | PE0SAT
Thanks for the update, Jan.

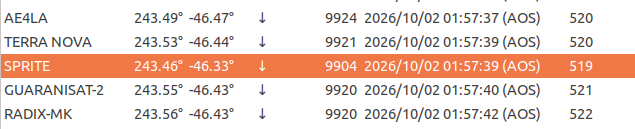

However, after loading your SPRITE TLE, it seems to be in-line with the other preliminary TLEs.
Am I missing something?
Good evening Scott,
I used the TLE shared by @fredy and there seems to be a +/- 45 minute difference between the TLE and the moment SPRITE passed.
Jan | PE0SAT
Hi all,
This is Alex from CU Boulder/LASP. We confirm good telemetry from SPRITE. This observation captured the very first transmission from SPRITE after the radio turned on! The S/C is healthy, all systems look good.
Strange… I’m using the TLEs from Post #51 and you saw how the updated SPRITE TLE fell into place w/ the others.
Well, we’ll get concrete numbers for more and more of the objects as time goes by. Thanks!!
My initial set was not the last one shared by @fredy and the reason for the big time difference, so mystery solved.
Jan | PE0SAT

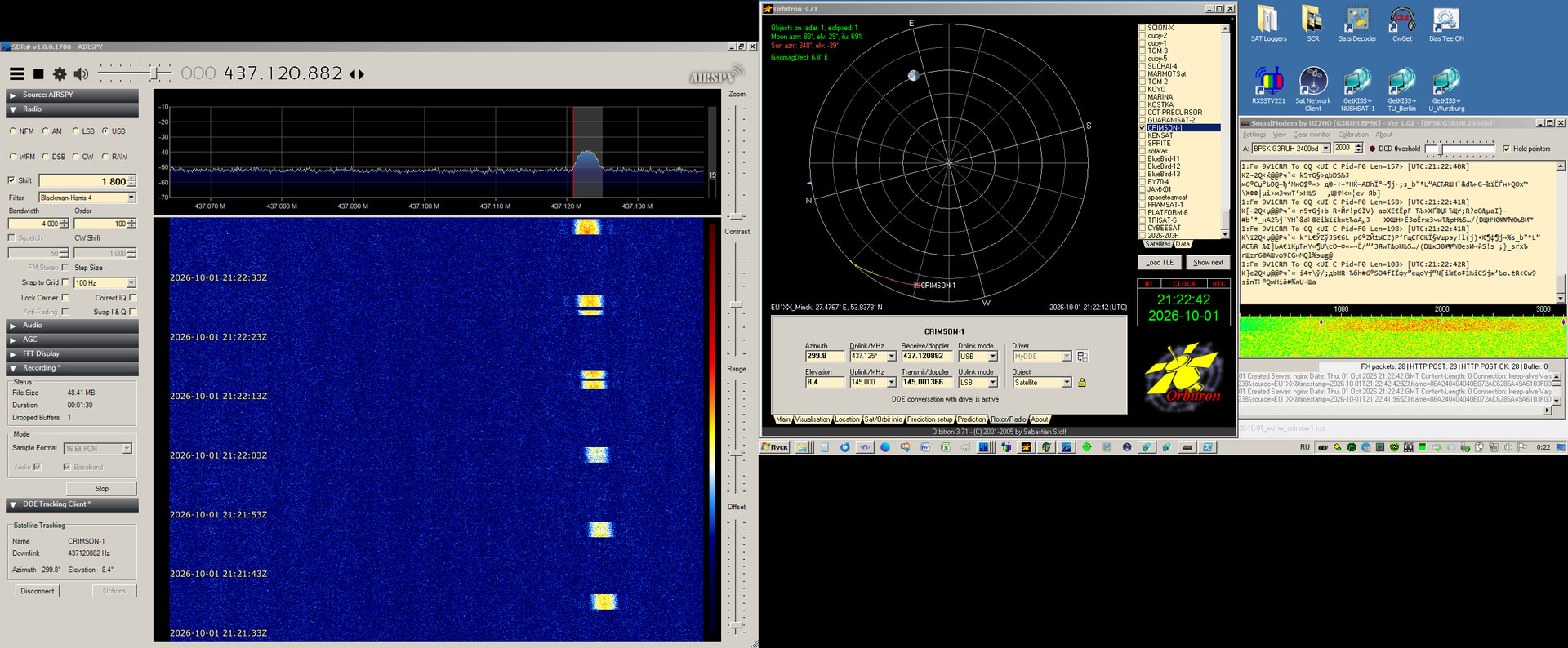

21:15 - 21:23 UTC on a >60° pass:

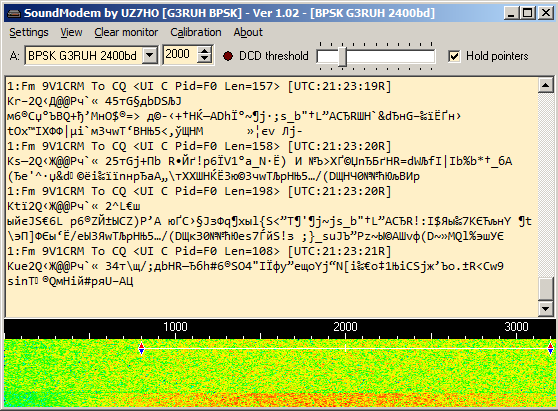

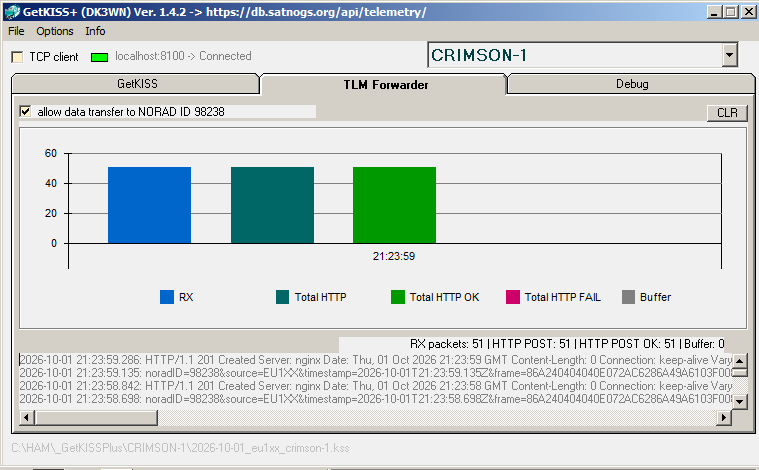

158x CRIMSON-1: 9V1CRM To CQ on 437.125 in 2k4 BPSK

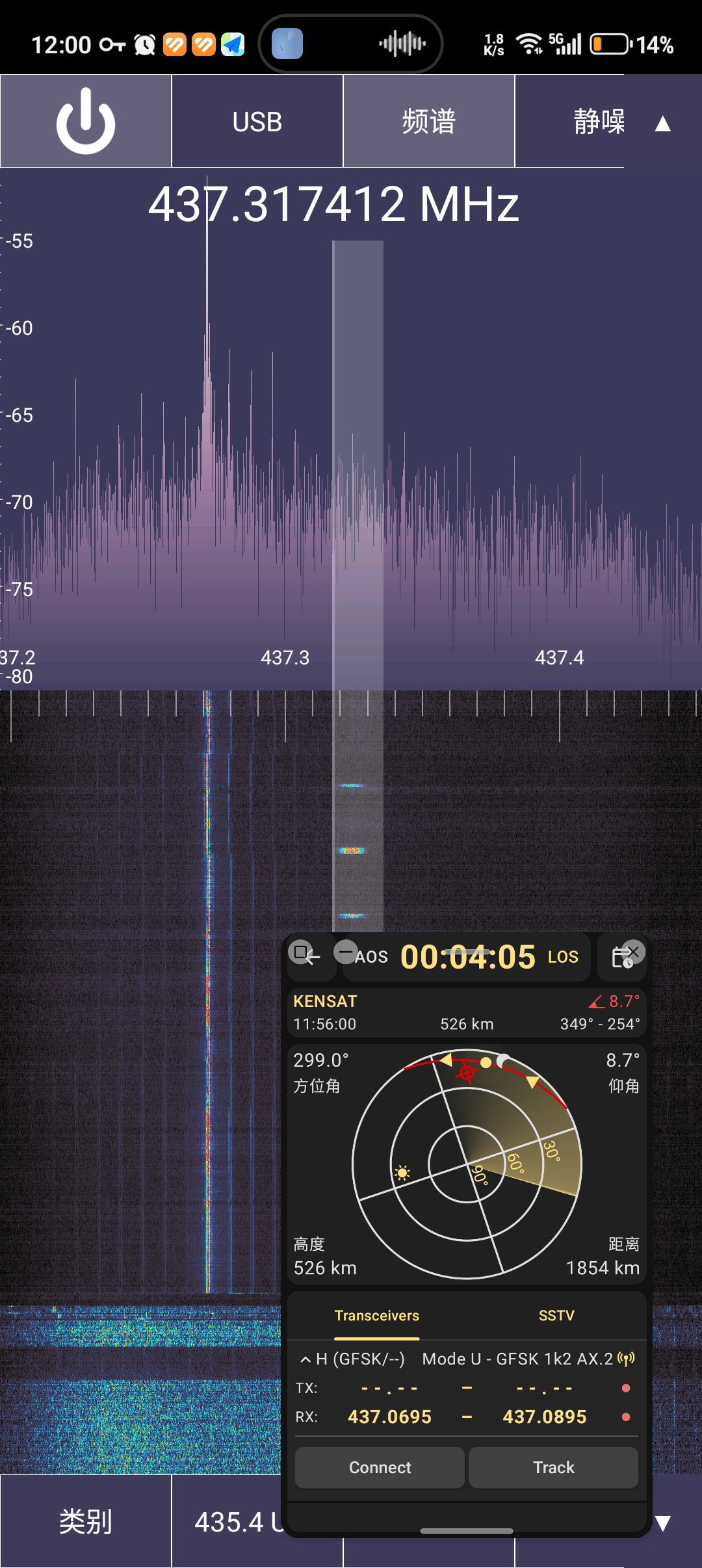

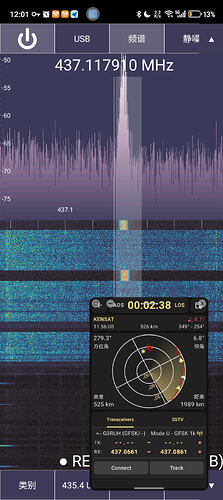

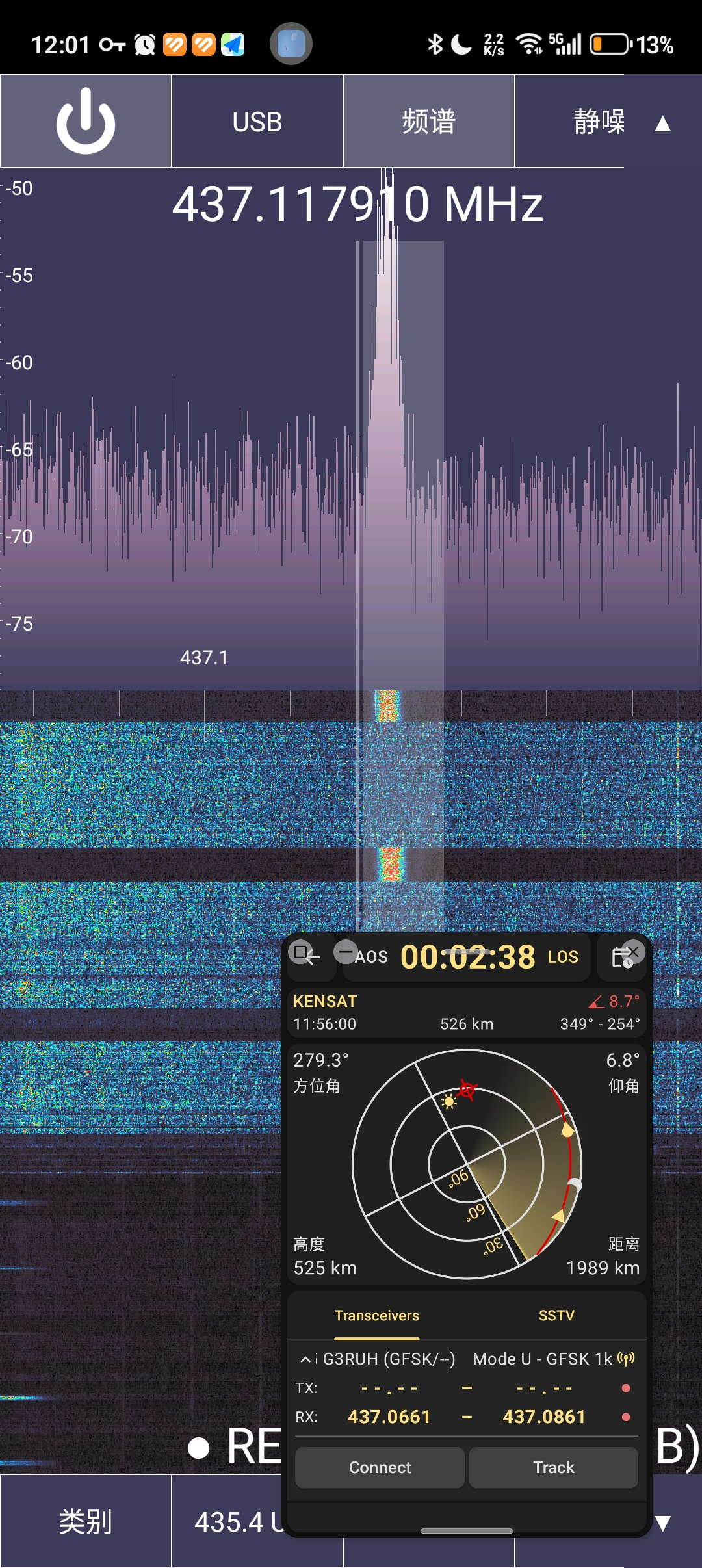

With a quick look we have alive and received:
any news about this deployment?? cancel ? still hold on space and waiting?
I have no idea if those objects deploy all at once or at different times, but FYI, someone involved w/ the UTNH satellite said that they would be released 7 days after launch.
thank you . i’m not notice that libre space foundation is back to space again after reread again this post carefully.. milestone for LSF. wow

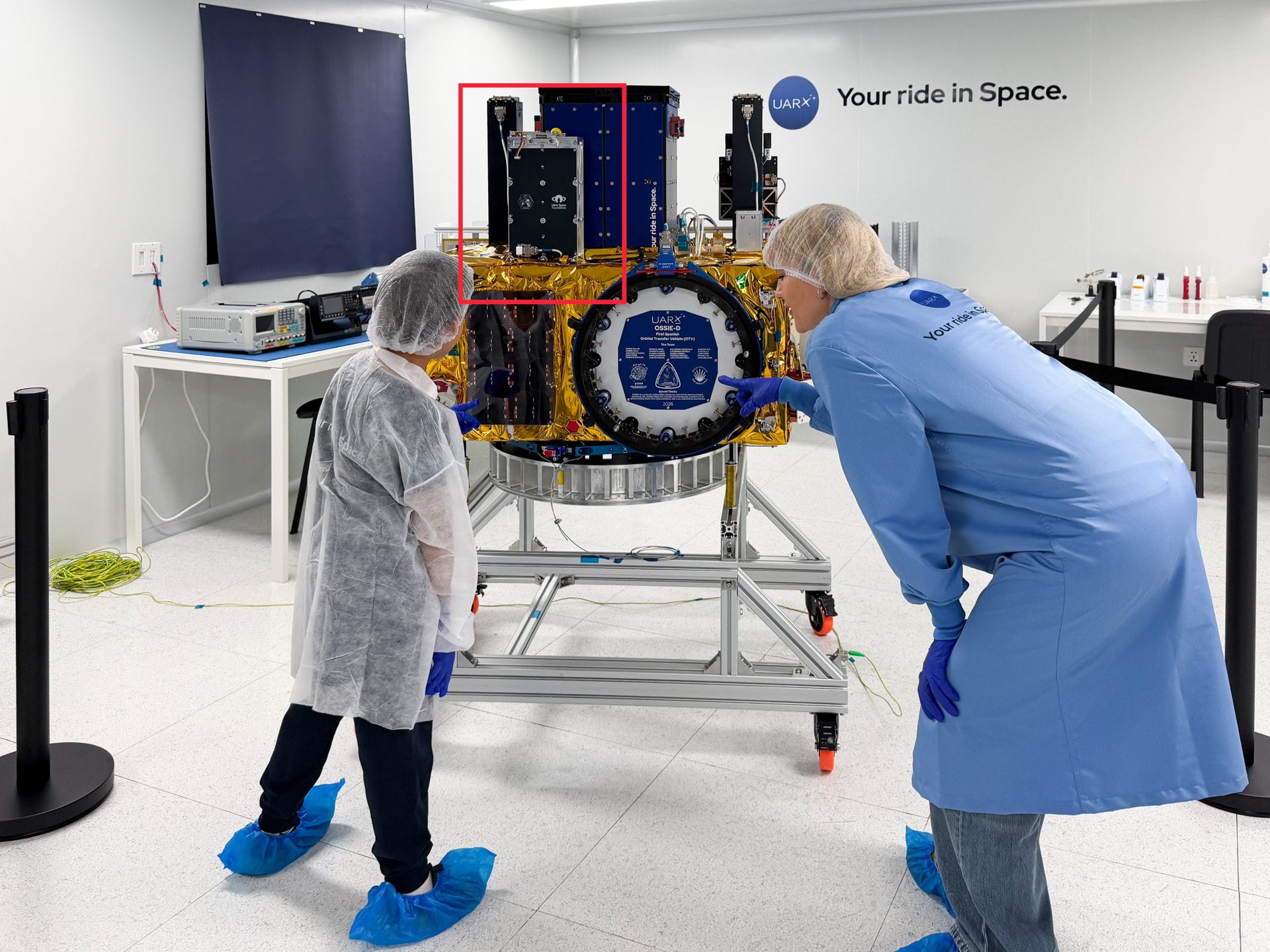

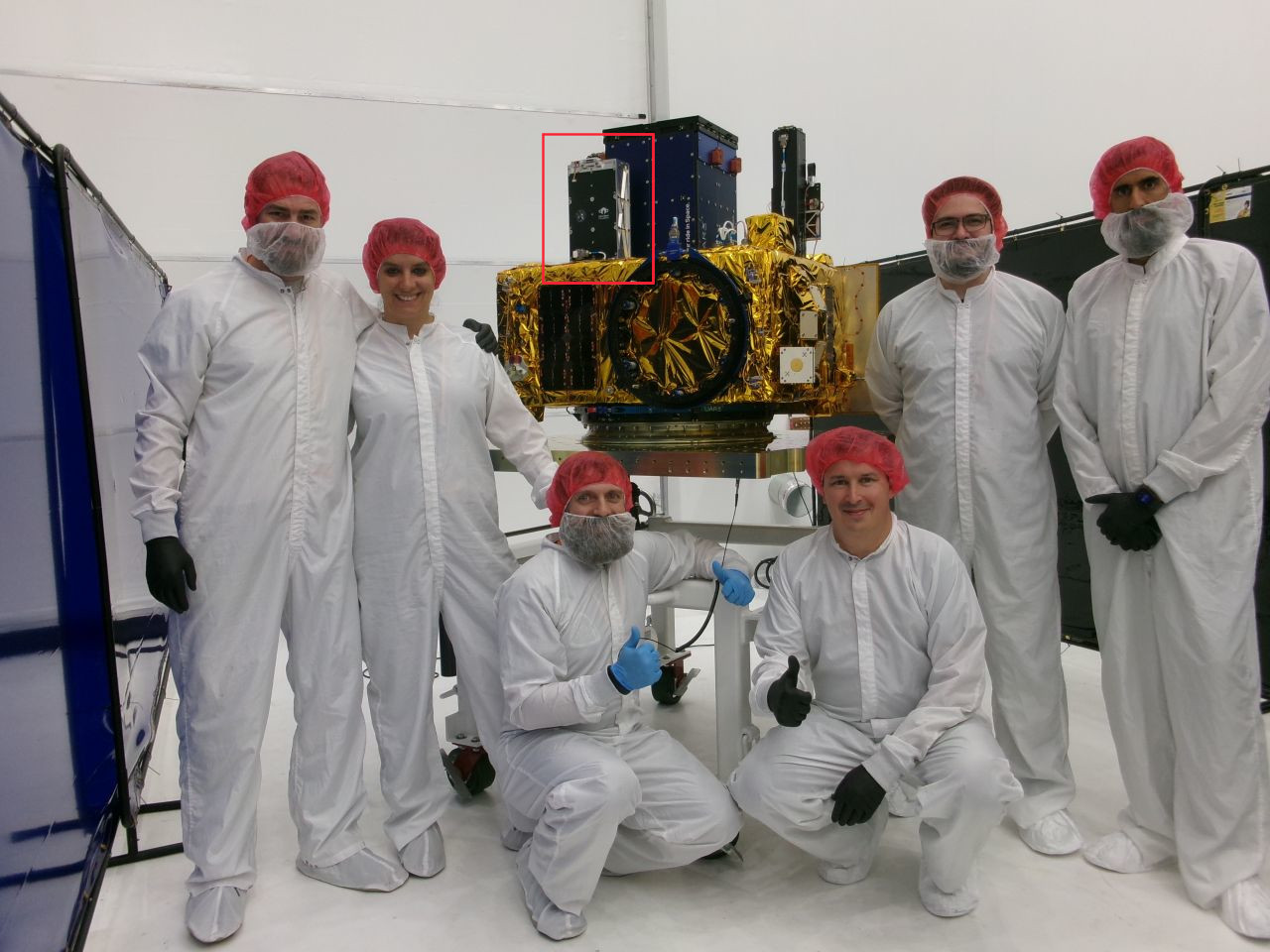

Has anyone received or identified any signals from the UARX OSSIE-D OTV following the Transporter-18 launch?
We are particularly interested in any observations, waterfall recordings, candidate frequencies, or telemetry that could help confirm OSSIE-D activity in orbit.
If you have any SatNOGS observations or even unidentified signals that might correspond to OSSIE-D, please share the observation ID or details here.
Thanks for any help.

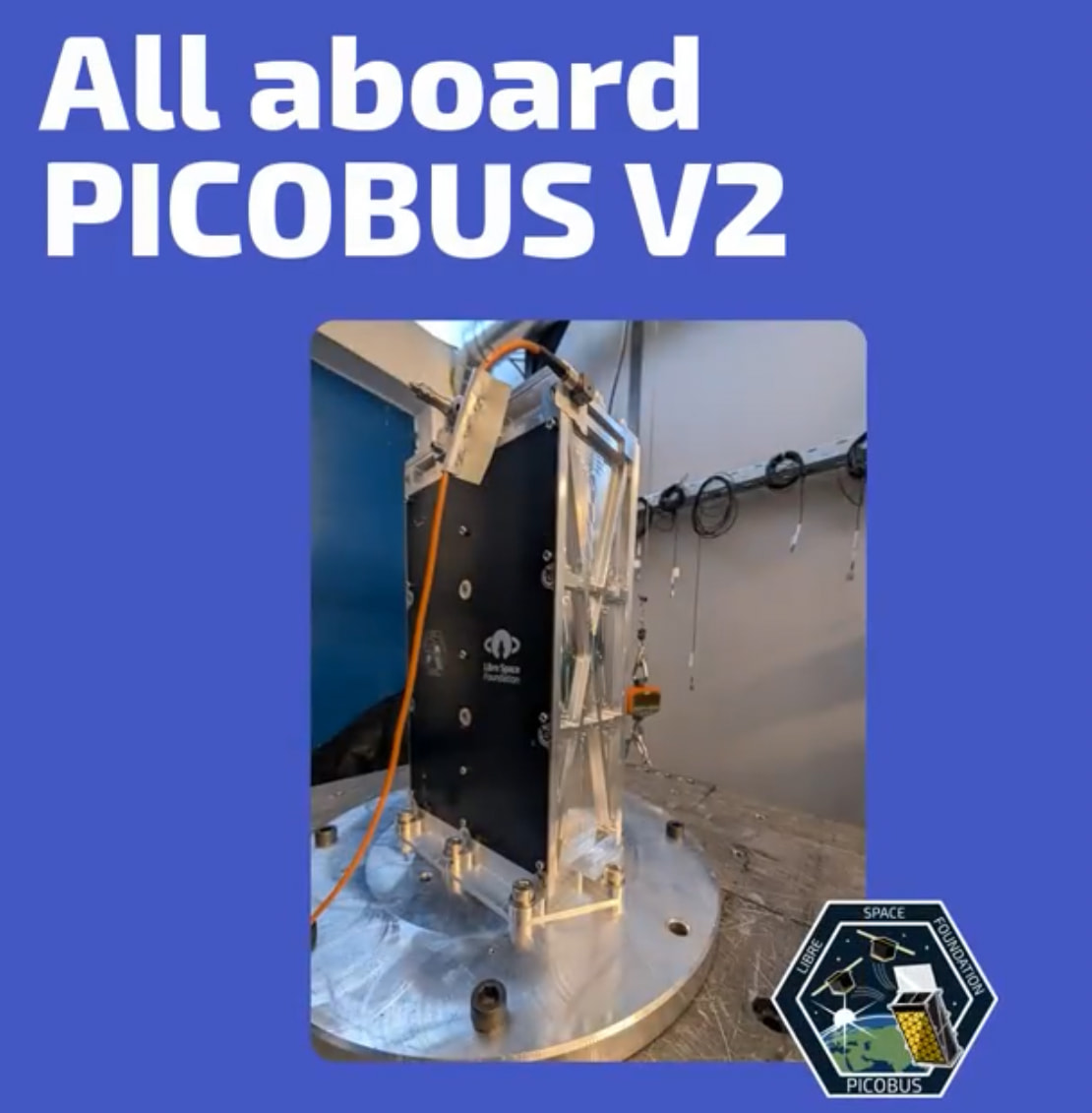

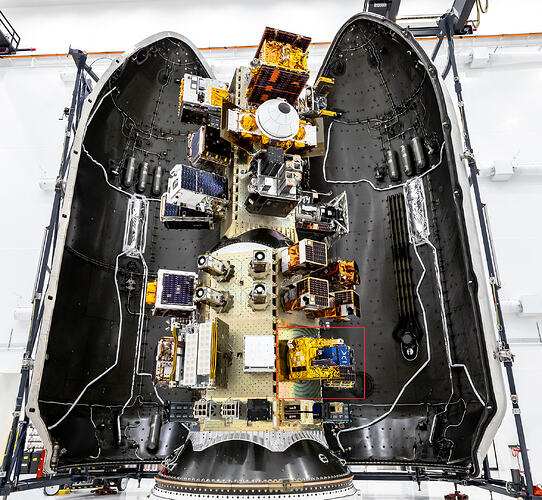

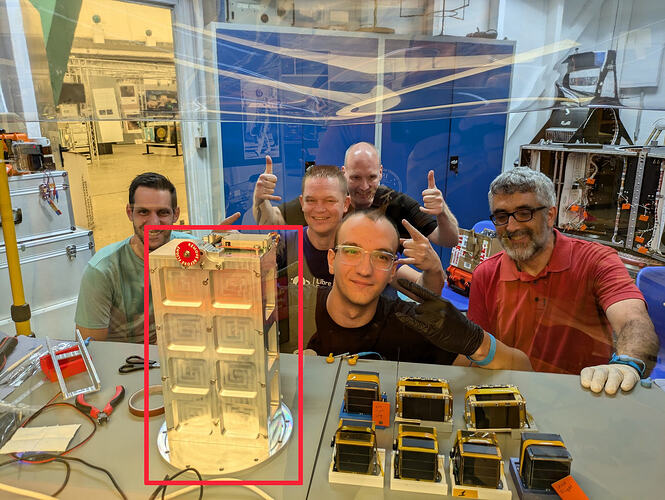

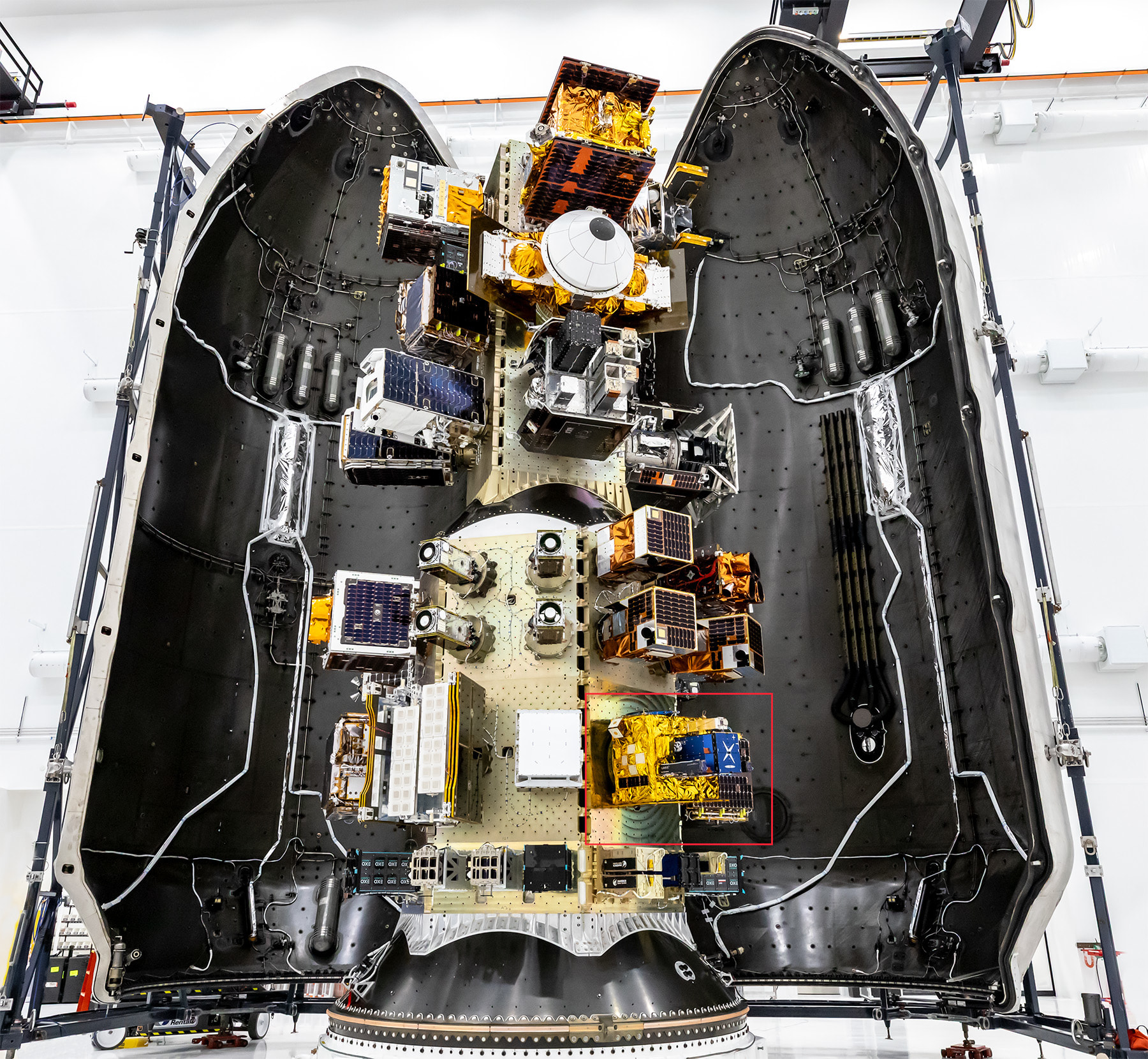

The three ERMINAZ-2 PocketQubes are inside the LSF Picobus deployer on the OSSIE-D space tug. There is no officicial information yet when to expect deployment. First of all the OSSIE spacecraft needs to be fully comissioned. There are rumors that it can take several days up to a few weeks.
Candidated frequencies for OSSIE-D
UHF: 401.25 MHz
SHF: 2275 MHz
Post launch TLE from celestrak.org:
SPRITE
1 71953C 26227A 26274.80992503 -.00010333 00000-0 -10121-2 0 9990
2 71953 97.4417 344.3278 0006961 140.1895 198.2668 15.18232164 14
UASAT-NANO
1 71944C 26227B 26274.80996091 -.00011388 00000-0 -11800-2 0 9992
2 71944 97.4461 344.3261 0002389 13.1464 325.4958 15.16280554 16
SATELIOT 6
1 71959C 26227C 26274.80999564 -.00010864 00000-0 -11200-2 0 9998
2 71959 97.4395 344.3287 0002895 44.2844 294.5623 15.16456074 12
GHGSAT C19
1 71954C 26227D 26274.81004078 -.00010679 00000-0 -10456-2 0 9997
2 71954 97.4430 344.3274 0006932 142.4006 196.6849 15.18243229 10
FLOCK 4J-18
1 71947C 26227E 26274.81007550 -.00008854 00000-0 -86804-3 0 9990
2 71947 97.4326 344.3314 0007537 127.6094 211.6886 15.18193751 18
BRO-23
1 71943C 26227F 26274.81011022 -.00010897 00000-0 -11282-2 0 9992
2 71943 97.4426 344.3276 0002775 26.9235 312.5414 15.16307263 10
KENSAT
1 71936C 26227G 26274.81014494 -.00008445 00000-0 -86931-3 0 9990
2 71936 97.4550 344.3230 0001022 324.9566 14.6708 15.16510812 14
GHGSAT C18
1 71955C 26227H 26274.81019008 -.00010729 00000-0 -10522-2 0 9997
2 71955 97.4452 344.3267 0006580 145.6688 194.2269 15.18189302 18
FOREST-20 ARAUCARIA
1 71941C 26227J 26274.81022596 -.00011428 00000-0 -11798-2 0 9991
2 71941 97.4413 344.3282 0002737 38.3424 301.7572 15.16410986 18
LEMUR-2-WHITEHOTCREW
1 71933C 26227K 26274.81026068 -.00011713 00000-0 -12073-2 0 9994
2 71933 97.4472 344.3261 0001728 26.1551 314.1213 15.16466144 13
LEMUR-2-MDQURESHI
1 71934C 26227L 26274.81040999 -.00011755 00000-0 -12142-2 0 9997
2 71934 97.4456 344.3268 0002246 26.8847 314.2107 15.16389338 16
CRIMSON-1
1 71939C 26227N 26274.81047943 -.00010815 00000-0 -11087-2 0 9991
2 71939 97.4377 344.3296 0003080 63.8188 277.6723 15.16655233 16
SATELIOT 5
1 71960C 26227P 26274.81060906 -.00010451 00000-0 -10326-2 0 9990
2 71960 97.4382 344.3294 0005942 132.7297 209.4673 15.17931783 15
GYEONGGISAT-2A
1 71905C 26227Q 26274.81067966 -.00009626 00000-0 -94611-3 0 9994
2 71905 97.4503 344.3256 0006007 155.3634 187.1934 15.18113806 17
FLOCK 4J-17
1 71945C 26227R 26274.81072133 -.00009038 00000-0 -87954-3 0 9999
2 71945 97.4548 344.3243 0007430 163.3291 179.4454 15.18450325 16
JACK-006
1 71937C 26227S 26274.81075952 -.00011472 00000-0 -11811-2 0 9995
2 71937 97.4397 344.3291 0002904 50.1769 292.8381 15.16503518 16
TOMORROW-S12
1 71932C 26227T 26274.81079425 -.00009486 00000-0 -97646-3 0 9992
2 71932 97.4467 344.3269 0001813 36.0574 307.1326 15.16512509 18
LEMUR-2-VARUN
1 71958C 26227U 26274.81083129 -.00011291 00000-0 -11085-2 0 9995
2 71958 97.4450 344.3275 0006350 147.6092 195.7862 15.18153884 15
TOMORROW-S13
1 71931C 26227V 26274.81092156 -.00009525 00000-0 -98176-3 0 9990
2 71931 97.4446 344.3277 0002293 38.2859 305.6036 15.16462981 15
SATELIOT 8
1 71956C 26227W 26274.81098175 -.00010544 00000-0 -10345-2 0 9998
2 71956 97.4470 344.3271 0006344 151.1584 193.0546 15.18175927 12
GOMX-5
1 71942C 26227X 26274.81102920 -.00010276 00000-0 -10125-2 0 9995
2 71942 97.4397 344.3292 0006166 137.9204 206.5670 15.18026541 16
SATELIOT 7
1 71957C 26227Y 26274.81109749 -.00010600 00000-0 -10444-2 0 9992
2 71957 97.4492 344.3266 0005637 153.9008 190.9395 15.18033826 15
GPDM
1 71930C 26227Z 26274.81113915 -.00011759 00000-0 -12013-2 0 9993
2 71930 97.4392 344.3294 0002929 75.0783 270.0108 15.16775558 16
IRIDE-MS1-EAG2-20
1 71920C 26227AA 26274.81119355 -.00010551 00000-0 -10765-2 0 9997
2 71920 97.4456 344.3277 0001783 81.9979 263.3746 15.16824857 17
IRIDE-MS1-EAG2-18
1 71918C 26227AB 26274.81123869 -.00010572 00000-0 -10787-2 0 9996
2 71918 97.4431 344.3284 0002258 80.1254 265.4990 15.16820597 11
IRIDE-MS1-EAG2-22
1 71914C 26227AC 26274.81128846 -.00010223 00000-0 -10196-2 0 9999
2 71914 97.4418 344.3288 0004407 132.1190 213.7793 15.17616272 12
BABY BIRD & ELEAF-01
1 71948C 26227AD 26274.81133476 -.00011212 00000-0 -11420-2 0 9991
2 71948 97.4475 344.3274 0001547 92.8526 253.2870 15.16885440 13
TERRA NOVA
1 71940C 26227AE 26274.81162990 -.00011024 00000-0 -10904-2 0 9993
2 71940 97.4512 344.3269 0004908 158.1879 189.5544 15.17899647 16
RADIX-A
1 71927C 26227AF 26274.81169471 -.00010844 00000-0 -10796-2 0 9997
2 71927 97.4405 344.3293 0004729 132.4288 215.6897 15.17675104 11
IRIDE-MS1-EAG2-21
1 71916C 26227AG 26274.81175490 -.00010349 00000-0 -10289-2 0 9990
2 71916 97.4450 344.3284 0004477 142.8872 205.5501 15.17722923 15
IRIDE-MS1-EAG2-24
1 71917C 26227AH 26274.81188916 -.00010402 00000-0 -10359-2 0 9996
2 71917 97.4464 344.3283 0004150 144.5951 204.5724 15.17668540 15
SATELIOT 9
1 71938C 26227AJ 26274.81206392 -.00011308 00000-0 -11549-2 0 9996
2 71938 97.4521 344.3275 0000762 71.5204 278.5894 15.16791085 17
IRIDE-MS1-EAG2-19
1 71919C 26227AK 26274.81210443 -.00010477 00000-0 -10440-2 0 9992
2 71919 97.4426 344.3292 0004405 135.8349 214.5161 15.17645385 10
HRM-01
1 71978C 26227AL 26274.81218198 -.00011982 00000-0 -12209-2 0 9999
2 71978 97.4437 344.3291 0002319 85.9134 264.8585 15.16869910 14
IRIDE-MS1-EAG2-23
1 71915C 26227AM 26274.81222480 -.00010655 00000-0 -10787-2 0 9994
2 71915 97.4481 344.3284 0001960 118.2964 232.7005 15.17094929 10
RADIX-MK
1 71928C 26227AN 26274.81232781 -.00011057 00000-0 -11022-2 0 9993
2 71928 97.4484 344.3285 0003856 148.0623 203.4964 15.17634363 18
BRO-32
1 71968C 26227AP 26274.81236601 -.00011522 00000-0 -11510-2 0 9991
2 71968 97.4449 344.3291 0003866 137.9349 213.8394 15.17562382 16
MERIDIAN-A
1 71976C 26227AQ 26274.81241809 -.00010770 00000-0 -10928-2 0 9992
2 71976 97.4418 344.3296 0002792 98.9399 253.1246 15.17018601 17
ICEYE-X85
1 71906C 26227AR 26274.81247943 -.00010535 00000-0 -10535-2 0 9993
2 71906 97.4428 344.3295 0003910 132.7578 219.6393 15.17522465 17
LEAP-2
1 71910C 26227AS 26274.81272480 -.00011639 00000-0 -11647-2 0 9993
2 71910 97.4418 344.3298 0003923 130.3558 223.3825 15.17498087 14
IRIDE-MS1-EAG2-17
1 71921C 26227AT 26274.81274911 -.00010698 00000-0 -10667-2 0 9991
2 71921 97.4471 344.3292 0003841 146.3279 207.5324 15.17625826 16
MERLIN-1
1 71924C 26227AU 26274.81291115 -.00012234 00000-0 -12435-2 0 9992
2 71924 97.4459 344.3295 0002083 96.7037 258.0438 15.16956470 13
ICEYE-X86
1 71904C 26227AV 26274.81300605 -.00010706 00000-0 -10695-2 0 9993
2 71904 97.4455 344.3297 0003707 140.9344 214.3316 15.17560008 15
GUARANISAT-2
1 71949C 26227AW 26274.81313568 -.00012338 00000-0 -12237-2 0 9991
2 71949 97.4510 344.3294 0004286 160.3459 195.6167 15.17809142 19
ION SCV-025
1 71961C 26227AX 26274.81322480 -.00011694 00000-0 -11705-2 0 9991
2 71961 97.4439 344.3300 0003637 134.5733 221.8902 15.17490404 14
NUSAT-57
1 71923C 26227AY 26274.81334402 -.00012144 00000-0 -12375-2 0 9991
2 71923 97.4416 344.3303 0002858 85.9432 271.1758 15.16866928 13
NUSAT-64
1 71922C 26227AZ 26274.81346207 -.00012223 00000-0 -12474-2 0 9994
2 71922 97.4421 344.3303 0002816 81.3032 276.4593 15.16814418 10
GNOMES-10
1 71967C 26227BA 26274.81350837 -.00010014 00000-0 -10171-2 0 9995
2 71967 97.4451 344.3302 0002335 98.0379 259.9715 15.16981902 11
MIKROGLOB-2
1 71912C 26227BB 26274.81355235 -.00011529 00000-0 -11554-2 0 9990
2 71912 97.4442 344.3303 0003513 132.6385 225.6134 15.17450464 13
NUSAT-56
1 71925C 26227BC 26274.81367040 -.00012165 00000-0 -12337-2 0 9998
2 71925 97.4403 344.3305 0003241 99.7545 259.1492 15.17036674 17
PROJECT SUNCATCHER M1
1 71965C 26227BD 26274.81375605 -.00012546 00000-0 -12718-2 0 9994
2 71965 97.4450 344.3305 0002440 104.7605 254.6011 15.17049596 11
ELEMENT-1
1 71973C 26227BE 26274.81382434 -.00008185 00000-0 -81988-3 0 9991
2 71973 97.4441 344.3306 0003510 134.1237 225.6123 15.17465497 12
ION SCV-026
1 71962C 26227BF 26274.81393429 -.00012018 00000-0 -12101-2 0 9995
2 71962 97.4425 344.3307 0003238 120.6938 239.6455 15.17284299 10
MIKROGLOB-3
1 71913C 26227BG 26274.81405582 -.00011765 00000-0 -11861-2 0 9995
2 71913 97.4467 344.3308 0002503 125.7948 235.1992 15.17243332 14
ATHENE-1
1 71975C 26227BH 26274.81416693 -.00010823 00000-0 -10965-2 0 9996
2 71975 97.4436 344.3309 0002725 105.2563 256.3508 15.17070733 12
ALTAIR-1
1 71977C 26227BJ 26274.81436022 -.00012204 00000-0 -12359-2 0 9990
2 71977 97.4459 344.3312 0002351 108.8776 253.7798 15.17083655 12
TITANIA
1 71972C 26227BK 26274.81445050 -.00012866 00000-0 -13077-2 0 9998
2 71972 97.4439 344.3312 0002672 94.8871 268.2676 15.16957706 13
OSSIED
1 71966C 26227BL 26274.81462064 -.00012609 00000-0 -12652-2 0 9998
2 71966 97.4462 344.3315 0003041 135.4993 228.5794 15.17406584 17
ICEYE-X87
1 71971C 26227BM 26274.81474332 -.00012617 00000-0 -12775-2 0 9990
2 71971 97.4464 344.3316 0002402 109.4591 255.2897 15.17094427 11
OTTER 24C
1 71974C 26227BN 26274.81478730 -.00011281 00000-0 -11319-2 0 9998
2 71974 97.4458 344.3316 0003121 133.9748 231.0152 15.17405131 16
MIKROGLOB-4
1 71909C 26227BP 26274.81520050 -.00012191 00000-0 -12232-2 0 9995
2 71909 97.4431 344.3317 0003420 130.3120 236.9379 15.17406988 19
HOTSAT-3
1 71926C 26227BQ 26274.81549216 -.00012558 00000-0 -12613-2 0 9999
2 71926 97.4466 344.3325 0002792 134.7821 234.0526 15.17371893 11
ION SCV-024
1 71963C 26227BR 26274.81572365 -.00012751 00000-0 -12839-2 0 9996
2 71963 97.4423 344.3320 0003333 121.0999 249.0077 15.17284316 17
ICEYE-X83
1 71970C 26227BS 26274.81578383 -.00013019 00000-0 -13156-2 0 9991
2 71970 97.4467 344.3329 0002451 115.7634 254.6642 15.17164249 10
REASON-1
1 71969C 26227BT 26274.81664263 -.00013524 00000-0 -13684-2 0 9999
2 71969 97.4464 344.3338 0002525 110.0324 265.0838 15.17116387 14
TANAGER-2
1 71964C 26227BU 26274.81674101 -.00013772 00000-0 -13927-2 0 9991
2 71964 97.4428 344.3330 0003172 110.5140 265.1463 15.17134233 16
STAR CATCHER-1
1 71911C 26227BV 26274.81720860 -.00013159 00000-0 -13226-2 0 9998
2 71911 97.4426 344.3332 0003531 125.9721 252.2425 15.17347385 11
W-9
1 71901C 26227BW 26274.81726879 -.00013604 00000-0 -13730-2 0 9998
2 71901 97.4427 344.3333 0003300 115.9832 262.5589 15.17202918 15
W-8
1 71902C 26227BX 26274.81748406 -.00013673 00000-0 -13782-2 0 9992
2 71902 97.4466 344.3349 0002583 122.5443 257.1642 15.17249359 10
Celestrak missing orbital data for AE4LA.
The TLE of the previous post changed to use the temporary NORAD ID of SatNOGS DB:
SPRITE
1 99299C 26227A 26274.80992503 -.00010333 00000-0 -10121-2 0 9993
2 99299 97.4417 344.3278 0006961 140.1895 198.2668 15.18232164 17
UASAT-NANO
1 98240C 26227B 26274.80996091 -.00011388 00000-0 -11800-2 0 9990
2 98240 97.4461 344.3261 0002389 13.1464 325.4958 15.16280554 14
BRO-23
1 98234C 26227F 26274.81011022 -.00010897 00000-0 -11282-2 0 9994
2 98234 97.4426 344.3276 0002775 26.9235 312.5414 15.16307263 12
KENSAT
1 98372C 26227G 26274.81014494 -.00008445 00000-0 -86931-3 0 9993
2 98372 97.4550 344.3230 0001022 324.9566 14.6708 15.16510812 17
CRIMSON-1
1 98238C 26227N 26274.81047943 -.00010815 00000-0 -11087-2 0 9992
2 98238 97.4377 344.3296 0003080 63.8188 277.6723 15.16655233 17
GOMX-5
1 98239C 26227X 26274.81102920 -.00010276 00000-0 -10125-2 0 9993
2 98239 97.4397 344.3292 0006166 137.9204 206.5670 15.18026541 14
GPDM
1 98237C 26227Z 26274.81113915 -.00011759 00000-0 -12013-2 0 9992
2 98237 97.4392 344.3294 0002929 75.0783 270.0108 15.16775558 15
BABY BIRD
1 98232C 26227AD 26274.81133476 -.00011212 00000-0 -11420-2 0 9996
2 98232 97.4475 344.3274 0001547 92.8526 253.2870 15.16885440 18
ELEAF-01
1 98233C 26227AD 26274.81133476 -.00011212 00000-0 -11420-2 0 9997
2 98233 97.4475 344.3274 0001547 92.8526 253.2870 15.16885440 19
TERRA NOVA
1 98230C 26227AE 26274.81162990 -.00011024 00000-0 -10904-2 0 9994
2 98230 97.4512 344.3269 0004908 158.1879 189.5544 15.17899647 17
RADIX-A
1 98224C 26227AF 26274.81169471 -.00010844 00000-0 -10796-2 0 9996
2 98224 97.4405 344.3293 0004729 132.4288 215.6897 15.17675104 10
HRM-01
1 98231C 26227AL 26274.81218198 -.00011982 00000-0 -12209-2 0 9990
2 98231 97.4437 344.3291 0002319 85.9134 264.8585 15.16869910 15
RADIX-MK
1 98223C 26227AN 26274.81232781 -.00011057 00000-0 -11022-2 0 9990
2 98223 97.4484 344.3285 0003856 148.0623 203.4964 15.17634363 15
BRO-32
1 98229C 26227AP 26274.81236601 -.00011522 00000-0 -11510-2 0 9990
2 98229 97.4449 344.3291 0003866 137.9349 213.8394 15.17562382 15
GUARANISAT-2
1 98236C 26227AW 26274.81313568 -.00012338 00000-0 -12237-2 0 9999
2 98236 97.4510 344.3294 0004286 160.3459 195.6167 15.17809142 17
ION SCV-025
1 98228C 26227AX 26274.81322480 -.00011694 00000-0 -11705-2 0 9996
2 98228 97.4439 344.3300 0003637 134.5733 221.8902 15.17490404 19
ION SCV-026
1 98227C 26227BF 26274.81393429 -.00012018 00000-0 -12101-2 0 9998
2 98227 97.4425 344.3307 0003238 120.6938 239.6455 15.17284299 13
ATHENE-1
1 98222C 26227BH 26274.81416693 -.00010823 00000-0 -10965-2 0 9990
2 98222 97.4436 344.3309 0002725 105.2563 256.3508 15.17070733 16
ALTAIR-1
1 98219C 26227BJ 26274.81436022 -.00012204 00000-0 -12359-2 0 9998
2 98219 97.4459 344.3312 0002351 108.8776 253.7798 15.17083655 10
TITANIA
1 98220C 26227BK 26274.81445050 -.00012866 00000-0 -13077-2 0 9993
2 98220 97.4439 344.3312 0002672 94.8871 268.2676 15.16957706 18
OSSIED
1 98221C 26227BL 26274.81462064 -.00012609 00000-0 -12652-2 0 9991
2 98221 97.4462 344.3315 0003041 135.4993 228.5794 15.17406584 10
OTTER 24C
1 98218C 26227BN 26274.81478730 -.00011281 00000-0 -11319-2 0 9998
2 98218 97.4458 344.3316 0003121 133.9748 231.0152 15.17405131 16
ION SCV-024
1 98226C 26227BR 26274.81572365 -.00012751 00000-0 -12839-2 0 9997
2 98226 97.4423 344.3320 0003333 121.0999 249.0077 15.17284316 18
REASON-1
1 98217C 26227BT 26274.81664263 -.00013524 00000-0 -13684-2 0 9994
2 98217 97.4464 344.3338 0002525 110.0324 265.0838 15.17116387 19
STAR CATCHER-1
1 98216C 26227BV 26274.81720860 -.00013159 00000-0 -13226-2 0 9995
2 98216 97.4426 344.3332 0003531 125.9721 252.2425 15.17347385 18
Note we miss TLE for AE4LA as it wasn’t provided from celestrak.
new vocab, space tug, on other article amsat-dl mention this as taxi.. and libre space foundation call it bus.
red square = LSF pico bus.
@LW2DTZ so, the other taxi , are diysatellite taxi?
btw, i think the size of these ossie-d space tug is seen like a micro satellite. complete with all transponder, and maybe camera itself to send the picture to gs when the picosat is deployed
