RADIANT — Open-Source Delay-Tolerant Networking for Amateur Radio (Terrestrial to Cislunar)

1

Hi everyone,

I’d like to introduce **RADIANT** (Radio Amateur Delay-tolerant Interplanetary Networking Testbed) — an open-source project bringing Delay-Tolerant Networking to amateur radio, with the long-term goal of operating a DTN node in cislunar space.

## What is it?

RADIANT implements the Bundle Protocol v7 (RFC 9171) and Licklider Transmission Protocol over amateur radio links, built on NASA Glenn Research Center’s [HDTN]( High-Rate Delay Tolerant Networking - NASA ) software stack. The system uses store-and-forward messaging — bundles are stored at each node and forwarded when the next contact window becomes available. Think of it as modern packet radio BBS forwarding, formalised into IETF/CCSDS standards suitable for spaceflight.

The protocol stack is deliberately simple:

Application (bping, bpsendfile)

BPv7 (Bundle Protocol) — EID: dtn://callsign/service

LTP (Licklider Transmission Protocol)

KISS (TNC Serial Framing)

G3RUH GFSK (9600 baud)

We eliminate AX.25 entirely — LTP is wrapped directly in KISS framing, saving ~15 bytes/frame overhead.

## Phased Roadmap

| Phase | Description | Status |

|-------|-------------|--------|

| **Phase 1** | Terrestrial DTN validation (RPi + TNC4 + FT-817, 9600 baud VHF/UHF) | **Active** |

| **Phase 1.5** | QO-100 GEO satellite DTN (first space-based demo via Es’hail-2) | Planned |

| **Phase 2** | CubeSat Engineering Model (STM32U585 + Ettus B200mini SDR) | Planned |

| **Phase 3** | LEO CubeSat flight (UHF 437 MHz, 9.6 kbps) | Planned |

| **Phase 4** | Cislunar deep-space (S-band 2.2 GHz, 500 bps, 3-5m dishes) | Planned |

Each phase validates technologies needed for the next. The terrestrial network deliberately mirrors the cislunar communications path: Mission Operations → Ground Gateway → Amateur RF Link → Relay Node → Payload Endpoint.

## Current Status

Phase 1 is operational with two nodes. We’ve demonstrated:

  • Store-and-forward delivery and DTN ping over real amateur radio links

- 3-node cislunar simulation with true packet-level propagation delays (1.3s Moon, 3-12 min Mars)

- Contact Graph Routing computing multi-hop relay paths

- LTP managing RTTs up to 24 minutes

- Custom C++17 KISS convergence layer adapter plugin for HDTN

- Go-based orchestration system with property-based testing (35+ correctness properties)

- Full CI pipeline

## Why LibreSpace?

There’s natural overlap between RADIANT and the LibreSpace ecosystem:

- **SatNOGS ground stations** could potentially serve as DTN ground segment nodes for the LEO CubeSat phase

- **Open-source satellite philosophy** — RADIANT is MIT-licensed, all documentation public

- **Distributed ground station network** — we’re building exactly this for DTN, and SatNOGS has proven the model works

- **CubeSat community** — we’re targeting a CubeSat-class payload and would welcome collaboration with teams who have flight experience

We’re also interested in whether anyone in the community has experience with:

- DTN or store-and-forward protocols on spacecraft

- S-band amateur allocations and frequency coordination

- CubeSat payload hosting opportunities

- QO-100 narrowband transponder experimentation

## Links

- **Website:** https://radiant.amsat-uk.org

- **Supported by:** AMSAT-UK, AMSAT-DL, Goonhilly Earth Station

The project is actively seeking collaboration from CubeSat teams, ground station operators, and anyone interested in space networking. All contributions welcome — from code to ground station time to flight hardware partnerships.

Happy to answer any questions about the architecture, protocol choices, or roadmap.

73,

David, G4DPZ

4 Likes
2

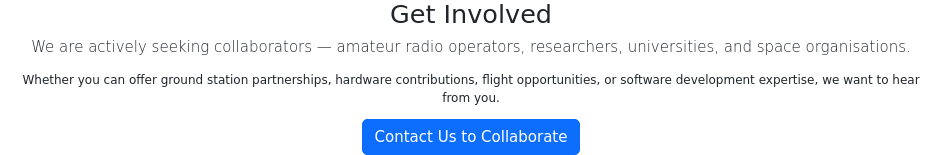

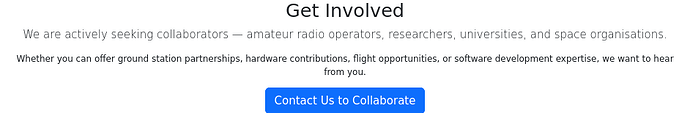

image942×155 15.6 KB

hi david @g4dpz , that is very interesting project. is it possible for noob with 1/4 gp antenna groundstation to join?

3

learning about this foundation software from NASA

4

this concept sound familiar, like decode ssdv image by replaying recorded .ogg audio file from multiple satnogs observations (in this comparasion satnogs network role as store and forward network) using direwolf as modem (ax25 decoder) (tnc serial framing), ssdv2sat or silversat.py to ordering the packet or fix broken data using reedsolomon/il2p (fixed using ssdv app) (in this comparasion role as LTP and Application bping, bpsendfile).

as direwolf support multiple modulation and baudrate, it support from AFSK1200 (like used by IO86 SSDV) to G3RUH 9600 baud (used by Silversat), RADIANT should support any modulation

2 Likes
5

Very interesting project.

I had a look at the website and roadmap, and what I find especially relevant is that RADIANT is not only testing BPv7/LTP over amateur radio links, but is building a phased operational path: terrestrial DTN validation, QO-100, CubeSat EM, LEO flight, and eventually cislunar.

The LTP-over-KISS choice, without AX.25, is also interesting from a boundary point of view: it keeps the radio framing simple while moving the store-and-forward semantics into the DTN stack.

One question/suggestion: as the project moves from Phase 1 toward QO-100 and later LEO, it may help to keep the contact-plan and run-evidence artifacts explicit and versioned.

For example:

  • expected contact window
  • link type and frequency band
  • bitrate / modem / framing assumptions
  • node roles and DTN EIDs
  • storage limits
  • priority class
  • retransmission / custody assumptions
  • bundle id and route selected
  • delivery status and timing evidence

That would make results easier to compare across terrestrial nodes, QO-100 tests and future CubeSat phases, especially when the problem becomes not just delay, but intermittent availability and operational scheduling.

I also liked Bali’s comparison with replaying SatNOGS observations for SSDV recovery. It is not the same protocol stack, of course, but the operational pattern is similar in one useful sense: recorded or delayed data becomes useful only if the context, ordering, timing and recovery evidence are preserved.

Are you already treating contact plans and run evidence as reusable artifacts, or mostly as HDTN runtime config/logs for now?

Fabrizio

1 Like
6

Hi Fabrizio

I had not thought about the logging function. That’s a great idea in conjunction with the contact graph.

Will add it to the functional spec.

Dave, G4DPZ

2 Likes
