Lvm3-m6 - bluebird block-2 - 2025-12-24 03:24 utc

This is an ISRO launch for Bluebird 06.

The satellite has got grant from FCC to transmit in the range of 430-440 MHz.

Theoretically we expect a signal at 435 MHz with baudrate 19k2, but it could be anywhere in this 430-440 MHz range.

This UHF range will be used outside US and only for Emergency TT&C Communications (space-to-Earth and Earth-to-space)

4 Likes

TLE based on launch time 2025-12-24 02:50 UTC

Bluebird 06
1 98451U          25358.12152778  .00000000  00000-0  50000-4 0    05
2 98451  53.0000  47.4847 0001450   0.0000 162.6222 15.15323704    03
4 Likes

While the 70cm downlinks on the previous BlueBird sats may or may not be the same on this one, I wanted to share just for reference.

Freqs listed were: 430.5 MHz, 432.3 MHz, 434.1 MHz, 435.9 MHz,
and 439.5 MHz

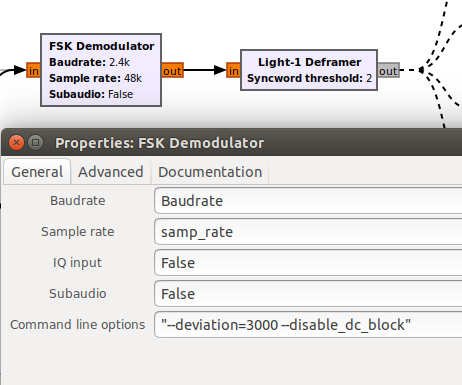

… and the 2k4 / Light-1 demod settings were:

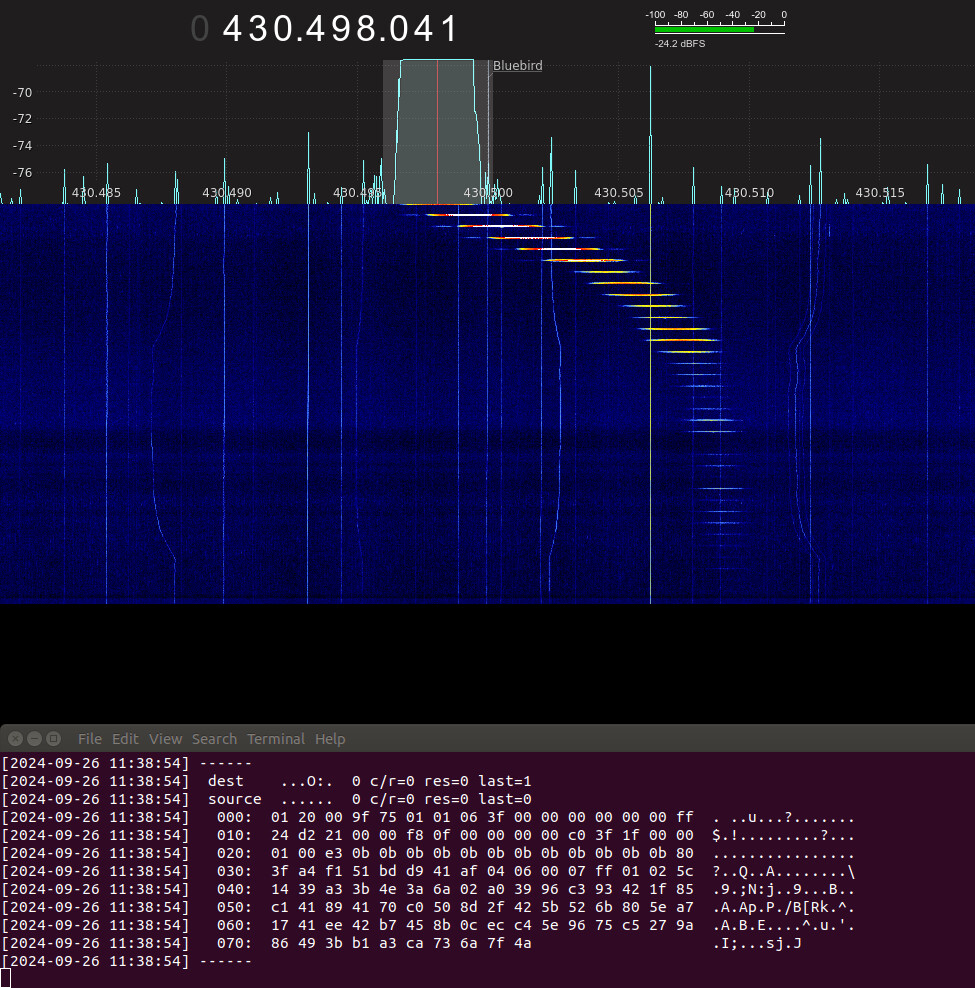

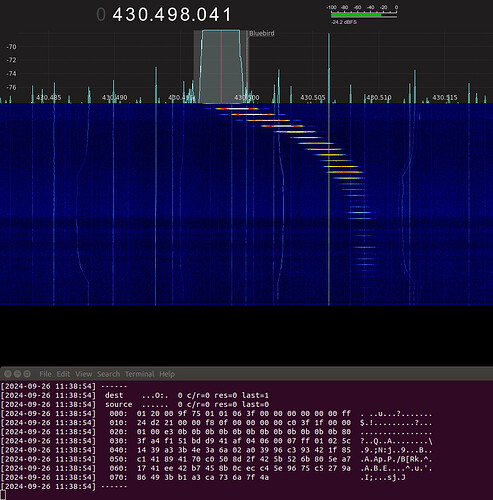

… finally, here is a session from 26-Sep-2024 (BlueBird-5):

3 Likes

Thanks Scott,

This should also work but needs some tuning after reception.

name: BLUEBIRD-6
norad: 98451
data:
  &tlm Telemetry:
    unknown
transmitters:
  2k4 FSK downlink:
    frequency: 435.800e+6
    modulation: FSK
    baudrate: 2400
    deviation: 600
    framing: Light-1
    data:
    - *tlm
  9k6 FSK downlink:
    frequency: 435.800e+6
    modulation: FSK
    baudrate: 9600
    deviation: 2400
    framing: Light-1
    data:
    - *tlm
  19k2 FSK downlink:
    frequency: 435.800e+6
    modulation: FSK
    baudrate: 19200
    deviation: 4800
    framing: Light-1
    data:
    - *tlm
4 Likes

Launch datetime has been changed to 2025-12-24 03:24 UTC

2 Likes

TLE set for the launch time 2025-12-24 03:24 UTC:

Bluebird 06
1 98451U          25358.14513889  .00000000  00000-0  50000-4 0    01
2 98451  53.0000  56.0079 0001450   0.0000 162.6222 15.15323704    06
2 Likes

BlueBird 6, built by Texas company AST SpaceMobile, will lift off atop an LVM3 rocket from India’s Satish Dhawan Space Centre tonight at 0324 UTC

2 Likes

https://www.youtube.com/live/tNpY3wLE3nE

1 Like

@db2os I’ve moved your messages to in this topic as it is dedicated for the Bluebird 6.

1 Like

According to the stream the launch time will be around 2025-12-24 03:25:29 UTC

For this launch time, this is the updated TLE:

Bluebird 06
1 98451U          25358.14616898  .00000000  00000-0  50000-4 0    05
2 98451  53.0000  56.3798 0001450   0.0000 162.6222 15.15323704    07
1 Like

Lift-Off!

Hopefully in about 15 minutes we’ll have deployment of the sat.

2 Likes

:+1: goooooo!

2 Likes

Ok, in 45 min we’ll see if any signals can be found…

2 Likes

auto award for violator sat.. :rofl:


2 Likes

A new TLE update based on the data from launch stream at the separation time, 3:41 UTC:

Bluebird 06
1 98451U          25358.15347222  .00000000  00000-0  50000-4 0    08
2 98451  53.0000  54.5750 0001450   0.0000 191.6300 15.15323704    04

Not fully confident about it, but I think it should be closer to the real orbit. Use with caution. :slight_smile:

PS it is ~3min different from my previous calculation:

2 Likes

A small fix on the previous TLE at separation time based on a small change on the position of the rocket at the separation time:

Bluebird 06
1 98451U          25358.15347222  .00000000  00000-0  50000-4 0    08
2 98451  53.0000  52.7337 0001450   0.0000 193.7915 15.15323704    00
2 Likes

as ussual, for new sat, auto schedule by @fredy :+1:

1 Like

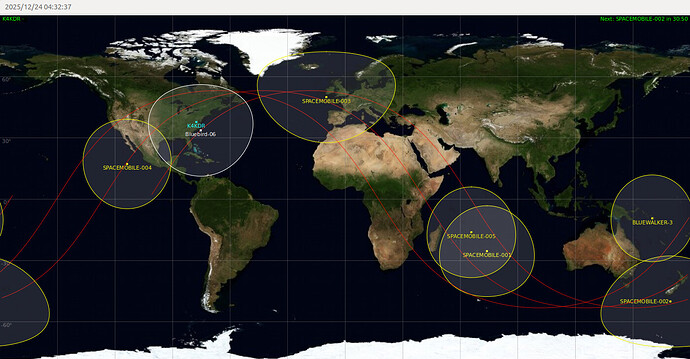

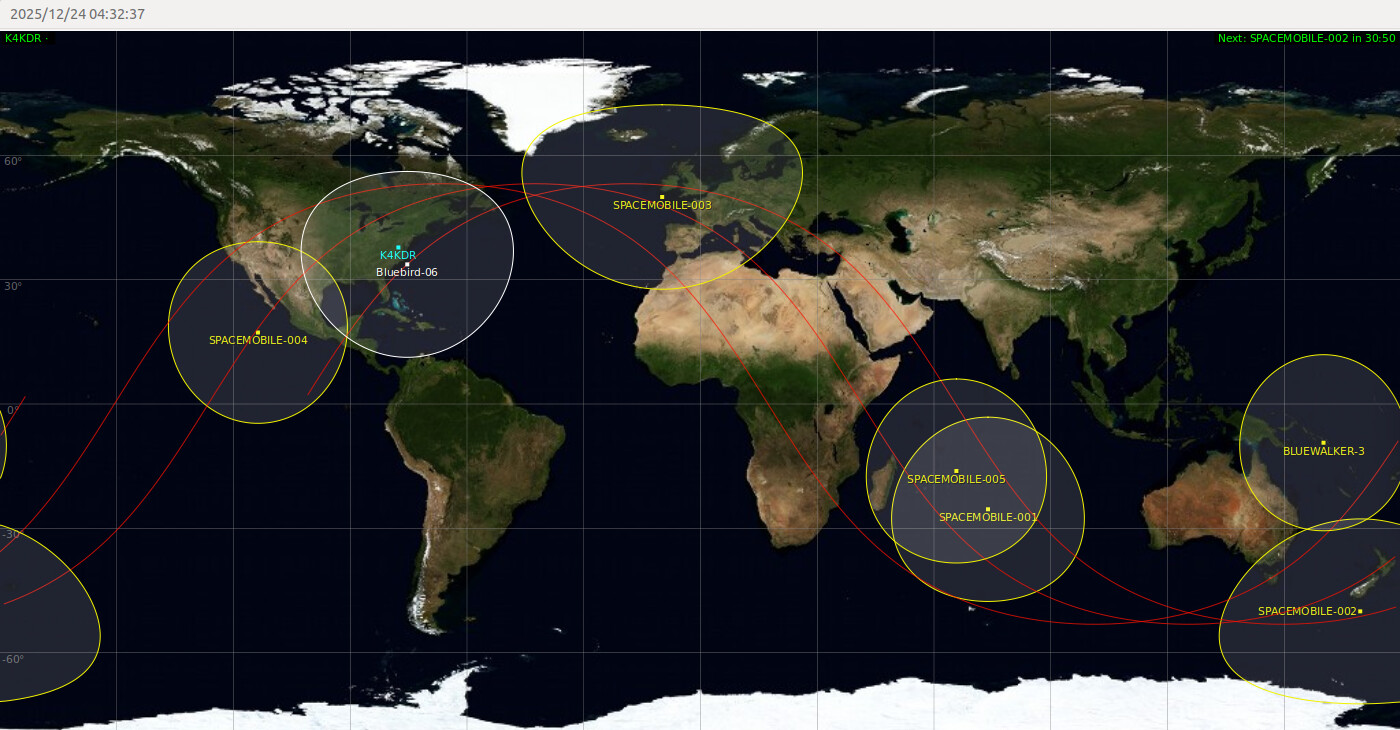

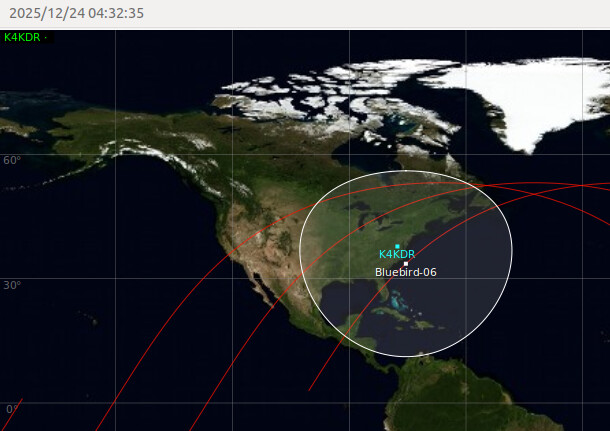

Ok, nothing heard on the 70cm & S-Band freqs previously used by the other AST sats, Mid-Atlantic USA. Of course, it could be too early since antennas have to be deployed, etc. And with this being a larger, commercial sat, there are solar panels and other things to attend to as well. So, will keep watching on future passes.

4 Likes

let make a hot coffee :hot_beverage:

Scott, can you share the previous S-band frequencies used?

Jan | PE0SAT
