KSLV-2 - CAS500-3 Mission - 2025-11-26 16:13 UTC

Satellites & Observations Launches
1

KSLV-2 launch that will transfer in orbit CAS500-3 and 12 other cubesats.

Temporary NORAD ID Satellite Frequency Notes Deployed
COMMERCIAL UHF
98494 COSMIC 400.462 MHz - Directly
AMATEUR UHF
98488 JACK-003 436.300 MHz IARU Uncoordinated, frequency by ITU Directly
98487 JACK-004 436.300 MHz IARU Uncoordinated, frequency by ITU Directly
98496 SNUGLITE-III HANA 436.460 MHz IARU Coordinated Directly
98493 BEE-1000 436.500 MHz IARU Uncoordinated, frequency by ITU Directly
98492 SPIRONE 436.650 MHz IARU Coordinated Directly
98497 SNUGLITE-III DURI 436.788 MHz IARU Coordinated Directly
98491 PERSAT01 437.125 MHz IARU Uncoordinated, frequency by ITU Directly
98489 K-HERO 437.165 MHz IARU Uncoordinated, frequency by ITU Directly
98490 INHA-RoSAT 437.665 MHz IARU Uncoordinated, frequency by ITU Directly
OTHER UHF,L-Band, S-Band
98485 ETRISat 916.000 MHz - Directly
98485 ETRISat 2207.733 MHz - Directly
98483 CAS500-3 2236.689 MHz - Directly
98484 SJSAT-4 2249.050 MHz - Directly
98494 COSMIC 2249.510 MHz - Directly
98485 ETRISat 2252.584 MHz - Directly
98486 E3_TESTER_KARI-1 2256.000 MHz - Directly
98493 BEE-1000 2403.500 MHz - Directly
98490 INHA-RoSAT 2417.000 MHz - Directly
98492 SPIRONE 2425.100 MHz - Directly
OTHER FREQUENCIES (C-Band, X-Band, Ku-Band, Ka-Band)
98484 SJSAT-4 8195.000 MHz - Directly
98483 CAS500-3 8210.000 MHz - Directly

last update: 2025-11-25 12:15 UTC

NSF forum thread: KSLV II F4 : CAS500-3 & 12 cubesats : 26 November 2025 (16:13 UTC)

5 Likes
2

SNUGLITE-III Hana and Duri will be deployed at 16:05 UTC.

Detailed information about the digipeater payload will be available by 27th on its website.

The team will send eQSLs to those who receive the (telemetry) beacons.

6 Likes
3

Thanks for the update, at the moment we are searching for orbit details, if someone has information please share it so we can create preliminary TLE

Jan | PE0SAT

1 Like
4

With some findings for the orbit (~600km at 97.79 deg inclination) and by using this gist here are the calculated TLE:

CAS500-3
1 98483U          25330.66597222  .00000000  00000-0  50000-4 0    06
2 98483  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    09
SJSAT-4
1 98484U          25330.66597222  .00000000  00000-0  50000-4 0    07
2 98484  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    00
ETRISAT
1 98485U          25330.66597222  .00000000  00000-0  50000-4 0    08
2 98485  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    01
E3_TESTER_KARI-1
1 98486U          25330.66597222  .00000000  00000-0  50000-4 0    09
2 98486  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    02
JACK-004
1 98487U          25330.66597222  .00000000  00000-0  50000-4 0    00
2 98487  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    03
JACK-003
1 98488U          25330.66597222  .00000000  00000-0  50000-4 0    01
2 98488  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    04
K-HERO
1 98489U          25330.66597222  .00000000  00000-0  50000-4 0    02
2 98489  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    05
INHA-ROSAT
1 98490U          25330.66597222  .00000000  00000-0  50000-4 0    04
2 98490  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    07
PERSAT01
1 98491U          25330.66597222  .00000000  00000-0  50000-4 0    05
2 98491  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    08
SPIRONE
1 98492U          25330.66597222  .00000000  00000-0  50000-4 0    06
2 98492  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    09
BEE-1000
1 98493U          25330.66597222  .00000000  00000-0  50000-4 0    07
2 98493  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    00
COSMIC
1 98494U          25330.66597222  .00000000  00000-0  50000-4 0    08
2 98494  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    01
SNUGLITE-III HANA
1 98496U          25330.66597222  .00000000  00000-0  50000-4 0    00
2 98496  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    03
SNUGLITE-III DURI
1 98497U          25330.66597222  .00000000  00000-0  50000-4 0    01
2 98497  97.7900  78.5040 0000717   0.0000  34.8880 14.89340176    04

NOTES:

  1. We are going to use these TLE sets if nothing else provided
  2. Have in mind that these are pre launch TLE, so their accuracy may not be good, don’t use it far away from the launch time (2025-11-26 15:54 UTC) that were calculated for
  3. Satellites will be available for scheduling in Network around the launch time
2 Likes
5

thank you!

6

In total 720 observations have been scheduled for the first 24h after deployment of the satellites. We have used the TLE sets of the previous post.

The difference in the number of scheduled observations is based to:

  • Frequency of transmission of the satellite
  • Orbit of the satellite/TLE set
  • Request by or communication with the satellite team
  • Spectrum misuse or violation of regulations
Temp NORAD ID Satellite Scheduled Observations
98496 SNUGLITE-III HANA 126
98492 SPIRONE 127
98497 SNUGLITE-III DURI 129
98493 BEE-1000 108
98487 JACK-004 53
98491 PERSAT01 109
98490 INHA-RoSAT 111
98489 K-HERO 110
98488 JACK-003 53
98485 ETRISat 16
98486 E3_TESTER_KARI-1 9
98484 SJSAT-4 8
98483 CAS500-3 7
Total 966
1 Like
7

It looks like the launch time is 2025-11-26 16:13UTC

I’m going to re-adjust the TLE and re-scheduling observations.

8

New TLE sets for the new launch time 2025-11-26 16:13UTC

AS500-3
1 98483U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    08
2 98483  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    01
SJSAT-4
1 98484U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    09
2 98484  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    02
ETRISAT
1 98485U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    00
2 98485  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    03
E3_TESTER_KARI-1
1 98486U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    01
2 98486  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    04
JACK-004
1 98487U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    02
2 98487  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    05
JACK-003
1 98488U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    03
2 98488  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    06
K-HERO
1 98489U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    04
2 98489  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    07
INHA-ROSAT
1 98490U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    06
2 98490  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    09
PERSAT01
1 98491U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    07
2 98491  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    00
SPIRONE
1 98492U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    08
2 98492  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    01
BEE-1000
1 98493U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    09
2 98493  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    02
COSMIC
1 98494U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    00
2 98494  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    03
SNUGLITE-III HANA
1 98496U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    02
2 98496  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    05
SNUGLITE-III DURI
1 98497U 14900A   25330.67916666  .00000000  00000-0  50000-4 0    03
2 98497  97.7900  83.2670 0000717   0.0000  34.8880 14.89340176    06
1 Like
9

In total 1059 observations have been scheduled for the first 24h after deployment of the satellites. We have used the TLE sets of the previous post.

The difference in the number of scheduled observations is based to:

  • Frequency of transmission of the satellite
  • Orbit of the satellite/TLE set
  • Request by or communication with the satellite team
  • Spectrum misuse or violation of regulations
Temp NORAD ID Satellite Scheduled Observations
98492 SPIRONE 137
98496 SNUGLITE-III HANA 137
98497 SNUGLITE-III DURI 138
98491 PERSAT01 123
98493 BEE-1000 123
98489 K-HERO 124
98488 JACK-003 61
98487 JACK-004 61
98490 INHA-RoSAT 124
98485 ETRISat 12
98486 E3_TESTER_KARI-1 7
98483 CAS500-3 6
98484 SJSAT-4 6
Total 1059
1 Like
10

The TLE are probably wrong, not well tested we are checking it and will come back with new ones.

11

These should be the right TLE sets with the data we have right now about the launch. Probably are not accurate but is the best we have right now, so we are going to move forward with these until we have any other updated:

SNUGLITE-III HANA
1 98496U          25330.67916667  .00000000  00000-0  50000-4 0    09
2 98496  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    02
SJSAT-4
1 98484U          25330.67916667  .00000000  00000-0  50000-4 0    06
2 98484  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    09
BEE-1000
1 98493U          25330.67916667  .00000000  00000-0  50000-4 0    06
2 98493  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    09
CAS500-3
1 98483U          25330.67916667  .00000000  00000-0  50000-4 0    05
2 98483  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    08
SNUGLITE-III DURI
1 98497U          25330.67916667  .00000000  00000-0  50000-4 0    00
2 98497  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    03
E3_TESTER_KARI-1
1 98486U          25330.67916667  .00000000  00000-0  50000-4 0    08
2 98486  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    01
INHA-ROSAT
1 98490U          25330.67916667  .00000000  00000-0  50000-4 0    03
2 98490  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    06
ETRISAT
1 98485U          25330.67916667  .00000000  00000-0  50000-4 0    07
2 98485  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    00
JACK-004
1 98487U          25330.67916667  .00000000  00000-0  50000-4 0    09
2 98487  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    02
JACK-003
1 98488U          25330.67916667  .00000000  00000-0  50000-4 0    00
2 98488  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    03
K-HERO
1 98489U          25330.67916667  .00000000  00000-0  50000-4 0    01
2 98489  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    04
PERSAT01
1 98491U          25330.67916667  .00000000  00000-0  50000-4 0    04
2 98491  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    07
SPIRONE
1 98492U          25330.67916667  .00000000  00000-0  50000-4 0    05
2 98492  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    08
COSMIC
1 98494U          25330.67916667  .00000000  00000-0  50000-4 0    07
2 98494  97.7900 252.5040 0000717   0.0000 145.1500 14.89340176    00
1 Like
12

Hi Fredy, Could you update the E3_TESTER_KARI-1 TLE as below?

E3_TESTER_KARI-1
1 94111U 25251Y   25330.68627726 -.00005353  00000-0  56059-3 0    06
2 94111  97.7600 258.1534 0012984 320.7711 220.1662 14.92443669    07

Thank you!

1 Like
13

I’ve added it in DB, Network observations will be automatically updated in the next hour.

2 Likes
14

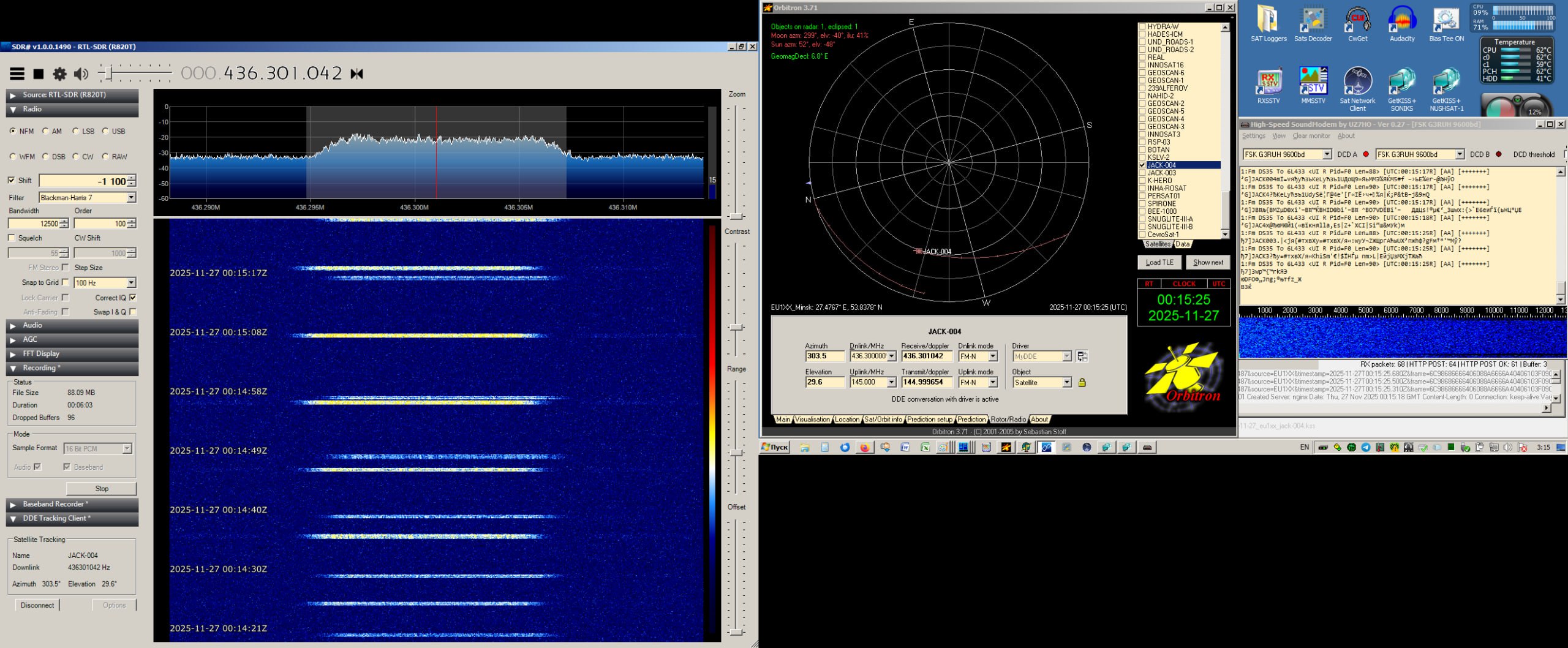

IMG_20251127_002746_246
IMG_20251127_002746_2462560Ă—1058 447 KB

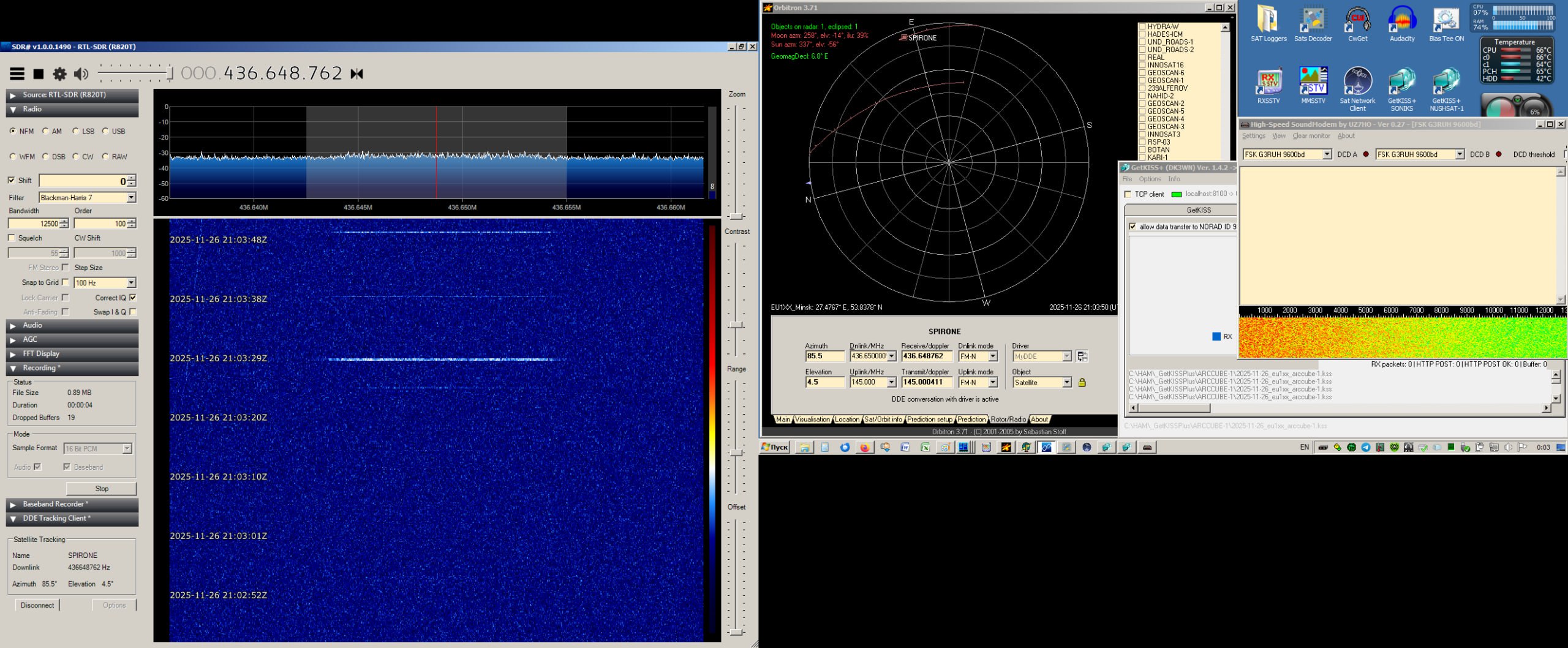

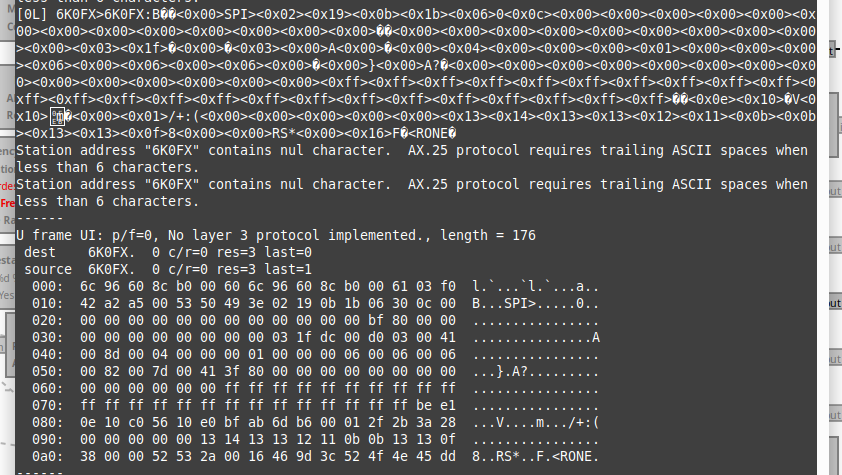

SPIRONE ACTIVE!

8 Likes
15

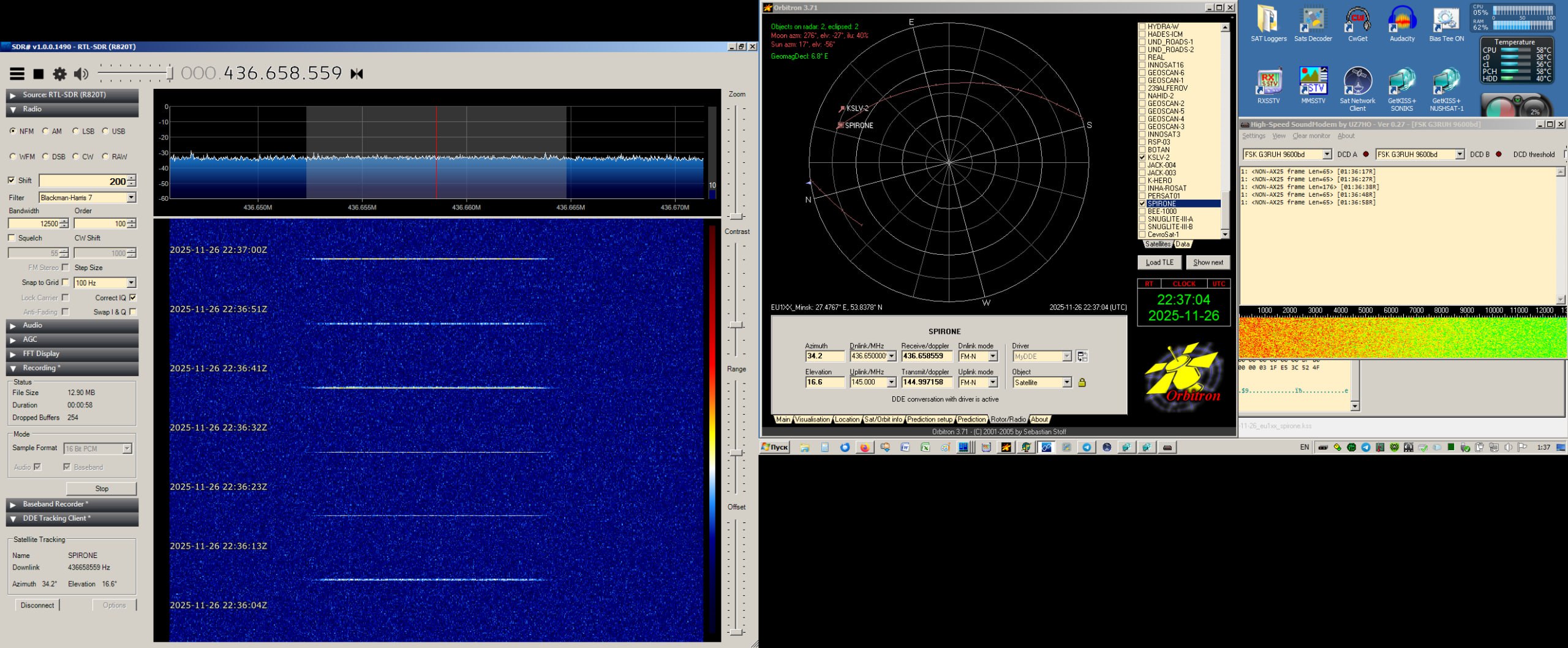

IMG_20251127_021526_461
IMG_20251127_021526_4612560Ă—1058 459 KB

3 Likes
16

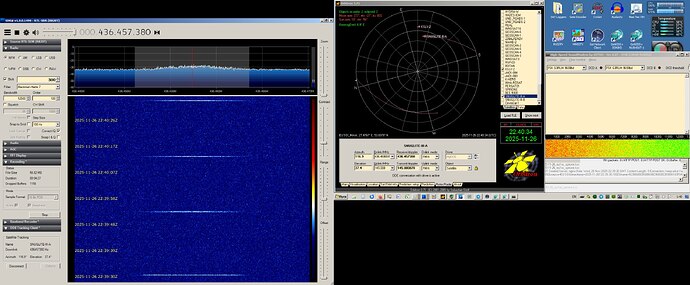

IMG_20251127_023606_213
IMG_20251127_023606_2132560Ă—1058 455 KB

5 Likes
18

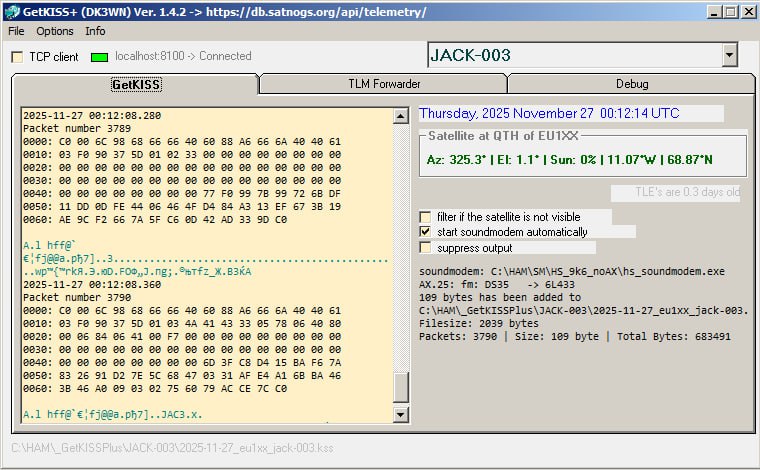

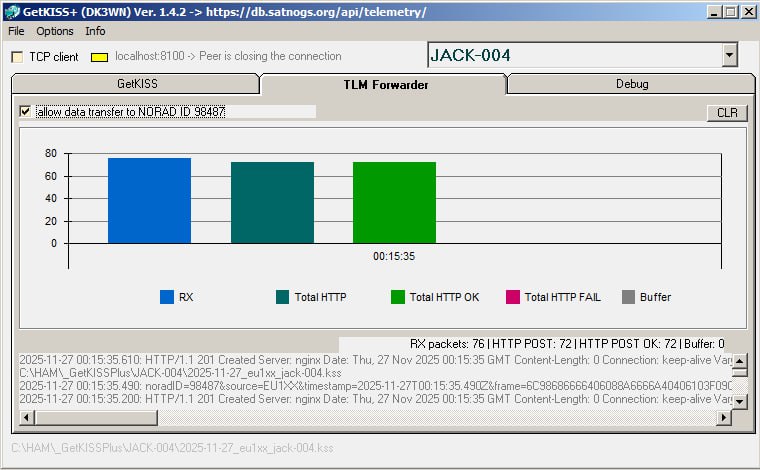

JACK-003 and 004 RAW Telemetry.
76 Frames uploaded

IMG_20251127_033458_860
IMG_20251127_033458_8602560Ă—1058 448 KB

IMG_20251127_033459_518
IMG_20251127_033459_518760Ă—470 94.4 KB

IMG_20251127_033459_216
IMG_20251127_033459_216760Ă—470 66.3 KB

5 Likes
19

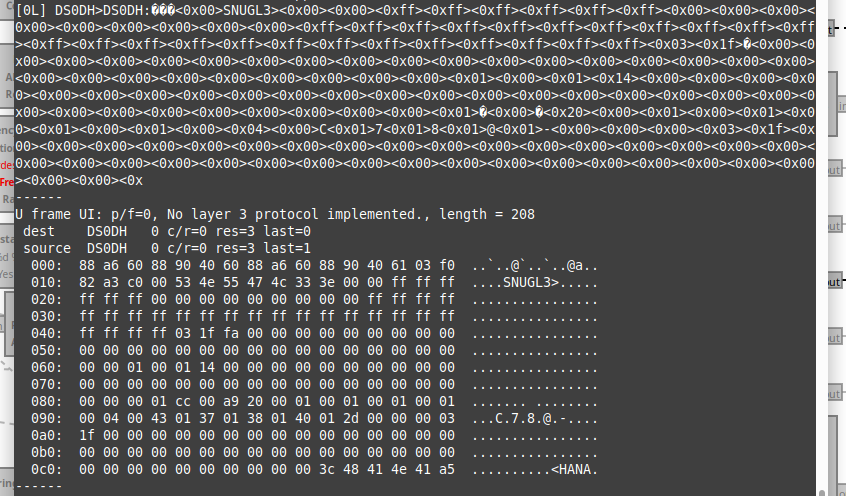

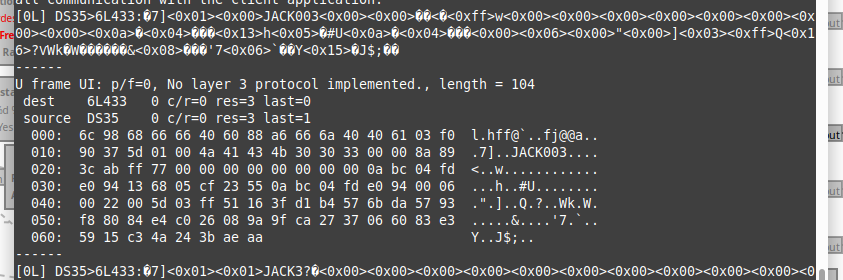

Jack3, Snuglite III and Spirone 9K6 GMSK telemetry. 27November25. 0648Z. EM12jw. 37E.

Good hunting all.

Selection_222
Selection_222843Ă—280 44.4 KB

Selection_223
Selection_223846Ă—496 44.8 KB

Selection_224
Selection_224842Ă—475 62.1 KB

5 Likes
20

Hello, I’d like to ask a very basic question.

In this pass where communication with JACK-004 took place

( SatNOGS Network - Observation 12812538 ),

the polar plot shows the satellite passing to the west relative to the ground station.

However, in the plot, it says “Max” is 60°, which is confusing to me.

Does the 60° refer to the azimuth? If so, wouldn’t that mean the satellite should be passing on the right side of the ground station instead?

I would really appreciate it if you could clarify this for me.

Thank you in advance.

21

The Max value refers to the elevation.

1 Like
