Kakushin Rising mission (JAXA Rideshare) - electron - 2026-04-23 03:09 UTC

sv2hwm · April 7, 2026, 6:01pm

last update: 2023-04-22 21:30 UTC

Temporary NORAD ID	Satellite	Frequency	Callsign	Notes	Deployment
VHF
98324	MAGNARO-II - Tigris	145.850 MHz	CW, AFSK 1200.0,GMSK 9600.0	IARU Coordinated, attached magnetically to “MAGNARO-II - Piscis” at start	Directly
AMATEUR UHF
98323	MAGNARO-II - Piscis	436.325 MHz	CW, AFSK 1200.0,GMSK 9600.0	IARU Coordinated, attached magnetically to “MAGNARO-II - Tigris” at start	Directly
98328	KOSEN-2R	436.750 MHz	AFSK 1200.0, GMSK 9600.0	IARU Coordinated	Directly
98329	ARICA-2	436.830 MHz	CW 20.0, GMSK 4800.0	AFSK 1200.0	Directly
98326	FSI-SAT2	437.175 MHz	-	Non IARU Coordinated(pending coordination), frequency based on previous mission	Directly
98327	WASEDA-SAT-ZERO-II	437.200 MHz	CW 8.0,FSK 1200.0	IARU Coordinated	Directly
98325	OrigamiSat-2	437.505 MHz	CW 24.0, AFSK 1200.0	IARU Coordinated	Directly
NOT IN DB
-	Mono ‑ Nikko	-	-	-	Directly
-	PRELUDE	-	-	Expected from ITU entry on S-band (2200-2290 MHz)	Directly

8 satellites to be deployed NET April 23, 2026.

Mangaro-II (Tigris and Piscis)
IARU
Tigris:
145.850 MHz
CW / AFSK 1k2 / GMSK 9k6 or 19k2
Piscis:
436.325 MHz
CW / AFSK 1k2 / GMSK 9k6 or 19k2
Info

KOSEN-2R
KOSEN-2 Coordination
436.750 MHz
AFSK 1k2 / GMSK 9k6 / LoRa?

WASEDA-SAT-ZERO-II
IARU
437.200 MHz
FSK AX25 1k2 / CW 8 wpm
Info

FSI‑SAT2
IARU
FREQUENCY?
CW 18.5 wpm / Analogue SSTV / AFSK 1k2 / GMSK 9k6
Info

OrigamiSat ‑ 2
437.505 MHz (TBD)
AFSK 1k2 / CW 80 cpm
5.840 GHz (TBD)
BPSK/QPSK 100 kbps – 20 Mbps
Info

Mono ‑ Nikko
By Di-Nikko Engineering Co., Ltd. English - 大日光・エンジニアリング

ARICA ‑ 2
IARU
436.830 MHz
CW 20 wpm / GMSK AX.25 4k8
Info

PRELUDE
ITU
S-band 2200 - 2290 MHz

fredy · April 7, 2026, 7:54pm

Thanks @sv2hwm, are these going to be deployed from ISS or from a rocket launch.

By the way any help on adding these data in DB would be more than appreciated! For anyone who have the time to contribute on this task, here is the guide for adding new satellites and for adding new transmitters.

fredy · April 7, 2026, 7:56pm

I’ll answer my own question
It is a rocketlab launch: Electron | Kakushin Rising (JAXA Rideshare) Mission

K4KDR · April 21, 2026, 4:24pm

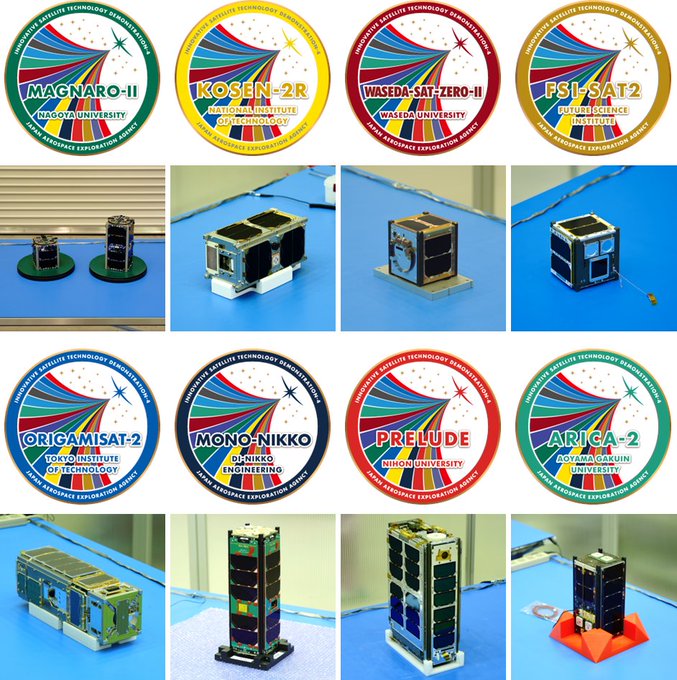

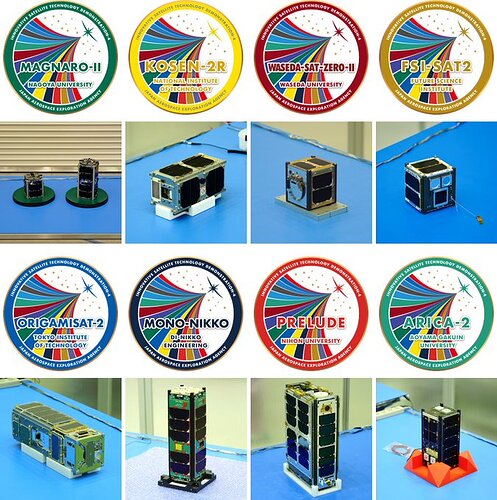

Nice image from this tweet:

https://x.com/KAKUSHIN_JAXA/status/2046501082843824250

fredy · April 22, 2026, 1:49pm

We have the precise launch datetime 2026-04-23 03:09 UTC

Also ARICA-2 team has shared TLE in amsatbb list:

ARICA-2
1 99999U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9999
2 99999  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    03

Which becomes this TLE if we use the DB temporary NORAD ID:

ARICA-2
1 98329U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9995
2 98329  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    09

I’ll take a look on the other satellites later today, any help by suggesting them in DB is more than welcome!

fredy · April 22, 2026, 9:07pm

I’ve updated the first post with the classic table and here are the TLE based on the one shared by ARICA-2 team, changed to use the temporary NORAD ID in SatNOGS DB entries:

ARICA-2
1 98329U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9995
2 98329  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    09
KOSEN-2R
1 98328U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9994
2 98328  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    08
WASEDA-SAT-ZERO-II
1 98327U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9993
2 98327  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    07
FSI-SAT2
1 98326U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9992
2 98326  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    06
OrigamiSat-2
1 98325U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9991
2 98325  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    05
MAGNARO-II - Tigris
1 98324U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9990
2 98324  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    04
MAGNARO-II - Piscis
1 98323U 27001A   26113.16829861  .00000000  00000-0  00000-0 0  9999
2 98323  97.5133 263.8390 0010953 206.3608 199.1146 15.08588350    03

Satellite will become available for scheduling in Network near the launch time.

K4KDR · April 23, 2026, 1:04am

Updated downlink details & related info for OrigamiSat-2:

http://www.origami.titech.ac.jp/archives/1958#

fredy · April 23, 2026, 2:24am

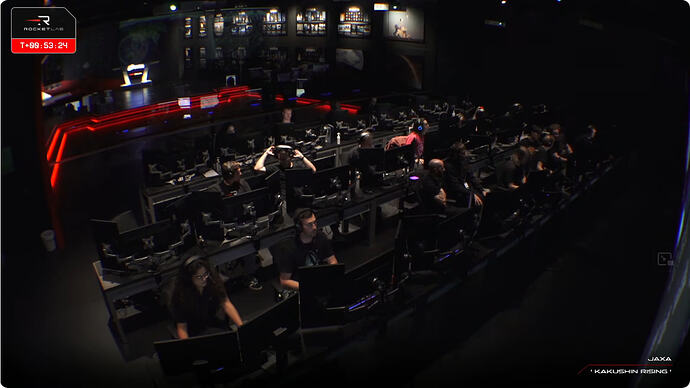

Stream for the launch:

bali · April 23, 2026, 3:13am

fredy · April 23, 2026, 3:19am

Launch was on time!

In total 1450 observations have been scheduled for the first 48h after deployment of the satellites. We have used the TLE sets of the previous post.

The difference in the number of scheduled observations is based to:

Frequency of transmission of the satellite
Orbit of the satellite/TLE set
Request by or communication with the satellite team
Spectrum misuse or violation of regulations

Temp NORAD ID	Satellite	Scheduled Observations
98329	ARICA-2	233
98325	OrigamiSat-2	170
98324	MAGNARO-II - Tigris	270
98323	MAGNARO-II - Piscis	230
98328	KOSEN-2R	191
98326	FSI-SAT2	186
98327	WASEDA-SAT-ZERO-II	170

bali · April 23, 2026, 4:05am

congratz. for all sat teams !

bali · April 23, 2026, 4:08am

origamisat-2 satyml:

name: OrigamiSat-2
alternative_names:
  - JS1YRU
norad: 98325
data:
  &tlm Telemetry:
    telemetry: ax25
transmitters:
  1k2 AFSK downlink:
    frequency:  437.505e+6
    modulation: AFSK
    baudrate: 1200
    af_carrier: 1700
    deviation: 400
    framing: AX.25
    data:
    - *tlm

fredy · April 23, 2026, 6:30am

From the first observations we have the two “MAGNARO-II”, ARICA-2, FSI-SAT(confirmed transmitting on that frequency) and WASEDA-SAT-ZERO-II received and alive!

Not many observations from OrigamiSat-2, there is a hint of transmission in one observation but not sure if it belongs to the satellite. No signal on KOSEN-2R frequency.

TLE are good for tracking but need some fixing, there will be updates later when we have more observations preformed.

K4KDR · April 23, 2026, 6:53am

Sounds like OrigamiSat-2 is alive also!

bali · April 23, 2026, 8:19am

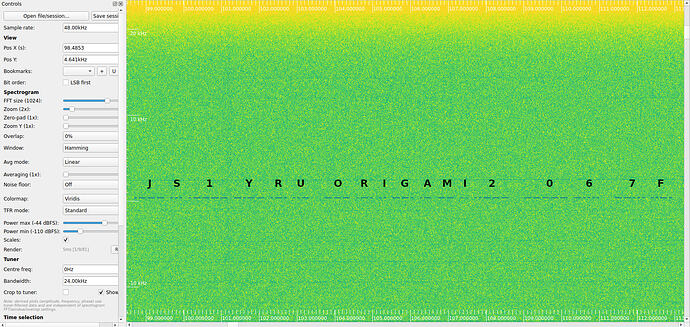

got the cw, - OrigamiSat-2
over indonesia 2026-04-23 07:48 UTC

strong signal. congratz team!

JS1YRU  ORIGAMI2   067F

(full: JS1YRUORIGAMI2067F82718C1E0176756290000000008B8B0100C1612F304B42483E02)

(command: inspectrum -f c16 -r 48000 origami_iq_13884658_48000.raw)

Download CW decoder from official website

run on linux using wine

wine cw_converter.exe
Enter CW data (space-separated):
> JS1YRU ORIGAMI2 06 7F 82 71 8C 1E 01 76 75 62 90 00 00 00 00 8B 8B 01 00 C1 61 2F 30 4B 42
 48 3E 02
Received telemetry bytes: 28 / 28 bytes

Callsign                         : JS1YRU
Satellite Name                   : ORIGAMI2
UVC Enable                       : DISABLE
UVC Level                        : UVC START SUCCESS
Operation Status                 : FINISHED
Current Mode ID                  : INITIAL
Battery Voltage (V)              : 7.94
Battery Current (A)              : 57.31
Battery Temperature (degC)       : 12
SAP y+/y- Surface                : ON
SAP x- Surface                   : ON
SAP z- Surface                   : ON
SAP z+ Surface                   : ON
Thin-film Solar Cell             : OFF
Switch (CBand Tx)                : OFF
Switch (Extendable Mast)         : OFF
Switch (ADCS)                    : OFF
Switch (Camera)                  : OFF
Switch (Bus Melt)                : OFF
Switch (TFSC_IV)                 : OFF
Switch (Unused)                  : OFF
Switch (IMU)                     : ON
Angular Velocity X (deg/s)       : -0.9
Angular Velocity Y (deg/s)       : -1.0
Angular Velocity Z (deg/s)       : -2.9
Last Executed Command ID (OBC)   : 144
OBC Command Execution Result     : 0
Last Executed Command ID (ADCS)  : 0
ADCS Mode                        : START UP
Last Executed Command ID (RasPi) : 0
Bus Transceiver Temp (degC)      : 11
C-band Transmitter Temp (degC)   : 11
OBC Boot Count                   : 1
Reserved Command Count           : 0
Satellite Time (UNIX)            : 3244371760
UVC Normal Threshold (V)         : 7.5
UVC Safe Threshold (V)           : 6.6
UVC Level1 Threshold (V)         : 7.2
UVC Level2 Threshold (V)         : 6.2
Bus Melt Count                   : 2

Press Enter to close the window.

bali · April 23, 2026, 10:15am

seen like this not in unix format, but in GPS epoch format
3244371760 converts to April 23, 2026 at 00:00:00 UTC

bx1ad · April 23, 2026, 10:32am

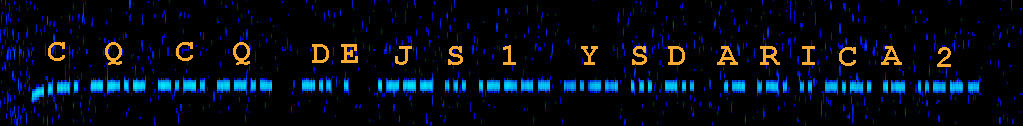

ARICA-2 CW

07:42:15U CW1
2FDE070CCB07401B

07:44:39U Call Sign
CQ CQ DE JS1YSD ARICA2

nishikazu0417 · April 23, 2026, 12:01pm

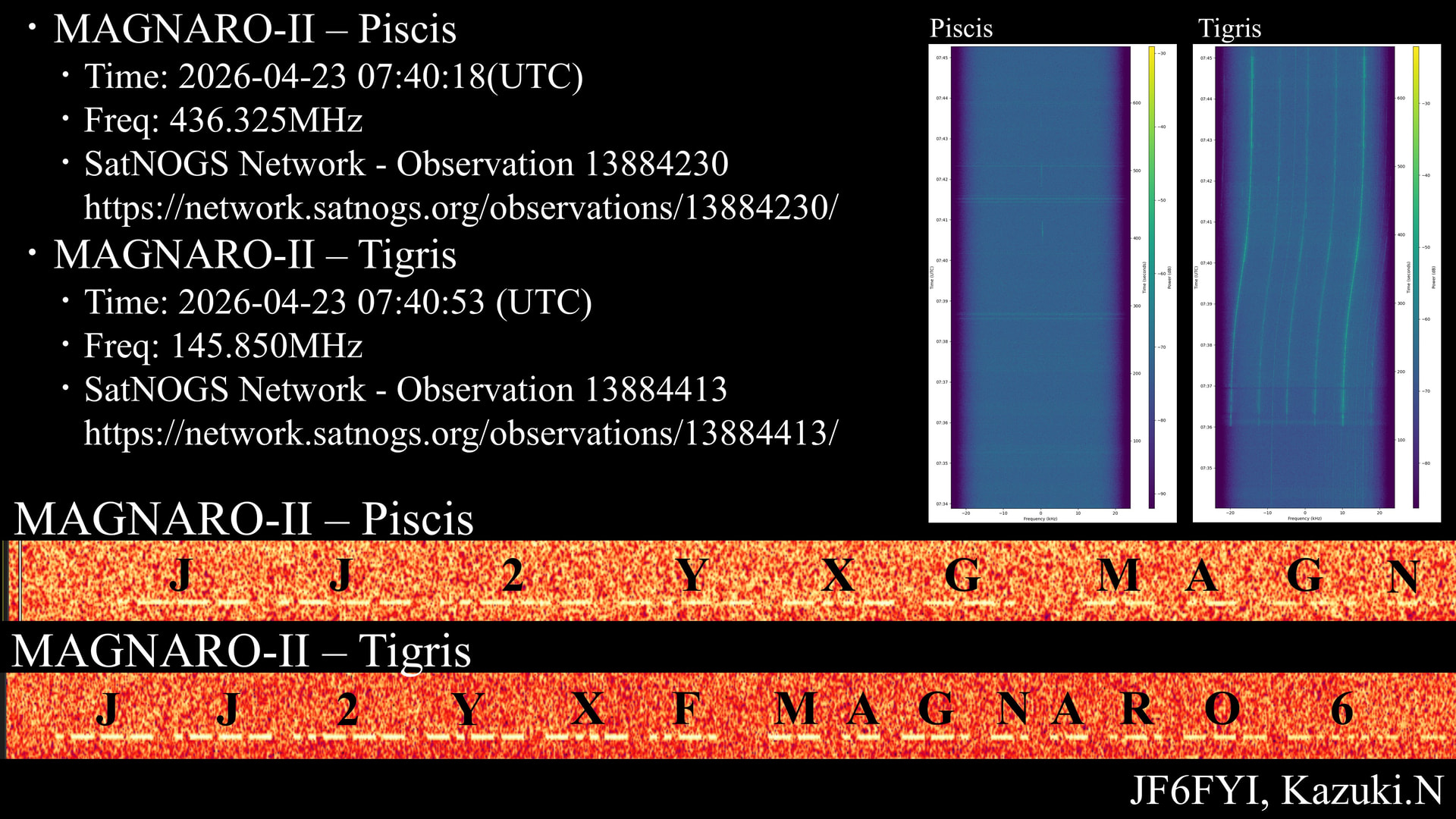

My SatNOGS ground station also received the CW beacon from MAGNARO-II Piscis & Tigris.
Congratulations to everyone on the Satellite Operations Team!
・MAGNARO-II – Piscis
・Time: 2026-04-23 07:40:18(UTC)
・SatNOGS Network - Observation 13884230
・MAGNARO-II – Tigris
・Time: 2026-04-23 07:40:53 (UTC)
・SatNOGS Network Observation 13884413

73,
JF6FYI
Kazuki.N

fredy · April 23, 2026, 1:59pm

TLE update for MAGNARO-II - Picsis and Tigris as still they are the same object we are going to use the same TLE but changed to the temporary NORAD ID we use for each one to DB:

MAGNARO-II - Piscis
1 98323U 27001A   26113.43400510  .00000000  00000-0  11922-2 0    05
2 98323  97.5133 264.4695 0010953 206.3608 201.0415 15.08329591    00
MAGNARO-II - Tigris
1 98324U 27001A   26113.43400510  .00000000  00000-0  11922-2 0    06
2 98324  97.5133 264.4695 0010953 206.3608 201.0415 15.08329591    01

magn2p_113_v1.dat (1.4 KB)
sites.txt (13.2 KB)

fredy · April 23, 2026, 2:32pm

As the previous posts noted OrigamiSat-2 is alive and here is an updated TLE as the ARICA-2 one used was a little off:

OrigamiSat-2
1 98325U 27001A   26113.58374807  .00000000  00000-0  16154-3 0    05
2 98325  97.5133 264.3303 0010953 206.3608 292.6678 15.07920081    04

sites.txt (13.2 KB)
origamisat2_113_v1.dat (1.9 KB)
