replay from IQWAV file for PARUS-T2 over Bali, around 05:40 UTC.
see a weak signal
4 Likes

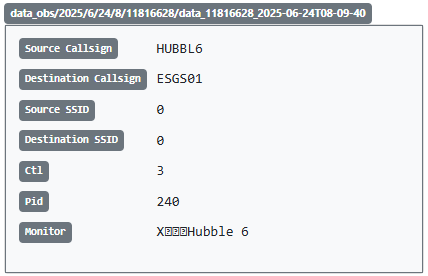

Thereβs some weak signals from my station (3852) and 2617 for Hubble-7 observation schedule. But Iβm still not sure.
1 Like

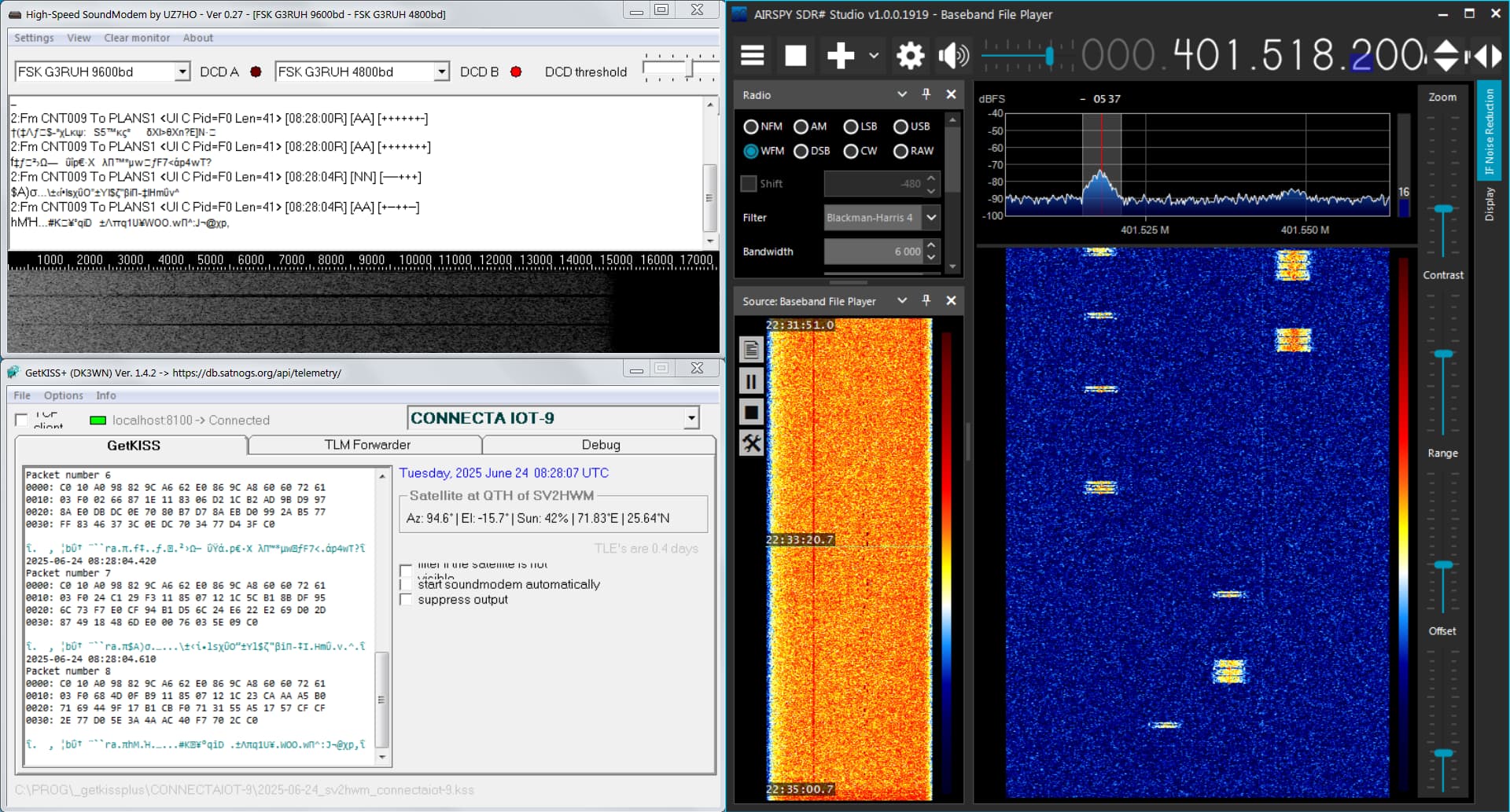

CONNECTALOT-9 I think?
ISTIKBAL GOKLERDEDIR! MUSTAFA KEMAL ATATURK
https://network.satnogs.org/observations/11816742/
3 Likes

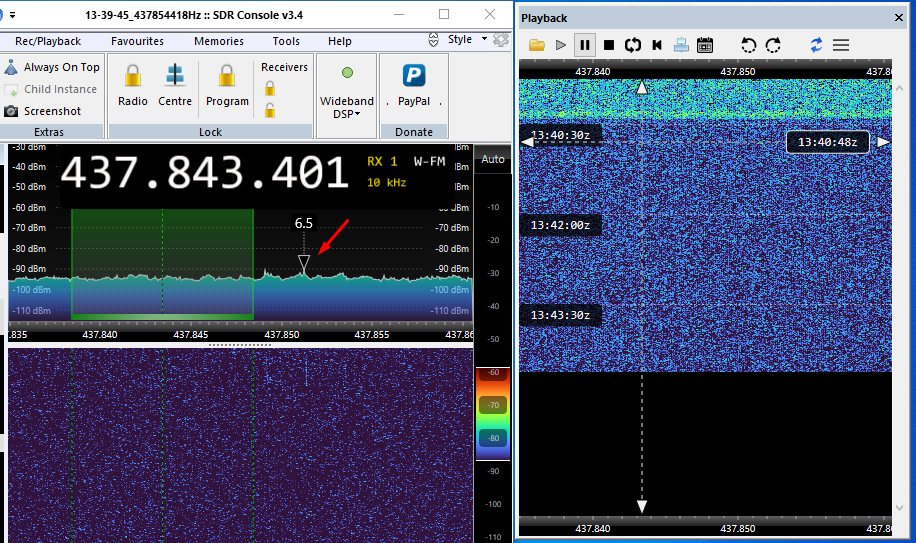

Also quiet on VHF here
https://network.satnogs.org/observations/11817735/
3 Likes
Looks like the satellite, it could be one of the hubble satellites, more chances 6 or 7.
1 Like

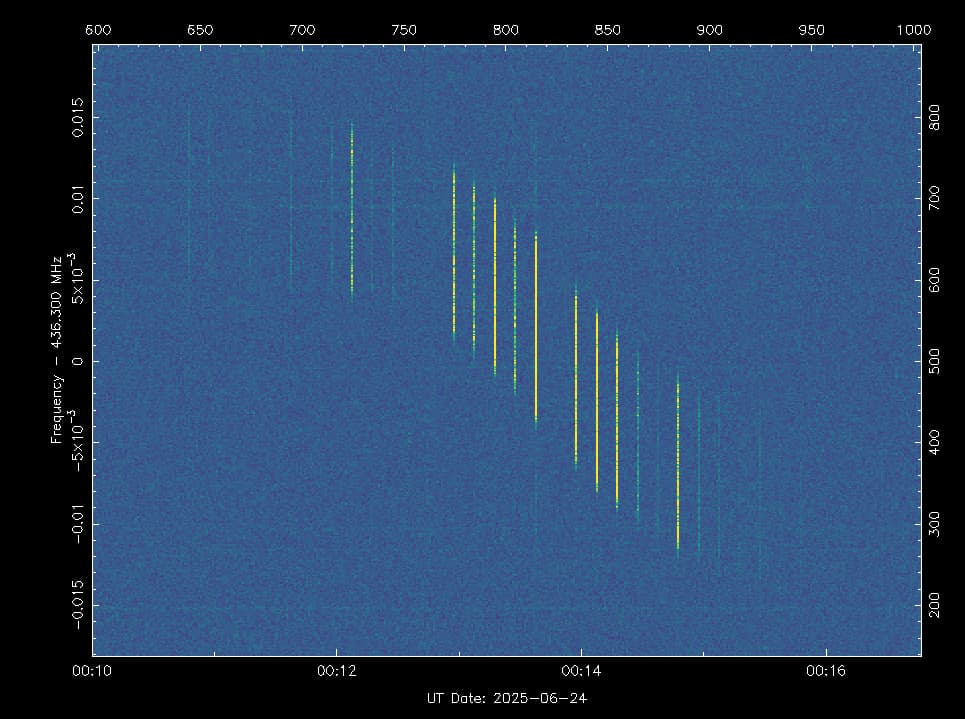

We have an unknown satellite at 436.295 MHz, probably transmitting FSK9k6. It is added in DB and in the table at the first post. Given that we expect JACK-001 to transmit in the radio amateur frequency band, it could be this satellite.
Will track it and try to identify it, any help is appreciated!
EDIT: TLE set for the unknown satellite based on the JACK-001 from satcat.com:
T14 Unknown 1
1 98563U 00000H 25174.93096109 .00000000 00000-0 31393-2 0 12
2 98563 97.4376 289.4767 0005900 8.5173 334.6214 15.16603551 06
EDIT2:
I forgot to thanks @PE0SAT for finding it!!!
2 Likes
4 Likes
Post launch TLE sets by celestrak.org:
QUICK3
1 71918C 25135A 25174.93034303 -.00017777 00000+0 -91520-3 0 09
2 71918 97.4508 289.4729 0005671 345.7440 353.9940 15.16489535 19
CONNECTA IOT-10
1 71910C 25135B 25174.93041363 -.00019219 00000+0 -94754-3 0 00
2 71910 97.4442 289.4755 0002089 100.6540 239.4838 15.18017765 14
CONNECTA IOT-11
1 71909C 25135C 25174.93057799 -.00019144 00000+0 -94210-3 0 02
2 71909 97.4471 289.4746 0001822 117.9287 223.1001 15.18083971 11
MOBIUS-1
1 71951C 25135D 25174.93064627 -.00021423 00000+0 -10518-2 0 08
2 71951 97.4412 289.4767 0002832 107.5912 233.8227 15.18163730 18
UND ROADS 1
1 71923C 25135E 25174.93070762 -.00023425 00000+0 -12027-2 0 05
2 71923 97.4422 289.4763 0005666 3.5414 338.2053 15.16586583 14
CONNECTA IOT-12
1 71908C 25135F 25174.93078053 -.00019299 00000+0 -95301-3 0 00
2 71908 97.4498 289.4739 0001045 119.9111 222.2175 15.17963218 18
GOOD ANCESTOR KILAKILA *
1 71904C 25135G 25174.93088007 -.00021485 00000+0 -11006-2 0 05
2 71904 97.4488 289.4744 0005008 353.2181 349.4564 15.16668480 18
JACK-001
1 71919C 25135H 25174.93096109 -.00020061 00000+0 -10290-2 0 06
2 71919 97.4393 289.4774 0005764 9.7902 333.3463 15.16619400 13
HYPERFIELD-1B
1 71913C 25135J 25174.93108377 -.00020565 00000+0 -10130-2 0 03
2 71913 97.4413 289.4768 0002417 101.0484 242.7531 15.18047888 12
TPA-1
1 71907C 25135K 25174.93121456 -.00021544 00000+0 -11017-2 0 02
2 71907 97.4442 289.4761 0004996 4.2736 340.2367 15.16728677 19
GHGSAT-C13
1 71902C 25135L 25174.93133493 -.00019861 00000+0 -98202-3 0 02
2 71902 97.4528 289.4738 0000520 157.3585 187.7903 15.17919849 18
DUTHSAT-2
1 71944C 25135M 25174.93144488 -.00022800 00000+0 -11683-2 0 08
2 71944 97.4390 289.4776 0005665 12.7562 333.0221 15.16655856 10
SATMAR
1 71917C 25135N 25174.93152475 -.00020726 00000+0 -10252-2 0 09
2 71917 97.4383 289.4778 0002623 85.3145 260.9002 15.17902644 14
CONNECTA IOT-9
1 71911C 25135P 25174.93160692 -.00020911 00000+0 -10646-2 0 06
2 71911 97.4510 289.4747 0004065 352.5901 354.0482 15.16889391 16
OTTER PUP 2
1 71963C 25135Q 25174.93174581 -.00015117 00000+0 -76623-3 0 05
2 71963 97.4451 289.4763 0003671 10.2163 337.1920 15.17043847 13
BRO-18
1 71943C 25135R 25174.93198192 -.00018062 00000+0 -89457-3 0 08
2 71943 97.4385 289.4778 0002508 82.5346 266.1758 15.17858396 19
GHGSAT-C12
1 71903C 25135S 25174.93221803 -.00021591 00000+0 -11105-2 0 05
2 71903 97.4504 289.4757 0005728 354.0381 355.9374 15.16523971 16
UND ROADS 2
1 71922C 25135T 25174.93231641 -.00023975 00000+0 -11889-2 0 04
2 71922 97.4531 289.4754 0000176 272.3406 78.1655 15.17819630 13
FOSSASAT-21
1 71959C 25135U 25174.93276549 -.00013323 00000+0 -67933-3 0 08
2 71959 97.4409 289.4777 0004840 16.8461 336.1371 15.16830884 11
ARCSTONE
1 71958C 25135V 25174.93288123 -.00018919 00000+0 -95942-3 0 05
2 71958 97.4401 289.4779 0004133 23.6192 329.9973 15.17025924 16
ION SCV-020
1 71953C 25135W 25174.93296919 -.00021542 00000+0 -10746-2 0 06
2 71953 97.4459 289.4773 0001441 39.2070 314.8778 15.17611267 12
IOD2 CNS
1 71939C 25135X 25174.93312081 -.00021374 00000+0 -10825-2 0 00
2 71939 97.4451 289.4775 0003575 13.1951 341.7189 15.17072579 11
FORGESTAR-1A
1 71956C 25135Y 25174.93334882 -.00021694 00000+0 -10798-2 0 06
2 71956 97.4439 289.4778 0001466 56.6850 299.4761 15.17686184 14
ELARA11
1 71964C 25135Z 25174.93353863 -.00021655 00000+0 -10958-2 0 00
2 71964 97.4484 289.4777 0003327 5.6002 351.5883 15.17104300 13
HORIS-1
1 71920C 25135AA 25174.93413817 -.00019420 00000+0 -96346-3 0 01
2 71920 97.4380 289.4784 0002118 82.7879 277.6935 15.17800167 13
HORIS-2
1 71921C 25135AB 25174.93484072 -.00019437 00000+0 -95193-3 0 00
2 71921 97.4500 289.4794 0001660 190.4231 173.8691 15.18250661 14
SKYBEE-A02
1 71965C 25135AC 25174.93519026 -.00022817 00000+0 -11370-2 0 06
2 71965 97.4471 289.4795 0001068 23.8339 342.3729 15.17647791 18
W-SERIES 4
1 71954C 25135AD 25174.93539627 -.00023838 00000+0 -11913-2 0 00
2 71954 97.4471 289.4798 0001497 18.3010 349.0306 15.17546929 16
PULSAR IOV
1 71936C 25135AE 25174.93579326 -.00025917 00000+0 -13096-2 0 04
2 71936 97.4444 289.4798 0003274 21.5058 347.9983 15.17155675 11
USPWSA-DRAGOON
1 71940C 25135AF 25174.93699465 -.00026806 00000+0 -13533-2 0 00
2 71940 97.4468 289.4815 0003087 15.8177 0.2398 15.17189198 18
HUBBLE-7
1 71916C 25135AG 25174.98715947 -.00075964 00000+0 -74526-2 0 00
2 71916 97.7498 289.3832 0007432 107.9565 180.5760 14.92324876 18
PADRE
1 71912C 25135AH 25174.98721850 -.00078471 00000+0 -79734-2 0 08
2 71912 97.7464 289.3936 0002398 50.1988 238.6742 14.90941874 12
ADDCUBE
1 71950C 25135AJ 25174.98729951 -.00078828 00000+0 -77667-2 0 09
2 71950 97.7453 289.3966 0007170 87.7247 201.5899 14.92156613 15
LEMUR-2-KRISH
1 71946C 25135AK 25174.98736201 -.00074753 00000+0 -75834-2 0 07
2 71946 97.7507 289.3813 0001545 119.0338 170.5807 14.91006644 12
SATORO-T3
1 71960C 25135AL 25174.98743493 -.00077726 00000+0 -76416-2 0 04
2 71960 97.7458 289.3951 0007428 91.1526 198.8851 14.92240963 18
HUBBLE-5
1 71949C 25135AM 25174.98757729 -.00078610 00000+0 -77098-2 0 08
2 71949 97.7462 289.3940 0007760 94.1833 196.6155 14.92335786 12
PARUS-T2
1 71906C 25135AN 25174.98765368 -.00078515 00000+0 -79448-2 0 04
2 71906 97.7491 289.3862 0002081 90.8189 200.3712 14.91109360 16
AE3VA
1 71924C 25135AP 25174.98780067 -.00075712 00000+0 -76721-2 0 04
2 71924 97.7453 289.3961 0003108 54.2267 237.7747 14.91048734 15
HUBBLE-6
1 71915C 25135AQ 25174.98790252 -.00076392 00000+0 -77367-2 0 03
2 71915 97.7506 289.3831 0001772 106.5696 185.9481 14.91074029 17
BIFROST-DNK
1 71957C 25135AR 25174.98803794 -.00079181 00000+0 -78214-2 0 06
2 71957 97.7485 289.3884 0006274 101.7497 191.5072 14.92059754 13
TIME FLIES
1 71905C 25135AS 25174.98816526 -.00072855 00000+0 -73653-2 0 09
2 71905 97.7468 289.3924 0002863 69.1167 224.8320 14.91142843 10
AE2A
1 71925C 25135AT 25174.98831919 -.00075607 00000+0 -74462-2 0 01
2 71925 97.7449 289.3965 0007197 91.4731 203.3111 14.92172400 19
ARVAKER II
1 71961C 25135AU 25174.98838748 -.00078181 00000+0 -78738-2 0 08
2 71961 97.7490 289.3877 0002935 91.5829 203.5471 14.91296638 11
ARVAKER III
1 71962C 25135AV 25174.98854836 -.00078319 00000+0 -78951-2 0 05
2 71962 97.7476 289.3908 0003078 80.1915 215.8087 14.91258539 17
LEMUR-2-SEJONG-2
1 71945C 25135AW 25174.98860738 -.00076385 00000+0 -75651-2 0 09
2 71945 97.7443 289.3977 0006386 87.3681 208.9643 14.91953114 14
HUBBLE-4
1 71914C 25135AX 25174.98880762 -.00079341 00000+0 -80194-2 0 07
2 71914 97.7448 289.3964 0003536 61.3803 236.0237 14.91151565 14
IRIDE-MS2-HEO-8
1 71933C 25135AY 25174.98887012 -.00079730 00000+0 -78895-2 0 00
2 71933 97.7473 289.3916 0006059 98.3829 199.3451 14.91990633 17
IRIDE-MS2-HEO-2
1 71930C 25135AZ 25174.98898354 -.00079655 00000+0 -80102-2 0 08
2 71930 97.7493 289.3878 0003157 93.5793 204.7484 14.91356667 16
IRIDE-MS2-HEO-3
1 71929C 25135BA 25174.98935044 -.00079957 00000+0 -80492-2 0 01
2 71929 97.7471 289.3922 0003445 79.4722 220.8341 14.91312746 16
ICEYE-X53
1 71926C 25135BB 25174.98943609 -.00076412 00000+0 -75779-2 0 09
2 71926 97.7474 289.3917 0005656 98.3745 202.3899 14.91903669 14
ICEYE-X54
1 71947C 25135BC 25174.98953100 -.00076492 00000+0 -76889-2 0 00
2 71947 97.7475 289.3917 0003572 83.7286 217.5449 14.91371053 16
IRIDE-MS2-HEO-9
1 71934C 25135BD 25174.98963632 -.00080298 00000+0 -79553-2 0 07
2 71934 97.7493 289.3888 0005603 105.5765 196.2545 14.91944894 10
IRIDE-MS2-HEO-5
1 71931C 25135BE 25174.98972428 -.00080266 00000+0 -80628-2 0 07
2 71931 97.7466 289.3932 0003871 81.3373 220.9770 14.91399007 13
ICEYE-X52
1 71928C 25135BF 25174.98979951 -.00079713 00000+0 -79997-2 0 03
2 71928 97.7490 289.3895 0003553 92.8310 209.8774 14.91437366 10
ACADIA-7 (CAPELLA-17)
1 71927C 25135BG 25174.98985854 -.00078128 00000+0 -77594-2 0 01
2 71927 97.7475 289.3920 0005403 98.0288 205.0023 14.91846872 10
IRIDE-MS2-HEO-4
1 71932C 25135BH 25174.99005414 -.00080607 00000+0 -80019-2 0 04
2 71932 97.7465 289.3936 0005617 95.6744 208.4103 14.91865138 11
MUSAT3
1 71937C 25135BJ 25174.99014326 -.00080023 00000+0 -80267-2 0 08
2 71937 97.7471 289.3928 0003982 85.6485 218.9119 14.91456885 16
ICEYE-X56
1 71942C 25135BK 25174.99023123 -.00077007 00000+0 -77156-2 0 00
2 71942 97.7495 289.3893 0003726 96.5629 208.4605 14.91500864 17
ION SCV-018
1 71955C 25135BL 25174.99035276 -.00080323 00000+0 -80437-2 0 07
2 71955 97.7470 289.3930 0004228 87.9095 217.7754 14.91521210 11
ICEYE-X55
1 71948C 25135BM 25174.99088053 -.00077483 00000+0 -76998-2 0 00
2 71948 97.7494 289.3903 0005024 104.2971 204.2114 14.91825151 12
YAM-10
1 71938C 25135BN 25174.99101942 -.00080784 00000+0 -80357-2 0 04
2 71938 97.7472 289.3932 0005161 97.2610 212.0005 14.91785966 17
GRUS-3ALPHA
1 71952C 25135BP 25174.99111780 -.00081513 00000+0 -81123-2 0 04
2 71952 97.7498 289.3901 0004733 104.3248 205.4557 14.91767748 14
IRIDE-MS2-HEO-6
1 71935C 25135BQ 25174.99129488 -.00081471 00000+0 -81544-2 0 09
2 71935 97.7458 289.3951 0004525 86.0543 224.6897 14.91541243 19
LYRA-3
1 71966C 25135BR 25174.99220113 -.00079316 00000+0 -79304-2 0 06
2 71966 97.7495 289.3919 0004061 97.0459 218.5500 14.91584034 19
ICEYE-X57
1 71941C 25135BS 25174.99402868 -.00079685 00000+0 -79467-2 0 07
2 71941 97.7459 289.3965 0004935 94.1323 231.2805 14.91684986 18
2 Likes
And the same TLE from celestrak changed to use the tempoary NORAD ID from DB:
CONNECTA IOT-10
1 98597C 25135B 25174.93041363 -.00019219 00000+0 -94754-3 0 00
2 98597 97.4442 289.4755 0002089 100.6540 239.4838 15.18017765 14
CONNECTA IOT-11
1 98598C 25135C 25174.93057799 -.00019144 00000+0 -94210-3 0 05
2 98598 97.4471 289.4746 0001822 117.9287 223.1001 15.18083971 14
MOBIUS-1
1 98591C 25135D 25174.93064627 -.00021423 00000+0 -10518-2 0 07
2 98591 97.4412 289.4767 0002832 107.5912 233.8227 15.18163730 17
UND ROADS 1
1 98590C 25135E 25174.93070762 -.00023425 00000+0 -12027-2 0 04
2 98590 97.4422 289.4763 0005666 3.5414 338.2053 15.16586583 13
CONNECTA IOT-12
1 98599C 25135F 25174.93078053 -.00019299 00000+0 -95301-3 0 05
2 98599 97.4498 289.4739 0001045 119.9111 222.2175 15.17963218 13
RIDUSAT-1
1 98600C 25135G 25174.93088007 -.00021485 00000+0 -11006-2 0 07
2 98600 97.4488 289.4744 0005008 353.2181 349.4564 15.16668480 10
T14 Unknown 1
1 98563C 25135H 25174.93096109 -.00020061 00000+0 -10290-2 0 00
2 98563 97.4393 289.4774 0005764 9.7902 333.3463 15.16619400 17
HYPERFIELD-1B
1 98588C 25135J 25174.93108377 -.00020565 00000+0 -10130-2 0 00
2 98588 97.4413 289.4768 0002417 101.0484 242.7531 15.18047888 19
TPA-1
1 98587C 25135K 25174.93121456 -.00021544 00000+0 -11017-2 0 05
2 98587 97.4442 289.4761 0004996 4.2736 340.2367 15.16728677 12
DUTHSAT-2
1 98592C 25135M 25174.93144488 -.00022800 00000+0 -11683-2 0 06
2 98592 97.4390 289.4776 0005665 12.7562 333.0221 15.16655856 18
SATMAR
1 98586C 25135N 25174.93152475 -.00020726 00000+0 -10252-2 0 00
2 98586 97.4383 289.4778 0002623 85.3145 260.9002 15.17902644 15
CONNECTA IOT-9
1 98596C 25135P 25174.93160692 -.00020911 00000+0 -10646-2 0 04
2 98596 97.4510 289.4747 0004065 352.5901 354.0482 15.16889391 14
OTTER PUP 2
1 98585C 25135Q 25174.93174581 -.00015117 00000+0 -76623-3 0 04
2 98585 97.4451 289.4763 0003671 10.2163 337.1920 15.17043847 12
BRO-18
1 98584C 25135R 25174.93198192 -.00018062 00000+0 -89457-3 0 08
2 98584 97.4385 289.4778 0002508 82.5346 266.1758 15.17858396 19
UND ROADS 2
1 98589C 25135T 25174.93231641 -.00023975 00000+0 -11889-2 0 02
2 98589 97.4531 289.4754 0000176 272.3406 78.1655 15.17819630 11
FOSSASAT-21
1 98583C 25135U 25174.93276549 -.00013323 00000+0 -67933-3 0 00
2 98583 97.4409 289.4777 0004840 16.8461 336.1371 15.16830884 13
ARCSTONE
1 98582C 25135V 25174.93288123 -.00018919 00000+0 -95942-3 0 07
2 98582 97.4401 289.4779 0004133 23.6192 329.9973 15.17025924 18
ION SCV-020
1 98581C 25135W 25174.93296919 -.00021542 00000+0 -10746-2 0 02
2 98581 97.4459 289.4773 0001441 39.2070 314.8778 15.17611267 18
FORGESTAR-1A
1 98579C 25135Y 25174.93334882 -.00021694 00000+0 -10798-2 0 06
2 98579 97.4439 289.4778 0001466 56.6850 299.4761 15.17686184 14
SKYBEE-A02
1 98578C 25135AC 25174.93519026 -.00022817 00000+0 -11370-2 0 05
2 98578 97.4471 289.4795 0001068 23.8339 342.3729 15.17647791 17
USPWSA-DRAGOON
1 98577C 25135AF 25174.93699465 -.00026806 00000+0 -13533-2 0 05
2 98577 97.4468 289.4815 0003087 15.8177 0.2398 15.17189198 13
HUBBLE-7
1 98595C 25135AG 25174.98715947 -.00075964 00000+0 -74526-2 0 02
2 98595 97.7498 289.3832 0007432 107.9565 180.5760 14.92324876 10
PADRE
1 98593C 25135AH 25174.98721850 -.00078471 00000+0 -79734-2 0 02
2 98593 97.7464 289.3936 0002398 50.1988 238.6742 14.90941874 16
ADDCUBE
1 98574C 25135AJ 25174.98729951 -.00078828 00000+0 -77667-2 0 00
2 98574 97.7453 289.3966 0007170 87.7247 201.5899 14.92156613 16
SATORO-T3
1 98573C 25135AL 25174.98743493 -.00077726 00000+0 -76416-2 0 03
2 98573 97.7458 289.3951 0007428 91.1526 198.8851 14.92240963 17
HUBBLE-5
1 98575C 25135AM 25174.98757729 -.00078610 00000+0 -77098-2 0 02
2 98575 97.7462 289.3940 0007760 94.1833 196.6155 14.92335786 16
PARUS-T2
1 98602C 25135AN 25174.98765368 -.00078515 00000+0 -79448-2 0 06
2 98602 97.7491 289.3862 0002081 90.8189 200.3712 14.91109360 18
HUBBLE-6
1 98594C 25135AQ 25174.98790252 -.00076392 00000+0 -77367-2 0 05
2 98594 97.7506 289.3831 0001772 106.5696 185.9481 14.91074029 19
TIME FLIES
1 98572C 25135AS 25174.98816526 -.00072855 00000+0 -73653-2 0 08
2 98572 97.7468 289.3924 0002863 69.1167 224.8320 14.91142843 19
HUBBLE-4
1 98576C 25135AX 25174.98880762 -.00079341 00000+0 -80194-2 0 00
2 98576 97.7448 289.3964 0003536 61.3803 236.0237 14.91151565 17
IRIDE-MS2-HEO-8
1 98565C 25135AY 25174.98887012 -.00079730 00000+0 -78895-2 0 00
2 98565 97.7473 289.3916 0006059 98.3829 199.3451 14.91990633 17
IRIDE-MS2-HEO-2
1 98570C 25135AZ 25174.98898354 -.00079655 00000+0 -80102-2 0 07
2 98570 97.7493 289.3878 0003157 93.5793 204.7484 14.91356667 15
IRIDE-MS2-HEO-3
1 98569C 25135BA 25174.98935044 -.00079957 00000+0 -80492-2 0 00
2 98569 97.7471 289.3922 0003445 79.4722 220.8341 14.91312746 15
IRIDE-MS2-HEO-9
1 98564C 25135BD 25174.98963632 -.00080298 00000+0 -79553-2 0 05
2 98564 97.7493 289.3888 0005603 105.5765 196.2545 14.91944894 18
IRIDE-MS2-HEO-5
1 98567C 25135BE 25174.98972428 -.00080266 00000+0 -80628-2 0 01
2 98567 97.7466 289.3932 0003871 81.3373 220.9770 14.91399007 17
IRIDE-MS2-HEO-4
1 98568C 25135BH 25174.99005414 -.00080607 00000+0 -80019-2 0 08
2 98568 97.7465 289.3936 0005617 95.6744 208.4103 14.91865138 15
ION SCV-018
1 98580C 25135BL 25174.99035276 -.00080323 00000+0 -80437-2 0 00
2 98580 97.7470 289.3930 0004228 87.9095 217.7754 14.91521210 14
YAM-10
1 98571C 25135BN 25174.99101942 -.00080784 00000+0 -80357-2 0 06
2 98571 97.7472 289.3932 0005161 97.2610 212.0005 14.91785966 19
IRIDE-MS2-HEO-6
1 98566C 25135BQ 25174.99129488 -.00081471 00000+0 -81544-2 0 08
2 98566 97.7458 289.3951 0004525 86.0543 224.6897 14.91541243 18
3 Likes
It looks like Hubble 4 and 5 transmit at 402.790 MHz while Hubble 6 and 7 at 401.100 MHz.
So, Iβve made inactive the transmitters following the above.
Related transmissions from the two frequencies:
https://network.satnogs.org/observations/11816912/
https://network.satnogs.org/observations/11815943/
EDIT:
Disclaimer, the frequency is a speculation based on the fcc.gov documents about hubble satellites frequencies.
1 Like
PADRE looks alive but its signal is mixed with BALKAN some times:
For example in SatNOGS Network - Observation 11816919 we have BALKAN
however in SatNOGS Network - Observation 11816702 BALKAN TLE or other in this frequency donβt fit this signal, so 90% is PADRE.
1 Like
D-orbit has published two booklets for the satellites in their deployer in d-orbit.com:
Skytrail Mission Bookletpdf.pdf (3.4 MB)
Space Bound Mission Bookletpdf.pdf (3.0 MB)
It seems most are hosted payloads.
1 Like

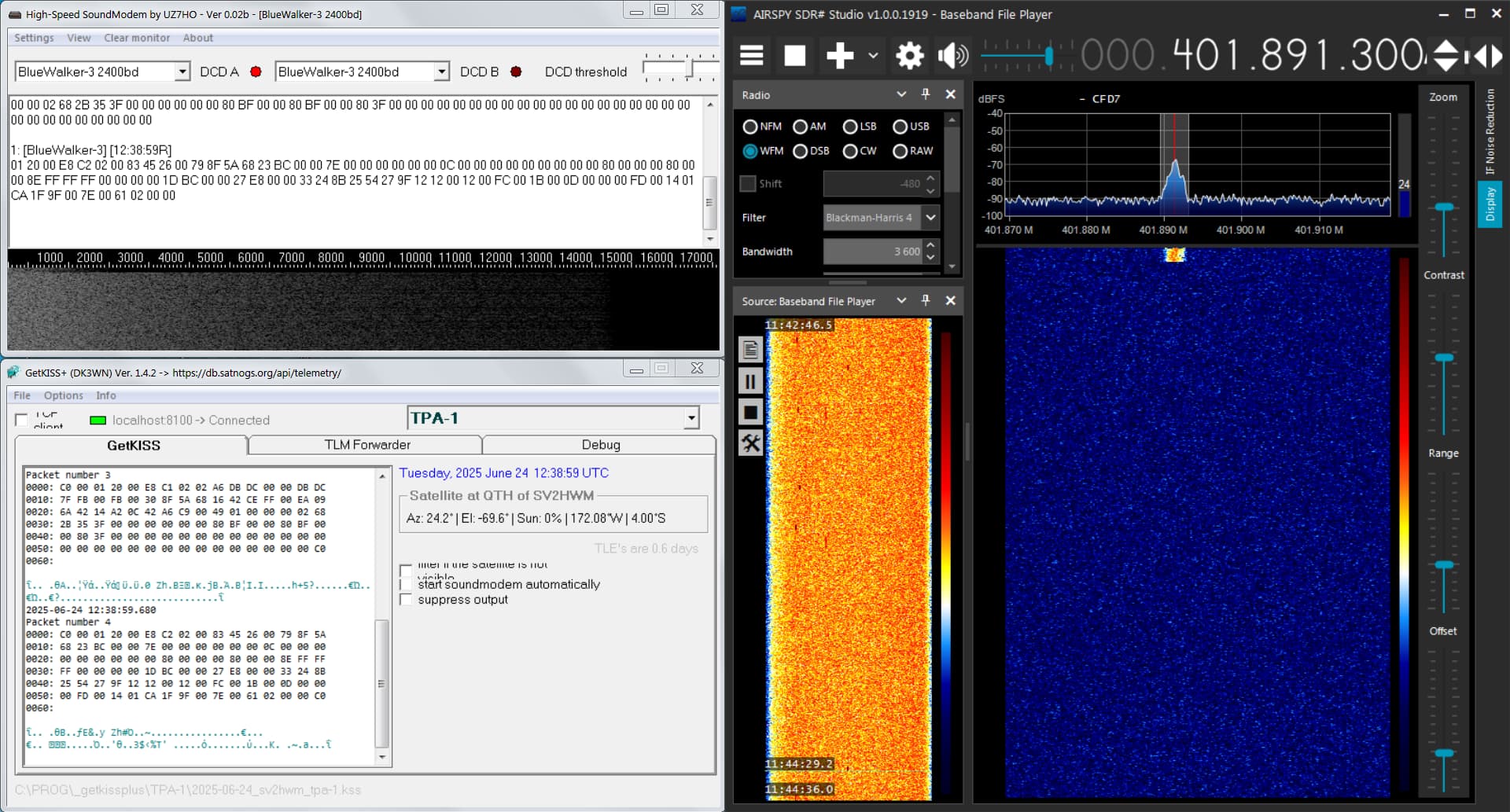

TPA-1 seems to be alive but at 401.900 MHz instead of 401.9125 MHz. Also the modulation seems to be GFSK2k4. Change is made in DB and in future observations of Network, letβs keep watching to verify it!
1 Like
Parus-T2 very weak signal
2 Likes
Yes, Agree. Tried two pass. 73 Nitin, VU2JEK

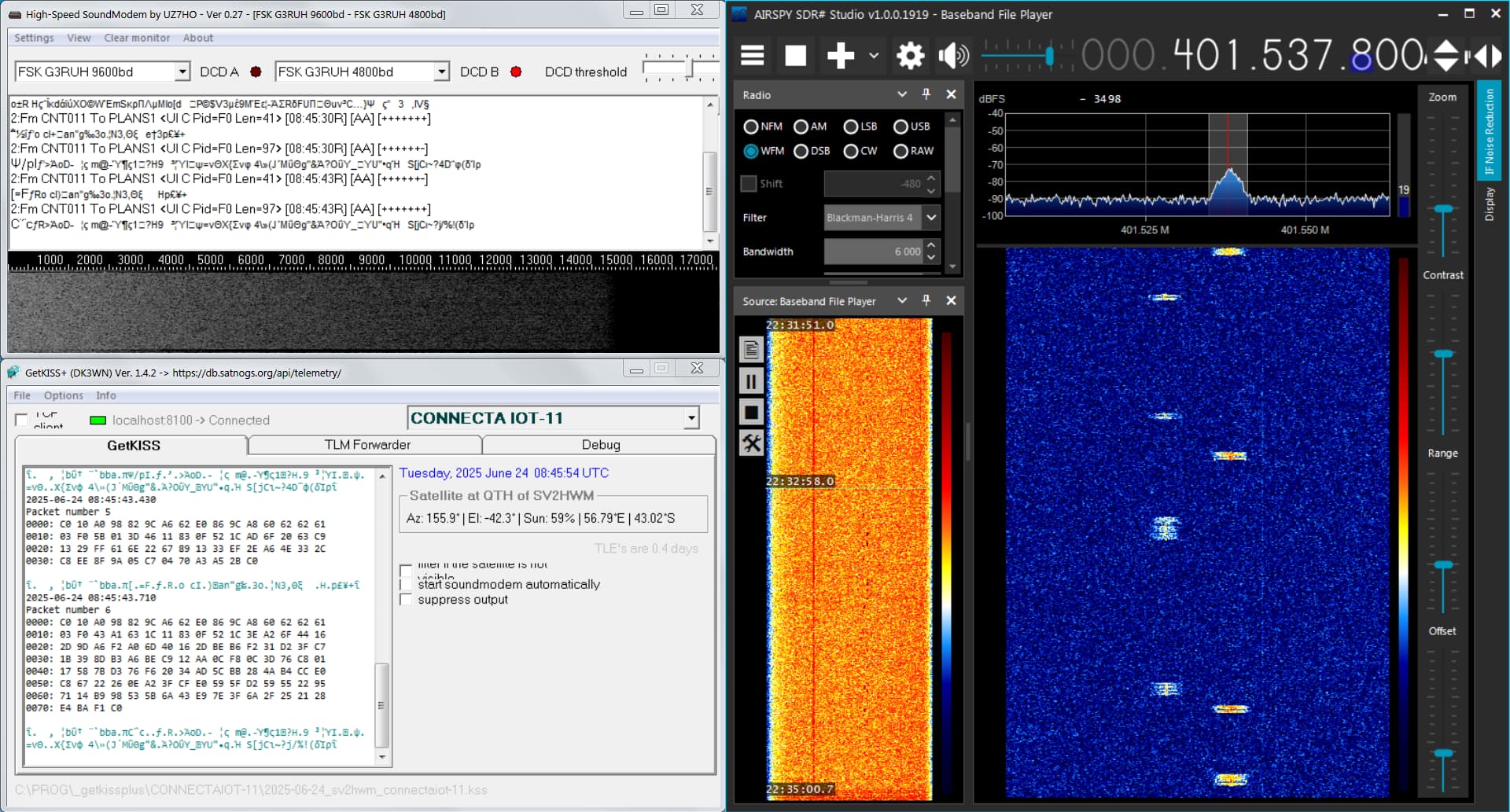

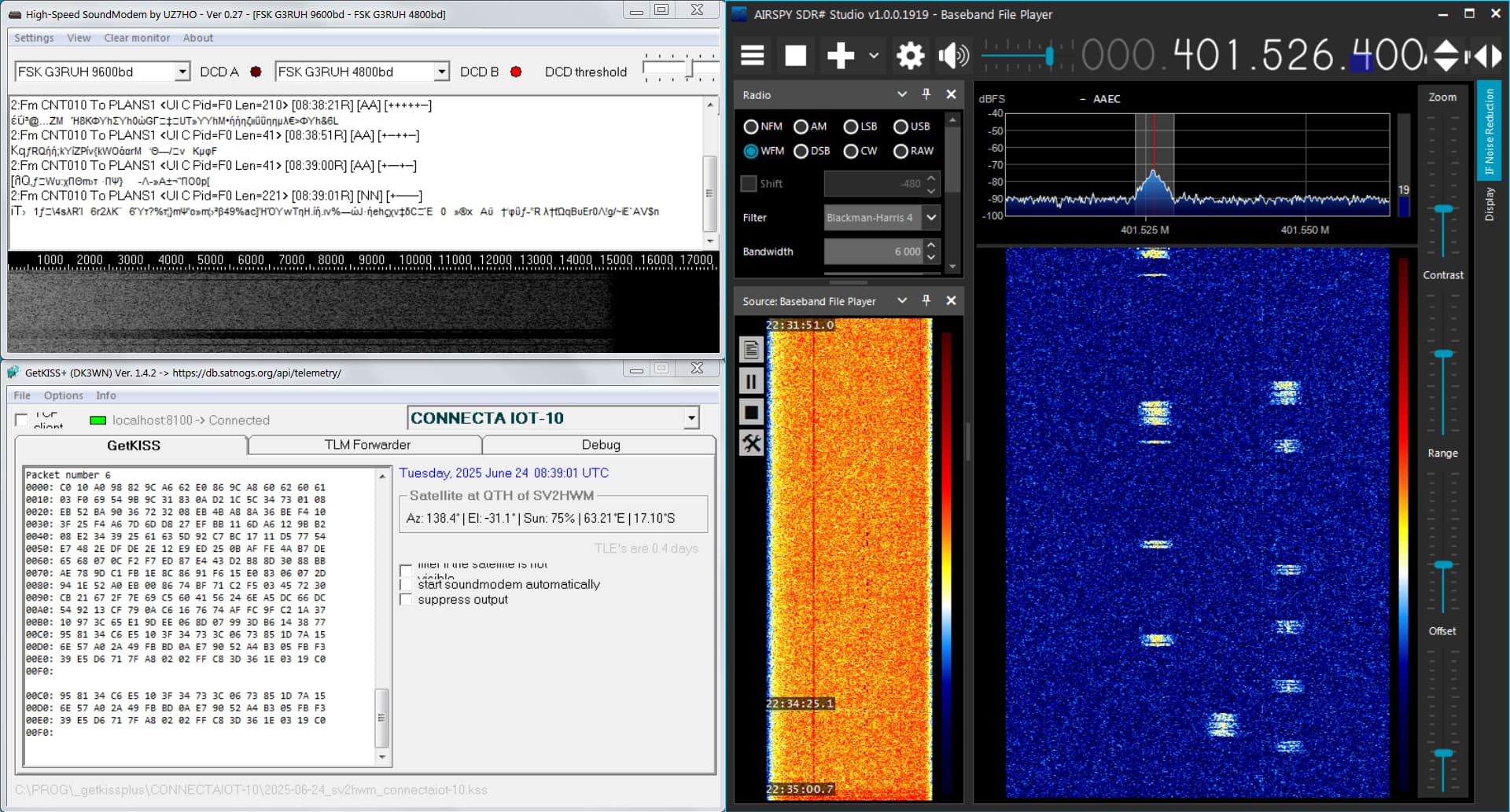

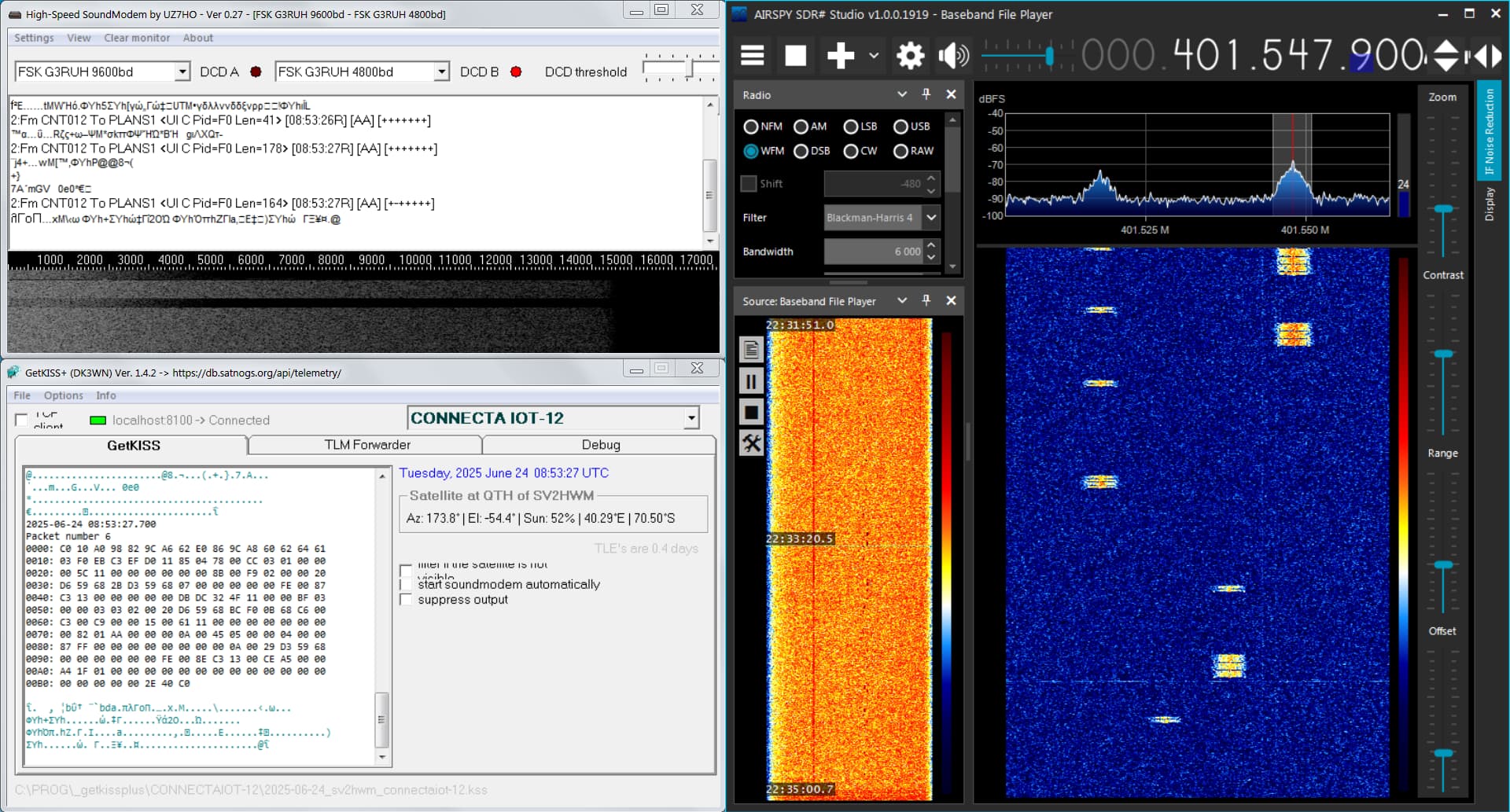

2025-06-23 22:32 UTC β Reception of raw telemetry in GMSK 4800 bd from the four ConnectaIoT satellites, a few minutes after their deployment. Replay of recorded IQ in Greece.
4 Likes

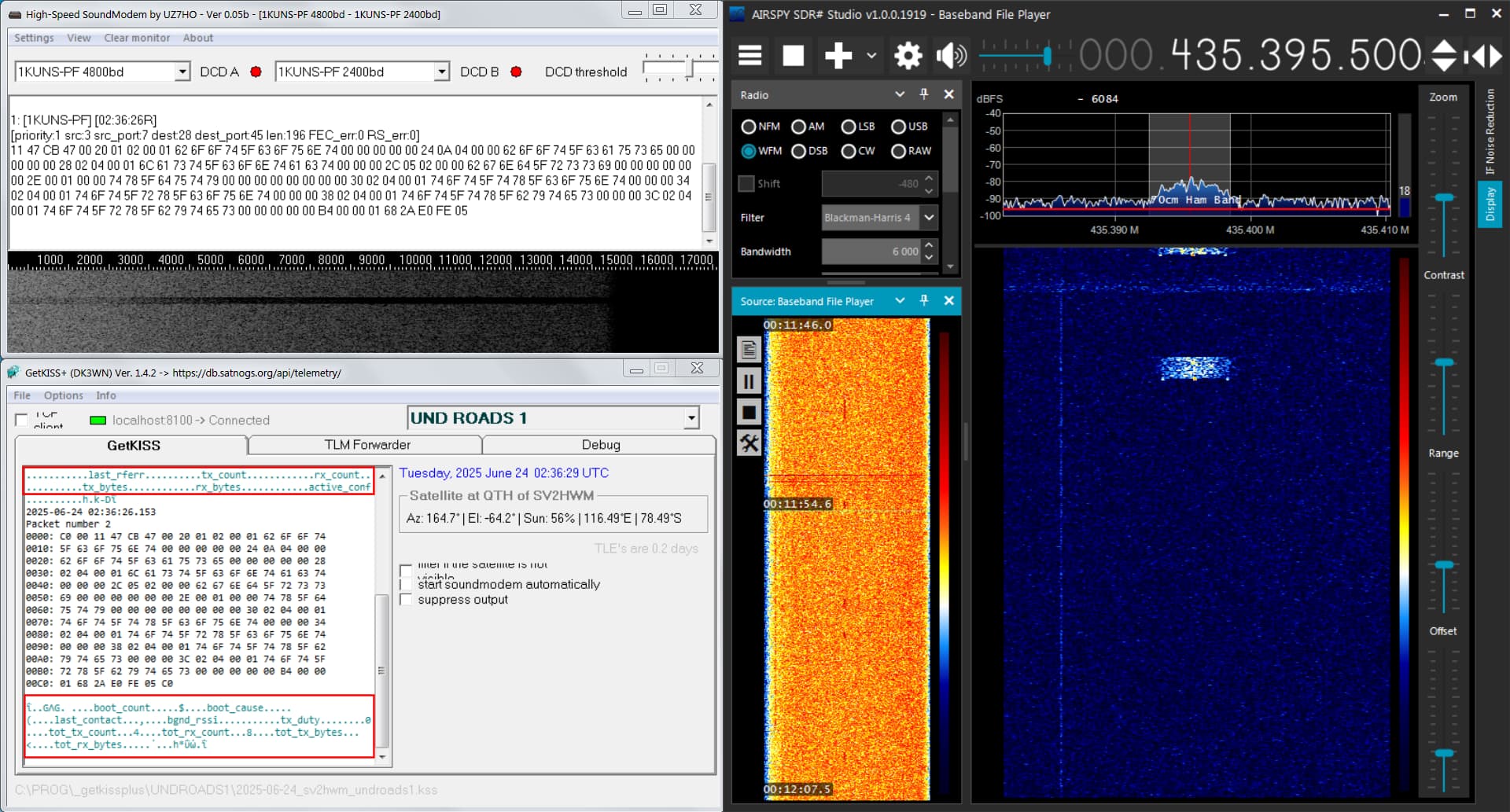

2025-06-24 00:11 UTC β Reception of raw telemetry from UND ROADS 1 or 2. Replay of recorded IQ in Greece.
3 Likes
