STRF bandscan results

ENSFNM · July 23, 2024, 1:44am

The NORAD ID matches the ISS, coincidentally 2265 MHz is the Return Link from the ISS to TDRS. (NASA’s relay satellite system)

pe2bz · July 23, 2024, 8:51am

Thank. Would this mean the return link was locked to a ground station making it unmatchable with the ISS TLE ? And, the signal to the left appears to be another signal, any ideas on that ?

michal.drzal · August 5, 2024, 9:36pm

michal.drzal · December 10, 2024, 7:29pm

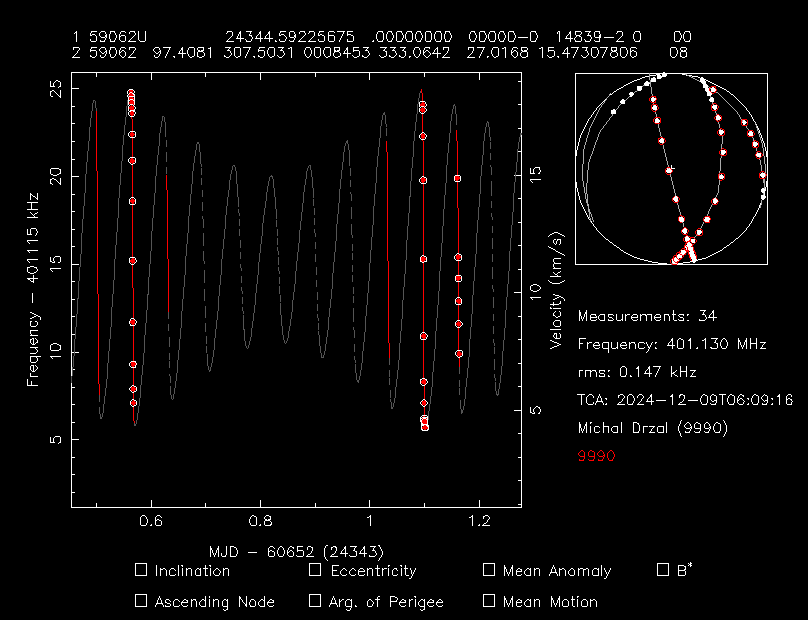

2024-12-09T06:09:16_401.130_9990_59062.dat (1.4 KB)
2024-12-09T06:09:16_401.130_9990_59062.txt (128 Bytes)

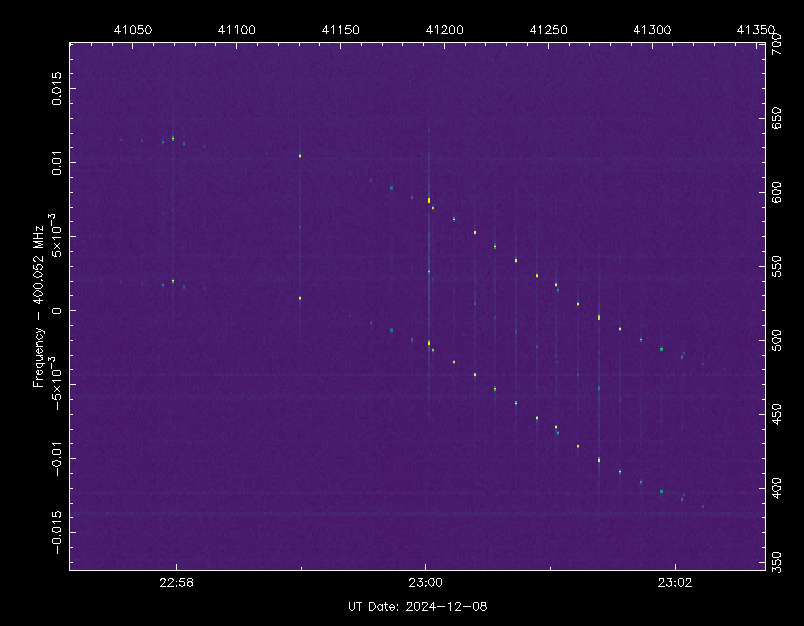

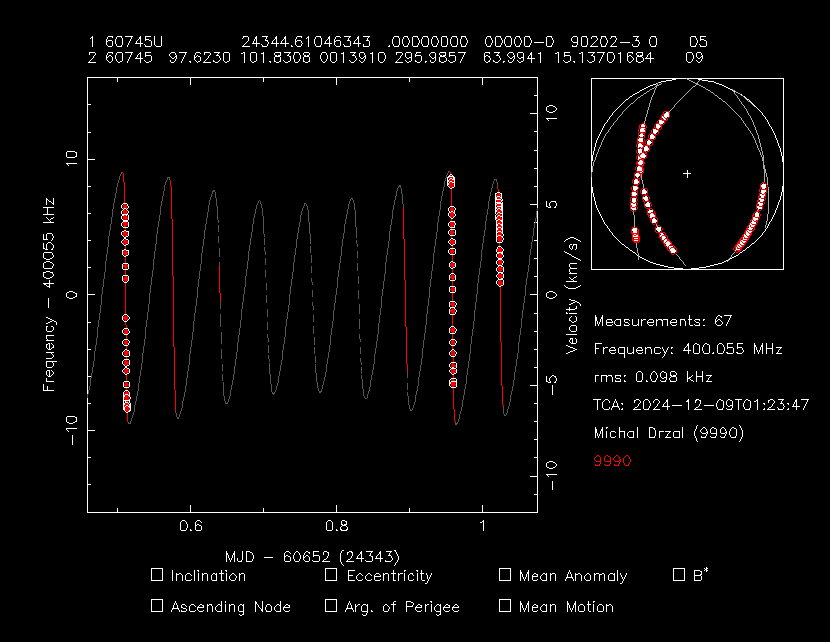

2024-12-09T01:23:47_400.055_9990_60745.dat (2.7 KB)
2024-12-09T01:23:47_400.055_9990_60745.txt (126 Bytes)

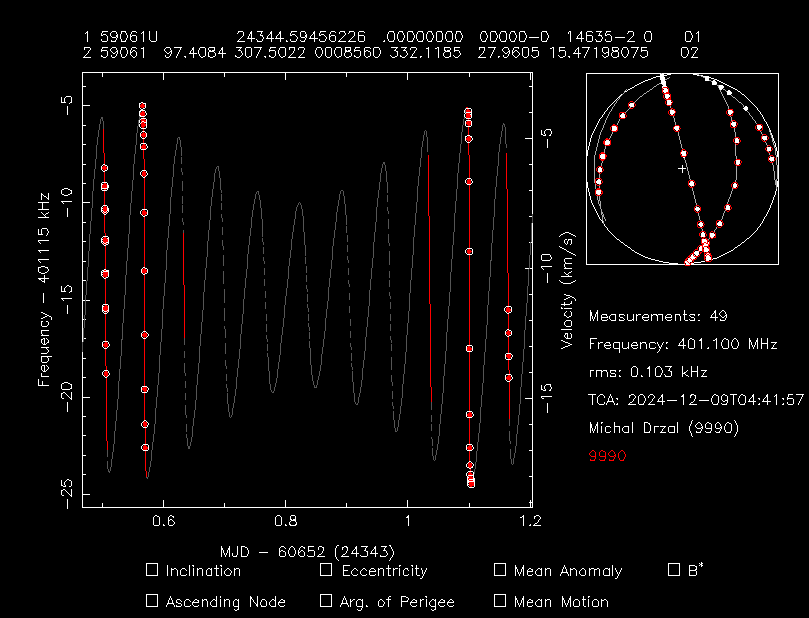

2024-12-09T04:41:57_401.100_9990_59061.dat (2.0 KB)

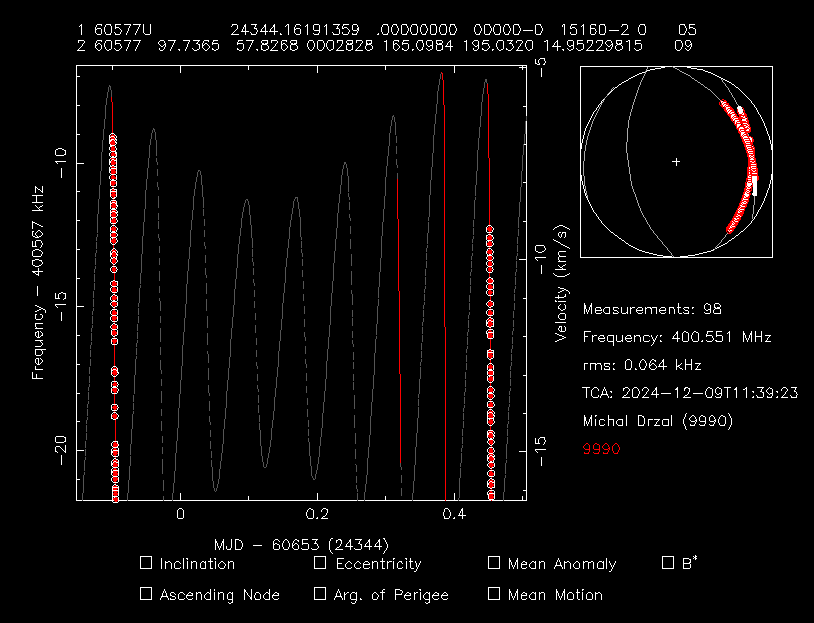

2024-12-09T11:39:23_400.551_9990_60577.dat (4.0 KB)
2024-12-09T11:39:23_400.551_9990_60577.txt (124 Bytes)

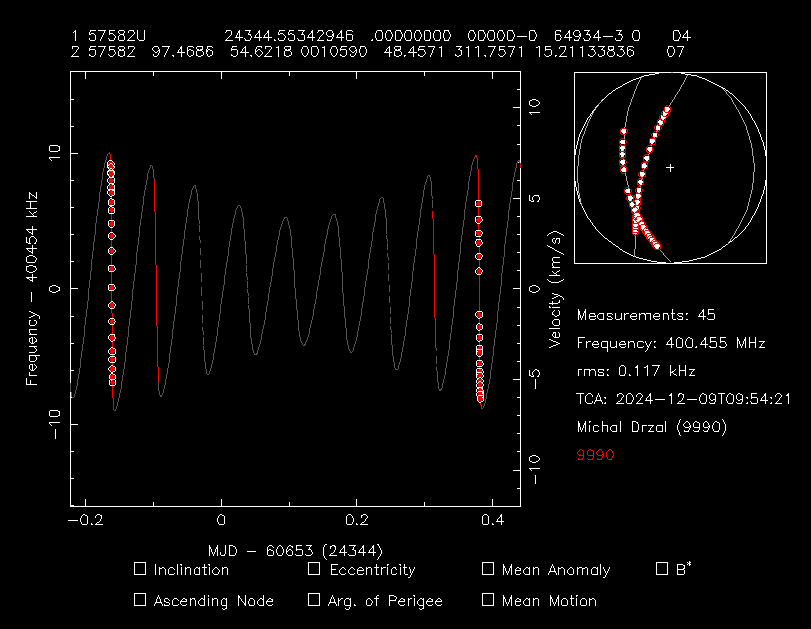

2024-12-09T09:54:21_400.455_9990_57582.dat (1.8 KB)
2024-12-09T11:10:40_400.581_9990_60579.dat (2.8 KB)
2024-12-09T04:41:57_401.100_9990_59061.txt (127 Bytes)
2024-12-09T11:10:40_400.581_9990_60579.dat (2.8 KB)

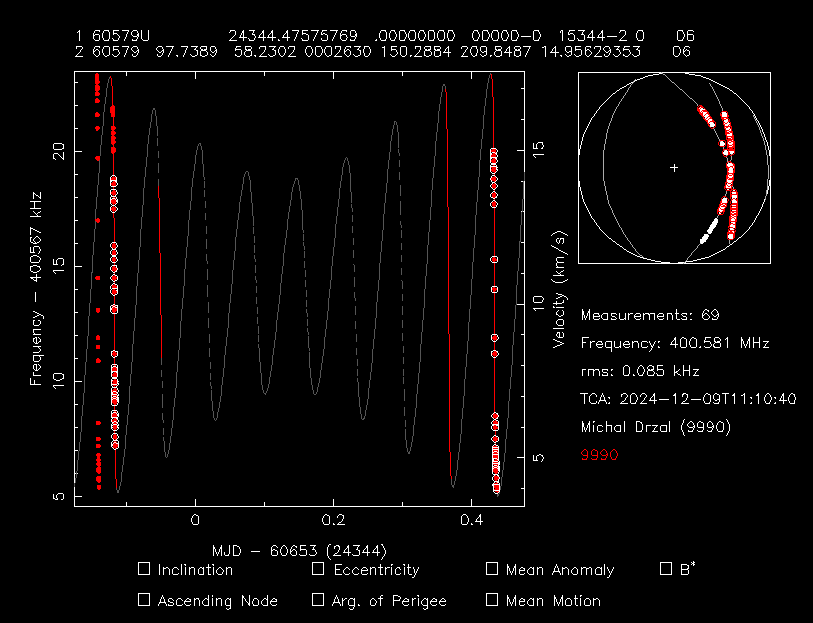

michal.drzal · December 10, 2024, 7:32pm

2024-12-09T11:10:40_400.581_9990_60579.txt (128 Bytes)
2024-12-09T11:10:40_400.581_9990_60579.dat (2.8 KB)
2024-12-09T11:39:23_400.551_9990_60577.dat (4.0 KB)
2024-12-09T11:39:23_400.551_9990_60577.txt (124 Bytes)

michal.drzal · December 10, 2024, 8:01pm

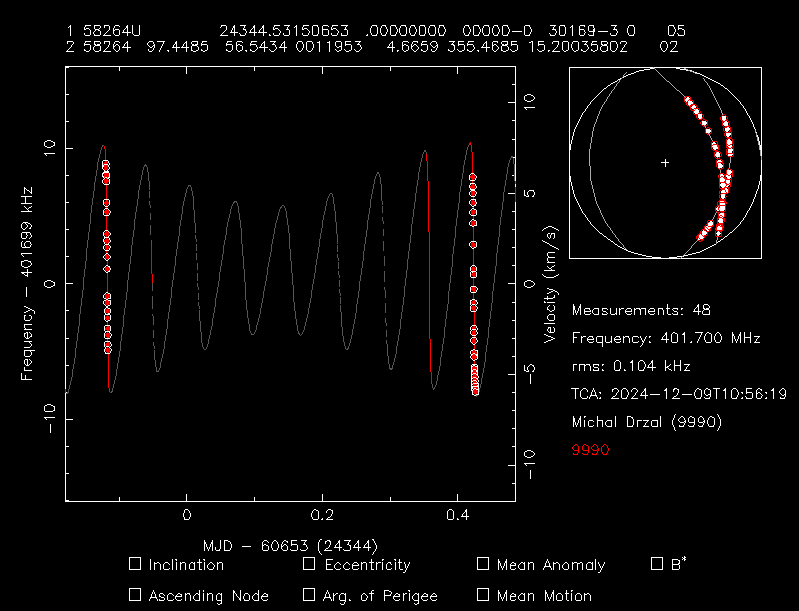

2024-12-09T10:56:19_401.700_9990_58264.dat (2.0 KB)

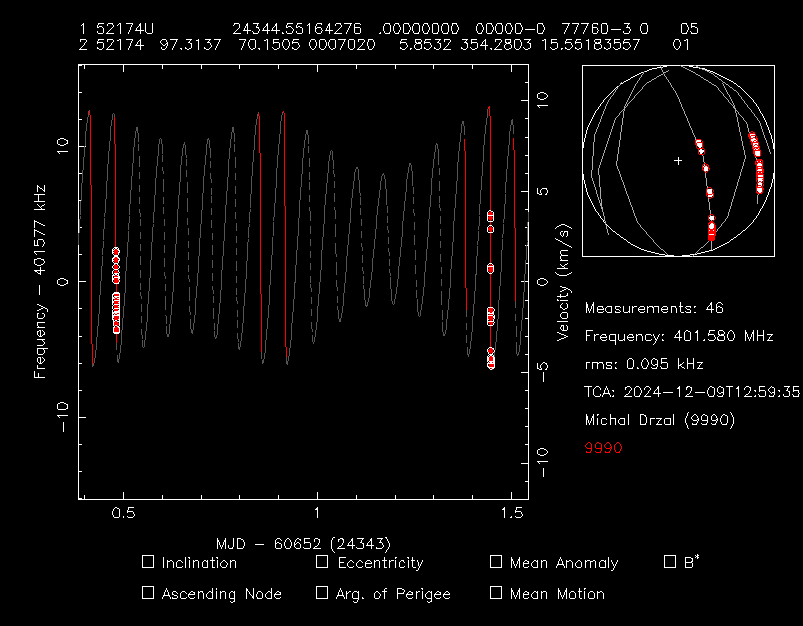

2024-12-09T12:59:35_401.580_9990_52174.dat (1.9 KB)

michal.drzal · December 11, 2024, 11:06pm

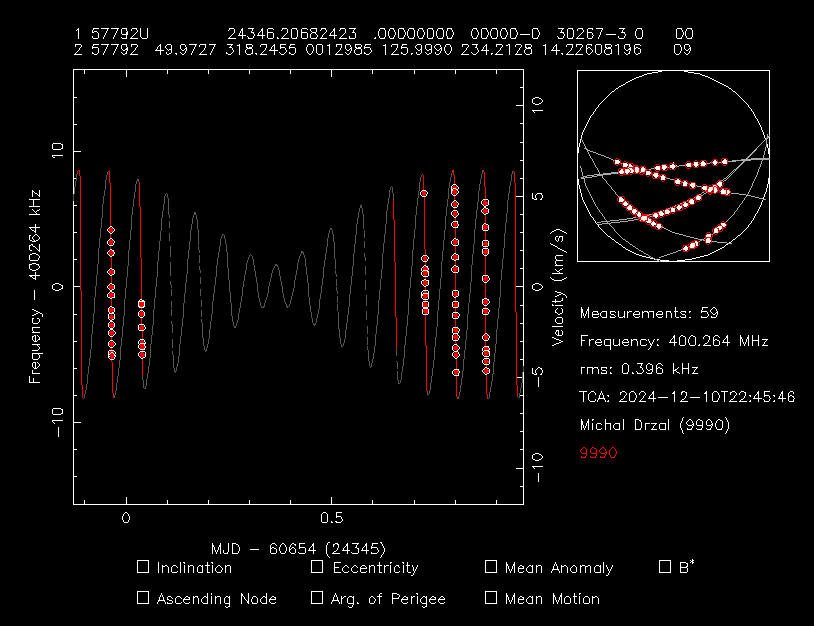

2024-12-10T22:45:46_400.264_9990_57792.dat (2.4 KB)

TIANQI 21
Launch date: September 5, 2023
Source: People’s Republic of China (PRC)
Launch site: Yellow Sea Launch Area, China (YSLA)
Frequency: 400.264 MHz

michal.drzal · December 12, 2024, 12:01am

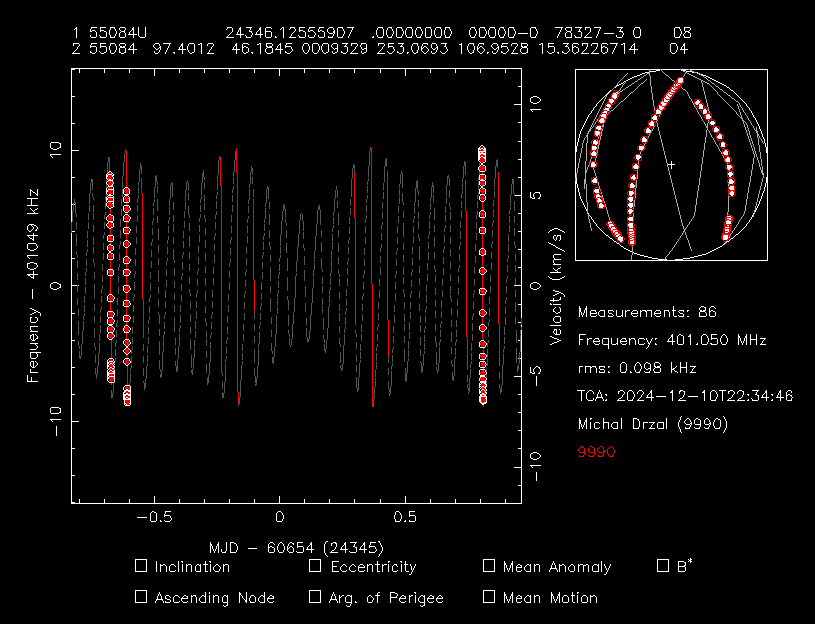

2024-12-10T22:34:46_401.050_9990_55084.dat (3.5 KB)

GAMA-ALPHA
Launch date: January 3, 2023
Source: Lithuania (LTU)
Launch site: AIR FORCE EASTERN TEST RANGE (AFETR)
Frequency: 401.050 MHz

michal.drzal · December 15, 2024, 1:42pm

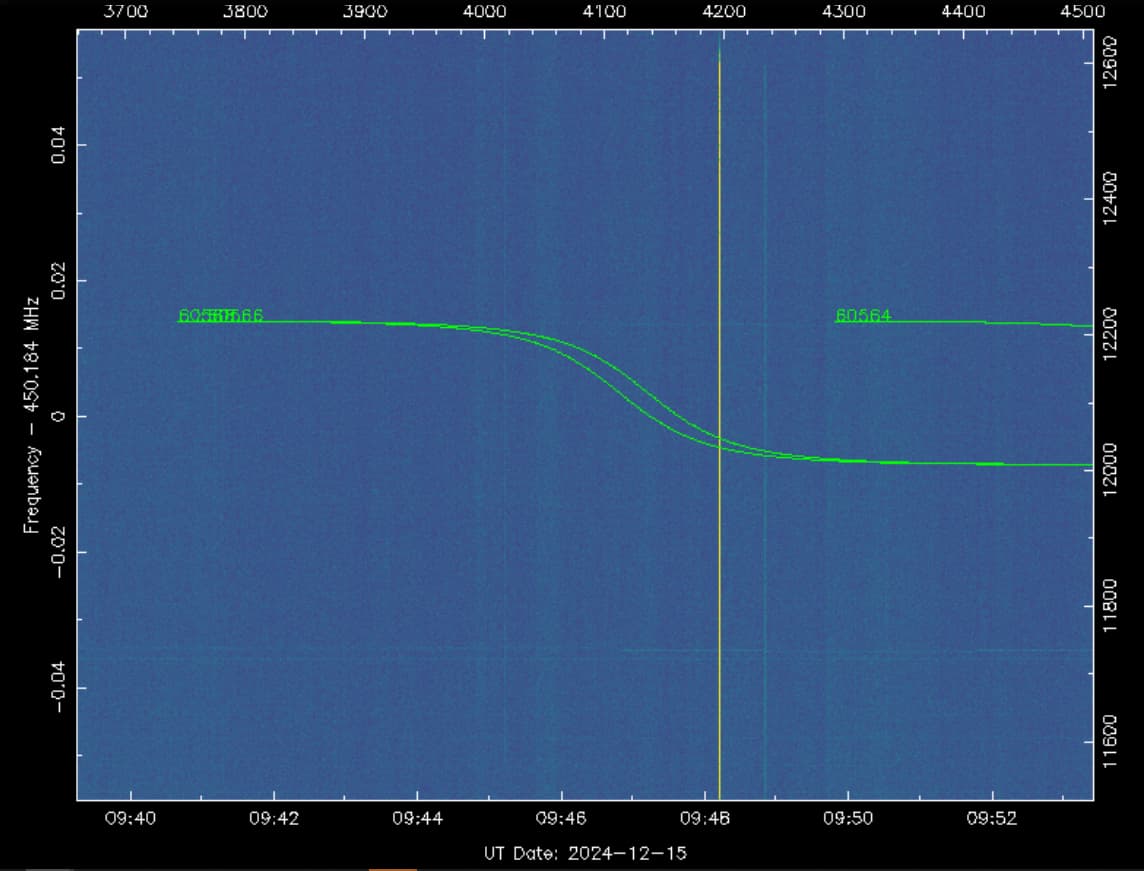

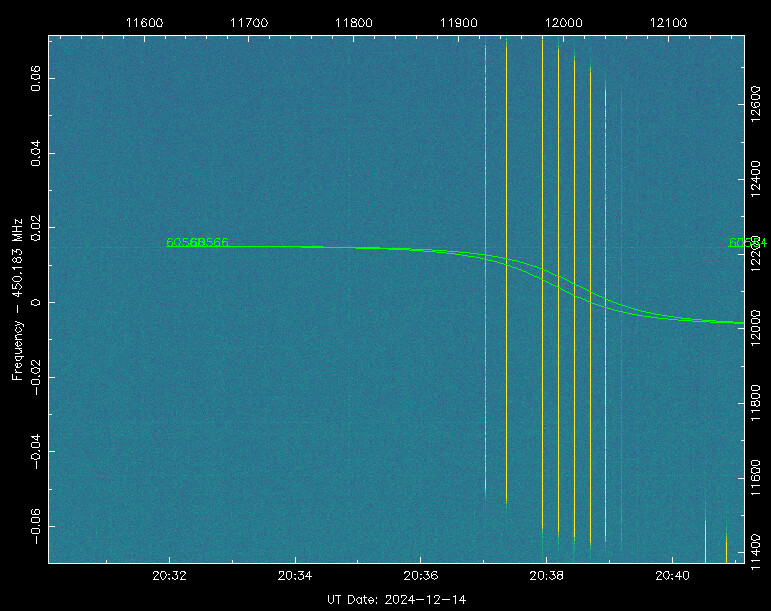

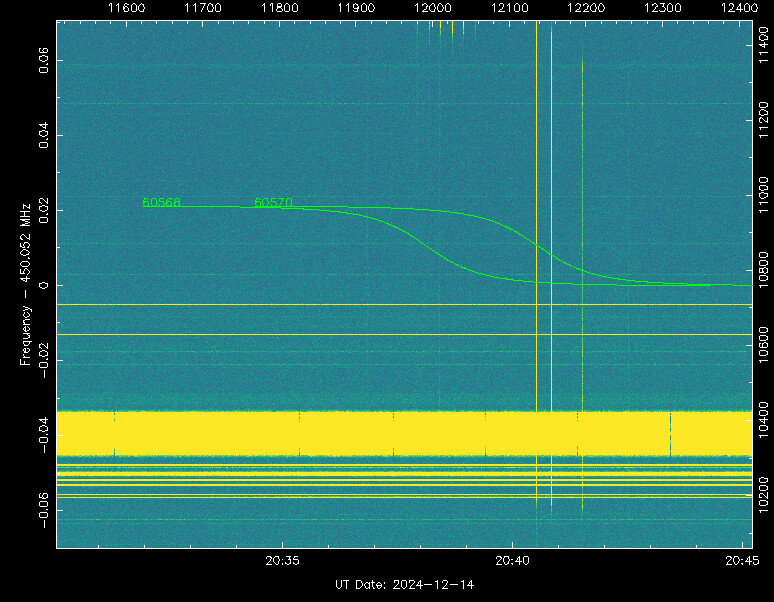

Search for Pico1 sats on 450MHz.
Frequencies file: frequencies_pico1.txt (142 Bytes)

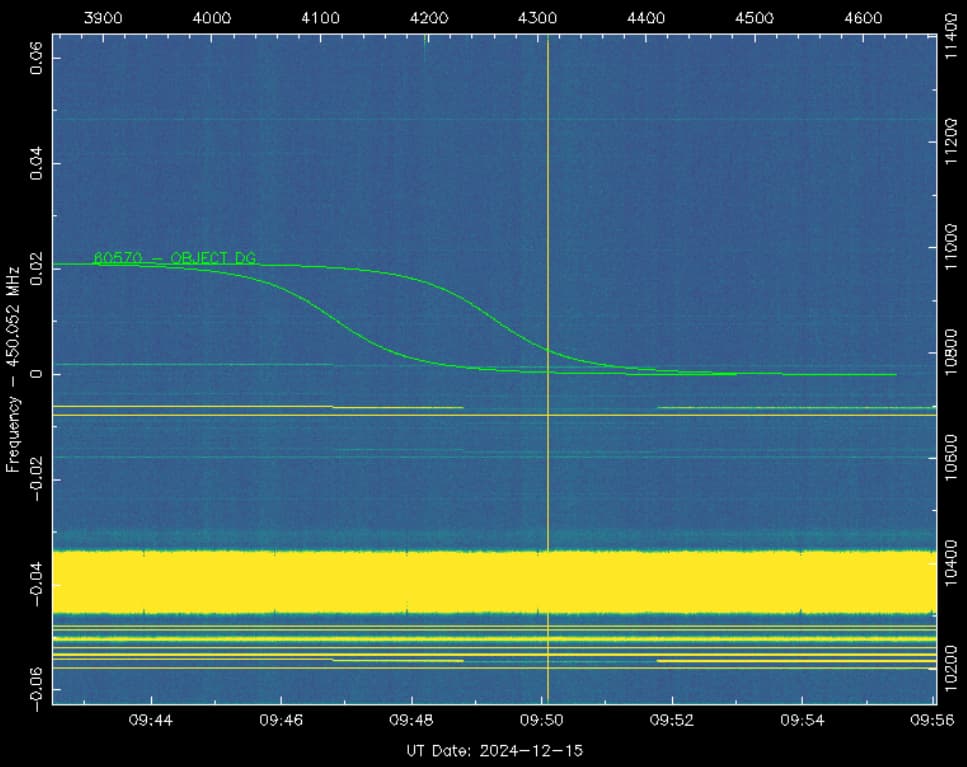

NORAD: 60570

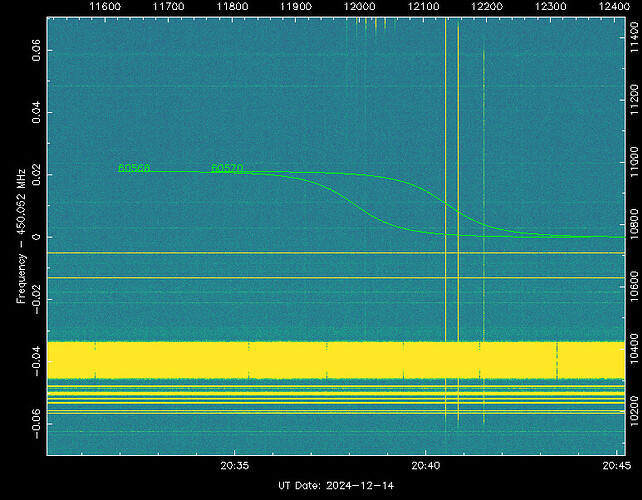

NORAD: 60566 or 60568 (too close together to tell)

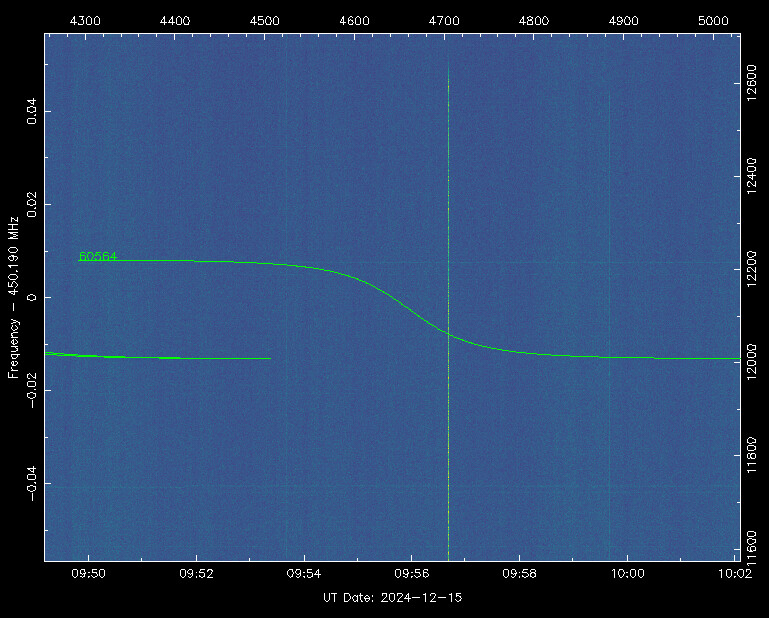

NORAD: 60564

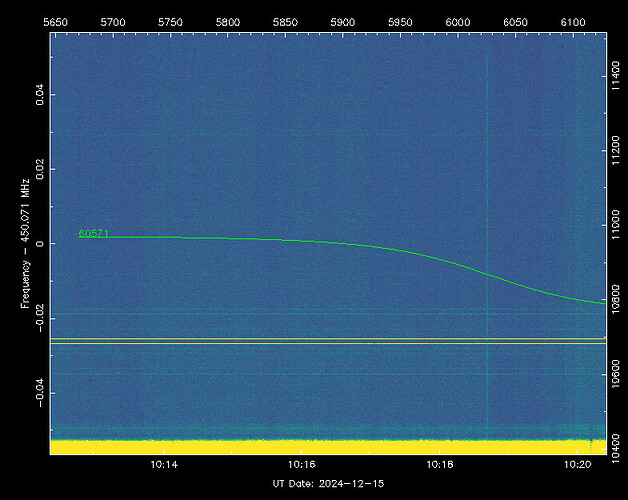

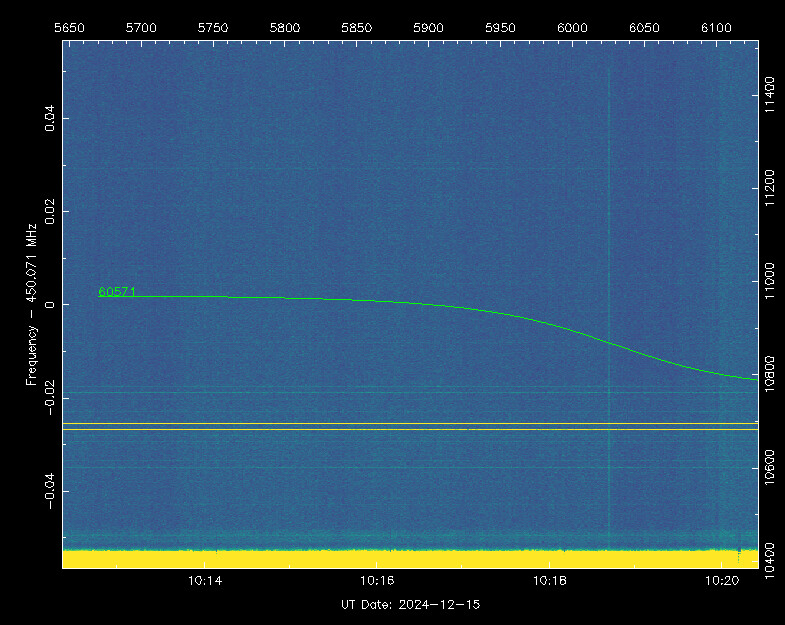

NORAD: 60571

Confirmed: 60571, 60564, 60570
Not sure: 60566, 60568
Not found: 60572

michal.drzal · December 16, 2024, 11:54pm

2024-12-16T17:17:54_401.205_9990_59917.dat (378 Bytes)

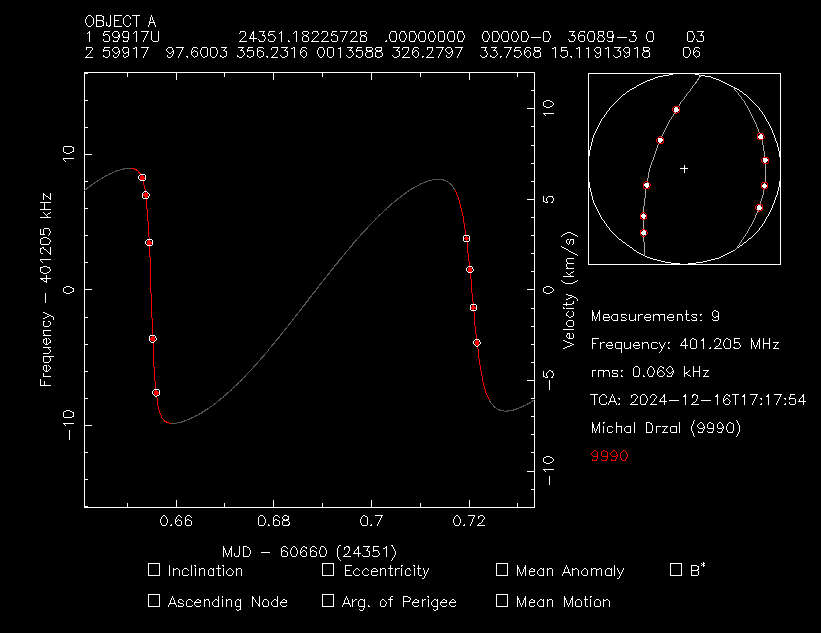

OBJECT A
NORAD ID: 59917
Launch date: May 30, 2024
Source: People’s Republic of China (PRC)
Launch site: Jiuquan Satellite Launch Center, China (JSC)
Frequency: 401.205 MHz

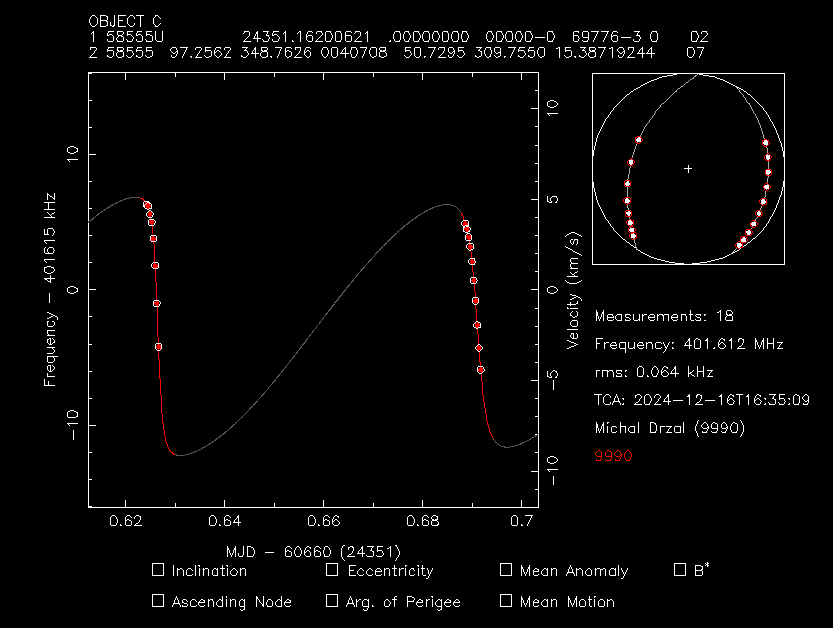

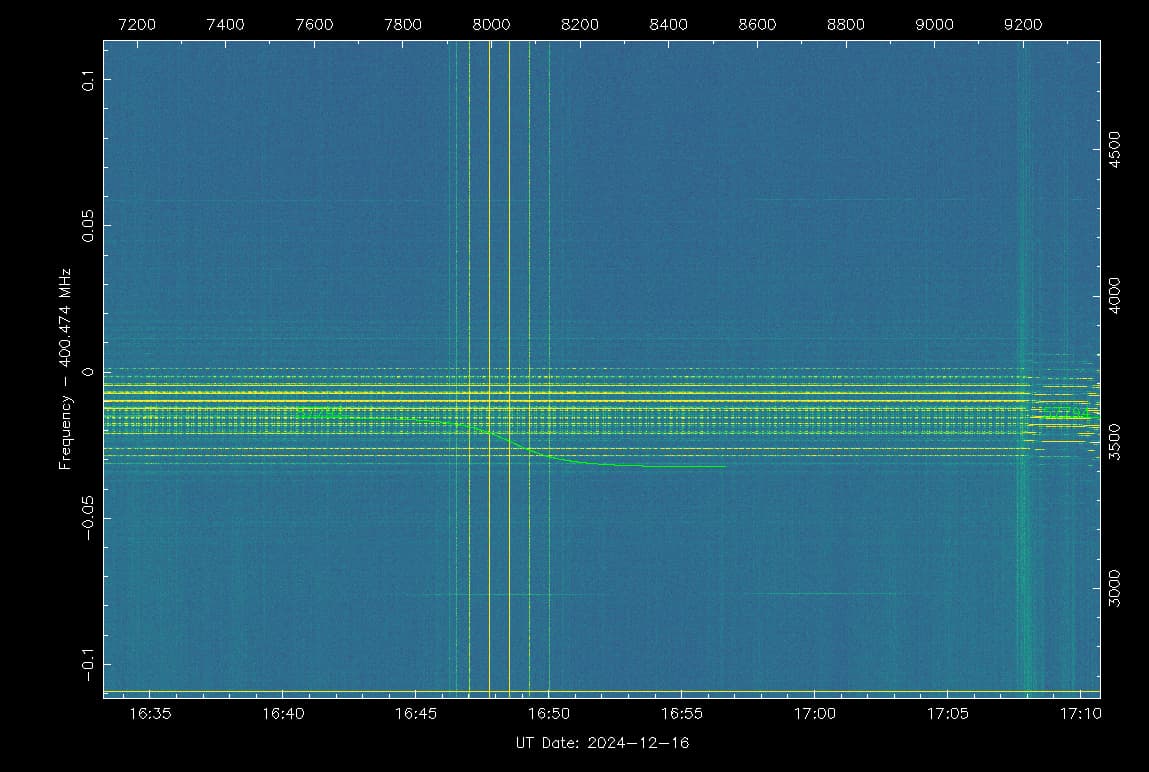

2024-12-16T16:35:09_401.612_9990_58555.dat (756 Bytes)

OBJECT C
NORAD ID: 58555
Launch date: December 8, 2023
Source: People’s Republic of China (PRC)
Launch site: Jiuquan Satellite Launch Center, China (JSC)
Frequency: 401.162 MHz

michal.drzal · December 19, 2024, 12:21pm

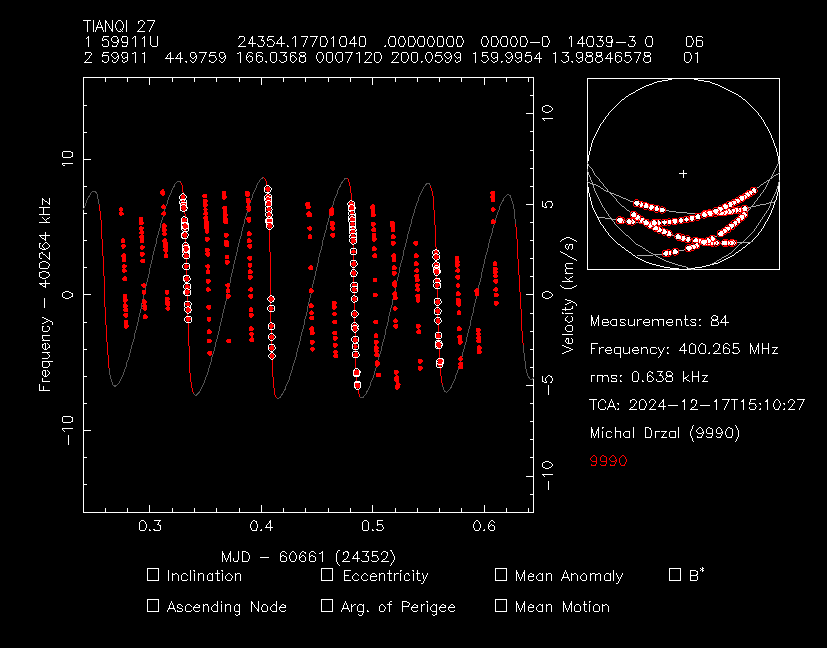

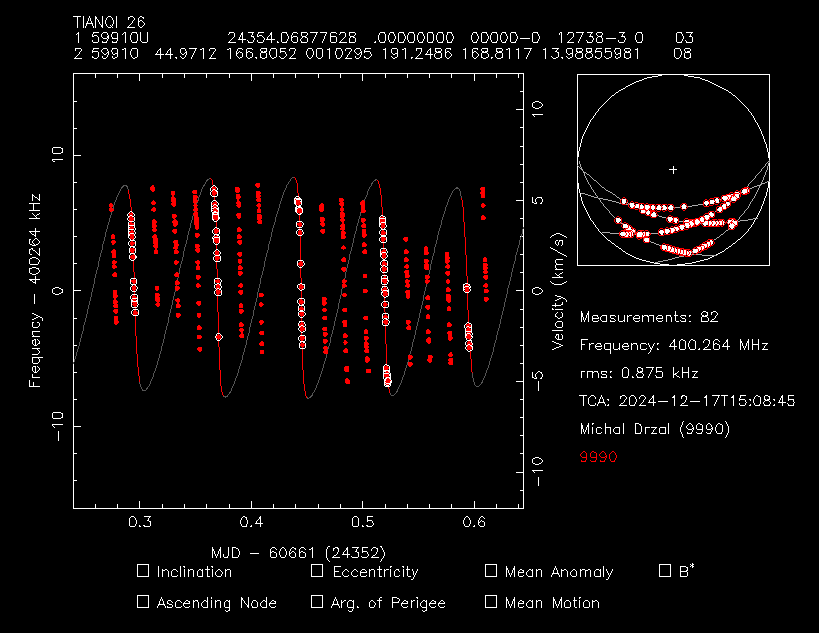

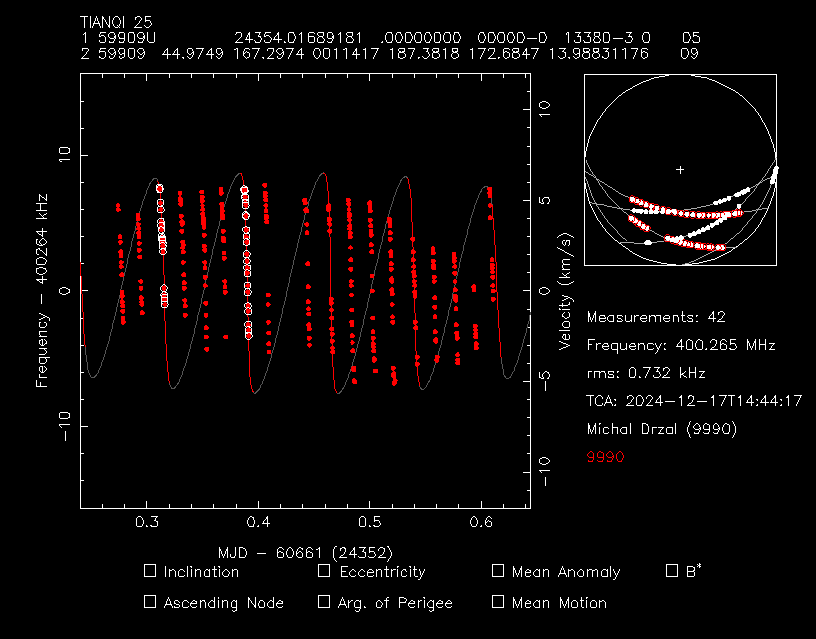

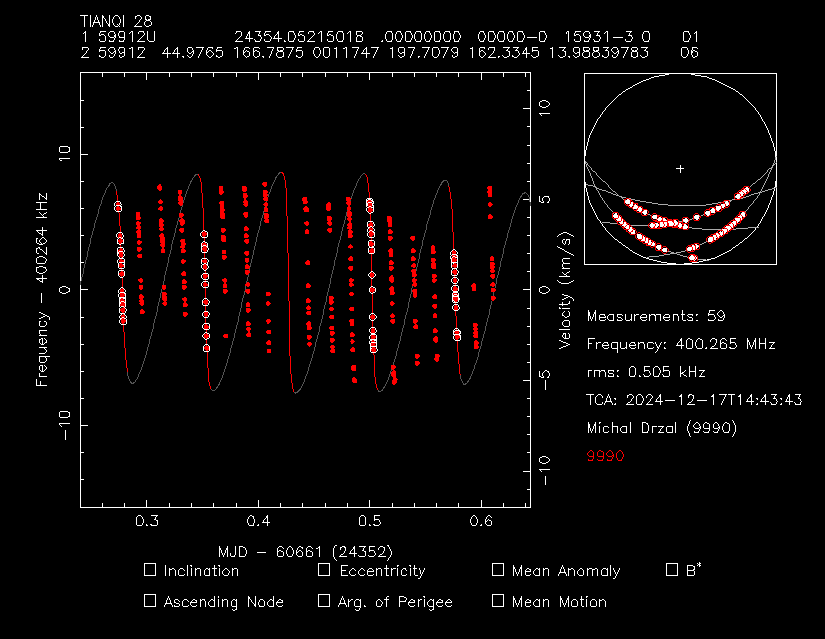

TIANQI 25,26,27,28
NORAD ID: 59909,59910,59911,59912
Launch date: May 29, 2024
Source: People’s Republic of China (PRC)
Launch site: Yellow Sea Launch Area, China (YSLA)
Frequency: 400.265 MHz

look like LORA signals

michal.drzal · December 19, 2024, 12:27pm

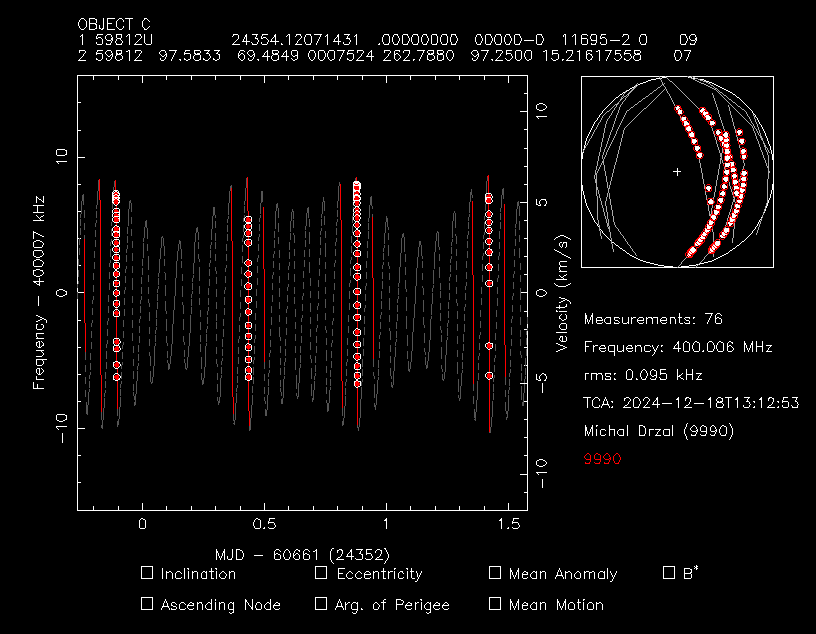

2024-12-18T13:12:53_400.006_9990_59812.dat (3.1 KB)
OBJECT C
NORAD ID: 59812
Launch date: May 21, 2024
Source: People’s Republic of China (PRC)
Launch site: Jiuquan Satellite Launch Center, China (JSC)
Frequency: 400.005 MHz

michal.drzal · December 19, 2024, 2:25pm

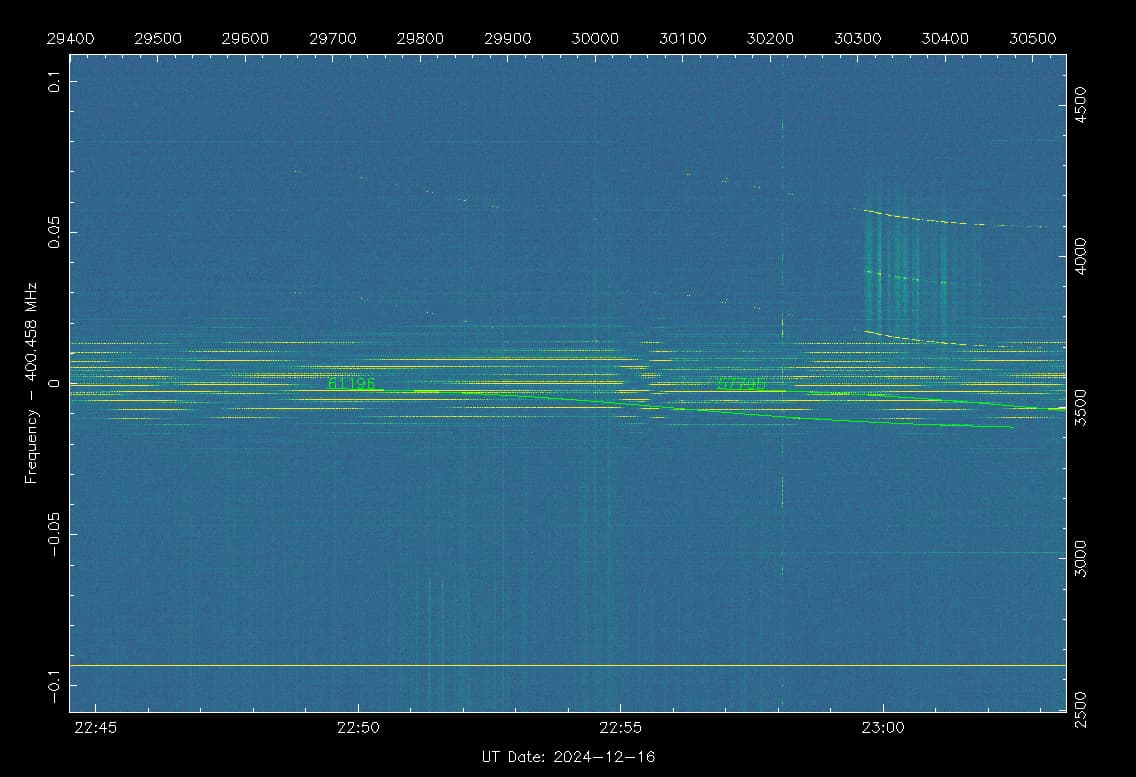

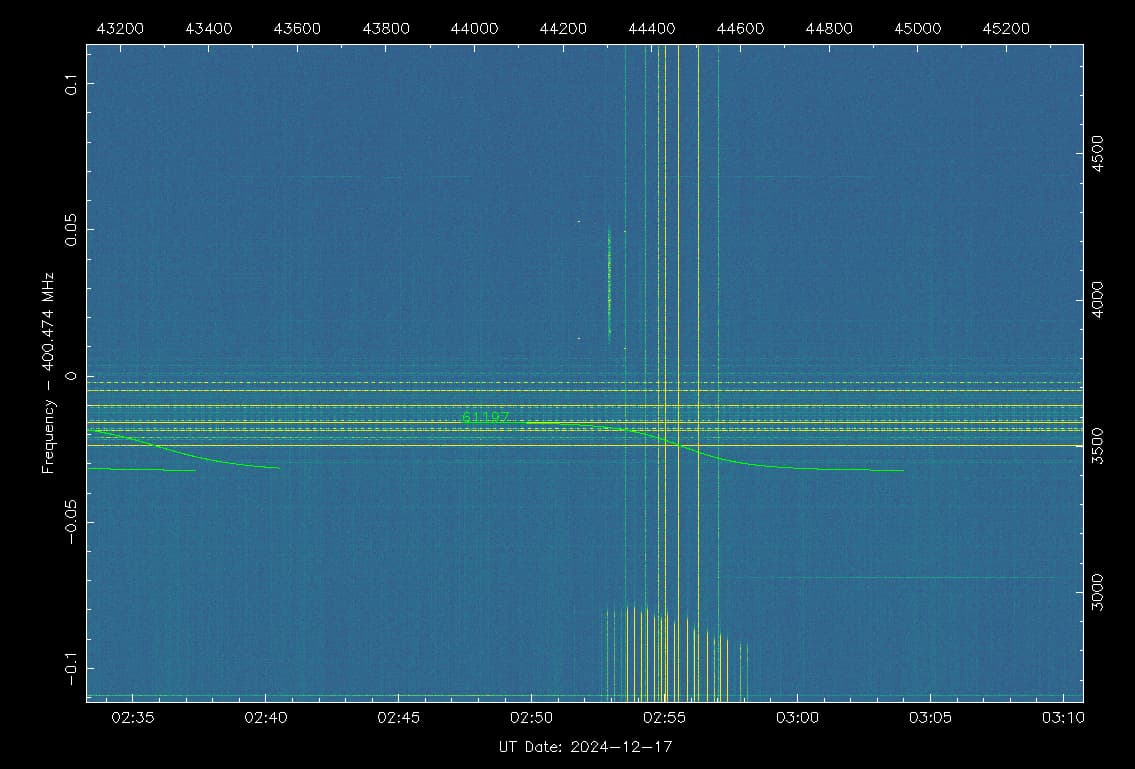

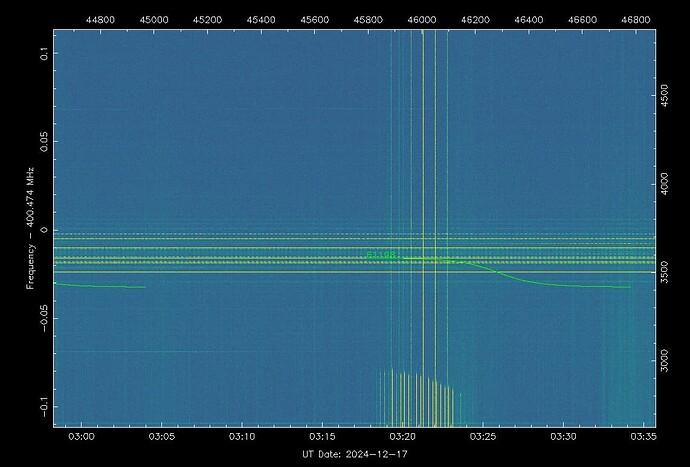

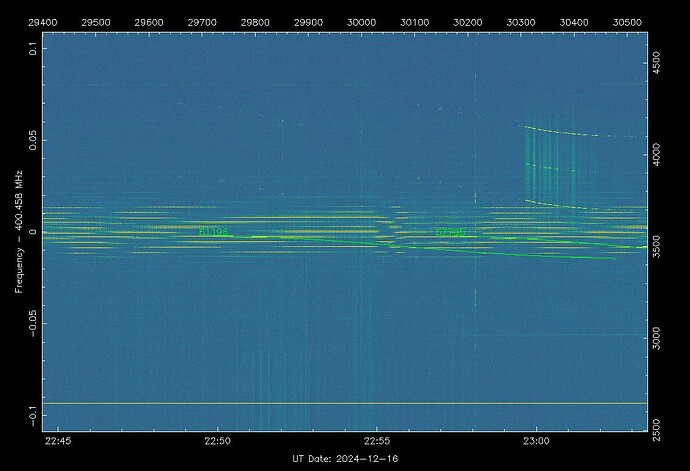

Confirmed LoRas @ 400.450Mhz

TIANQI 25
NORAD ID: 59909
Launch date: May 29, 2024
Source: People’s Republic of China (PRC)
Launch site: Yellow Sea Launch Area, China (YSLA)

TIANQI 21
NORAD ID: 57792
Launch date: September 5, 2023
Source: People’s Republic of China (PRC)
Launch site: Yellow Sea Launch Area, China (YSLA)

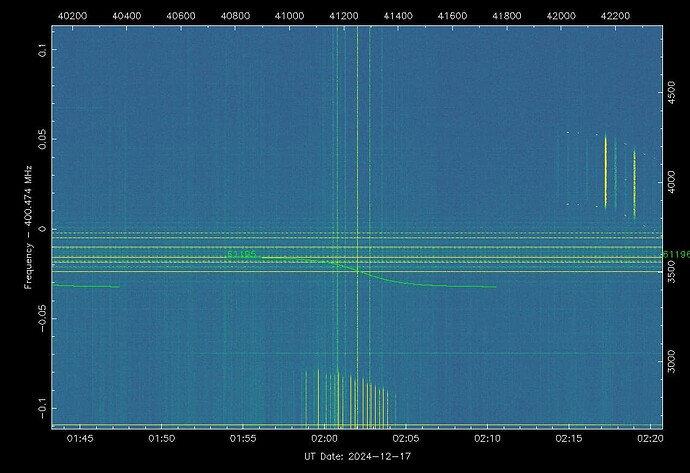

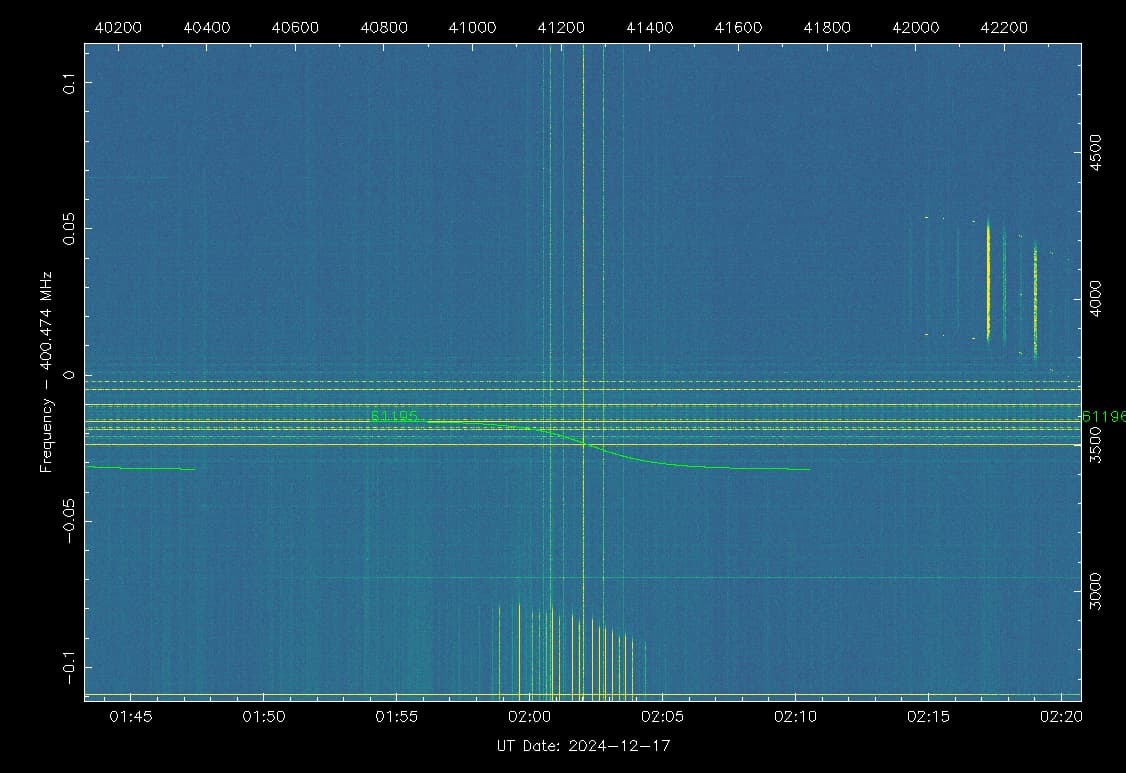

OBJECT B
NORAD ID: 61196
Launch date: September 20, 2024
Source: People’s Republic of China (PRC)
Launch site: Xichang Space Center, China (XSC)

OBJECT F
NORAD ID: 54687
Launch date: December 9, 2022
Source: People’s Republic of China (PRC)
Launch site: Yellow Sea Launch Area, China (YSLA)

OBJECT A
NORAD ID: 61195
Launch date: September 20, 2024
Source: People’s Republic of China (PRC)
.Launch site: Xichang Space Center, China (XSC)

OBJECT C
NORAD ID: 61197
Launch date: September 20, 2024
Source: People’s Republic of China (PRC)
.Launch site: Xichang Space Center, China (XSC)

OBJECT D
NORAD ID: 61198
Launch date: September 20, 2024
Source: People’s Republic of China (PRC)
Launch site: Xichang Space Center, China (XSC)

michal.drzal · December 19, 2024, 10:36pm

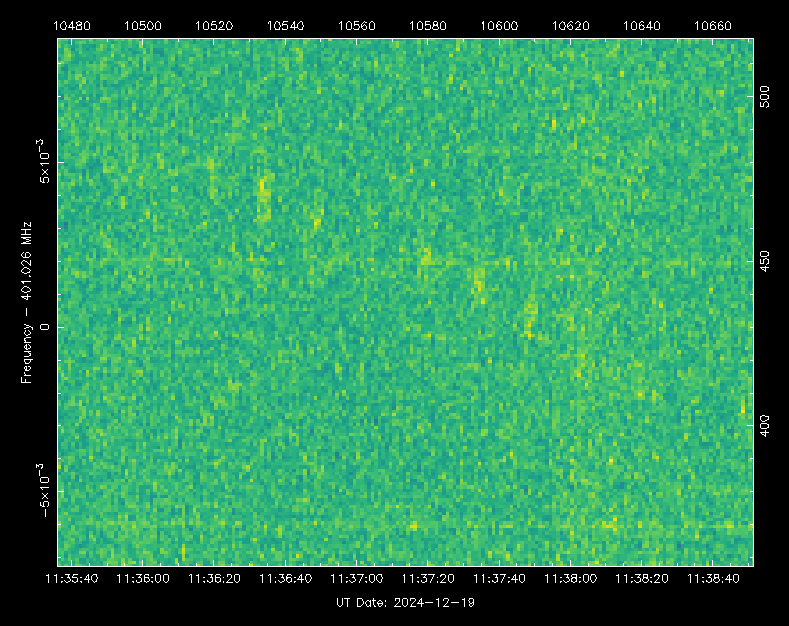

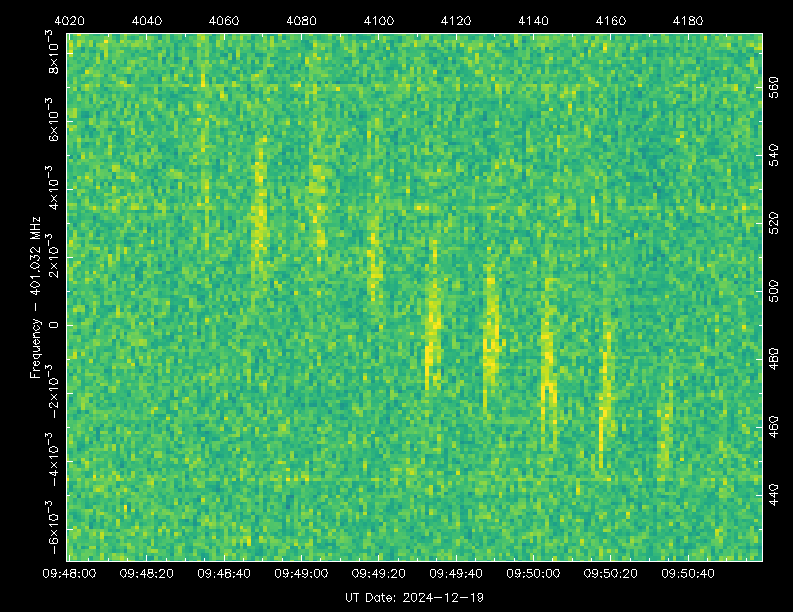

week signals on 401.032 MHz, potentially interesting

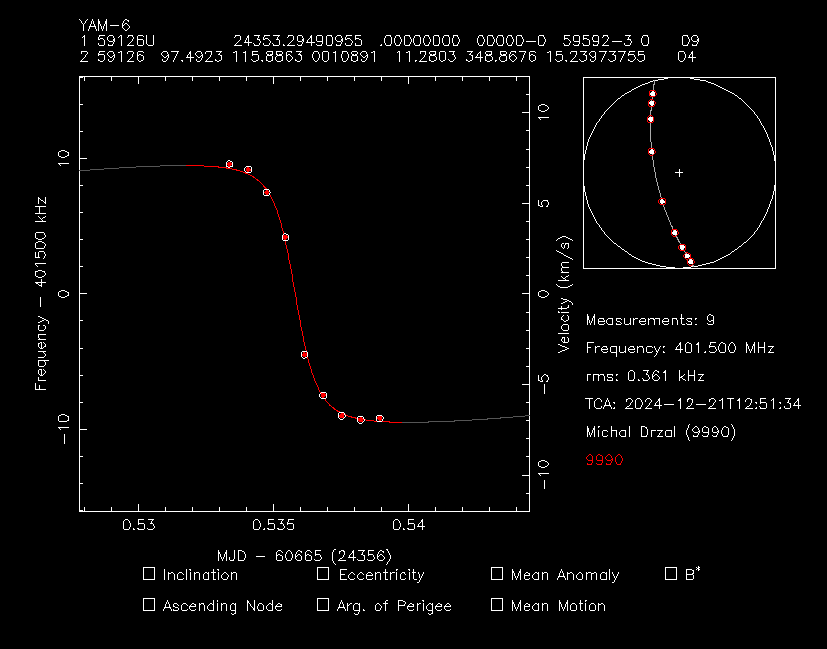

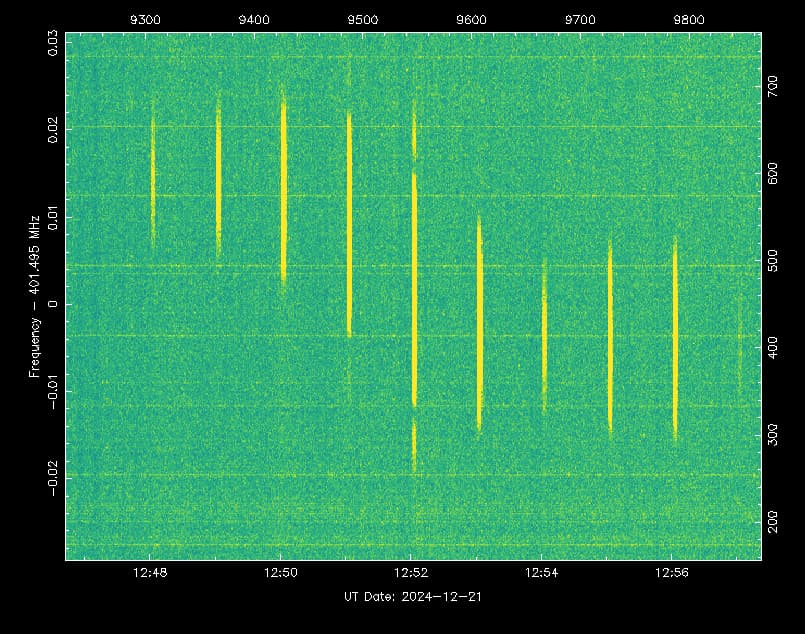

michal.drzal · December 21, 2024, 2:19pm

while looking for CTC-0

pe2bz · July 31, 2025, 6:01pm

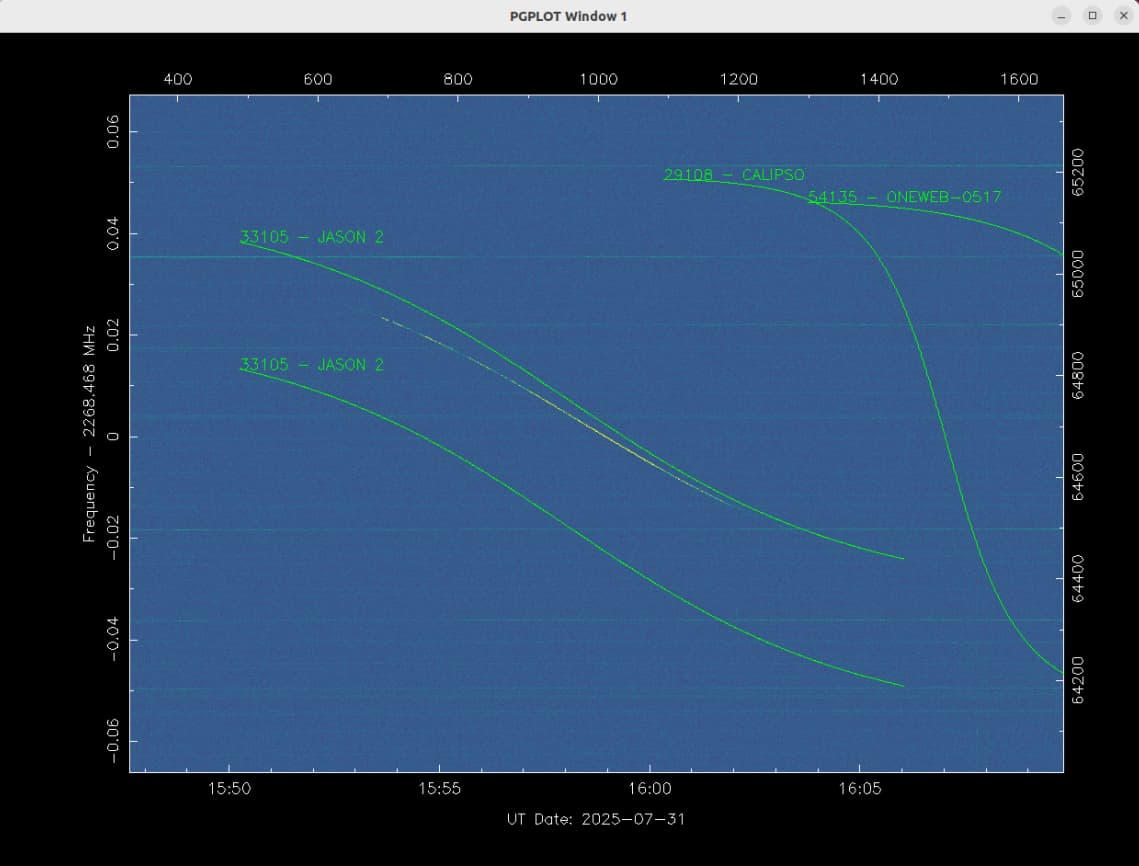

For 3 days, on all 33105 passes, where the bottom curve is the original Jason 2 frequency from the DB, I notice another signal, following exactly the time for 33105. The tle is one day old.

The higher frequency was added 3 days ago to check if the received signal does follow

no info about 33105 locking to groundstation

Bit clueless

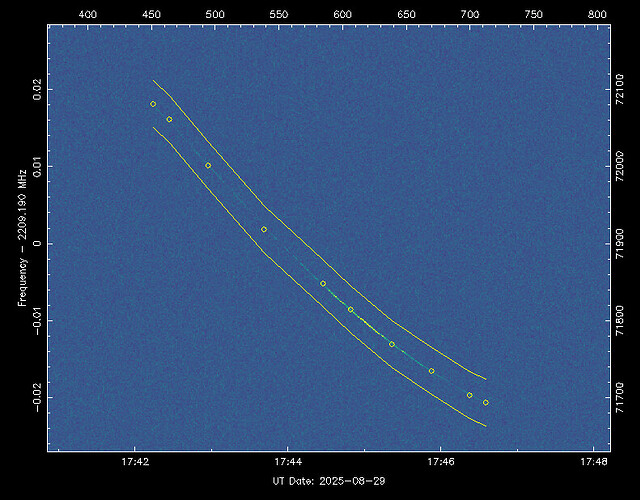

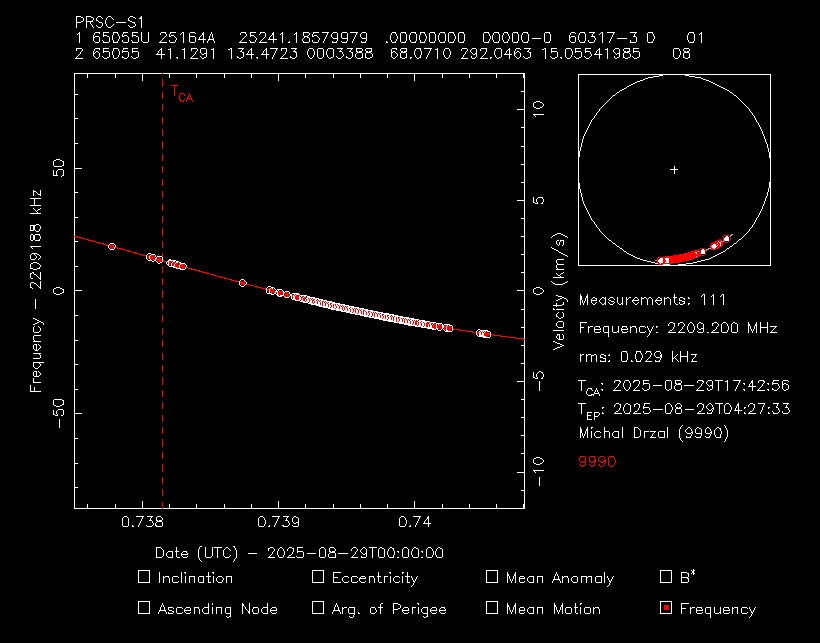

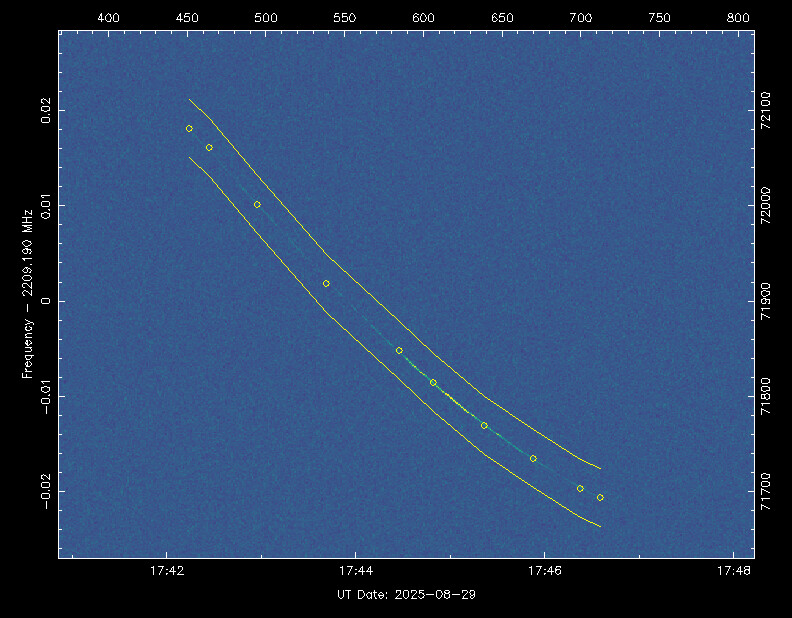

michal.drzal · August 29, 2025, 6:36pm

60916.737776 2209206100.000000 5.133892 9990
60916.738054 2209201800.000000 5.139964 9990
60916.738077 2209201500.000000 5.313017 9990
60916.738123 2209200700.000000 5.321169 9990
60916.738204 2209199400.000000 5.242655 9990
60916.738216 2209199200.000000 5.628861 9990
60916.738239 2209198900.000000 5.243211 9990
60916.738262 2209198500.000000 5.152216 9990
60916.738297 2209198000.000000 5.005046 9990
60916.738737 2209191200.000000 5.311484 9990
60916.738933 2209188300.000000 5.122362 9990
60916.738956 2209188000.000000 5.388745 9990
60916.739003 2209187300.000000 5.161700 9990
60916.739014 2209187200.000000 6.215422 9990
60916.739061 2209186500.000000 7.914454 9990
60916.739118 2209185700.000000 5.400304 9990
60916.739130 2209185500.000000 7.116818 9990
60916.739142 2209185400.000000 7.124777 9990
60916.739176 2209184900.000000 6.812297 9990
60916.739188 2209184800.000000 5.678444 9990
60916.739200 2209184600.000000 5.462428 9990
60916.739200 2209184600.000000 5.462428 9990
60916.739223 2209184300.000000 5.483013 9990
60916.739234 2209184100.000000 5.827469 9990
60916.739246 2209184000.000000 7.542956 9990
60916.739257 2209183800.000000 7.190089 9990
60916.739269 2209183700.000000 9.911672 9990
60916.739281 2209183500.000000 8.918611 9990
60916.739292 2209183400.000000 9.040286 9990
60916.739304 2209183200.000000 9.470808 9990
60916.739315 2209183100.000000 11.076814 9990
60916.739327 2209182900.000000 10.045327 9990
60916.739338 2209182800.000000 9.518867 9990
60916.739350 2209182600.000000 11.070031 9990
60916.739362 2209182500.000000 10.804902 9990
60916.739373 2209182300.000000 10.758989 9990
60916.739385 2209182200.000000 12.098004 9990
60916.739396 2209182000.000000 6.566456 9990
60916.739408 2209181900.000000 7.659852 9990
60916.739419 2209181700.000000 6.567893 9990
60916.739431 2209181600.000000 10.897160 9990
60916.739442 2209181500.000000 8.519901 9990
60916.739454 2209181300.000000 10.390524 9990
60916.739466 2209181200.000000 9.328974 9990
60916.739477 2209181000.000000 12.338408 9990
60916.739489 2209180900.000000 10.814736 9990
60916.739501 2209180800.000000 7.429996 9990
60916.739512 2209180600.000000 12.028715 9990
60916.739524 2209180500.000000 8.955453 9990
60916.739535 2209180300.000000 12.902975 9990
60916.739547 2209180200.000000 11.444624 9990
60916.739558 2209180000.000000 7.878178 9990
60916.739570 2209179900.000000 15.357266 9990
60916.739581 2209179800.000000 9.570239 9990
60916.739593 2209179600.000000 11.024851 9990
60916.739605 2209179500.000000 13.255380 9990
60916.739616 2209179400.000000 9.628461 9990
60916.739628 2209179200.000000 12.042881 9990
60916.739639 2209179100.000000 15.204661 9990
60916.739651 2209179000.000000 9.272599 9990
60916.739662 2209178800.000000 13.413996 9990
60916.739674 2209178700.000000 13.482865 9990
60916.739686 2209178600.000000 8.102162 9990
60916.739697 2209178400.000000 11.247836 9990
60916.739709 2209178300.000000 13.953445 9990
60916.739720 2209178200.000000 9.311083 9990
60916.739732 2209178000.000000 12.465761 9990
60916.739743 2209177900.000000 13.534306 9990
60916.739755 2209177800.000000 10.228518 9990
60916.739767 2209177600.000000 6.729897 9990
60916.739778 2209177500.000000 7.313705 9990
60916.739790 2209177400.000000 11.251536 9990
60916.739801 2209177300.000000 7.693984 9990
60916.739813 2209177100.000000 6.478986 9990
60916.739825 2209177000.000000 8.644651 9990
60916.739825 2209177000.000000 8.644651 9990
60916.739836 2209176900.000000 7.585318 9990
60916.739848 2209176800.000000 6.842113 9990
60916.739859 2209176600.000000 7.726096 9990
60916.739871 2209176500.000000 10.424402 9990
60916.739882 2209176400.000000 10.388240 9990
60916.739894 2209176300.000000 6.889641 9990
60916.739906 2209176200.000000 6.764409 9990
60916.739917 2209176000.000000 11.502384 9990
60916.739929 2209175900.000000 12.279253 9990
60916.739940 2209175800.000000 10.385411 9990
60916.739952 2209175700.000000 8.241951 9990
60916.739963 2209175500.000000 6.037770 9990
60916.739975 2209175400.000000 5.316615 9990
60916.739987 2209175300.000000 7.659534 9990
60916.739998 2209175200.000000 7.981207 9990
60916.740010 2209175100.000000 8.452393 9990
60916.740021 2209174900.000000 5.093609 9990
60916.740044 2209174700.000000 6.977320 9990
60916.740056 2209174600.000000 8.071979 9990
60916.740068 2209174500.000000 8.656803 9990
60916.740079 2209174400.000000 9.276227 9990
60916.740091 2209174300.000000 9.955508 9990
60916.740102 2209174200.000000 7.884193 9990
60916.740125 2209173900.000000 5.466813 9990
60916.740137 2209173800.000000 6.855641 9990
60916.740149 2209173700.000000 7.346591 9990
60916.740183 2209173400.000000 7.112748 9990
60916.740183 2209173400.000000 7.112748 9990
60916.740230 2209173000.000000 5.413975 9990
60916.740253 2209172800.000000 6.698551 9990
60916.740473 2209170900.000000 6.707400 9990
60916.740496 2209170700.000000 5.717627 9990
60916.740508 2209170600.000000 8.021266 9990
60916.740519 2209170500.000000 7.553440 9990
60916.740531 2209170400.000000 6.496696 9990
