I started with Cevrosat Grafana, graphs from TLM data are working, but when I tried to copy the Statistics part of BDSAT-2 Grafana, which is somehow using DS_SATNOGS_DB to get stations received packets etc. I dont kow, ho make those panels working. The BDSAT-2 .json has it in the part inputs, but not in the settings/variables. I tried to setup it as variable, but with no results. Any tips to that, any tutorial to this?
BDSAT-2’s decoder uses fields like pid and ctl which are not available in Cevrosat-1’s decoder.
Therefore, just copy the panels from GRBAlpha’s dashboard. Its decoder has almost the same fields.
Also check the fields available in Cevrosat-1’s decoder here: SatNOGS DB - CEVROSAT-1
Thats misundersanding. I dont have any problems with informations decoded from satellite telemetry through decoder, this works. I am trying to make work the panel named Ground Stations Leaderboard By Observed Frames, or Ascii telemetry. It uses the variables from Satnogs db.
About CEVROSAT-1’s silence:
(…) we have proceeded to the next stage of in-orbit verification of the platform and its payload systems. During this phase, communication with the satellite may be intermittent or temporarily suspended while we analyse the collected data and evaluate system performance.
5 Likes
Hi, I have suggested a change to the decoder to dl7ndr and he implemented it. He wrote, that the existing data must be re-decoded to have changes in decoder applied. Could you please do it for Cevrosat?
Done in the next minutes all the frames will be re-decoded.
We have 18 “TO BE ASSIGNED” TLE sets for the launch:
0 TBA - TO BE ASSIGNED
1 66293U 25248A 25341.68010444 .00009616 00000-0 82201-3 0 9997
2 66293 45.4094 72.5588 0004726 1.4845 358.6047 14.97924622 5329
0 TBA - TO BE ASSIGNED
1 66294U 25248B 25341.61242826 .00026240 00000-0 12837-2 0 9991
2 66294 45.4012 67.2022 0001580 297.6341 62.4383 15.17825879 5374
0 TBA - TO BE ASSIGNED
1 66295U 25248C 25341.65630200 .00031845 00000-0 14917-2 0 9991
2 66295 45.4100 66.7253 0002481 39.5321 320.5746 15.19242493 5384
0 TBA - TO BE ASSIGNED
1 66296U 25248D 25341.73068050 .00024579 00000-0 11809-2 0 9992
2 66296 45.4076 66.4222 0002080 25.9650 334.1340 15.18486670 5397
0 TBA - TO BE ASSIGNED
1 66297U 25248E 25341.63582594 .00034050 00000-0 15732-2 0 9990
2 66297 45.4067 66.5721 0007613 31.7512 328.3833 15.19667474 5387
0 TBA - TO BE ASSIGNED
1 66298U 25248F 25341.63941860 .00030774 00000-0 14307-2 0 9992
2 66298 45.4101 66.6056 0007046 37.1644 322.9729 15.19500879 5384
0 TBA - TO BE ASSIGNED
1 66299U 25248G 25341.66064270 .00031069 00000-0 14872-2 0 9992
2 66299 45.4029 66.7278 0003280 10.0586 350.0365 15.18502117 5386
0 TBA - TO BE ASSIGNED
1 66300U 25248H 25342.83335648 -.00010053 00000-0 -46616-3 0 9999
2 66300 45.4059 60.4723 0003009 33.7534 264.5320 15.18526675 5826
0 TBA - TO BE ASSIGNED
1 66301U 25248J 25342.83335648 -.00011592 00000-0 -54113-3 0 9990
2 66301 45.4028 60.4860 0002839 20.9647 265.8715 15.18432350 5826
0 TBA - TO BE ASSIGNED
1 66302U 25248K 25342.83335648 -.00008386 00000-0 -38349-3 0 9991
2 66302 45.4066 60.3944 0004007 39.7838 293.7954 15.18794343 5828
0 TBA - TO BE ASSIGNED
1 66303U 25248L 25341.72342193 .00024791 00000-0 11834-2 0 9997
2 66303 45.4041 66.3558 0003902 14.4843 345.6154 15.18703659 5401
0 TBA - TO BE ASSIGNED
1 66304U 25248M 25340.96903017 .00024452 00000-0 11082-2 0 9990
2 66304 45.4040 70.0178 0008605 27.3899 332.7440 15.20479992 4003
0 TBA - TO BE ASSIGNED
1 66305U 25248N 25341.62529389 .00026393 00000-0 11923-2 0 9991
2 66305 45.4042 66.4908 0008831 30.8322 329.3082 15.20550385 3242
0 TBA - TO BE ASSIGNED
1 66306U 25248P 25339.98572756 .00024949 00000-0 11356-2 0 9999
2 66306 45.4053 75.3173 0008264 20.8059 339.3163 15.20323445 5129
0 TBA - TO BE ASSIGNED
1 66307U 25248Q 25341.30200212 .00024919 00000-0 11355-2 0 9990
2 66307 45.4042 68.2872 0007817 28.7834 331.3482 15.20290149 5339
0 TBA - TO BE ASSIGNED
1 66308U 25248R 25337.50003472 .00012306 00000-0 60034-3 0 9993
2 66308 45.3978 89.0084 0003653 346.4266 275.8611 15.18396286 5899
0 TBA - TO BE ASSIGNED
1 66309U 25248S 25337.50003472 .00012033 00000-0 59221-3 0 9997
2 66309 45.4050 89.0839 0001748 359.1817 228.9243 15.18110574 2325
0 TBA - TO BE ASSIGNED
1 66312U 25248T 25325.00002315 .00071789 00000-0 34473-2 0 9992
2 66312 45.3982 155.7898 0003762 306.7887 314.9848 15.18021984 4124
3 Likes
There are no signal being received from CEVROSAT-1

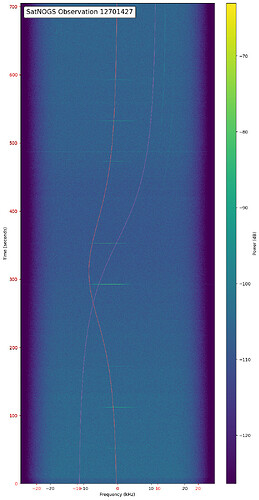

Looking at the latest successful CEVROSAT-1 observation there is only one that could possibly match.
So for now I would suggest object 66309
0 TBA - TO BE ASSIGNED
1 66309U 25248S 25337.50003472 .00012033 00000-0 59221-3 0 9997
2 66309 45.4050 89.0839 0001748 359.1817 228.9243 15.18110574 2325
Jan | PE0SAT
