I’m adding also TLE sets based on the above for Geoscan-Edelveis and KAI 1.
Geoscan-Edelveis
1 99395U 21022AE 22220.29291667 .00000940 00000-0 68406-4 0 9993
2 99395 97.44 121.8900 0024910 116.2 85.0878 15.27392296 00
KAI 1
1 99367U 21022AE 22220.29471065 .00000940 00000-0 68406-4 0 9994
2 99367 97.44 121.9000 0023330 113.78 97.3475 15.27014369 07
New TLE sets from space-track.org, still on “To Be Assigned” status:
0 TBA - TO BE ASSIGNED
1 53370U 22096A 22221.78011152 -.00026126 00000-0 -10746-2 0 9990
2 53370 97.4396 123.2472 0002054 106.2968 343.7598 15.24184597 96
0 TBA - TO BE ASSIGNED
1 53371U 22096B 22221.78006624 -.00022065 00000-0 -90317-3 0 9990
2 53371 97.4402 123.2493 0002707 138.3938 311.6176 15.24309770 94
0 TBA - TO BE ASSIGNED
1 53372U 22096C 22221.78006624 -.00048981 00000-0 -20165-2 0 9999
2 53372 97.4386 123.2460 0002648 135.5498 314.4664 15.24297886 79
0 TBA - TO BE ASSIGNED
1 53373U 22096D 22221.78006591 -.00001431 00000-0 -55561-4 0 9992
2 53373 97.4387 123.2490 0002935 140.3439 309.8012 15.24395214 71
0 TBA - TO BE ASSIGNED
1 53374U 22096E 22221.64872231 .00063615 00000-0 25685-2 0 9992
2 53374 97.4406 123.1189 0002856 126.9996 322.9535 15.24528494 50
0 TBA - TO BE ASSIGNED
1 53375U 22096F 22221.64835777 .00103474 00000-0 41491-2 0 9998
2 53375 97.4409 123.1128 0001791 127.1815 320.8002 15.24565917 54
0 TBA - TO BE ASSIGNED
1 53376U 22096G 22221.64916941 .00008749 00000-0 35806-3 0 9995
2 53376 97.4384 123.1213 0002471 122.2526 330.2122 15.24556357 59
0 TBA - TO BE ASSIGNED
1 53377U 22096H 22221.58433045 .00192194 00000-0 75935-2 0 9992
2 53377 97.4386 123.0533 0002973 129.9268 326.9622 15.24647408 44
0 TBA - TO BE ASSIGNED
1 53378U 22096J 22221.64912638 -.00005688 00000-0 -22796-3 0 9991
2 53378 97.4403 123.1192 0003148 130.3047 322.0329 15.24629982 52
0 TBA - TO BE ASSIGNED
1 53379U 22096K 22221.64935216 -.00158910 00000-0 -65209-2 0 9991
2 53379 97.4313 123.1181 0005649 90.6399 3.3778 15.24917665 52
0 TBA - TO BE ASSIGNED
1 53380U 22096L 22221.64923044 .00087568 00000-0 34720-2 0 9991
2 53380 97.4381 123.1131 0005885 96.0696 357.3147 15.25008558 51
0 TBA - TO BE ASSIGNED
1 53381U 22096M 22221.64858838 .00024618 00000-0 98523-3 0 9999
2 53381 97.4371 123.1131 0006077 96.1470 353.7943 15.25047946 54
0 TBA - TO BE ASSIGNED
1 53382U 22096N 22221.64879715 .00067892 00000-0 26957-2 0 9999
2 53382 97.4380 123.1174 0006485 97.7280 353.3643 15.25053622 52
0 TBA - TO BE ASSIGNED
1 53383U 22096P 22221.64901557 -.00103419 00000-0 -41912-2 0 9996
2 53383 97.4402 123.1184 0006642 95.7007 356.6593 15.25074064 52
0 TBA - TO BE ASSIGNED
1 53384U 22096Q 22221.64913152 -.00114599 00000-0 -46467-2 0 9992
2 53384 97.4398 123.1126 0006479 92.8641 0.1704 15.25109068 51
0 TBA - TO BE ASSIGNED
1 53385U 22096R 22221.64936244 .00039303 00000-0 15572-2 0 9990
2 53385 97.4389 123.1166 0007020 92.3498 2.1221 15.25275747 81
0 TBA - TO BE ASSIGNED
1 53386U 22096S 22221.51833296 .00086651 00000-0 33887-2 0 9997
2 53386 97.4381 122.9863 0007736 93.6505 1.9623 15.25463501 59
By running ikhnos, for now I’ve changed the NORAD IDs we follow in the following way, note that it is still early for identification and for some of the satellites more than one TLE sets fits for now but we chose only one to follow:
| Satellite Identifier | Name | Temporary NORAD ID | Alt. Names | Followed NORAD ID | Status |
|---|---|---|---|---|---|
| HKXU-1877-4030-6508-9166 | MONITOR-1 | 99368 | SXC3-212, RS32S, MGU | 53378 | Received |
| LCSC-5849-7353-1157-6022 | KAI 1 | 99367 | RS26S, KNITU-KAI, KNRTU-KAI | 53371 (random choice) | Not Received |
| YYOS-0902-7582-8175-2841 | VOENMEH | 99365 | SXC3-2110 RS29S | 53373 | Received |
| UPJA-6543-4153-4055-9244 | VIZARD | 99364 | SXC3-215 RS33S | 53386 | Received |
| YOQT-9019-0118-9280-5437 | UTMN | 99363 | SXC3-216 RS23S | 53376 | Received |
| TSYE-5592-5507-8880-3661 | SIREN | 99362 | SXC3-217 RS30S | 53375 (random choice) | Not Received |
| EUTM-6475-4739-7036-7152 | RESHUCUBE | 99361 | SXC3-2111, RS8S, SIBSU, SIBGU | 53384 | Received |
| OTLB-3496-1811-8002-0742 | MIET-AIS | 99360 | SXC3-214 RS28S | 53374 | Received |
| BFTX-5845-5159-6971-7200 | ISOI | 99358 | SXC3-219, RS19SL, MEDEX | 53380 | Received |
| XXDG-8589-5393-3222-5405 | KUZBASS-300 | 99357 | SXC3-218, RS34S, KUZSTU | 53377 | Received |
| KILB-3720-6406-0699-8042 | CUBESX-HSE-2 | 99356 | SXC3-213, RS21S, HSE-AIS | 53379 (random choice) | Not Received |
| QNCD-8954-6090-5430-2718 | GEOSCAN-EDELVEIS | 99395 | RS20S | 53383 (random choice) | Not Received |
Hello, Geoscan here. We have been able to get our telemetry with AX.25 format packet from our satellite transmitter an hour ago. So our cubesat is operational. I hope you’ll be able to receive signal from it! It looks like that our satellite should have 53375 NORAD rather than 53383, but it’s tbd still.
Here is our protocol. We are open to any questions and eager to communicate with satnogs community.
GRTP.pdf (339.9 KB)
73!
Does the IARU even allow coordination requests for satellites already in orbit?
We have contacted IARU beforehand as soon as we got a place on this launch, a callsign from our national administration and figured out what we have to do. We really wanted this mission to be as open as possible. We want to follow all conventions and communicate with radio amateurs around the world. To be able to follow our educational mission. But sadly IARU don’t want to see us as such, somehow. But we try to do anything we can. This is our first ever mission:)
What software should we use to decode frames from your satellite? Standard UZ7HO HS-SoundModem FSK 9K6 modem? What mode? USB or W-FM? I was able to receive signals from your satellite but I couldn´t decode them with my usual Windows tools.
73 de David EA4SG
Results after analyzing with ikhnos the latest observations:
| Name | Temporary NORAD ID | Followed NORAD ID | Other Possible NORAD IDs | Status | Update |
|---|---|---|---|---|---|
| MONITOR-1 | 99368 | 53374 | 53373, 53375, 53376 | Received | Rejected 53378 |
| KAI 1 | 99367 | 53378 | 53370 - 53386 | Not Received | random choice |
| VOENMEH | 99365 | 53373 | 53372, 53374 | Received | - |
| VIZARD | 99364 | 53386 | 53381(unlikely), 53382(unlikely), 53383, 53384, 53385 | Received | - |
| UTMN | 99363 | 53377 | 53373(unlikely), 53374, 53375, 53376, 53378 | Received | Changed to follow 53377 instead of 53376 |
| SIREN | 99362 | 53382 | 53381, 53383, 53384 | Received | Rejected 53375 |
| RESHUCUBE | 99361 | 53384 | 53381, 53382, 53383 | Received | - |
| MIET-AIS | 99360 | 53376 | 53375, 53377, 53378 | Received | Rejected 53374 |
| ISOI | 99358 | 53381 | 53380,53379(unlikely), 53380, 53382, 53383, 53384 | Received | Changed to follow 53381 |
| KUZBASS-300 | 99357 | 53374 | 53373, 53375, 53376 | Received | Rejected 53377 |
| CUBESX-HSE-2 | 99356 | 53383 | 53381(unlikely), 53382, 53384, 53385(unlikely) | Received | Rejected 53379 |
| GEOSCAN-EDELVEIS | 99395 | 53373 | 53372, 53374 | Received | Rejected 53375 and 53383 |
Only KAI 1 isn’t received, maybe we are looking on the wrong frequency?
@fredy Certainly may be the case, I’ve got a STRF observation from SatNOGS Network - Observation 6314779 that shows a couple signals in the last several seconds that are lining up with 53378 @ 437.550.
Sorry about the green vertical lines in the rfplot, can’t figure out why they get drawn that way,
It looks like this is Monitor-1 satellite.
Two new satellites have been created for this launch:
Skoltech B1 with temporary NORAD ID 99354 and Skoltech B2 with temporary NORAD ID 99353.
Both satellites transmit at 435.000MHz and B1 for now follows 53379 and B2 follows 53380.
With the space-track.org TLE assigned we are a step closer to identifications. Here are the results after analyzing with ikhnos the latest observations:
| Name | Temporary NORAD ID | Followed NORAD ID | Other Possible NORAD IDs | Status | Update |
|---|---|---|---|---|---|
| GEOSCAN-EDELVEIS | 99395 | 53385 | 53383(unlikely), 53384, 53386(unlikely) | Received | Rejected 53372, 53373 and 53374 |
| MONITOR-1 | 99368 | 53374 | 53375 | Received | Rejected 53373 and 53376 |
| CUBESX-HSE-2 | 99356 | 53383 | 53384 | Received | Rejected 53381, 53382, 53385 |
| MIET-AIS | 99360 | 53376 | 53374, 53375, 53377, 53378 | Received | Added 53374 as possible |
| VIZARD | 99364 | 53386 | 53385(unlikely) | Received | Rejected 53381, 53382, 53383, 53384 |
| UTMN | 99363 | 53377 | 53374, 53375, 53376, 53378 | Received | Rejected 53373 |
| SIREN | 99362 | 53384 | 53383 | Received | Rejected 53381, 53382. Changed to follow 53384 instead of 53382 |
| KUZBASS-300 | 99357 | 53375 | 53373, 53374, 53376, 53377(unlikely), 53378(unlikely) | Received | Added 53377 and 53378 as possible. Changed to follow 53375 instead of 53374 |
| ISOI | 99358 | 53382 | 53380, 53381, 53383 | Received | Rejected 53379 and 53384. Changed to follow 53382 instead of 53381 |
| VOENMEH | 99365 | 53373 | 53372(unlikely) | Received | Rejected 53374 |
| RESHUCUBE | 99361 | 53381 | 53379(unlikely), 53380(unlikely), 53381, 53382, 53383, 53384(unlikely) | Received | Added 55379, 53380 as possible. Changed to follow 53381 instead of 53384 |
| Skoltech B1 | 99354 | 53379 | 53380, 53381(unlikely), 53382(unlikely) | Received | - |
| Skoltech B2 | 99393 | 53380 | 53379, 53381(unlikely), 53382(unlikely) | Received | - |
| KAI 1 | 99367 | 53378 | 53370 - 53386 | Not Received | random choice |
I have not seen the names “Polytech Universe 1 & 2” mentioned here, but following up on a tweet:

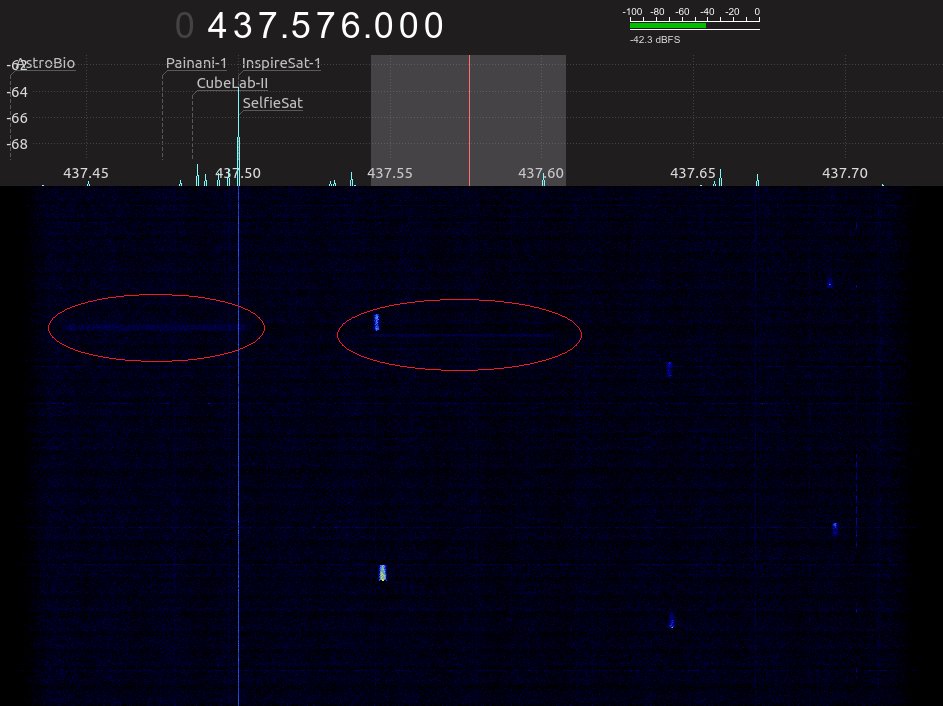

… I recorded a low pass of Objects 53371/53372 and after replay & analysis, find that their downlinks are 62.5k LoRa.
The LoRa parameters shown in the following tweet are probably not all exactly correct, but they were close enough for me to get a decode from one of the dirty packets from this low pass. So, I’ll be interested to see confirmation eventually of what these 2 objects are and hopefully even some info about the telemetry payload
Thanks for the info, just to be clear, they transmit only LoRa right?
I’m going to add them later in DB.
I don’t really know - have not had a chance to research them. When so many sats go up at the same time, it’s hard to keep up on all the info!
Here are the results after analyzing with ikhnos the latest observations:
| Name | Temporary NORAD ID | Followed NORAD ID | Other Possible NORAD IDs | Status | Update |
|---|---|---|---|---|---|
| GEOSCAN-EDELVEIS | 53385 | Identified | - | Received | Identified, ikhnos results of observation 6325542 |
| MONITOR-1 | 53374 | Identified | - | Received | Identified, ikhnos results of observation 6325548 |
| CUBESX-HSE-2 | 53383 | Identified | - | Received | Identified, ikhnos results of observation 6325560 |
| MIET-AIS | 53377 | Identified | - | Received | Identified, ikhnos results of observation 6325571 |
| VIZARD | 53386 | Identified | - | Received | Identified, ikhnos results of observation 6325574 |
| UTMN | 53376 | Identified | - | Received | Identified, ikhnos results of observation 6325734 |
| SIREN | 53384 | Identified | - | Received | Identified, ikhnos results of observation 6325596 |
| KUZBASS-300 | 53375 | Identified | - | Received | Identified, ikhnos results of observation 6325608 |
| ISOI | 99358 | 53381 | 53382 | Received | Rejected 53380 and 53383. Changed to follow 53381 instead of 53382 |
| VOENMEH | 53373 | Identified | - | Received | Identified, ikhnos results of observation 6325629 |
| RESHUCUBE | 99361 | 53382 | 53381 | Received | Rejected 55379, 53380, 53383, 53384. Changed to follow 53382 instead of 53381 |
| Skoltech B1 | 99354 | 53379 | 53380 | Received | Rejected 53381, 53382 |
| Skoltech B2 | 99393 | 53380 | 53379 | Received | Rejected 53381, 53382 |
| KAI 1 | 53378 | Identified | 53370 - 53386 | Received | Identified, ikhnos results of observation 6325679 |
Every object of this launch and its frequency
| Name | Followed NORAD ID | Frequncies | Status |
|---|---|---|---|
| 2022-096A | 53370 ? | ??? | TBD |
| Polytech-1 | 53371 ? | 436.896, 436.996, 437.476 and 437.576 MHz | TBD. See Soyuz-2.1b / Fregat Baikonur Launch 2022-08-09 05:52 UTC - #32 by K4KDR |
| Polytech-2 | 53372 ? | 436.896, 436.996, 437.476 and 437.576 MHz | TBD. See Soyuz-2.1b / Fregat Baikonur Launch 2022-08-09 05:52 UTC - #32 by K4KDR |
| CYCLOPS | 53373 | 436.050 MHz | Received |
| MONITOR-1 | 53374 | 437.550 MHz | Received |
| Kuzbass-300 | 53375 | 437.700 MHz | Received |
| UTMN | 53376 | 435.670 MHz | Received |
| MIET-AIS | 53377 | 437.900 MHz | Received |
| KAI 1 | 53378 | 435.765 MHz, 435.665 MHZ | Received |
| Skoltech B1 | 53379 | 435.000 MHz | Received |
| Skoltech B2 | 53380 | 435.000 MHz | Received |
| ISOI | 53381 | 437.650 MHz | Received |
| SIBSU | 53382 | 435.380 MHz | Received |
| CUBESX-HSE-2 | 53383 | 435.570 MHz | Received |
| SIREN | 53384 | 437.750 MHz | Received |
| GEOSCAN-EDELVEIS | 53385 | 436.200 MHz | Received |
| VIZARD | 53386 | 437.800 MHz | Received |
