Here are some pictures of my SatNOGS station for the UHF band. It’s open for everyone to make observations from my station. This station saves the IQ file. If you need a specific IQ file, you can request it by sending me a direct message.
I use an RTL-SDR v4 and a Raspberry Pi 4. The outdoor LNA is connected to the SDR over Belden RG6 coaxial cable that is 15 meters long.

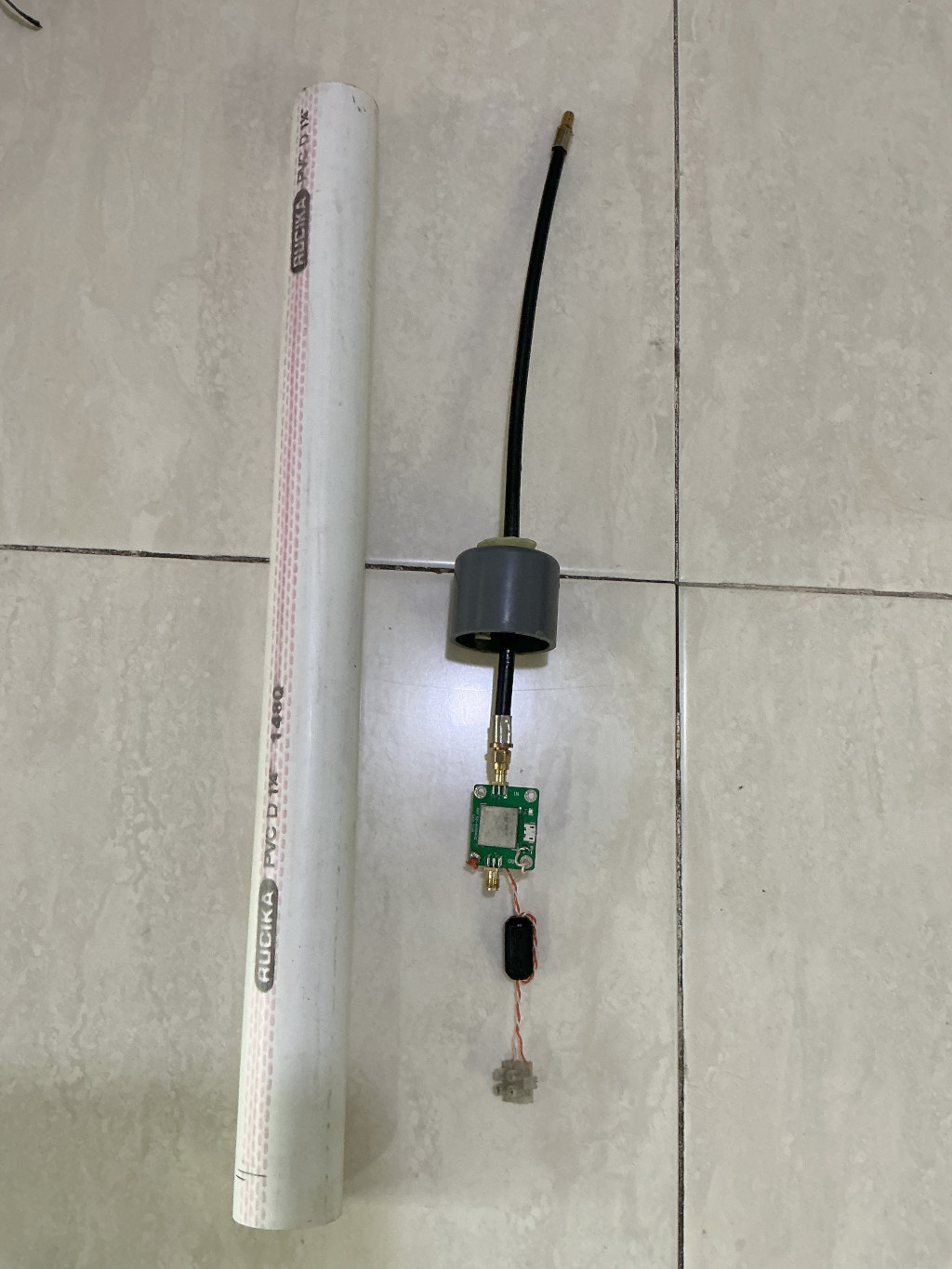

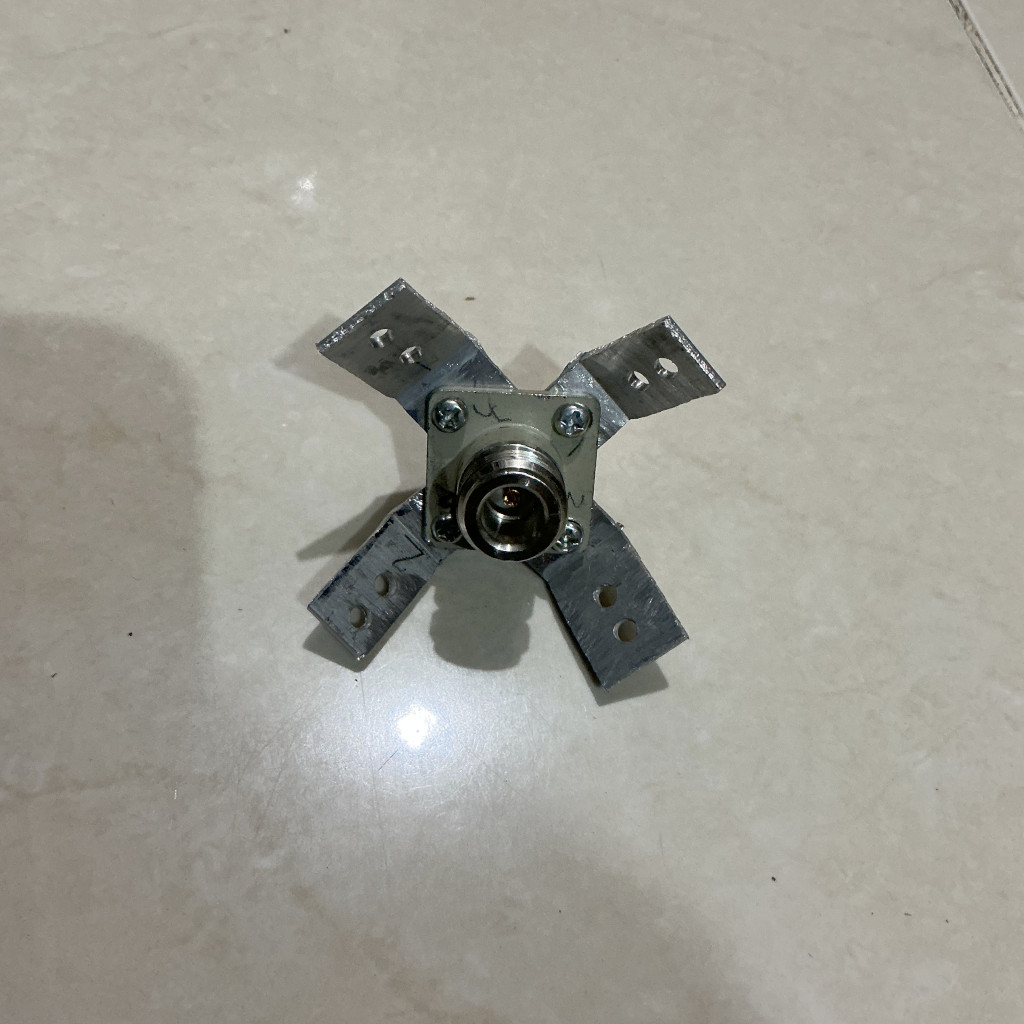

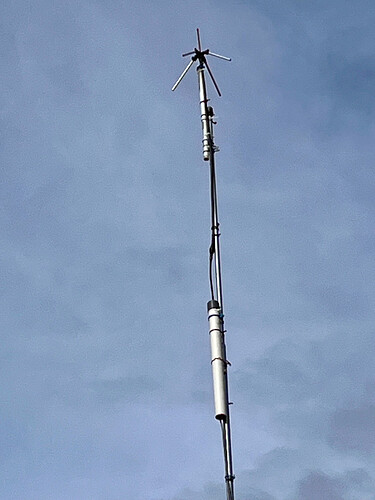

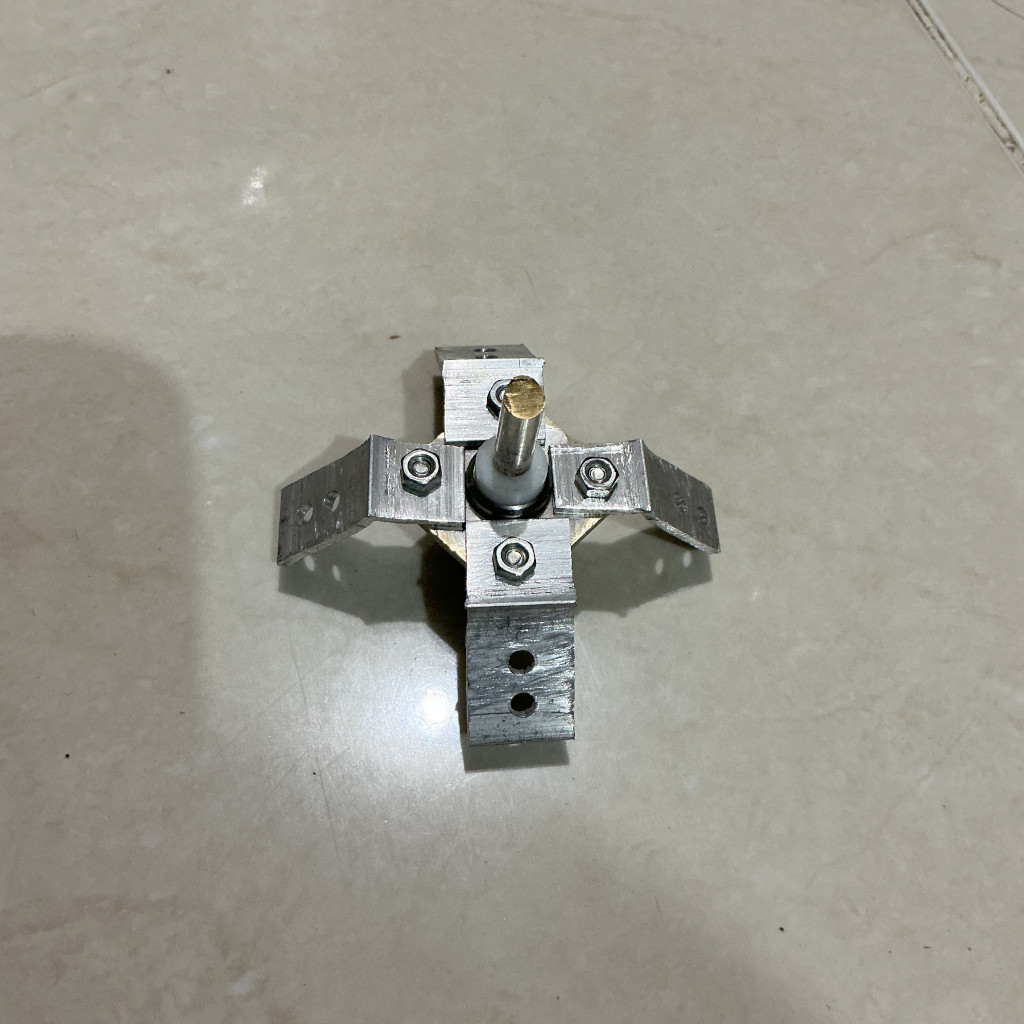

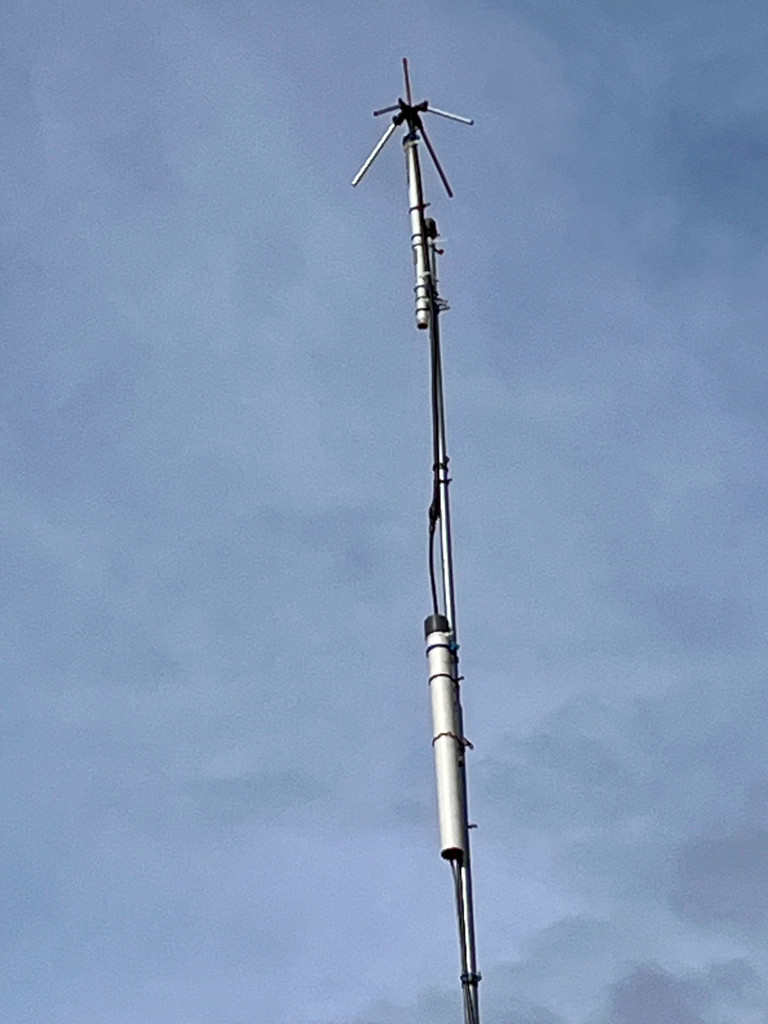

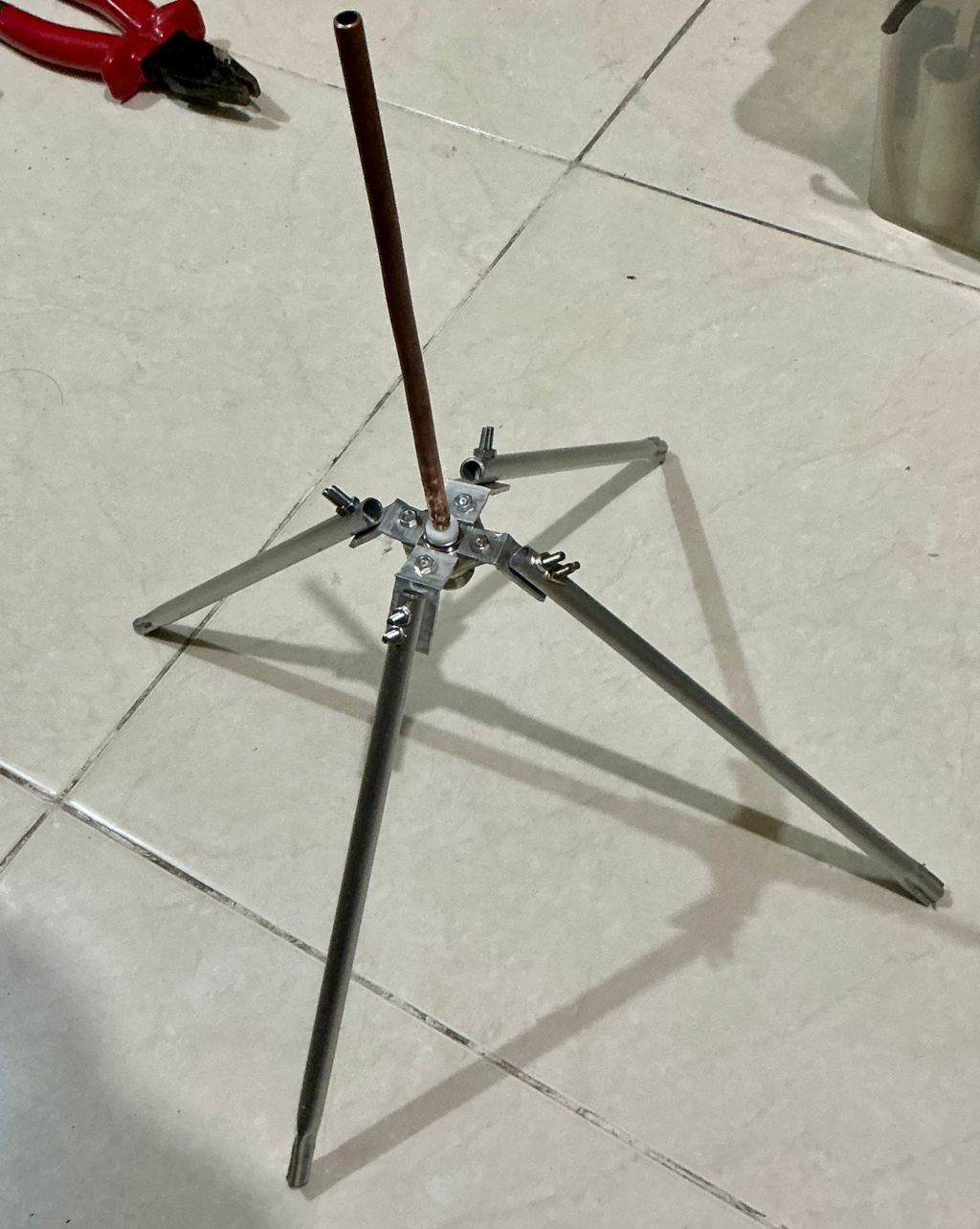

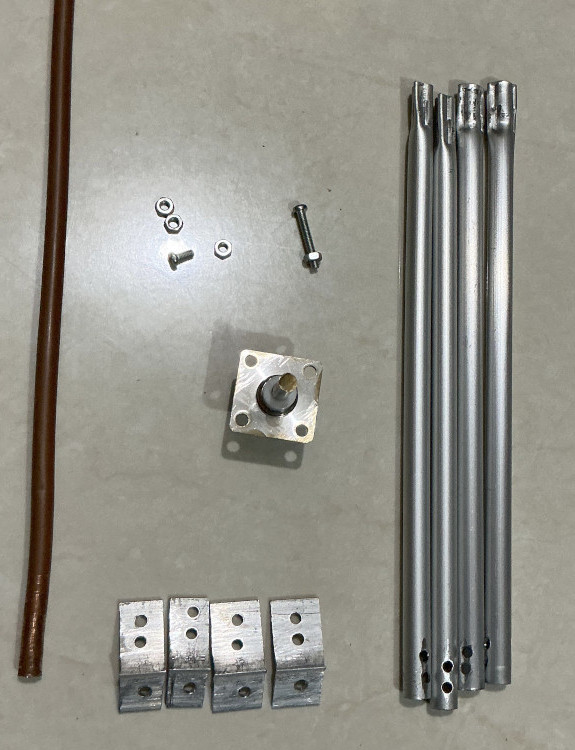

The antenna is made from an aluminum tube for the radials and a copper tube for the driver. I placed the LNA inside a DIY PVC tube case, which is waterproof. The antenna stands on a galvalume pipe, approximately 15 meters above the ground.
