PARUS-T1 Cubesat Mission

Satellites & Observations
22

2025-01-15 02:17UTC

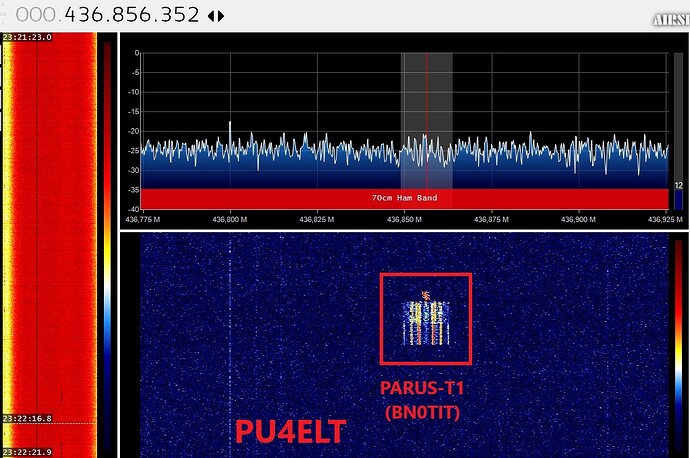

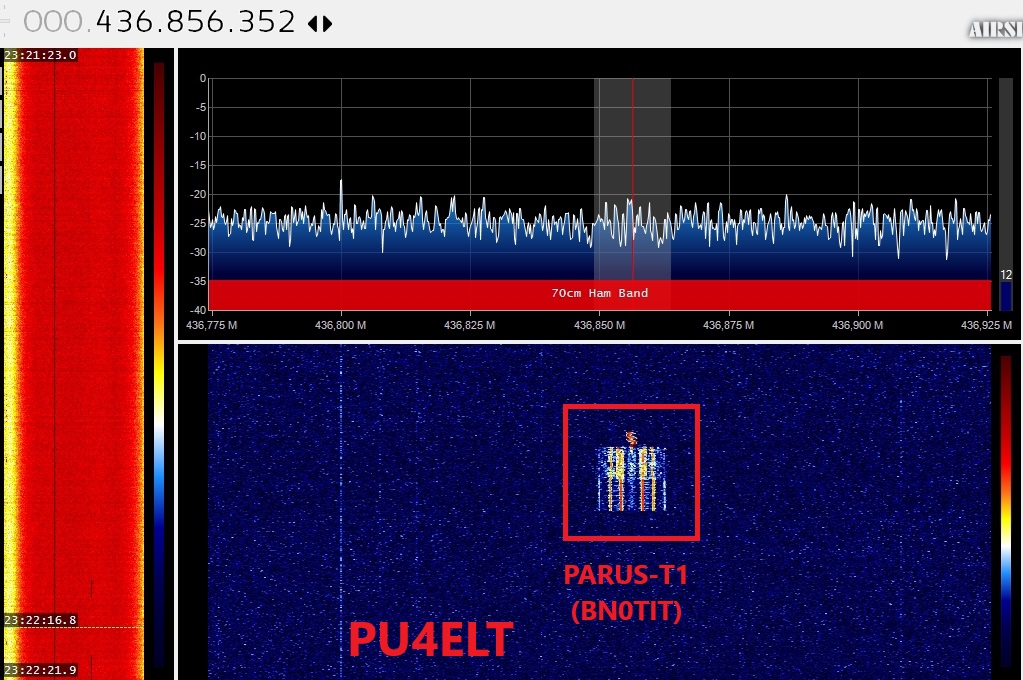

Strong signals were received from the PARUS-T1 on its first pass over Brazil !!!

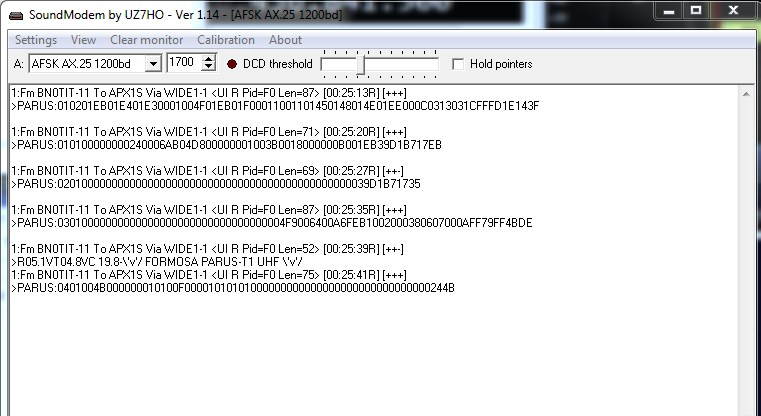

In total I received 8 packets in AFSK 1k2 (Disregard the time shown on the SoundModem as I decoded the packets after the satellite pass).

(The first packet was received at 02:22UTC)

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=73> [23:44:14R] [+++]
>PARUS:010300070000000000000500020000000005000300000000070003000000EBC0

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=73> [23:44:22R] [+++]
>PARUS:010400070000000000000700030000000007000300000000070000000000EB6A

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=87> [23:44:38R] [+++]
>PARUS:010201EC01E501E50002005D01EC01E90016001101460148014E01EC000B0319031FFFB61F40FF

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=71> [23:44:45R] [+++]
>PARUS:010100000000280006D0084F000000060012001D000000B001EB39D1B71715

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=69> [23:44:52R] [+++]
>PARUS:0201000000000000000000000000000000000000000000000039D1B71735

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=87> [23:45:00R] [+++]
>PARUS:03010000000000000000000000000000000004AC0043FFFEFFAA0011FFD50436000400640AFFD1

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=75> [23:45:06R] [+++]
>PARUS:0401004B000000010100F000010101010000000000000000000000000000001F4B

1:Fm BN0TIT-11 To APX1S Via WIDE1-1 <UI R Pid=F0 Len=87> [23:45:30R] [+++]
>PARUS:010201EC01E501E50002005D01EC01E90016001101460148014E01EC000B0319031FFFB61F40FF

PARUS T1
PARUS T11023×680 245 KB

73’s de PU4ELT (GH70qd) :brazil: !!

5 Likes
23

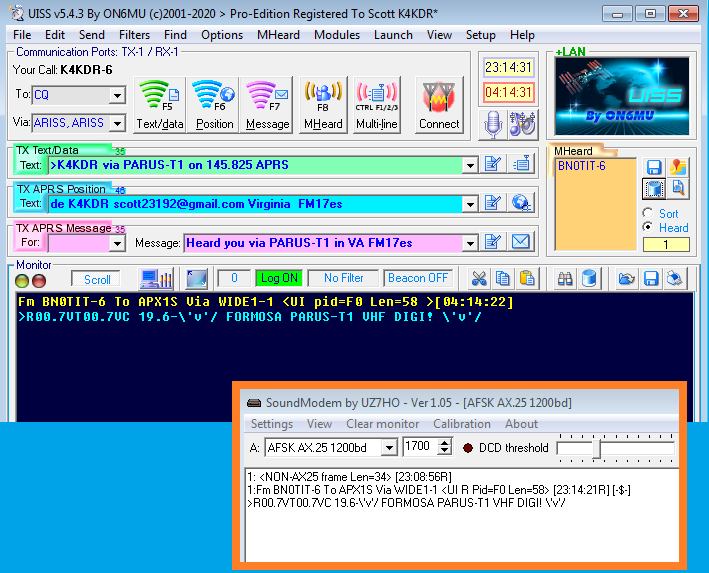

Great to see that the 2-meter side of PARUS-T1 is working well also. Had found good decodes on 145.825 from earlier SatNogs observations, but always nice to see for yourself! Can anyone confirm the correct Digipeater Path to use when it’s enabled for 2-way traffic? (for example, “CQ via ARISS”… “CQ via BN0TIT”… something else?)

combo
combo709×573 67.6 KB

2 Likes
24

The Digipeater function can service for any kind of APRS AX.25 protocol, no need to special setup path to PARUS-T1.
It transmit any message once AX.25 packet received.

2 Likes
25

Thanks very much for the info!

Is the 145.825 digipeater enabled yet?

26

It is already on duty for global service 24hr /7d.
Welcome for any application or education.

4 Likes
27

faint observation on a low pass
https://network.satnogs.org/observations/10929355/

3 Likes
28

Hi Randson,

Do you mean by the above sentence that you don’t have to use a via callsign for digipeating?
And if someone used a via callsign anyway? Will the packet get digipeated?

Yesterday, I accidentally used a different one, not BN0TIT, and got no response. So I’m now not sure if it’s due to the wrong one or if PARUS-T1 just didn’t hear me.

Your answer to this question is important for the decoder.

Will try again today on 10:52 pass.

Could you provide a record from a digipeated packet?

Daniel

29

2025-01-14 21:53 + 21:58 UTC 436.850

>PARUS:01040006000000000000060002000000000600020000000007000000000033D9
>PARUS:010201EB01E301E30001004F01EC01EE0010001101450148014E01EC000E03130319FFB31DB08F
>PARUS:0101000000002500083C05DD000000010031003A000000B001EA39D1B71773
>PARUS:0201000000000000000000000000000000000000000000000039D1B71735
>PARUS:030100000000000000000000000000000000044D005E0088FE88001C001801CF000D0077016078
>PARUS:0401004B000000010100F000010101010000000000000000000000000000001D4B
>R05.0VT04.7VC 22.9-\'v'/ FORMOSA PARUS-T1 UHF \'v'/
>PARUS:03010000000000000000000000000000000004A3005F000BFDCC002200BB01C1000E00AFFEAB42
>R04.9VT04.8VC 21.6-\'v'/ FORMOSA PARUS-T1 UHF \'v'/
2 Likes
30

Hi Daniel,

Yes, the digipeater works like a general APRS station on the ground; you don’t need to set up “via BN0TIT.” It also supports WIDE2-2. Let’s try testing it on more days to figure out why you didn’t get a digipeater response. It’s possible there were temporary issues with the satellite’s reception or other factors. Consistent testing will help isolate the problem.

3 Likes
31

So…Do you think is Digipeater also workable on UHF?
Hi hi… :wink:

2 Likes
32

I tried again on pass 10:52 UTC, almost zenith.
1x telemetry on UHF, no response on VHF for no via, via BN0TIT, via BN0TIT-11, via WIDE1-1.
I indeed tried it also on UHF, but also no response there.

2 Likes
33

I listened on that pass too. Didn’t hear anything on vhf. Heard a couple of tlm bleeps on uhf but not good enough to get a decode.

34

image1423×897 252 KB

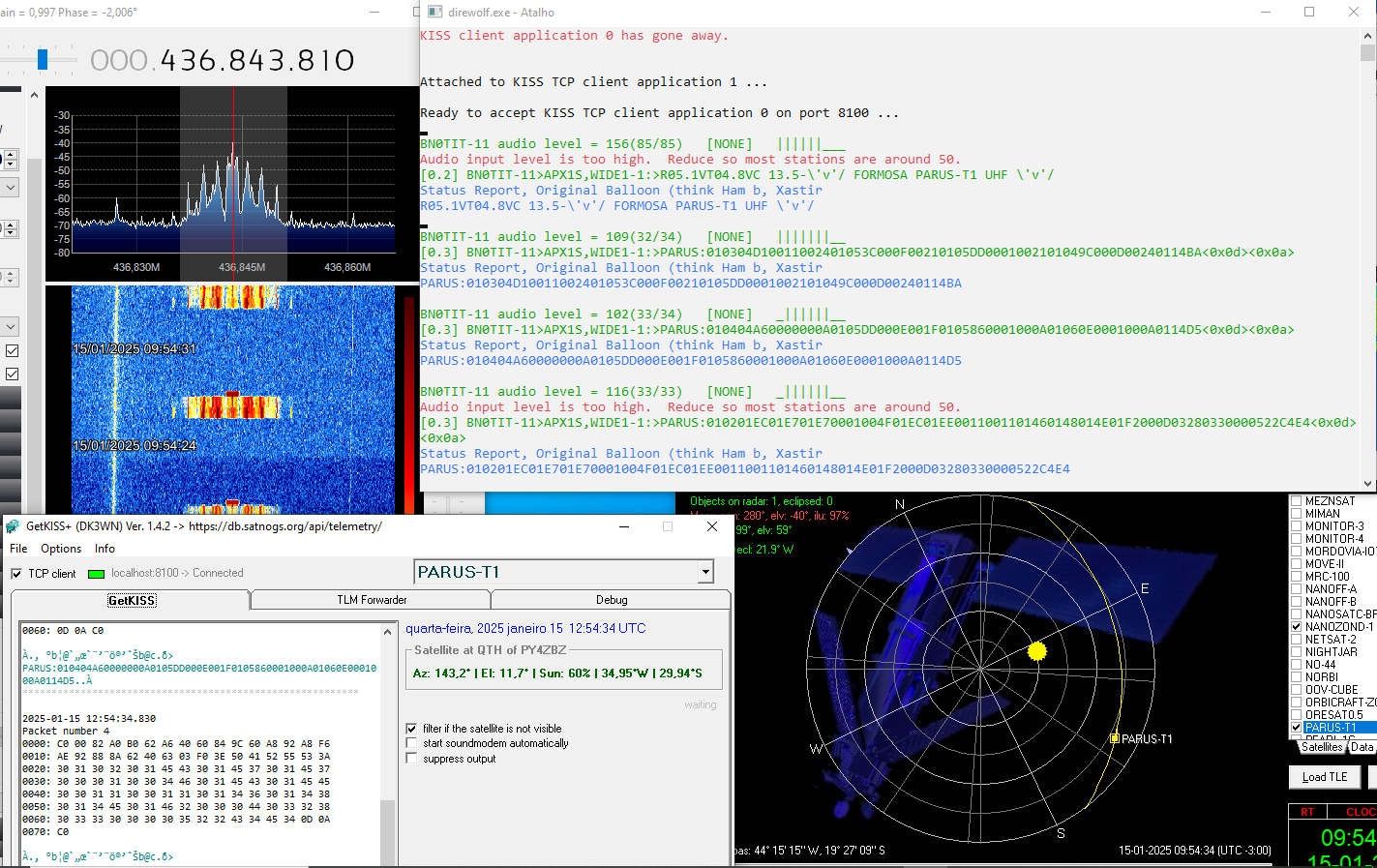

PARUS-T1 over Brazil PY4ZBZ

6 Likes
35

21:35 UTC zenith pass: no sigs on VHF and UHF.

36

Good copy of PARUS-T1 at 23:15UTC in 436.850 in Madrid,Spain. Orbit #019. Frames uploaded into Satnogs

image761×416 28.6 KB

5 Likes
37

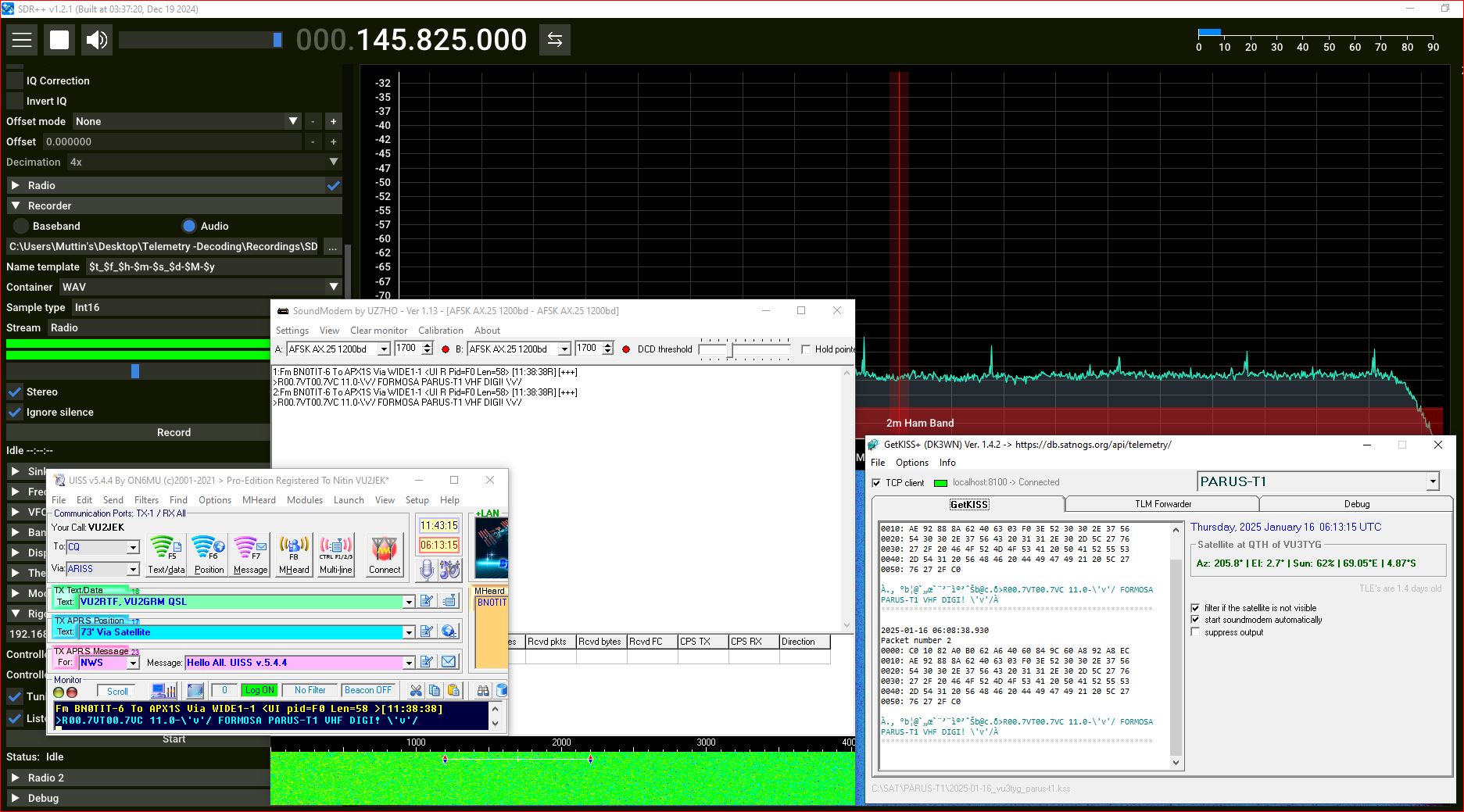

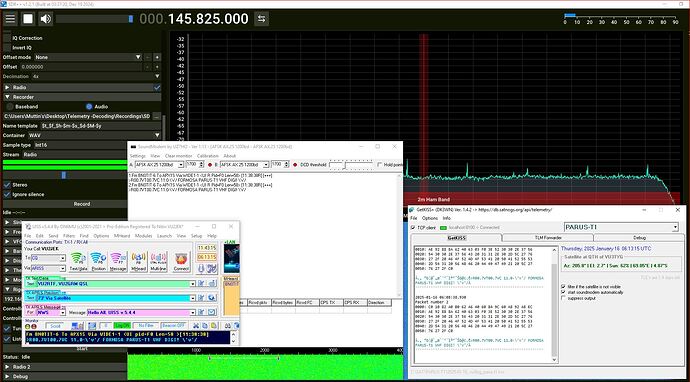

Strong signals over India. Will try digipeating during next pass.

Capture
Capture1873×1039 307 KB

6 Likes
38

Hi Ranson,

I worked on it again and finally built a decoder.
During testing, I confirmed my previous observation: the provided audio file produces a packet that exactly matches the telemetry definition provided on January 10th.
So the decoder works on these packets.

However, for example, the EPS-01 packet currently being transmitted by PARUS-T1 is 8 bytes longer compared to the one from your audio file.

Therefore, I need the actual telemetry definition which fits the from PARUS-T1 transmitted packets in its length to be able to adjust the decoder and put it online.

Daniel

3 Likes
39

Will update you lately.

1 Like
40

The Digipeater function will no request for destination call sign… The TT&C testing example like this…
Uplink : BV3TK-6 and handy transceiver model name APUV98
Downlink: BN0TIT-6 or BN0TIT-7 either…

BV3TK-6>APUV98,WIDE1-1,WIDE2-1:!3133.90N/12022.80Eb000/000/A=000328WJ2I 7.6V 28.2C 1017.0hPa

BV3TK-6>APUV98,BN0TIT-6*,WIDE1*,WIDE2-1:!3133.90N/12022.80Eb000/000/A=000328WJ2I 7.6V 28.2C 1017.0hPa

BV3TK-6>APUV98,WIDE1-1,WIDE2-1:!3133.90N/12022.80Eb000/000/A=000328WJ2I 7.6V 28.7C 1017.0hPa

BV3TK-6>APUV98,BN0TIT-6*,WIDE1*,WIDE2-1:!3133.90N/12022.80Eb000/000/A=000328WJ2I 7.6V 28.7C 1017.0hPa

BV3TK-6>APUV98,BN0TIT-6*,WIDE1*,BN0TIT-7*,WIDE2*:!3133.90N/12022.80Eb000/000/A=000328WJ2I 7.6V 28.7C 1017.0hPa

BN0TIT-7>APX1S,WIDE1-1:>R00.7VT00.7VC 23.0-'v’/ FORMOSA PARUS VHF DIGI! 'v’/

BN0TIT-7>APX1S,BN0TIT-6*,WIDE1*:>R00.7VT00.7VC 23.0-'v’/ FORMOSA PARUS VHF DIGI! 'v’/

BN0TIT-6>APX1S,WIDE1-1:>R00.7VT00.7VC 22.4-'v’/ FORMOSA PARUS VHF DIGI-250121! 'v’/

BN0TIT-6>APX1S,BN0TIT-7*,WIDE1*:>R00.7VT00.7VC 22.4-'v’/ FORMOSA PARUS VHF DIGI-250121! 'v’/

4 Likes
41

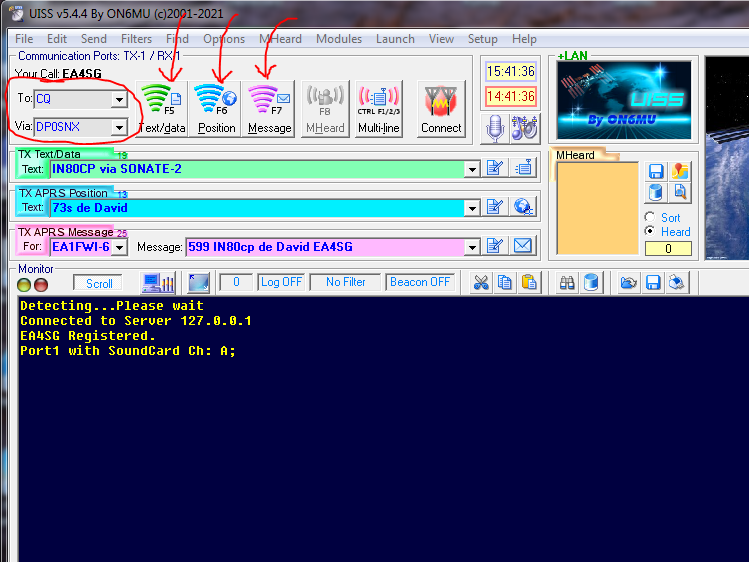

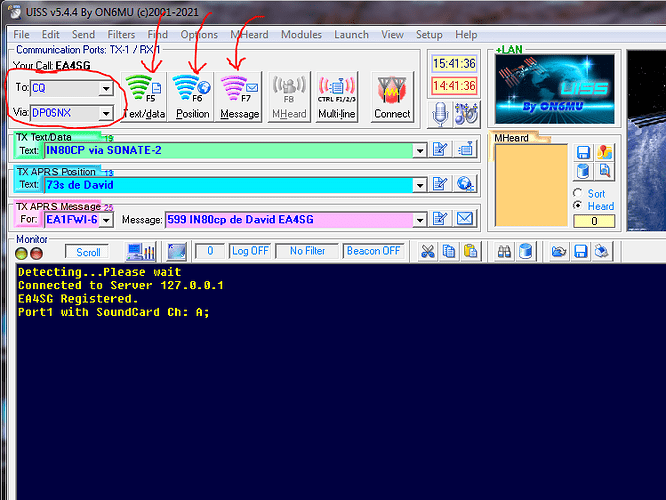

Could you please show a simple example about how to use any terminal program for digipeating through your satellite ?

Using UISS program… What we have to put in the “TO” field? And in the “VIA” field? Should we send “Text/Data”, “Position” or “Message” frames?

Thanks

David EA4SG

image749×562 101 KB
