Regarding Observation 11546350 …
well… I’m new with gr_satellites
I got this from this observation.
📡 Running gr_satellites with satellite 'ARCTICSAT-1'...
log :warning: `pdu_to_tagged_stream` has moved to gr-pdu and will be removed from gr-blocks soon. Please update to use pdu.pdu_to_tagged_stream()
***** VERBOSE PDU DEBUG PRINT ******
((transmitter . 9k6 USP FSK downlink) (rs_errors . 0) (iterations . -1))
pdu length = 105 bytes
pdu vector contents =
0000: a4 64 82 9c 8c 40 60 a4 a6 6e 68 a6 40 63 00 f0
0010: 46 42 02 00 01 00 19 00 08 00 ff 71 22 08 d4 0e
0020: a4 c2 19 68 86 d2 01 00 80 25 00 00 26 00 20 1f
0030: 01 21 ed 04 00 01 00 30 00 5c 12 d1 13 26 10 00
0040: 00 35 00 56 00 20 00 00 00 2f 00 00 00 00 00 00
0050: 00 9c 00 96 00 8f 00 c1 00 00 40 00 00 2c 1f 02
0060: d3 01 00 51 cc 96 5a 5c 04
************************************
Yes it is, replay of you audio.
gr_satellites ARCTICSAT-1.yml --wavfile 11546350.ogg --samp_rate 48e3
name: ARCTICSAT-1
alternative_names:
- RS74S
norad: 61762
data:
&tlm AX25 telemetry:
telemetry: ax25
transmitters:
2k4 USP FSK downlink:
frequency: 435.890e+6
modulation: FSK
baudrate: 2400
deviation: 600
framing: USP
data:
- *tlm
4k8 USP FSK downlink:
frequency: 435.890e+6
modulation: FSK
baudrate: 4800
deviation: 1200
framing: USP
data:
- *tlm
9k6 USP FSK downlink:
frequency: 435.890e+6
modulation: FSK
baudrate: 9600
deviation: 2400
framing: USP
data:
- *tlm
-> Packet from 9k6 USP FSK downlink
Container:
header = Container:
addresses = ListContainer:
Container:
callsign = u'R2ANF' (total 5)
ssid = Container:
ch = False
ssid = 0
extension = False
Container:
callsign = u'RS74S' (total 5)
ssid = Container:
ch = False
ssid = 1
extension = True
control = 0x00
pid = 0xF0
info = b'FB\x02\x00\x01\x00\x19\x00\x08\x00\xffq"\x08\xd4\x0e\xa4\xc2\x19h\x86\xd2\x01\x00\x80%\x00\x00&\x00 \x1f\x01!\xed\x04\x00\x01\x000\x00\\\x12\xd1\x13&\x10\x00\x005\x00V\x00 \x00\x00\x00/\x00\x00\x00\x00\x00\x00\x00\x9c\x00\x96\x00\x8f\x00\xc1\x00\x00@\x00\x00,\x1f\x02\xd3\x01\x00Q\xcc\x96Z\\\x04' (total 89)
gr_satellites ARCTICSAT-1.yml --wavfile 11546350.ogg --samp_rate 48e3 --hexdump
***** VERBOSE PDU DEBUG PRINT ******
((transmitter . 9k6 USP FSK downlink) (rs_errors . 0) (iterations . -1))
pdu length = 105 bytes
pdu vector contents =
0000: a4 64 82 9c 8c 40 60 a4 a6 6e 68 a6 40 63 00 f0
0010: 46 42 02 00 01 00 19 00 08 00 ff 71 22 08 d4 0e
0020: a4 c2 19 68 86 d2 01 00 80 25 00 00 26 00 20 1f
0030: 01 21 ed 04 00 01 00 30 00 5c 12 d1 13 26 10 00
0040: 00 35 00 56 00 20 00 00 00 2f 00 00 00 00 00 00
0050: 00 9c 00 96 00 8f 00 c1 00 00 40 00 00 2c 1f 02
0060: d3 01 00 51 cc 96 5a 5c 04
************************************

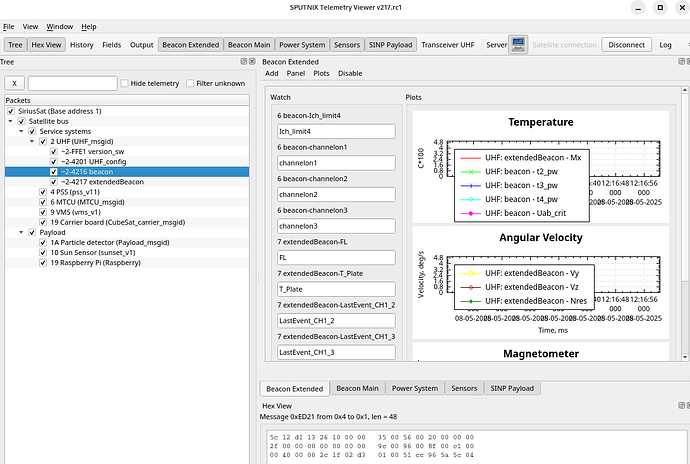

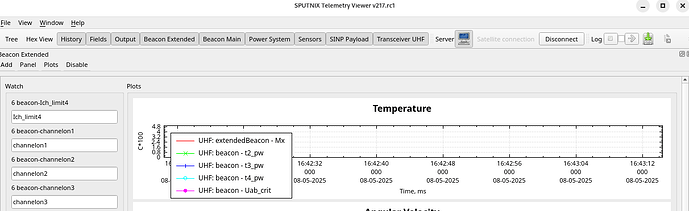

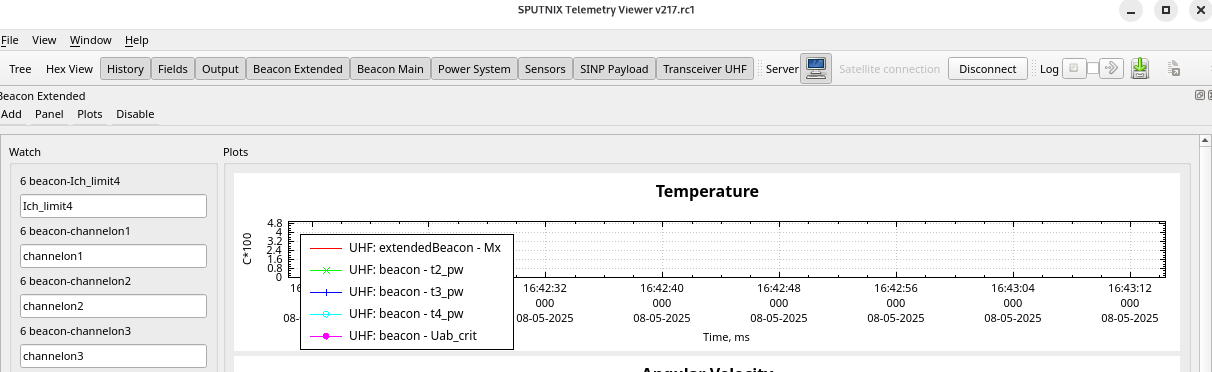

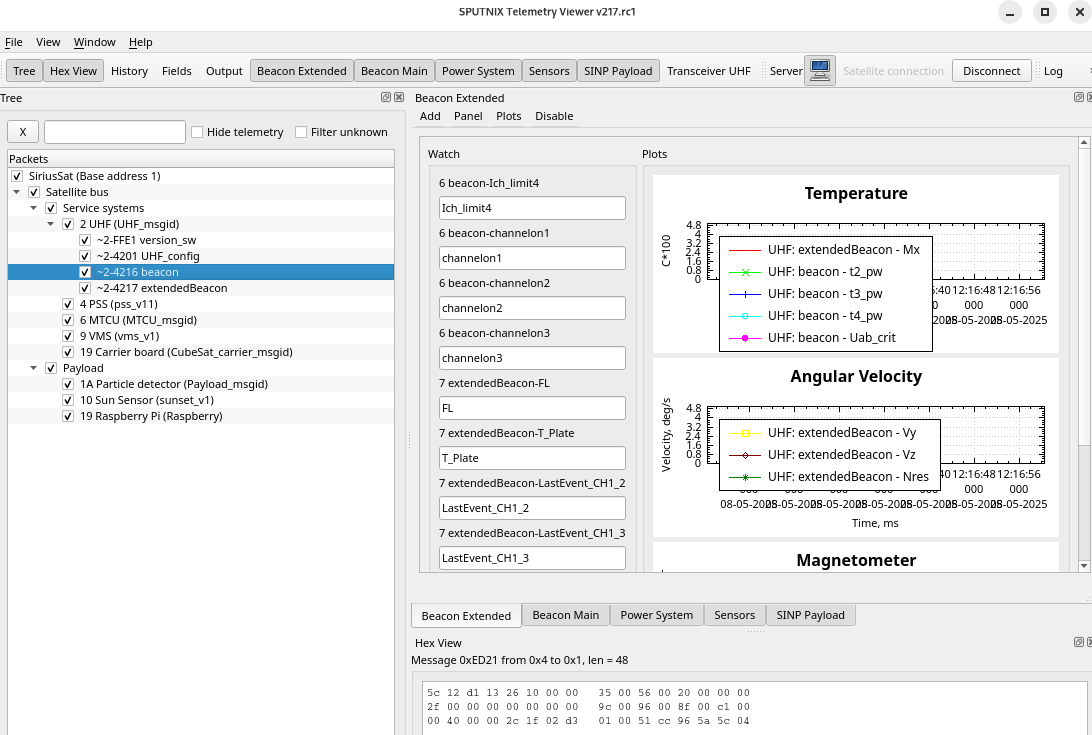

Using the SPUTNIX Telemetry Viewer
question: I try to run your same command. but it gives me
Could not open SatYAML file:
[Errno 2] No such file or directory: 'ARCTICSAT-1.yml'
I shared the ARCTICSAT-1.yml content in the previous post, create the file with the content shared.
keezy
May 8, 2025, 3:57pm
5
This is my first time hearing of this software. Could you please give a little tutorial or briefing on how to use it or understand the interface?
Like all AGWPE client implementations you need a soundmodem that support this client server protocol. The soundmodem version from UZ7HO all support this option and is enabled by default.
Some steps:

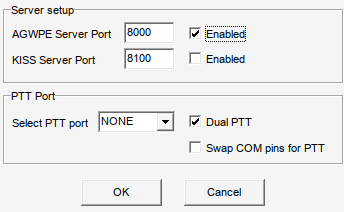

Run the UZ7HO soundmodem for the specific satellite/mode and check settings → devices to see if the AWPE Server port is set and activated.
Now you can run the SPUTNIX Telemetry Viewer and click connect.
All audio received by the soudmodem and that is successfully decoded will be forwarded via the AGWPE link and converted to telemetry information.
MS TLM decoding block diagram .
Jan | PE0SAT
1 Like

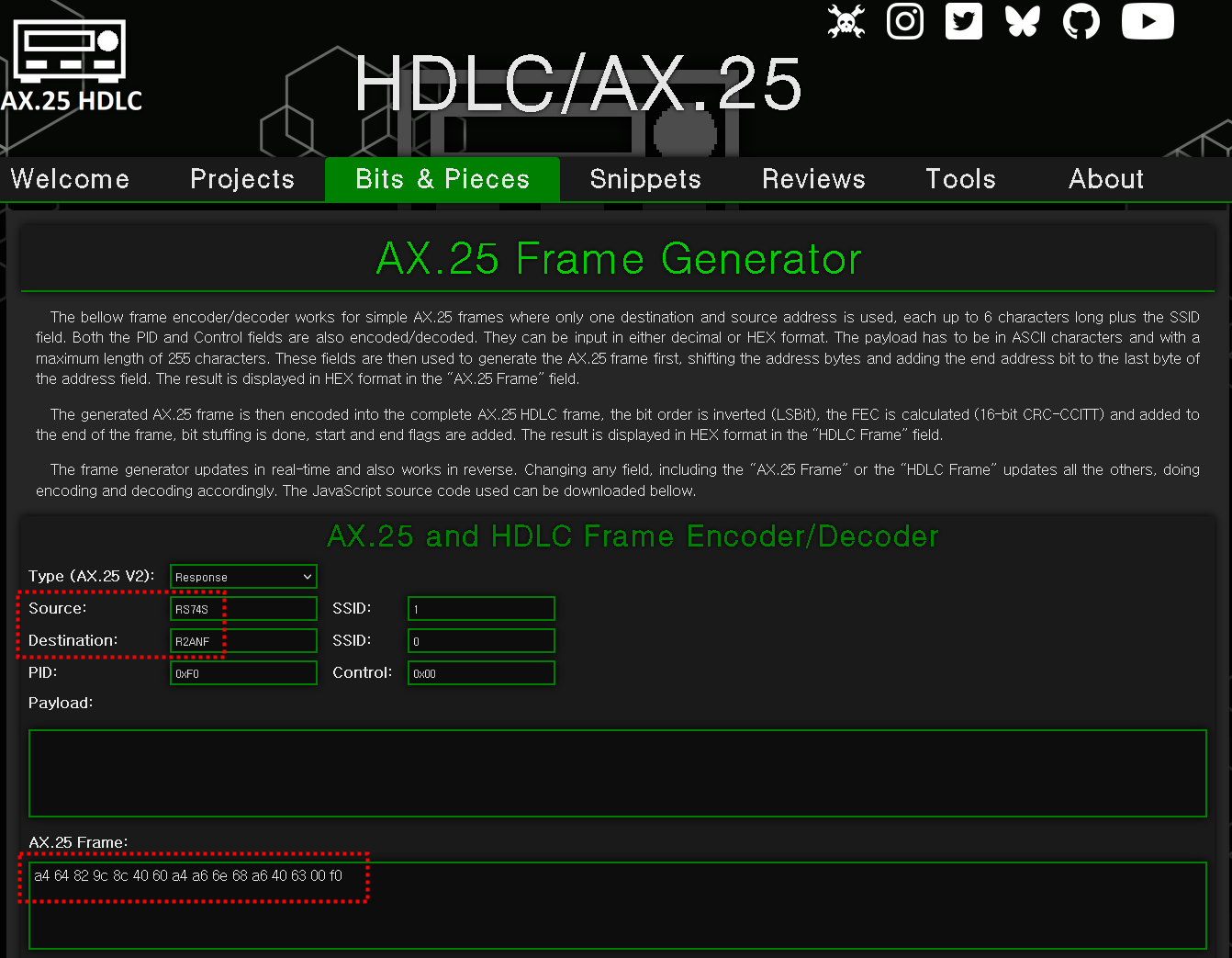

Another quick check is via notblackmagic.com
Just copy the first 16 bytes (the first row)
a4 64 82 9c 8c 40 60 a4 a6 6e 68 a6 40 63 00 f0
(Destination Callsign - Source Callsign )
and paste it as shown in the screenshot below.
3 Likes
