QMR-KWT-2 voice repeater test

QMR-KWT-2 voice repeater is scheduled to be turned on for tests tomorrow, 17/01/2025 7:15-21:00 UTC. Tests with reports are appreciated.

NORAD ID 67291
Uplink frequency is 145,920 MHz , CTCSS tone 67,0 Hz
Downlink frequency is 436,950 MHz.

On our preliminary test 3W with 3-element yagi antenna was enough to open it at 10 degree elevation.

8 Likes

Ohhh, I’m so excited to test this bird :grin: !!

2 Likes

Hi Roman,

Thank you very much for posting the schedule here in the forum.

I’ve already received and decoded 2k4 telemetry packets.
Do you know if the satellite team confirms this with QSL cards in return?

73
Daniel

3 Likes

2026-01-17 10:18 - 10:29
Heard mm9sql, iw3ssa, g6ust, on3onx, f5rro, ik7fmq, f1gow, ea3ea, df2et.

2026-01-17T10:17:53 (mm9sql, iw3ssa, g6ust, on3onx, f5rro, ik7fmq, f1gow, ea3ea, df2et).mp3.zip (8.3 MB)

4 Likes

QMR-KWT-2 over Bali (OI71oi), 2026-01-17, 14:26 UTC.

QSO : YD9IPB, YC1BMJ, YC1DDP, YE3ERE, YD3ADN
Heard : YD8KYS, YC8RPK, YC8WAB.

QMR-KWT-2.zip (3.6 MB)

5 Likes

Pass over Brazil at ~13:46UTC

Many stations received with a very strong signal (I was using an FT-60R and its original omnidirectional antenna because I currently can’t point heavy antennas due to health problems).

According to reports, the satellite is easily activated with a directional antenna and 5W of power. With the omnidirectional antenna and the FT-60, I started listening to stations very well at about 3° elevation, but I couldn’t activate the repeater even once (Obviously an inappropriate setup for satellites :sweat_smile:).

The satellite is really very good (Perhaps the audio is a little low even with the very strong signal, and maybe a little more sensitivity at the repeater input would make it even better).

Those involved with QRM-KWT-2 deserve many congratulations for the beautiful satellite :partying_face:

4 Likes

I get to try two passes this night on QMR-KWT-2.

The first on the Eastern pass at 9° 14:28UTC made QSO with YE3ERE, BD7PZF and heard YD9CKH, YC8RPK, YC1BMJ, YD3ADN, YD9IPB, YC1DDP

While on the Western pass at 24° 16:00UTC made QSO with YC1DDP, YB0OSU, YB0LLW, YD6HGG and heard YD0BOQ/1, YD6ATL, YD6ASL.

My experience is that the signal is quite strong and the repeater is easy to reach but the downlink audio level is rather low.

Congratulations on the successful activation, all I can say it’s a new FM star in the sky :smiley:

4 Likes

Thank you for congratulations and test reports!

Obviously the modulation level (audio level) should be icreased, we will consider that.

Load is very high, so unfortunately battery level goes low. The repeater may have to be turned off before expected 21UTC.

For 16:24utc:

  • total time in active state = 3736 seconds
  • ActivationsCount = 1549
7 Likes

17/1/2026 received QMR KWT 2 strong in NFM over belgium this noon ,antenna turnstyle , sdrsharp. 73 nico on7ndr

4 Likes

My son and I worked the 1650UTC pass over eastern NA with good results. Using the narrow FM filter on the IC-9700 helped with the audio. Thank you for the activation. Is there something like an X account to follow for future activations and news? 73, KO4MA and KQ4SJM

6 Likes

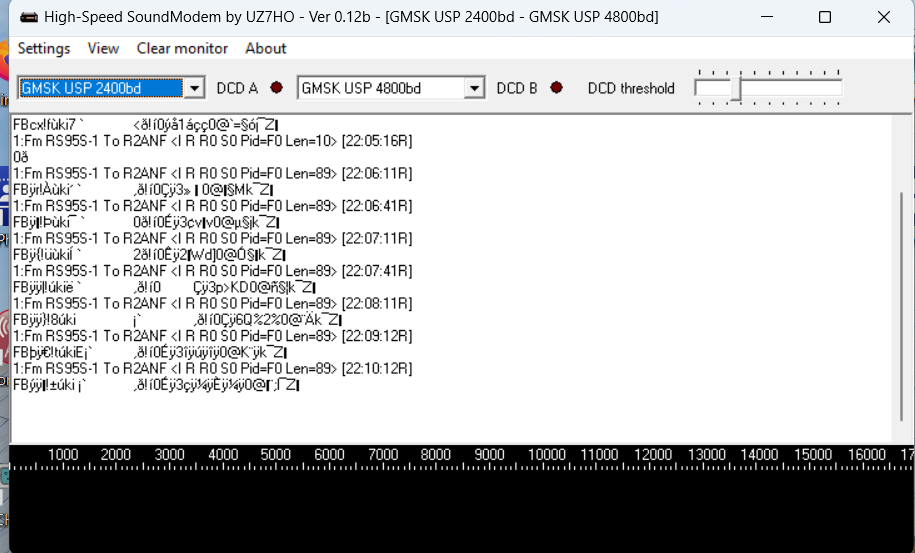

Happy to decode this telemetry with USP GMSK 2400 modem for QMR-KWT-2 (rs95s)

greetings sputnix de on7ndr

3 Likes
